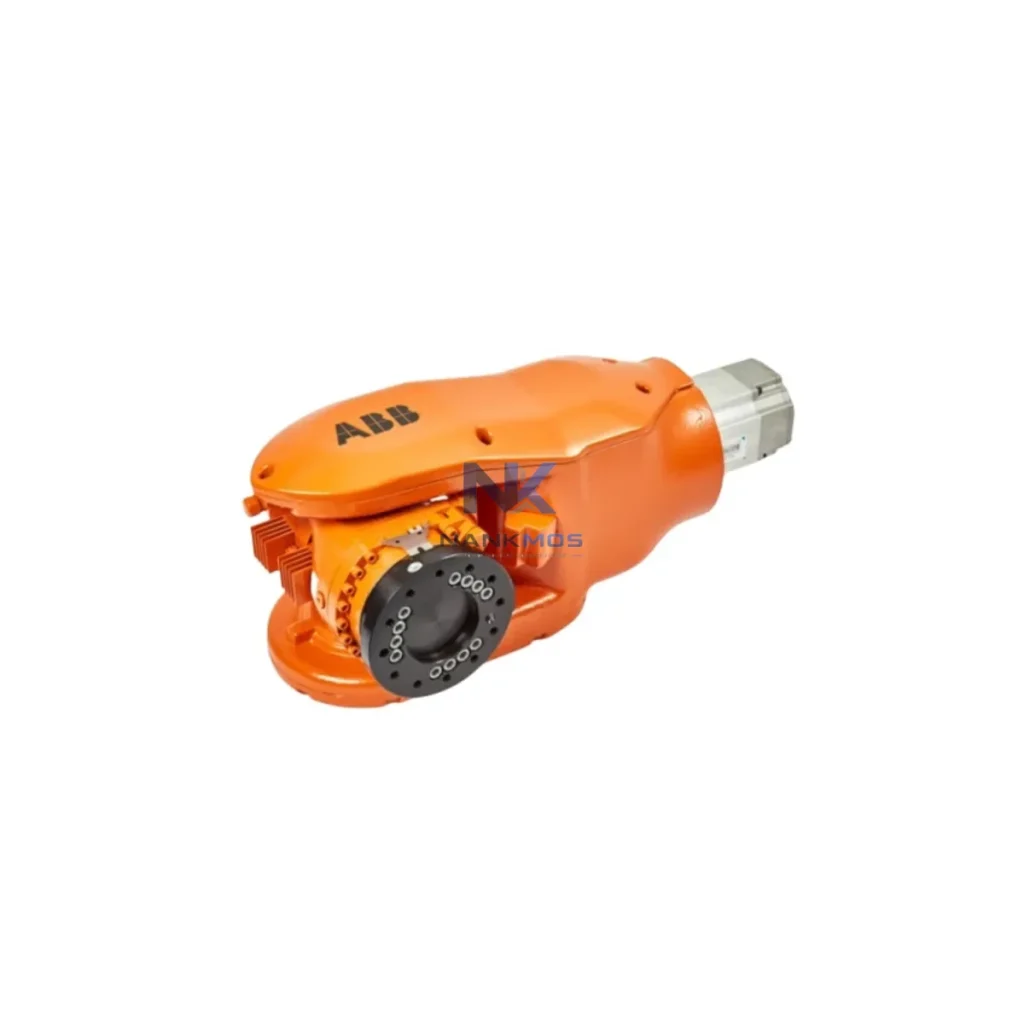

ABB IRB7600IRC5 IRB6700IRC5 IRB4600IRC5 Robot Wrist Unit

Product Details

IRB7600IRC5 IRB6700IRC5 IRB4600IRC5 Product Description

The ABB IRB7600IRC5 Energy-Control Robot Wrist Unit is a precision-engineered servo wrist assembly designed for ABB IRC5 controller platforms, delivering measurable reductions in energy consumption, thermal load, and unplanned downtime across high-cycle industrial production lines. Compatible with IRB7600, IRB6700, and IRB4600 robot families, this wrist unit plays a central role in power-aware automation strategies where every watt of servo energy must be accounted for and optimized.

In modern smart factories, energy efficiency is not a single-component achievement — it is a system-level discipline. The ABB IRB7600IRC5 wrist unit operates as a critical mechanical node within a broader power-aware automation architecture. When paired with the ABB IRC5 Drive Module, the wrist unit benefits from the IRC5's integrated regenerative braking and adaptive torque control, which dynamically adjusts servo current based on real-time load feedback — reducing peak energy draw during high-inertia wrist movements.

The IRC5 controller communicates wrist-axis position and torque data to the ABB DSQC 661 main computer board and associated DSQC 663 drive interface boards, enabling closed-loop servo optimization. This data loop allows the system to detect mechanical inefficiencies — such as bearing drag or misalignment — before they escalate into energy-wasting faults. Integration with ABB RobotWare 6.x motion software further enables energy-saving motion profiles, where the IRC5 calculates the most power-efficient path trajectory for each wrist-axis cycle.

For facilities running energy management systems, the IRC5 platform supports OPC-UA and PROFINET communication modules, allowing wrist-axis power consumption data to be streamed directly to SCADA systems or MES platforms for real-time energy monitoring and KPI reporting. When combined with ABB Ability™ Connected Services or third-party power monitoring modules, plant engineers gain granular visibility into per-robot energy consumption — enabling load balancing across production cells and identifying robots operating above their energy baseline.

On lines where the IRB7600 operates alongside ABB IRB6700 and IRB4600 robots — each equipped with their respective IRC5-compatible wrist units (IRB6700IRC5, IRB4600IRC5) — a unified energy monitoring strategy can be deployed across the entire robot fleet. The FlexPendant HMI provides operators with real-time axis load indicators, allowing manual intervention when wrist-axis current draw signals abnormal mechanical resistance. This human-in-the-loop feedback mechanism is a practical first line of defense against energy waste caused by mechanical wear.

Production line energy optimization begins at the mechanical level. A worn or misaligned robot wrist unit forces servo drives to compensate with higher current output — a silent energy drain that accumulates across thousands of daily cycles. The ABB IRB7600IRC5 wrist unit, manufactured to ABB Robotics' original mechanical tolerances, restores the wrist axis to its designed friction coefficient, directly reducing the servo current required to maintain programmed speed and torque profiles.

In high-throughput environments such as automotive body shops, foundry tending lines, and heavy palletizing cells, the IRB7600 operates at near-continuous duty cycles. A mechanically degraded wrist unit in these environments not only increases energy consumption but also introduces micro-vibrations that affect path accuracy — forcing the IRC5 controller to apply corrective torque pulses that further increase energy draw. Replacing a worn wrist unit with the IRB7600IRC5 eliminates this correction loop, restoring both energy efficiency and path repeatability simultaneously.

From a predictive maintenance perspective, the IRC5's built-in service interval tracking — accessible via the FlexPendant or RobotStudio offline programming environment — monitors wrist-axis service hours and alerts maintenance teams before mechanical degradation reaches the energy-impact threshold. Proactive wrist unit replacement, guided by IRC5 service data, is one of the most cost-effective energy optimization interventions available to robot fleet managers.

Beyond the individual robot, optimizing wrist unit health across an IRB7600 fleet contributes to line-level energy stability. When all robots on a production line operate within their designed mechanical parameters, the aggregate servo load on the facility's power distribution system becomes more predictable — reducing reactive power demand, stabilizing voltage levels, and improving the overall power factor of the production cell. This system-level benefit is particularly significant in facilities where multiple IRB7600 units operate in synchronized production sequences, where wrist-axis energy spikes from one robot can propagate as voltage fluctuations to adjacent equipment.

All IRB7600IRC5 wrist units supplied by NANKMOS are sourced from verified supply channels, subjected to full functional and load testing prior to shipment, and covered by a 12-month warranty from the date of dispatch. In-stock availability ensures minimal lead time for maintenance teams operating under production uptime pressure.

Q1: How does replacing the IRB7600IRC5 wrist unit reduce energy consumption? A worn wrist unit increases mechanical friction, forcing the IRC5 servo drive to supply higher current to maintain programmed motion profiles. Replacing it with a new IRB7600IRC5 unit restores the designed friction coefficient, reducing servo current demand and lowering per-cycle energy consumption. On high-duty-cycle lines, this reduction compounds across thousands of daily robot cycles.

Q2: Is the IRB7600IRC5 wrist unit compatible with all IRC5 controller variants? Yes. The IRB7600IRC5 wrist unit is compatible with all IRC5 controller variants, including the Single Cabinet Controller, Dual Cabinet Controller, and Panel Mounted Controller. It is also compatible with IRB6700IRC5 and IRB4600IRC5 configurations when used on their respective robot models. Confirm your robot's axis configuration and payload rating before installation.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover? Every IRB7600IRC5 wrist unit undergoes full functional testing and load verification before dispatch. The 12-month warranty covers manufacturing defects and mechanical failures under normal operating conditions, commencing from the shipment date. Warranty claims are supported with direct technical assistance from NANKMOS.

Q4: How quickly can a replacement IRB7600IRC5 wrist unit be sourced, and what is the recommended replacement interval? NANKMOS maintains in-stock inventory of IRB7600IRC5 wrist units for immediate dispatch to minimize production downtime. ABB IRC5 service interval data, accessible via the FlexPendant or RobotStudio, provides wrist-axis service hour tracking to guide proactive replacement scheduling. For high-duty-cycle applications, NANKMOS recommends aligning wrist unit replacement with IRC5-recommended service intervals to prevent energy-impacting mechanical degradation.
