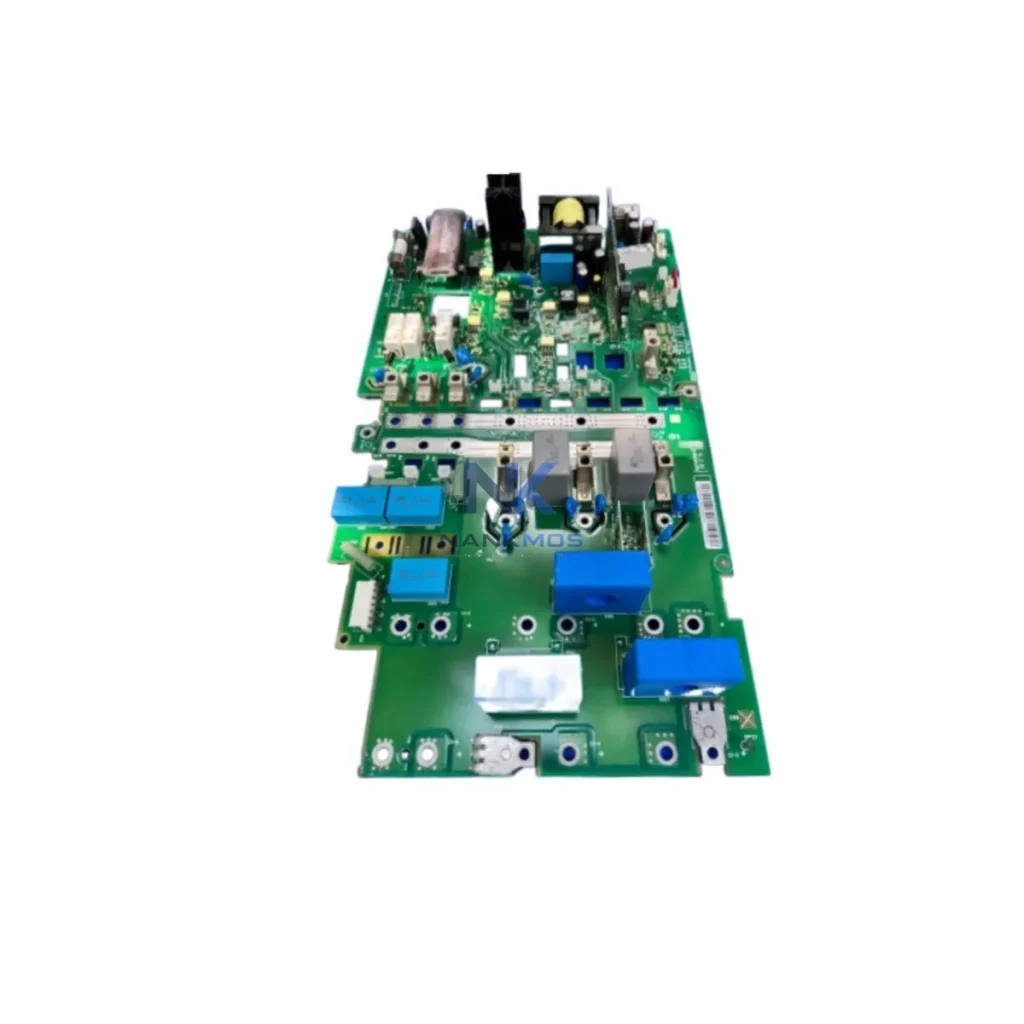

ABB JINT-E02C DCS Interface Module

Product Details

JINT-E02C Product Description

The ABB JINT-E02C is a precision-engineered DCS interface module purpose-built for integration within the ABB AC 800M distributed control system platform. Designed to serve as a critical node in multi-layer industrial automation architectures, the JINT-E02C enables seamless signal routing, I/O coordination, and inter-module communication across the full control hierarchy — from field instrumentation through to supervisory control. Whether deployed in continuous process industries, power generation, or advanced manufacturing environments, this module delivers the system consistency, signal integrity, and long-term reliability that mission-critical operations demand.

The JINT-E02C does not operate in isolation — its value is realized through tight integration with the broader ABB AC 800M control ecosystem. In a typical system architecture, the module interfaces directly with the PM861 or PM864 processor modules, which serve as the central CPU units managing scan cycles, program execution, and inter-module data exchange. Signal inputs from field devices are aggregated through AI810 and AI820 analog input modules, while digital field signals are handled by DI810 and DO810 digital I/O modules mounted on the same S800 I/O backplane.

For communication-layer integration, the JINT-E02C works in conjunction with CI854 PROFIBUS DP communication interface modules, enabling the AC 800M controller to exchange data with third-party field devices, variable frequency drives, and remote I/O stations. In redundant architectures, the module is paired with TB820 ModuleBus optical port modules to extend the I/O bus over fiber, ensuring signal stability across long cable runs or electrically noisy environments.

Power distribution within the control cabinet is managed by SD821 and SD822 power supply units, which provide regulated 24 VDC to the I/O modules and interface cards. For HMI integration, the AC 800M platform connects to ABB Panel 800 operator terminals or third-party SCADA systems via OPC DA/UA interfaces, giving operators real-time visibility into process variables routed through the JINT-E02C. In applications requiring relay output isolation, TB825 termination units and dedicated signal isolators are deployed alongside the interface module to protect sensitive measurement circuits from ground loops and transient interference.

This layered architecture — spanning control, I/O, communication, power, HMI, and protection layers — ensures that the JINT-E02C contributes to a coherent, scalable, and maintainable automation platform. Its modular design supports incremental system expansion without requiring controller replacement, reducing both capital expenditure and engineering risk during plant upgrades.

The ABB JINT-E02C is deployed across a wide range of demanding industrial sectors where control system reliability is non-negotiable:

Q1: Is the JINT-E02C compatible with both redundant and simplex AC 800M configurations? Yes. The JINT-E02C supports deployment in both simplex and redundant AC 800M architectures. In redundant configurations, it is typically paired with a mirrored I/O station connected via TB820 optical ModuleBus modules, ensuring continuous operation during controller switchover events without signal interruption.

Q2: What is the recommended installation and commissioning procedure for the JINT-E02C in an existing AC 800M system? The module should be installed into a compatible S800 I/O backplane with the controller in maintenance mode. After physical installation, the module address is configured via hardware DIP switches and recognized automatically by the AC 800M engineering tool (Control Builder M). No firmware flashing is required for standard deployments. Full I/O loop testing should be performed prior to returning the system to automatic mode.

Q3: What does the 12-Month Warranty cover, and what is the supply lead time? The 12-Month Warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify signal integrity and communication performance. The JINT-E02C is maintained in stock for immediate dispatch, with global logistics support available for urgent MRO and project requirements. Contact [email protected] or +86 18359268345 for availability confirmation and expedited shipping options.
