ABB MU200505955880 3HAC031537-001 MU203HAC031537-001

Product Details

MU200505955880 3HAC031537-001 MU203HAC031537-001 Product Description

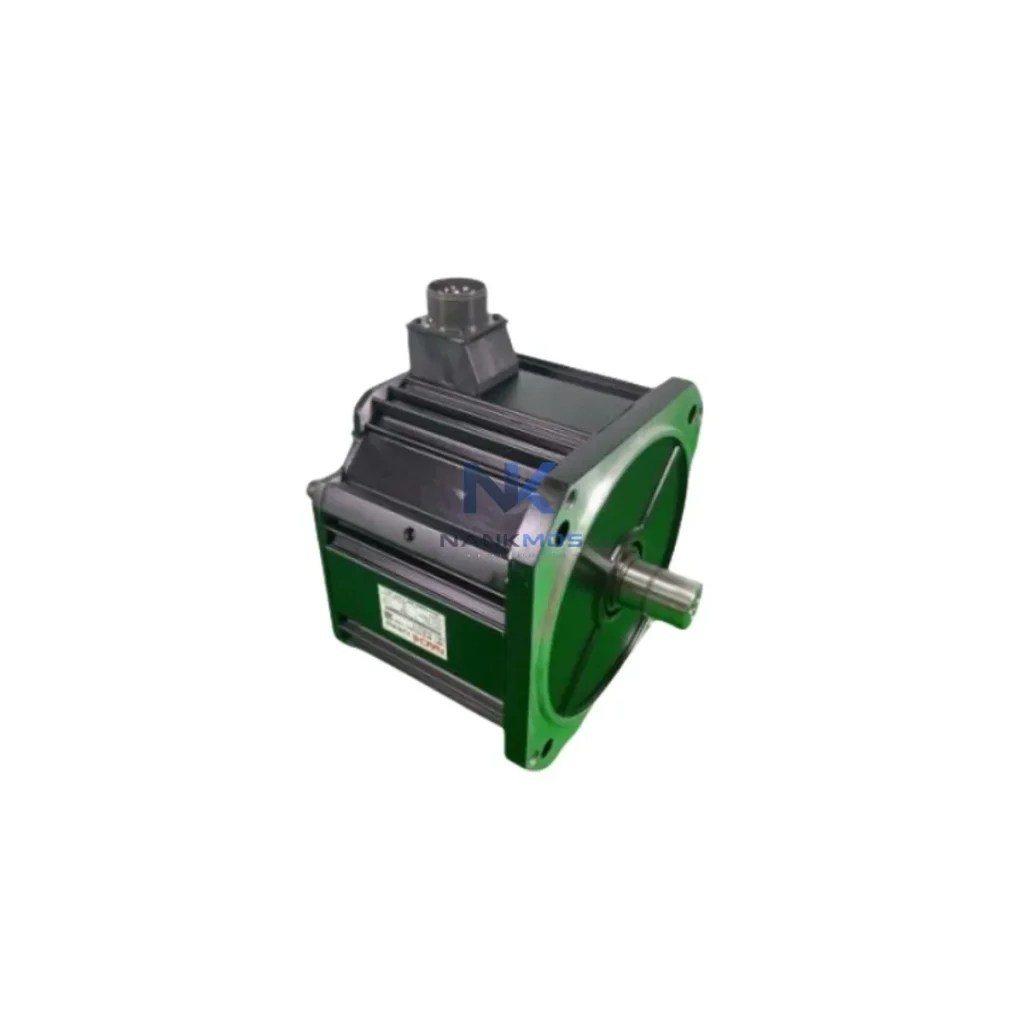

The ABB 3HAC031537-001 servo motor is not a standalone component — it is a precision execution element embedded within ABB's IRC5 robot control architecture. Understanding its role requires examining the full automation stack in which it operates.

At the control layer, the IRC5 Main Computer (DSQC1000) serves as the central processing unit, executing RAPID programs and coordinating all axis movements. Motion commands are transmitted through the IRC5 Axis Computer (DSQC668 / DSQC673), which translates high-level trajectory data into real-time torque and velocity references for each drive channel. The 3HAC031537-001 motor receives these references through the ABB Drive Module (DSQC601 / DSQC602), which conditions power delivery and manages current loop control at the execution layer.

Signal integrity between the motor and the controller is maintained by the Serial Measurement Board (SMB — 3HAC031670-001), which reads resolver feedback from each axis motor and transmits position data back to the axis computer. This closed-loop architecture ensures sub-millisecond position correction across all six axes of an IRB robot, making the 3HAC031537-001 a critical node in the motion control chain.

At the power layer, the IRC5 Power Supply Unit (DSQC609) provides regulated DC bus voltage to the drive modules, while the Drive System Capacitor Bank buffers regenerative energy during deceleration cycles. Proper power architecture sizing — particularly when operating multiple IRB robots from a single IRC5 controller in MultiMove configuration — directly affects the thermal and electrical performance of each servo motor in the system.

For communication and diagnostics, the IRC5 platform supports DeviceNet, PROFIBUS-DP, EtherNet/IP, and PROFINET fieldbus options via dedicated communication boards (DSQC651 / DSQC652 / DSQC688). These interfaces allow the robot controller to exchange I/O signals with PLCs, safety systems, and SCADA platforms, enabling the 3HAC031537-001 to operate as part of a larger coordinated production cell rather than an isolated actuator.

At the HMI layer, the FlexPendant (IRC5 Teach Pendant — 3HAC028357-001) provides real-time axis monitoring, manual jogging, and fault diagnostics. Engineers can read motor temperature, resolver status, and drive fault codes directly from the pendant, reducing mean time to diagnosis during commissioning and maintenance cycles.

For safety architecture, the IRC5 system integrates with ABB SafeMove2 — a software-based safety module that monitors axis speed, position, and standstill status without requiring external safety relays. This allows the 3HAC031537-001 to participate in collaborative or restricted-zone applications where axis-level safety monitoring is mandatory.

In multi-robot or high-density production environments, the IRC5 Panel Mounted Controller variant allows the drive and control electronics to be rack-mounted inside a shared control cabinet, reducing floor space and simplifying cable management between the servo motor and its associated drive module. This architecture is common in automotive body-in-white welding lines, semiconductor wafer handling systems, and precision assembly cells.

All components referenced above — from the DSQC1000 main computer to the SMB feedback board — are available through NANKMOS with verified compatibility documentation, pre-shipment functional testing, and 12-Month Warranty coverage. This ensures that replacement or expansion of any layer in the IRC5 architecture is supported by a single, accountable supply chain partner.

Automotive Manufacturing: In body-in-white welding and press-tending lines, IRB 6700 and IRB 7600 robots equipped with 3HAC031537-001 servo motors perform high-cycle spot welding and material handling tasks. The motor's integration with IRC5 SafeMove2 allows collaborative zone management between robot cells and human operators on shared production floors.

Semiconductor & Electronics: In wafer handling and PCB assembly environments, IRB 120 and IRB 1200 robots rely on precise axis control from the IRC5 drive system. The 3HAC031537-001 provides the torque consistency and resolver feedback accuracy required for sub-millimeter repeatability in cleanroom-compatible robot configurations.

Petrochemical & Energy: In hazardous area inspection and valve actuation applications, IRC5-controlled robots with explosion-proof enclosures use servo motors from the 3HAC series to maintain reliable actuation under variable ambient temperatures and vibration loads. The 12-Month Warranty and documented replacement procedure reduce unplanned downtime risk in remote or restricted-access installations.

Packaging & Palletizing: High-speed pick-and-place lines using IRB 360 FlexPicker or IRB 460 palletizing robots depend on rapid axis response from the IRC5 drive chain. The 3HAC031537-001 supports the high-frequency motion profiles required for throughput rates exceeding 120 cycles per minute in food, beverage, and consumer goods packaging lines.

Metal Fabrication & Foundry: In arc welding, plasma cutting, and die-casting extraction applications, servo motors in the 3HAC series are exposed to thermal cycling, weld spatter, and mechanical shock. The IRC5 architecture's built-in thermal monitoring and drive fault logging allow maintenance teams to track motor health trends and schedule predictive replacement before failure occurs.

Q1: Is the ABB 3HAC031537-001 a direct drop-in replacement for the original motor in my IRC5 robot, or does it require parameter reconfiguration? The 3HAC031537-001 is designed as a system-matched replacement within the IRC5 architecture. When installed on the correct axis of a compatible IRB robot model, no drive parameter re-mapping is required. The IRC5 axis computer reads resolver feedback automatically upon power-up. However, it is recommended to perform a fine calibration routine via the FlexPendant after motor replacement to restore axis zero-point accuracy. NANKMOS provides the part with full installation documentation and a 12-Month Warranty from dispatch date.

Q2: Can this servo motor be used in an IRC5 MultiMove configuration with multiple robots sharing a single controller? Yes. The IRC5 MultiMove option supports up to four mechanical units (robots or positioners) controlled by a single IRC5 controller. The 3HAC031537-001 operates within the same drive architecture regardless of single-robot or MultiMove configuration. The key consideration is power bus capacity — ensure the DSQC609 power supply and capacitor bank are sized for the combined drive load of all active axes. NANKMOS can advise on compatible power supply units and drive modules for MultiMove system builds.

Q3: What is the warranty coverage and lead time for the ABB 3HAC031537-001, and how does NANKMOS support long-term maintenance planning? All ABB 3HAC031537-001 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Units are pre-tested prior to dispatch and shipped with traceable documentation. For long-term maintenance planning, NANKMOS recommends maintaining a minimum of one spare servo motor per robot model in high-utilization production environments. Our inventory team can provide scheduled replenishment agreements and compatibility cross-reference support for aging IRC5 installations transitioning to newer IRB robot generations.
