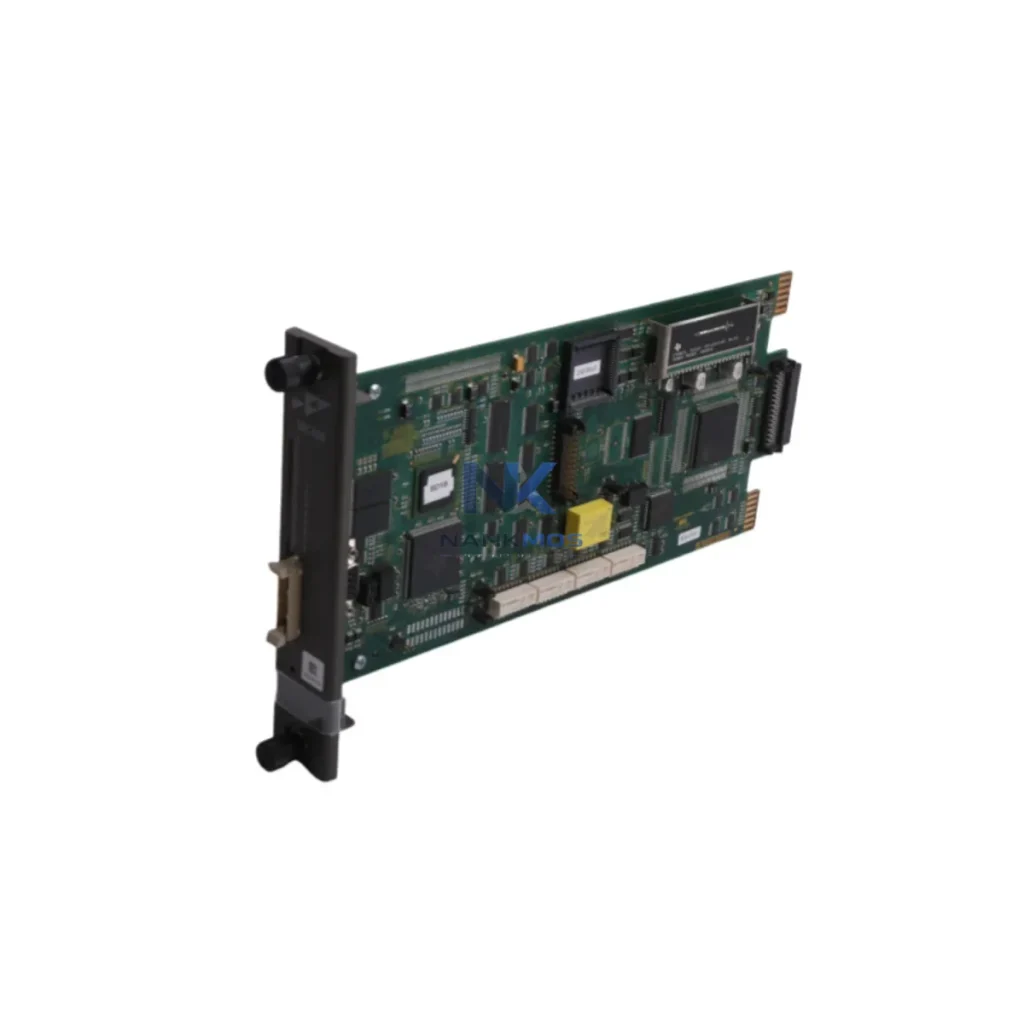

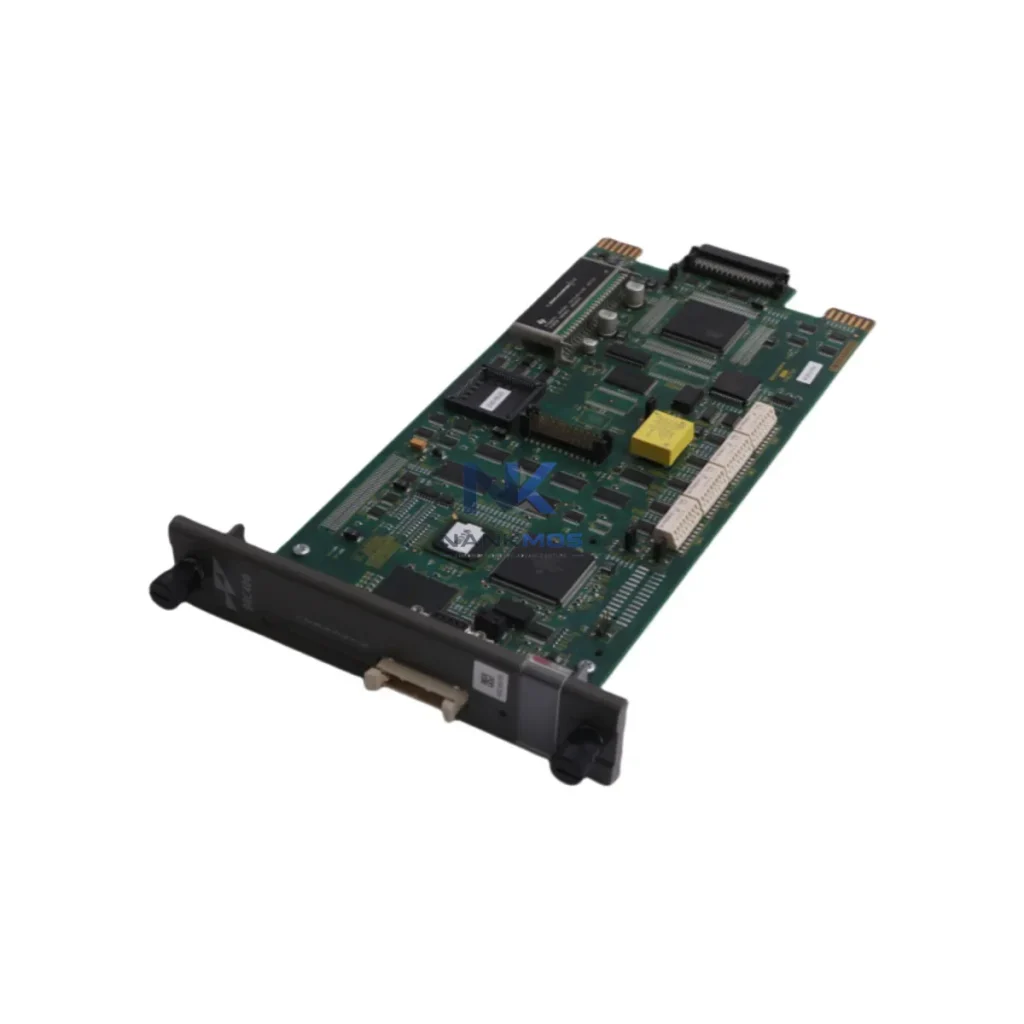

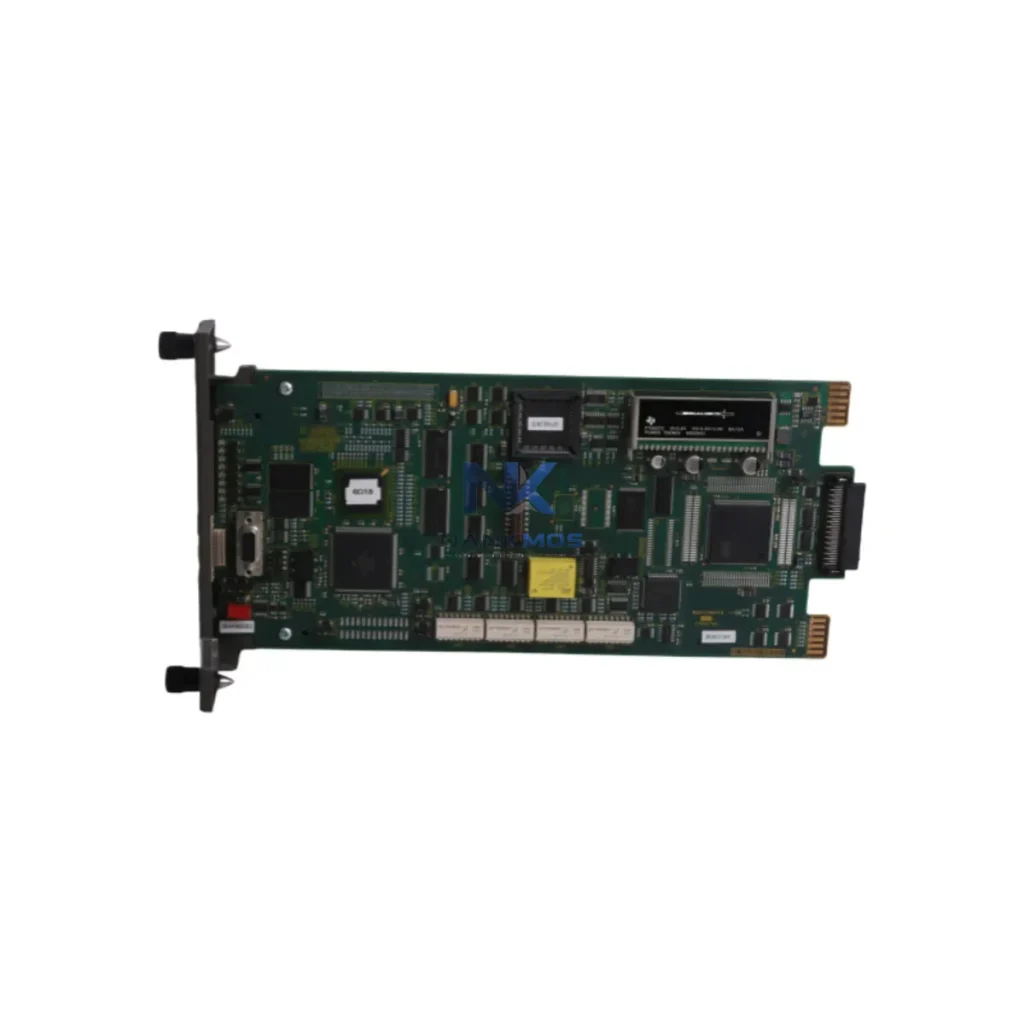

ABB P-HC-BRC-40000000 PHCBRC40000000

Product Details

P-HC-BRC-40000000 PHCBRC40000000 Product Description

The ABB P-HC-BRC-40000000 is a dedicated Bus Repeater Controller engineered for the Symphony Plus Distributed Control System (DCS) platform. Designed to extend and condition the S+ Bus communication backbone, this module plays a critical role in maintaining signal integrity, expanding node capacity, and ensuring deterministic data exchange across multi-drop control networks in large-scale industrial installations. Its architecture-native design makes it an indispensable component for engineers building or expanding Symphony Plus control cabinets in power generation, oil & gas, chemical processing, and water treatment facilities.

Unlike generic repeater modules, the P-HC-BRC-40000000 is purpose-built for ABB's Symphony Plus ecosystem, ensuring seamless compatibility with the S+ Bus protocol layer, cabinet backplane topology, and the broader Harmony/Symphony control hierarchy. It supports deterministic bus timing, active signal regeneration, and fault isolation — capabilities that are essential when the control network spans multiple marshalling cabinets, remote I/O enclosures, or geographically distributed field junction boxes.

Every unit supplied by NANKMOS undergoes a rigorous pre-shipment functional test protocol, verifying bus communication handshake, signal amplitude, timing margins, and module self-diagnostics before dispatch. All units are covered by a 12-Month Warranty and are available from verified global inventory, enabling rapid deployment for both greenfield projects and brownfield upgrades.

The P-HC-BRC-40000000 operates at the communication layer of the Symphony Plus control architecture, bridging the gap between the central controller nodes and distributed I/O or remote processing units. To understand its full value, it must be viewed within the context of the complete S+ platform stack.

At the control layer, the ABB P-HC-CPU-40000000 (Symphony Plus Central Processing Unit) serves as the primary execution engine, running control strategies, managing scan cycles, and coordinating all downstream I/O. The Bus Repeater Controller ensures that the CPU's bus commands reach every node on the extended network without signal degradation — a critical requirement when cabinet-to-cabinet distances exceed the native bus drive capability of the CPU module itself.

On the I/O layer, modules such as the ABB P-HC-AIO-40000000 (Analog I/O module) and P-HC-DIO-40000000 (Digital I/O module) rely on a clean, well-timed bus signal to deliver accurate process variable data to the controller. Any signal attenuation or timing jitter on the S+ Bus directly translates to scan cycle irregularities and potential process upsets. The P-HC-BRC-40000000 eliminates this risk by actively regenerating the bus signal at each repeater insertion point.

The power layer is served by the ABB P-HC-PSU-40000000 (Symphony Plus Power Supply Unit), which provides the regulated 24 VDC rail that feeds both the Bus Repeater Controller and the broader cabinet backplane. In redundant power configurations — common in power generation and petrochemical applications — dual PSU modules operate in hot-standby, and the Bus Repeater Controller's low power draw ensures it remains operational even during a PSU switchover event.

For HMI and supervisory integration, the Symphony Plus platform connects to ABB's System 800xA operator workstations via the Plant Bus (Ethernet/IP or PROFINET), while the S+ Bus managed by the P-HC-BRC-40000000 handles the real-time deterministic control traffic below the supervisory layer. This two-tier network architecture — plant bus above, S+ Bus below — is a hallmark of Symphony Plus system design and ensures that HMI polling traffic never interferes with control-critical communications.

In redundant control architectures, the P-HC-BRC-40000000 is typically deployed in pairs, with each repeater serving one leg of a redundant bus segment. This mirrors the redundancy philosophy applied to the ABB P-HC-RCU-40000000 (Redundancy Controller Unit), which manages CPU switchover, and the redundant I/O modules that maintain process continuity during any single-point hardware failure.

For communication gateway applications — where Symphony Plus must interface with third-party PROFIBUS DP, HART, or Modbus RTU field devices — the ABB P-HC-PBM-40000000 (PROFIBUS Master module) or equivalent fieldbus gateway modules are installed alongside the Bus Repeater Controller in the same cabinet segment. The repeater ensures that the additional bus load introduced by gateway modules does not degrade the signal quality for adjacent I/O nodes.

Terminal modules such as the ABB P-HC-TBU-40000000 (Terminal Base Unit) provide the physical wiring interface between field cables and the S+ Bus backplane, while the Bus Repeater Controller ensures that the logical bus segment remains electrically coherent across all terminal positions. This combination supports modular cabinet expansion — adding new I/O racks or terminal bases — without requiring reconfiguration of the existing bus topology.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the Symphony Plus DCS manages boiler combustion control, turbine speed regulation, and balance-of-plant systems across multiple control rooms and remote I/O cabinets. The P-HC-BRC-40000000 enables the S+ Bus to span the physical distances between the main control building and remote marshalling panels in the turbine hall or switchyard, maintaining deterministic control loop performance across the entire plant.

Oil & Gas and Petrochemical: Offshore platforms and onshore refineries demand control systems that maintain signal integrity in electrically noisy environments with long cable runs between wellhead control panels and the central control room. The Bus Repeater Controller's active signal regeneration and segment-level fault isolation make it well-suited for these applications, where a single bus fault must not cascade into a plant-wide control outage.

Chemical and Pharmaceutical Processing: Batch and continuous process plants running Symphony Plus benefit from the P-HC-BRC-40000000's ability to extend the S+ Bus into cleanroom or hazardous area enclosures, where additional I/O modules monitor reactor temperatures, pressure vessels, and flow control loops. The module's compatibility with IEC 61010-compliant enclosures supports installation in both standard and classified area control cabinets.

Water and Wastewater Treatment: Municipal water treatment facilities operating Symphony Plus for pump station control, chemical dosing, and SCADA integration use Bus Repeater Controllers to connect remote lift station panels to the central DCS over extended bus segments, reducing the need for dedicated communication converters or additional controller nodes at each remote site.

Mining and Metals: Mineral processing plants and smelters running Symphony Plus for conveyor control, crusher management, and furnace temperature regulation deploy the P-HC-BRC-40000000 to maintain bus integrity in high-vibration, high-EMI environments where signal degradation is a persistent operational challenge.

Q1: How many P-HC-BRC-40000000 modules are required in a typical Symphony Plus cabinet expansion? The number of Bus Repeater Controllers required depends on the total number of S+ Bus nodes and the physical cable length between cabinet segments. ABB's Symphony Plus system design guidelines specify maximum node counts and cable distances per bus segment; a repeater is inserted at each point where these limits are approached. In practice, large power plant DCS installations may deploy four to eight repeater modules across a multi-cabinet control system. NANKMOS maintains stock of multiple units to support both initial project builds and incremental expansions.

Q2: Is the P-HC-BRC-40000000 compatible with legacy ABB Harmony DCS installations being migrated to Symphony Plus? Yes. ABB designed the Symphony Plus platform with a migration path from the legacy Harmony DCS, and the S+ Bus architecture is backward-compatible with Harmony bus segments in hybrid migration configurations. The P-HC-BRC-40000000 can be deployed in mixed Harmony/Symphony Plus cabinets during phased migration projects, allowing engineers to upgrade controller and I/O modules incrementally without replacing the entire bus infrastructure in a single outage window. Contextual Integration features are fully available once the migration to Symphony Plus controller modules is complete.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed? Every P-HC-BRC-40000000 supplied by NANKMOS is subjected to a pre-shipment functional test that verifies S+ Bus communication handshake, signal amplitude and timing margins, module self-diagnostic routines, and power rail compatibility. The 12-Month Warranty covers hardware defects and functional failures under normal operating conditions from the date of shipment. Units that fail in service within the warranty period are replaced or repaired at no additional cost. For project-critical applications, NANKMOS can provide test reports and serialized unit traceability documentation upon request. Contact [email protected] or +86 18359268345 for warranty claims and technical support.
