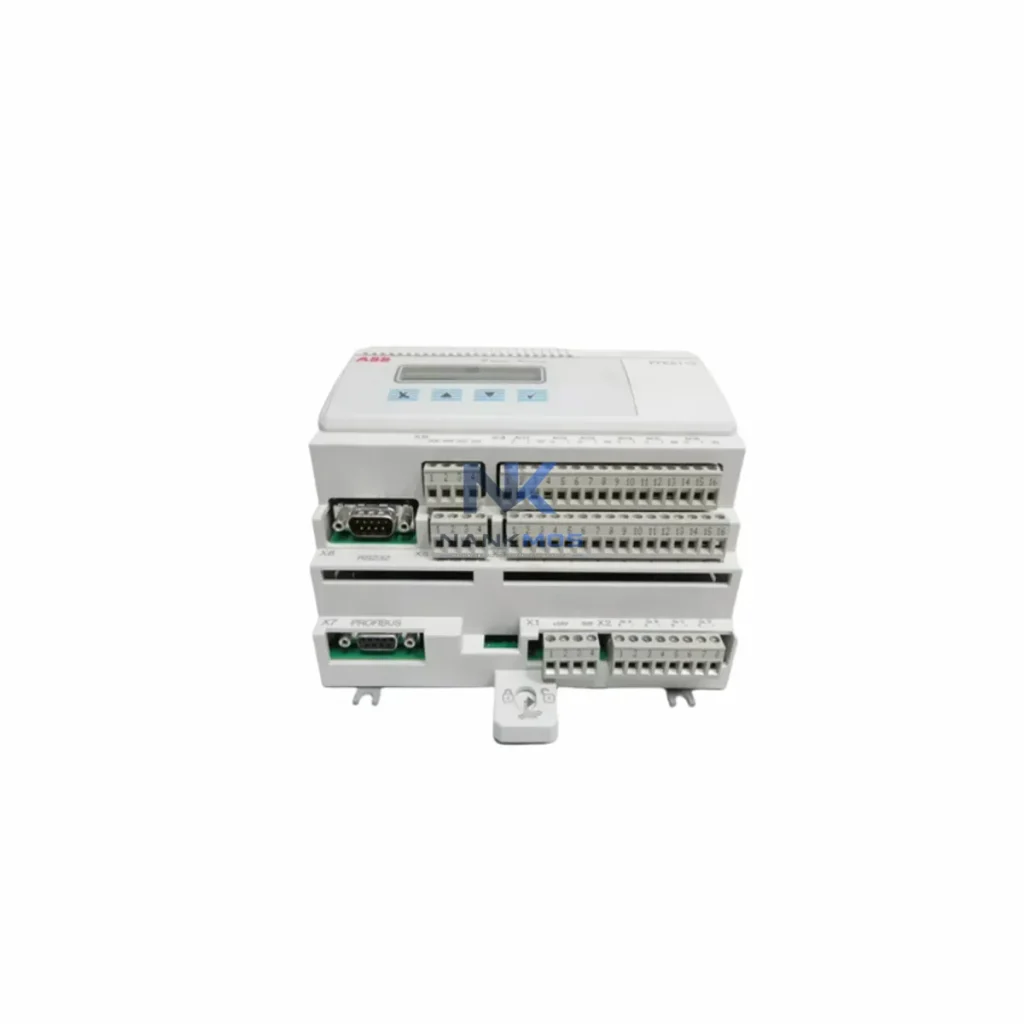

ABB PFEA113-20 Tension Controller

Product Details

PFEA113-20 Product Description

The ABB PFEA113-20 is a precision tension controller engineered for seamless integration within the ABB PFEA Series control architecture. Designed to deliver consistent web tension regulation across demanding industrial environments, this module functions as a critical node within the broader automation platform — coordinating signal flow between load cell inputs, drive outputs, and supervisory control layers. Its role extends beyond standalone tension measurement; it serves as a contextual integration point that unifies the mechanical, electrical, and digital layers of a complete tension control system.

In modern industrial automation, tension control is not an isolated function. The PFEA113-20 is built to operate within a layered control hierarchy where the CPU layer, I/O layer, communication layer, power supply layer, HMI layer, drive layer, and protection layer must all function in coordinated synchrony. This module ensures that tension feedback signals are accurately conditioned, processed, and transmitted to the relevant control nodes — enabling real-time closed-loop regulation that supports both process stability and long-term equipment integrity.

The PFEA113-20 achieves its full performance potential when deployed as part of a coordinated ABB automation platform. At the control layer, it interfaces with ABB AC500 series PLCs — such as the PM573 or PM591 CPU modules — which provide the supervisory logic for tension setpoint management, ramp control, and fault response. The controller receives real-time tension feedback from ABB PFEA111 or PFEA112 tension transducers mounted on the web guide rollers, converting mechanical load into precise electrical signals that the PFEA113-20 processes for closed-loop regulation.

On the drive side, the PFEA113-20 outputs analog reference signals to ABB ACS880 or ACS580 variable frequency drives, which modulate motor torque to maintain the target web tension. This drive-controller integration is fundamental to eliminating tension oscillation and ensuring consistent material handling across acceleration, deceleration, and steady-state phases. The power supply layer is typically served by ABB CP-E or CP-S series 24VDC SMPS units, which provide the stable low-voltage power required by the PFEA113-20 and associated I/O modules.

For operator interaction, ABB CP600 series HMI panels or ABB Panel Builder-compatible displays can be configured to visualize tension trends, setpoint adjustments, and alarm states in real time. At the communication layer, the PFEA113-20 integrates with PROFIBUS DP or PROFINET networks via ABB CI501 or CI502 communication interface modules, enabling the tension controller to participate in plant-wide SCADA or DCS architectures. Terminal modules such as ABB TU515 or TU516 base units facilitate clean, modular wiring within the control cabinet, reducing installation time and improving long-term maintainability.

Signal isolation is maintained through the use of ABB AI523 or AO523 analog I/O modules where multi-zone tension control is required, ensuring that cross-channel interference does not compromise measurement accuracy. In redundant architecture designs, the PFEA113-20 can be paired with a secondary tension controller in a hot-standby configuration, with switchover logic managed at the PLC level to ensure uninterrupted process continuity during module replacement or maintenance windows.

Printing & Packaging Lines: In flexographic and gravure printing systems, the PFEA113-20 regulates substrate tension across unwind, print, and rewind zones. Consistent tension prevents registration errors, ink smearing, and substrate breakage — directly impacting print quality and line efficiency. The module's fast response time supports high-speed web handling at production rates exceeding 300 m/min.

Textile & Fiber Processing: Yarn tension control in warping, sizing, and weaving machines demands sub-millisecond response to tension disturbances. The PFEA113-20 provides the signal conditioning and output resolution required to maintain uniform yarn tension across multi-spindle configurations, reducing breakage rates and improving fabric consistency.

Metal Foil & Film Extrusion: In aluminum foil rolling mills and plastic film extrusion lines, the PFEA113-20 manages tension between driven nip rolls and winding stations. Its compatibility with ABB ACS880 drives enables torque-based tension control that adapts dynamically to roll diameter changes, maintaining constant surface tension throughout the winding cycle.

Paper & Pulp Manufacturing: Continuous paper machines require tension control across multiple web sections — from the press section through the dryer section to the reel. The PFEA113-20 supports multi-zone tension architectures where each zone controller communicates tension data upstream and downstream, enabling coordinated draw control that prevents web breaks and optimizes machine speed.

Power & Energy Cable Manufacturing: In wire and cable production lines, the PFEA113-20 controls tension on conductor payoff reels and take-up systems. Stable tension prevents conductor deformation, ensures consistent insulation wall thickness, and supports the dimensional tolerances required for high-voltage cable certification.

Q1: Is the PFEA113-20 compatible with third-party PLCs and drives outside the ABB ecosystem? The PFEA113-20 is optimized for integration within the ABB PFEA Series architecture, but its standard analog output (0–10V or 4–20mA) and fieldbus communication options allow interfacing with third-party PLCs and drives that support these signal standards. For full diagnostic and parameterization capability, ABB Drive Composer or ABB Automation Builder software is recommended. When integrating with non-ABB controllers, verify the input impedance and signal range compatibility of the receiving device before commissioning.

Q2: What is the recommended maintenance schedule and how does the 12-Month Warranty apply to field-installed units? The PFEA113-20 is a solid-state electronic module with no moving parts, requiring minimal scheduled maintenance beyond periodic inspection of wiring connections and terminal torque verification. The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. Warranty service includes module replacement or repair at no additional cost. For field-installed units, maintain a spare module in inventory to minimize downtime during warranty claim processing. All units shipped by NANKMOS are pre-tested and verified against ABB factory specifications before dispatch.

Q3: How should the PFEA113-20 be configured for multi-zone tension control in a large-scale web handling system? In multi-zone applications, each PFEA113-20 unit is assigned to a specific web zone and configured with independent setpoints, gain parameters, and output scaling. Zone-to-zone coordination is managed at the PLC level using the AC500 CPU, which reads tension feedback from each PFEA113-20 via the fieldbus network and applies draw ratio calculations to maintain consistent inter-zone tension differentials. During commissioning, use ABB Drive Composer to perform auto-tuning of the PID parameters for each zone independently, then validate system response under loaded conditions before enabling automatic mode. Ensure that the power supply capacity is sized for the total current demand of all PFEA113-20 units and associated I/O modules in the cabinet.
