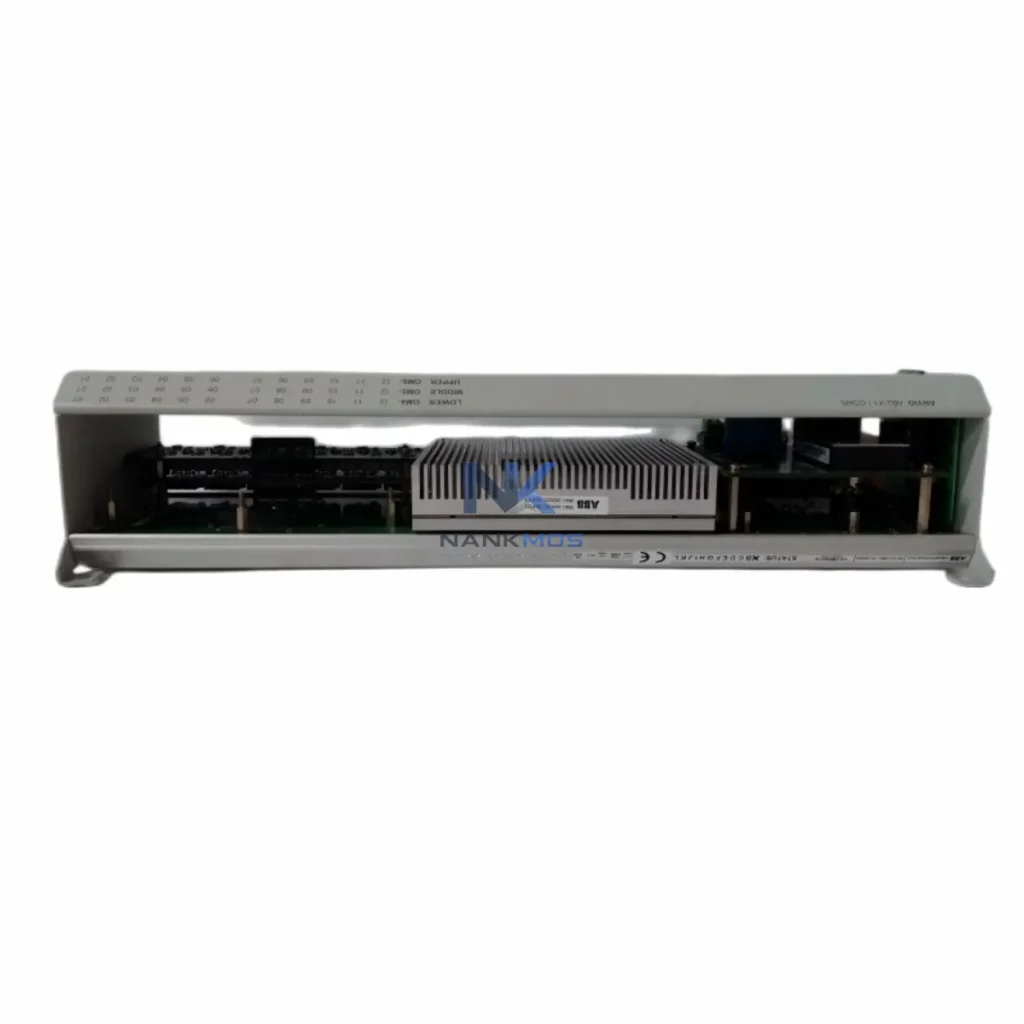

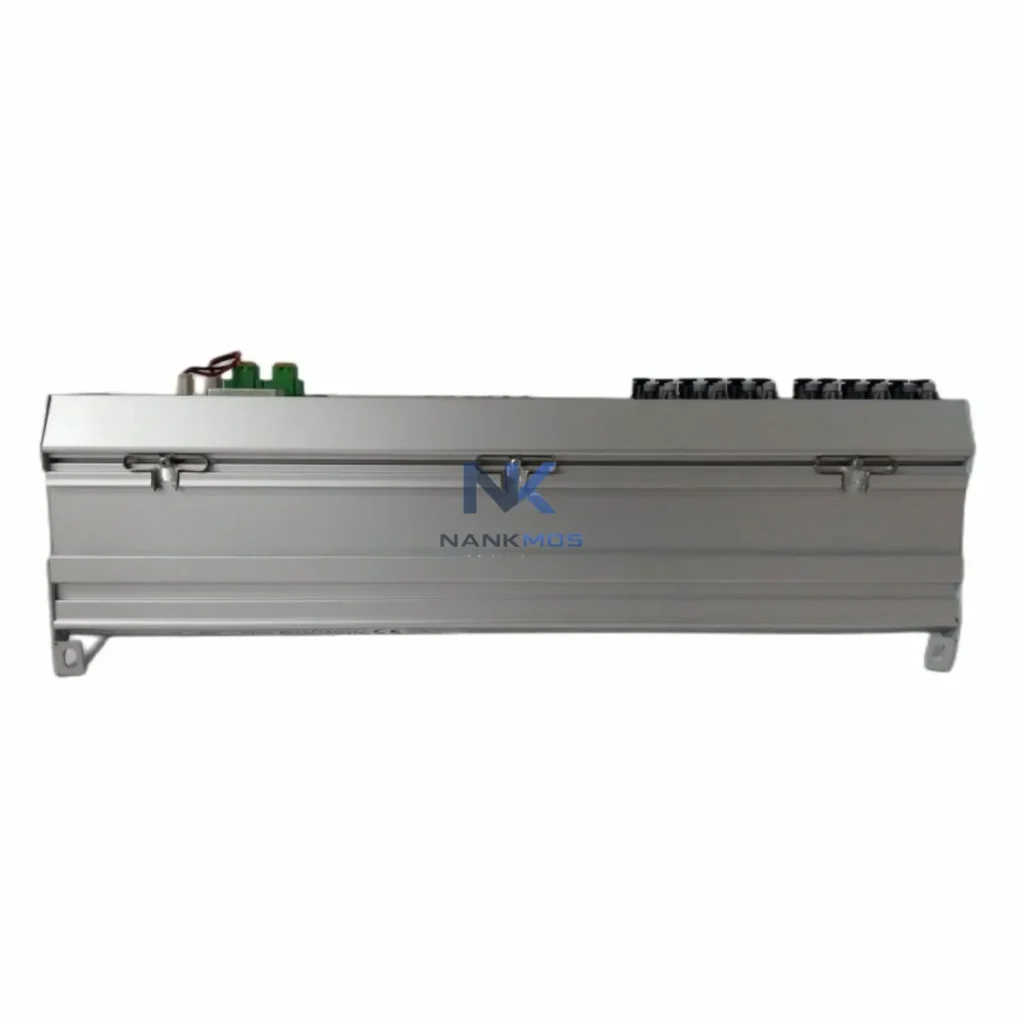

ABB PPD113B01 3BHE023784R1010 Drive Control Board

Product Details

PPD113B01 3BHE023784R1010 Product Description

The ABB PPD113B01 (3BHE023784R1010) is the dedicated control board for the ABB ACS800 series industrial AC drive, engineered to deliver precise motor torque regulation, real-time energy monitoring, and adaptive load management across demanding manufacturing environments. As the computational core of the ACS800 drive platform, the PPD113B01 executes ABB's proprietary Direct Torque Control (DTC) algorithm — a technology that eliminates unnecessary switching losses, reduces motor heat generation, and sustains drive efficiency above 98% across variable load cycles. For production engineers and energy managers seeking to reduce per-unit energy consumption without sacrificing throughput, this board represents a foundational investment in drive-level energy optimization.

Sourced directly from ABB's manufacturing base in Germany and supplied through NANKMOS with full QA inspection and a 12-month warranty, the PPD113B01 is available as in-stock, tested inventory — ready to support rapid project timelines, emergency replacements, and planned maintenance windows alike.

The PPD113B01 does not operate in isolation — its energy-control value is fully realized when integrated into a coordinated automation architecture. In a typical smart production line, the ACS800 drive controlled by this board receives speed and torque setpoints from an ABB AC500 PLC via PROFIBUS-DP or Modbus RTU, enabling closed-loop motor management that dynamically adjusts energy draw based on real-time production demand. When paired with an ABB PSTX soft starter or upstream ABB UNO-series industrial power supply, the system achieves smooth motor ramp-up profiles that eliminate inrush current spikes — a primary source of wasted energy and mechanical stress.

For energy visibility, the PPD113B01-equipped ACS800 drive integrates naturally with ABB M2M power monitoring modules and third-party power quality analyzers connected via Modbus TCP, feeding real-time kWh, power factor, and harmonic distortion data into plant-level SCADA systems such as ABB System 800xA or Wonderware. This data loop enables energy managers to identify inefficient load profiles, schedule predictive maintenance before efficiency degrades, and benchmark energy consumption per production cycle.

On the I/O and feedback layer, the ACS800 drive communicates motor status — speed, torque, fault codes, and thermal state — to ABB CP600 HMI panels or equivalent operator interfaces, giving line supervisors immediate visibility into drive health without requiring manual inspection. Digital I/O signals from the PPD113B01 can also trigger interlocks with ABB RINT-series I/O extension boards or external safety relays, ensuring that energy-intensive motors are de-energized during idle production windows rather than running at no-load — a common source of avoidable energy waste.

For facilities running multi-axis motion systems, the PPD113B01 complements ABB MicroFlex e190 servo drives and ABB ACSM1 motion control drives on shared DC bus architectures, where regenerative braking energy from decelerating axes can be redistributed to accelerating axes — reducing net energy draw from the grid. Communication modules such as the ABB RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter extend the ACS800's fieldbus reach, enabling seamless integration into existing plant communication backbones without additional gateways.

In high-throughput manufacturing environments, drive-level energy waste accumulates rapidly. Motors running at fixed speed under variable load, drives operating with degraded control boards, and systems lacking real-time feedback loops all contribute to inflated energy bills, excessive heat generation, and unplanned downtime. The ABB PPD113B01 addresses each of these failure modes directly.

By executing DTC at the board level, the PPD113B01 ensures that the ACS800 drive delivers precisely the torque demanded by the load at any given moment — no more, no less. This eliminates the reactive power overhead associated with V/Hz control strategies and reduces motor operating temperature by 5–15°C under typical variable-load conditions. Lower motor temperatures translate directly into extended bearing life, reduced cooling system load, and fewer thermal-related faults — all of which contribute to higher equipment utilization rates and more predictable production schedules.

For production lines with cyclical load profiles — such as packaging machinery, injection molding presses, or automated conveyor systems — the PPD113B01 enables the ACS800 to respond to load changes within milliseconds, maintaining consistent production rhythm (takt time) without the speed fluctuations that cause product quality deviations or downstream bottlenecks. When integrated with a plant energy management system (EMS) or ISO 50001-aligned monitoring platform, the drive's real-time efficiency data supports continuous improvement cycles, helping facilities track progress toward energy reduction targets quarter over quarter.

NANKMOS supplies the PPD113B01 from verified in-stock inventory, with each unit undergoing functional testing prior to dispatch. This ensures that replacement boards arrive ready to install — minimizing drive downtime and restoring production efficiency without the extended lead times associated with OEM procurement channels. All units are covered by a 12-month warranty, providing operational confidence for both planned upgrades and emergency maintenance scenarios.

Q1: What measurable energy savings can the PPD113B01 deliver in a typical motor drive application? The PPD113B01 enables the ACS800 drive to operate at up to 98% efficiency through DTC, compared to 92–95% for conventional V/Hz drives. In variable-torque applications such as pumps and fans, this translates to 20–40% energy savings when combined with speed control versus fixed-speed operation. Actual savings depend on load profile, motor rating, and operating hours.

Q2: Which PLC and communication systems are compatible with the ACS800 drive using this control board? The ACS800 with PPD113B01 supports PROFIBUS-DP, Modbus RTU/TCP, CANopen, DeviceNet, and EtherNet/IP via optional fieldbus adapter modules (e.g., RPBA-01, RDNA-01, RETA-01). It is compatible with ABB AC500 PLCs, Siemens S7 series, Rockwell ControlLogix, and any SCADA or DCS platform supporting standard industrial protocols.

Q3: Can the PPD113B01 be used as a direct replacement for a failed ACS800 control board, and what is the testing process? Yes. The PPD113B01 (3BHE023784R1010) is a direct replacement for compatible ACS800 drive frames. Each NANKMOS unit is functionally tested under simulated drive conditions prior to shipment, verifying DTC algorithm execution, I/O signal integrity, and communication interface operation. Installation requires standard ACS800 board replacement procedures as documented in the ABB ACS800 Hardware Manual.

Q4: What does the 12-month warranty cover, and how is stock availability maintained? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of dispatch. NANKMOS maintains dedicated in-stock inventory of the PPD113B01 to support rapid fulfillment for both planned maintenance and emergency replacement scenarios. Warranty claims are processed through NANKMOS directly — contact [email protected] or +86 18359268345 for support.
