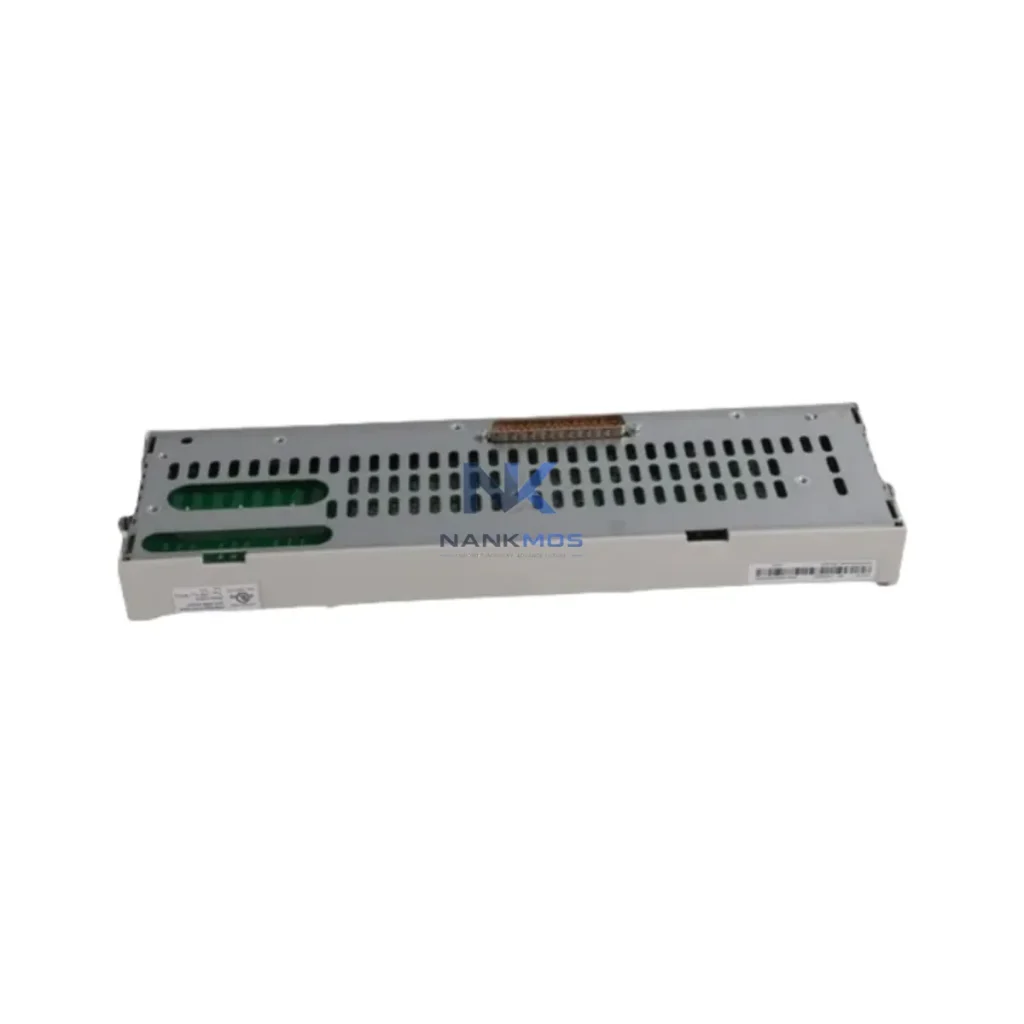

ABB QVAR-5B2 3AXD50000509201 Processor Module

Product Details

QVAR-5B2 3AXD50000509201 Product Description

The ABB 3AXD50000509201 (QVAR-5B2) is a high-performance processor module engineered for energy-aware automation in demanding industrial environments. Designed to operate at the core of ABB's AC 800M distributed control architecture, this module delivers precise computational control over drive systems, load scheduling, and energy flow management across smart production lines. Whether deployed in power generation, petrochemical processing, water treatment, or marine propulsion, the 3AXD50000509201 enables facilities to reduce unnecessary energy consumption, stabilize equipment operating cycles, and extend asset service life.

In modern industrial facilities, energy efficiency is not a single-device achievement — it is a system-level discipline. The ABB 3AXD50000509201 processor module acts as the computational backbone that coordinates energy-relevant decisions across the entire control loop. When paired with the ABB ACS880 variable frequency drive, the processor dynamically adjusts motor speed references based on real-time load feedback, eliminating the fixed-speed energy waste that accounts for a significant share of industrial electricity costs.

The module communicates natively with ABB AC 800M I/O modules (such as the CI854 PROFIBUS interface unit and the AI810 analog input module) to collect continuous process data — current draw, torque demand, temperature gradients — and feed this into energy optimization algorithms running on the controller. Integration with ABB Panel 800 HMI terminals allows operators to visualize energy KPIs in real time, enabling informed decisions about load shedding and production scheduling without halting the line.

For facilities running ABB Symphony Plus or ABB System 800xA SCADA environments, the 3AXD50000509201 provides seamless upward data flow via OPC-UA, ensuring that energy management systems receive accurate, timestamped process values for demand forecasting and peak-load avoidance. The processor also interfaces with ABB PSTX softstarters and ACS580 general-purpose drives to manage motor startup profiles, reducing inrush current spikes that stress both the electrical infrastructure and the upstream power monitoring modules.

Communication with third-party Modbus TCP power meters and PROFIBUS-DP energy analyzers is supported natively, allowing the 3AXD50000509201 to serve as a data aggregation point for multi-vendor energy monitoring architectures. This makes it a natural fit for facilities transitioning toward IEC 61850-compliant energy management or ISO 50001 certification programs.

Production line energy waste typically originates from three sources: idle-state overconsumption, uncoordinated motor starts, and thermal runaway in control cabinets. The ABB 3AXD50000509201 addresses all three through its deterministic real-time operating environment and tight integration with the AC 800M control ecosystem.

By executing energy-aware PLC logic — including load-shedding routines, drive sleep modes, and regenerative braking coordination — the processor ensures that motors and actuators consume power only when production demand requires it. Coordinated with ABB ACS880 regenerative drive units, the system can feed braking energy back into the DC bus, reducing net energy draw during deceleration phases of conveyor, press, and winding applications.

Thermal load management is equally critical. The 3AXD50000509201's low-power embedded architecture generates minimal self-heat, reducing the cooling burden on control panel HVAC systems. When deployed alongside ABB FENA-21 Ethernet adapter modules for remote diagnostics, maintenance teams can monitor processor health, cycle load, and communication latency without physical access — enabling predictive maintenance schedules that prevent unplanned downtime and the associated energy cost of emergency restarts.

For high-throughput production environments, the module's sub-millisecond task cycle supports precise line-speed synchronization across multiple drive axes, eliminating the micro-stoppages and speed mismatches that cause product rejects and wasted machine cycles. The result is a measurable improvement in Overall Equipment Effectiveness (OEE) and a corresponding reduction in energy consumed per unit of output.

Every ABB 3AXD50000509201 unit shipped by NANKMOS is sourced from verified supply channels, pre-shipment tested against ABB factory acceptance criteria, and backed by a 12-month warranty. In-stock inventory ensures rapid dispatch to minimize production downtime for facilities requiring urgent replacement or system expansion.

Q1: How does the ABB 3AXD50000509201 contribute to measurable energy savings? The processor enables energy-aware control logic that coordinates drive speed references, motor start profiles, and load-shedding routines in real time. When integrated with ACS880 VFDs and power monitoring modules, facilities typically observe reductions in peak demand charges and idle-state consumption. Actual savings depend on application, baseline load profile, and control strategy implementation.

Q2: Is the 3AXD50000509201 compatible with existing AC 800M and Symphony Plus installations? Yes. The module is designed for the AC 800M platform and is compatible with Symphony Plus and System 800xA environments via standard OPC-UA and PROFIBUS-DP interfaces. It supports hot-swap replacement in most rack configurations, minimizing downtime during upgrades. Always verify firmware revision compatibility with your system integrator before installation.

Q3: What is the recommended replacement or upgrade path for aging AC 800M processor modules? For facilities running earlier AC 800M processor generations, the 3AXD50000509201 offers a direct form-factor replacement with enhanced processing capacity and lower thermal output. NANKMOS recommends a phased replacement approach: validate the new module in a non-critical loop first, confirm communication integrity with all connected I/O and drive nodes, then migrate critical control loops during a scheduled maintenance window.

Q4: What testing and warranty coverage is provided with each unit? Every ABB 3AXD50000509201 supplied by NANKMOS undergoes pre-shipment functional testing, including power-on verification, communication interface checks, and baseline performance validation. Each unit is covered by a 12-month warranty from the date of shipment. In-stock availability supports rapid fulfillment for both planned procurement and emergency replacement scenarios. Contact [email protected] for lead time confirmation and bulk pricing.
