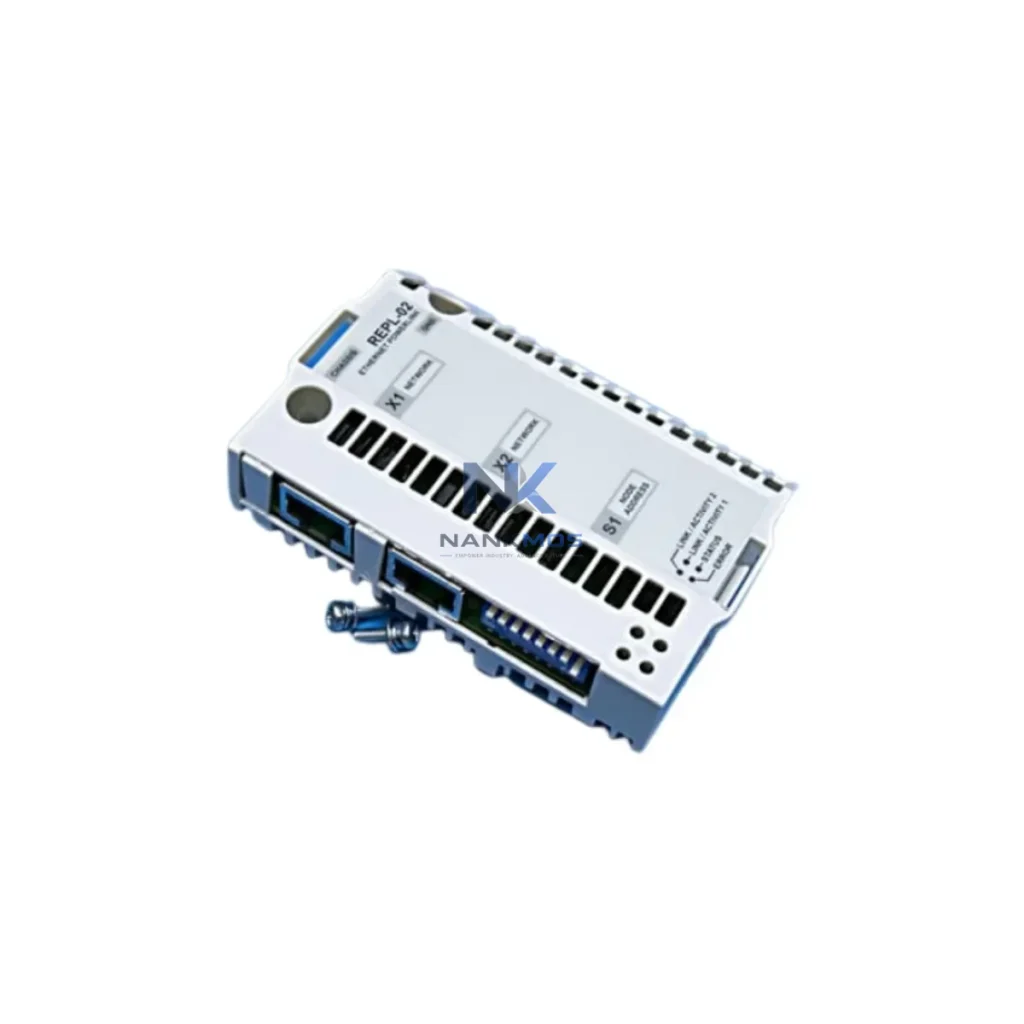

ABB REPL-02 Fieldbus Adapter Module

Product Details

REPL-02 Product Description

The ABB REPL-02 is a dedicated Ethernet POWERLINK fieldbus adapter module engineered for seamless integration with ABB ACS880 industrial drives. Designed to operate within layered automation architectures, the REPL-02 enables high-speed, deterministic communication between the drive layer and the control layer, ensuring synchronized signal flow across the entire automation platform. Whether deployed in standalone drive applications or embedded within a multi-axis motion control system, the REPL-02 delivers the communication reliability and protocol consistency demanded by modern industrial environments.

In a complete automation architecture, the REPL-02 occupies a critical position at the intersection of the control layer and the execution layer. It translates high-level commands from the PLC or motion controller into real-time drive instructions, while simultaneously feeding back status signals, fault diagnostics, and process variables to the supervisory system. This bidirectional communication capability is essential for maintaining system coherence across distributed drive topologies, particularly in applications where multiple ACS880 units operate in coordinated motion sequences or load-sharing configurations.

The module supports the Ethernet POWERLINK protocol, a deterministic, real-time Ethernet standard widely adopted in precision motion control and process automation. POWERLINK's isochronous communication model ensures that cyclic data exchange between the controller and each drive node occurs within fixed, predictable time windows, eliminating jitter and latency that could compromise positioning accuracy or process stability. This makes the REPL-02 particularly well-suited for applications in semiconductor manufacturing, packaging lines, and precision assembly systems where microsecond-level synchronization is required.

The REPL-02 achieves its full potential when deployed as part of a cohesive ABB automation platform. At the control layer, ABB AC500 series PLCs — including the PM591 and PM592 CPU modules — serve as the POWERLINK managing node (MN), orchestrating cyclic communication with each ACS880 drive fitted with a REPL-02 adapter. The AC500's modular I/O architecture, supported by digital and analog expansion modules such as the DC532 and AX522, provides the signal infrastructure necessary to coordinate drive commands with process feedback from field instruments.

For applications requiring HMI integration, ABB CP600 series operator panels connect to the same Ethernet backbone, providing real-time visualization of drive status, speed references, torque feedback, and fault histories. This unified network topology eliminates the need for separate communication converters between the HMI and drive layers, reducing wiring complexity and potential signal degradation points.

Power distribution within the control cabinet is typically managed through ABB SACE Tmax series circuit breakers and ABB OVR surge protection devices, ensuring that the REPL-02 and its host ACS880 drive operate within stable electrical boundaries. For multi-drive systems, ABB ACQ580 or ACS580 drives may be deployed alongside ACS880 units in shared DC bus configurations, with each drive equipped with its respective fieldbus adapter to maintain protocol consistency across the network.

Terminal connectivity between the drive cabinet and field devices is commonly handled through ABB's ENTRELEC terminal block systems, providing organized, labeled signal routing for encoder feedback, safety relay inputs, and analog reference signals. In safety-critical applications, ABB FSO-21 safety function modules installed within the ACS880 drive complement the REPL-02's communication role by providing STO (Safe Torque Off) and SS1 (Safe Stop 1) functions that are coordinated through the POWERLINK network's safety protocol extensions.

For installations requiring network redundancy, the REPL-02 can be paired with ring topology configurations supported by POWERLINK's built-in redundancy mechanisms, ensuring that a single cable fault does not interrupt drive communication. This is particularly valuable in continuous process industries such as petrochemical refining, water treatment, and pulp and paper manufacturing, where unplanned drive stoppages carry significant operational and safety consequences.

The ABB REPL-02 finds application across a broad spectrum of industrial sectors where precise, network-coordinated drive control is essential. In automotive manufacturing, the module enables synchronized multi-axis motion in robotic welding cells and conveyor transfer systems, where ACS880 drives must respond to PLC commands within deterministic time frames to maintain production cadence. The POWERLINK protocol's real-time performance ensures that position and speed references are delivered to each drive node without the communication delays that could cause mechanical interference or product defects.

In the energy sector, particularly in wind turbine pitch control and hydroelectric generator excitation systems, the REPL-02 facilitates reliable communication between the turbine controller and the pitch drive, enabling rapid response to grid frequency variations and wind speed changes. The module's robust electrical design, rated for operation in extended temperature ranges, supports deployment in outdoor nacelle environments where thermal cycling and vibration are constant operational factors.

Petrochemical and chemical processing plants deploy the REPL-02 in pump and compressor drive systems where flow control precision directly impacts product quality and process safety. Integration with ABB's System 800xA distributed control system via POWERLINK-to-OPC-UA gateways allows drive data to be aggregated at the plant historian level, supporting predictive maintenance programs and regulatory compliance reporting.

In the mining and minerals processing sector, ACS880 drives equipped with REPL-02 adapters control conveyor drives, crusher motors, and hoisting systems. The deterministic communication provided by POWERLINK ensures that load-sharing algorithms between parallel drives are executed with the timing precision required to prevent mechanical stress on shared drive trains. The 12-Month Warranty coverage provides procurement teams with the assurance needed to specify the REPL-02 as a standard component in long-term capital projects.

Q1: Is the REPL-02 compatible with all ACS880 drive variants, and can it coexist with other option modules in the same drive?The REPL-02 is designed for installation in the option slots of ACS880 single drives, multidrive modules, and cabinet-built drives. It occupies one option slot and can coexist with other ABB option modules — such as the FDIO-01 digital I/O extension or the FENA-21 dual-port EtherNet/IP adapter — provided slot availability and firmware compatibility are confirmed against the specific ACS880 hardware revision. Always verify the drive's option module compatibility matrix in the ACS880 hardware manual before finalizing the system configuration.

Q2: What engineering steps are required to commission the REPL-02 within a POWERLINK network, and how is node addressing configured?Commissioning the REPL-02 involves setting the node address via the onboard rotary switches prior to installation, then configuring the drive's fieldbus parameters through the ACS880 control panel or Drive Composer PC tool. The POWERLINK managing node — typically an AC500 PLC with a POWERLINK communication module — must be configured with the drive's XDD (XML Device Description) file to establish the correct PDO mapping. Cyclic data words for speed reference, torque limit, control word, and status word are mapped during the PLC project configuration phase. Commissioning validation should include a network scan to confirm node recognition and a cyclic data integrity test under loaded conditions.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims and long-term spare parts availability?The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions attributable to the module itself. Warranty claims are processed through NANKMOS's technical support team, who coordinate with ABB's authorized service network for module evaluation and replacement. For long-term maintenance planning, NANKMOS maintains buffer stock of REPL-02 modules to support emergency replacement requirements, minimizing drive downtime in critical production environments. Customers are encouraged to contact [email protected] to discuss multi-unit procurement agreements that include extended spare parts reservation and priority shipping arrangements.
