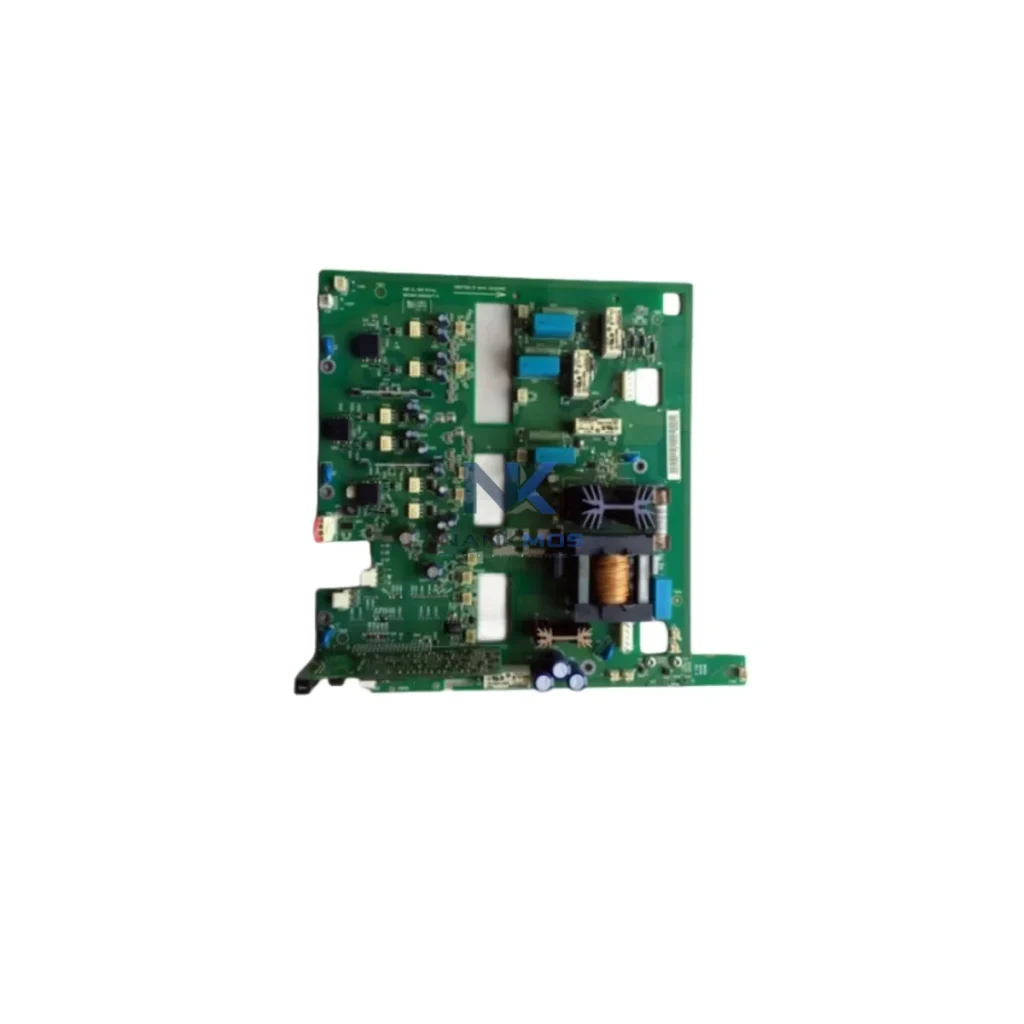

ABB RINT-6611C Gate Driver Board

Product Details

RINT-6611C Product Description

The ABB RINT-6611C is a precision gate driver board engineered for deployment within the ACS800 series variable frequency drive platform. Designed to interface directly with IGBT power modules in the inverter bridge, the RINT-6611C delivers isolated gate pulse signals with the timing accuracy and electrical robustness demanded by high-power industrial drive architectures. As a critical component at the intersection of the control layer and the power conversion layer, this board ensures that switching commands from the drive's main control unit are faithfully translated into reliable IGBT gate events — with the signal integrity, fault detection capability, and thermal resilience required for continuous industrial operation.

In modern automation architectures, the gate driver is not a peripheral accessory — it is the functional bridge between digital control intelligence and physical power conversion. The RINT-6611C occupies this role within the ACS800 platform, enabling the drive to maintain precise motor control across variable load profiles, ambient temperature ranges, and demanding duty cycles. Its design reflects ABB's commitment to modular serviceability: the board can be replaced independently without disturbing the main control board (RMIO), the pulse encoder interface module (RTAC), or the fieldbus adapter modules (RCAN, RDNA, RPBA), preserving system uptime and reducing maintenance scope.

The RINT-6611C does not operate in isolation — its value is fully realized when understood within the layered architecture of the ACS800 drive system and the broader plant automation environment. At the control layer, the RMIO-11 or RMIO-02 main control board generates the PWM switching commands that the RINT-6611C receives and amplifies into gate drive signals. The integrity of this signal chain is foundational: any degradation in gate pulse timing directly affects motor torque linearity, switching losses, and thermal loading on the IGBT modules.

At the power layer, the RINT-6611C interfaces with the IGBT inverter bridge — typically comprising ABB's own IGBT module assemblies rated for the drive's output power class. The gate driver's desaturation detection circuit monitors collector-emitter voltage during each switching event, providing sub-microsecond fault response that protects the IGBT modules from catastrophic overcurrent conditions. This protection function is especially critical in applications with high inertia loads, regenerative braking cycles, or frequent start-stop sequences, such as those encountered in crane drives, winding machines, and compressor systems.

At the I/O and feedback layer, the RTAC-01 pulse encoder interface module provides speed feedback from the motor encoder to the RMIO control board, enabling closed-loop vector control. The accuracy of this feedback loop depends on the gate driver's ability to execute switching commands without jitter or delay — a requirement the RINT-6611C meets through its precision timing circuitry. In multi-drive installations, the RDCO-01 or RDCO-03 DDCS fiber optic communication module enables coordinated control across multiple ACS800 units, with the gate driver in each unit executing synchronized switching sequences to maintain system-level torque balance.

At the fieldbus and communication layer, adapter modules such as the RPBA-01 (PROFIBUS-DP), RCAN-01 (CANopen), and RDNA-01 (DeviceNet) connect the ACS800 to plant-level SCADA, DCS, or PLC systems. While these modules operate at the communication layer, their effectiveness depends on the drive's ability to execute control commands with the responsiveness that the RINT-6611C enables at the power conversion layer. In process industries — including petrochemical, water treatment, and power generation — this end-to-end signal fidelity is a prerequisite for regulatory compliance and process stability.

At the power supply layer, the APOW-01 or equivalent auxiliary power supply board provides the low-voltage DC rails that power the RMIO control board, the gate driver, and the I/O modules. Ensuring the integrity of these supply rails is essential for gate driver stability: voltage ripple or transient dips on the auxiliary supply can cause spurious gate pulses or missed switching events, leading to drive trips or IGBT damage. NANKMOS recommends inspecting the auxiliary power supply board as part of any RINT-6611C replacement procedure to rule out upstream supply issues.

At the HMI and diagnostics layer, the ACS800 panel (CDP312R or equivalent) provides real-time fault code readout, parameter access, and drive status monitoring. When a gate driver fault is logged — such as fault code F-0022 (short circuit) or F-0023 (IGBT overtemperature) — the panel's diagnostic data, combined with the RINT-6611C's onboard fault latch, enables rapid root cause identification without requiring external test equipment. This integrated diagnostics capability reduces mean time to repair (MTTR) and supports predictive maintenance programs in facilities with high drive density.

Manufacturing and Assembly Lines: In automotive body shop and general manufacturing environments, ACS800 drives equipped with RINT-6611C gate driver boards control conveyor motors, robotic positioners, and servo-class spindle drives. The gate driver's precise switching control enables the torque accuracy required for tension-controlled web handling and position-synchronized multi-axis motion.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the ACS800 platform with RINT-6611C provides the variable speed control needed to optimize energy consumption against variable process demand. The gate driver's fault protection capability is critical in these applications, where an uncontrolled drive trip can trigger plant-level process upsets.

Petrochemical and Oil & Gas: In hazardous area installations, ACS800 drives in Ex-rated enclosures use the RINT-6611C to control compressor motors, pump drives, and agitator systems. The gate driver's galvanic isolation and robust fault detection support the functional safety requirements of SIL-rated control loops in these environments.

Water and Wastewater Treatment: Municipal water treatment facilities deploy ACS800 drives for pump and blower control, where the RINT-6611C enables smooth soft-start and variable flow control that reduces water hammer and extends pump mechanical life. The 12-month warranty and pre-tested supply from NANKMOS supports the procurement requirements of public utility operators.

Mining and Minerals Processing: In conveyor, crusher, and mill drive applications, the ACS800 platform handles high-inertia loads with frequent reversals. The RINT-6611C's overcurrent protection and desaturation detection are essential safeguards in these high-stress duty cycles, where IGBT module protection directly impacts plant availability and maintenance cost.

Marine and Offshore: Shipboard ACS800 installations for thruster drives, winch systems, and HVAC compressors rely on the RINT-6611C for reliable gate drive performance in environments with vibration, humidity, and wide ambient temperature variation. The board's robust construction and ABB's marine-grade drive certification support classification society requirements.

Q1: Is the RINT-6611C compatible with all ACS800 drive variants, and how do I confirm the correct gate driver revision for my unit? The RINT-6611C is designed for specific power class variants within the ACS800 series. Compatibility is determined by the drive's type designation, inverter module rating, and hardware revision. To confirm the correct gate driver board for your specific ACS800 unit, reference the drive's type code label and the spare parts list in the ACS800 Hardware Manual (document code 3AFE64527592). NANKMOS technical support can assist with cross-referencing your drive's serial number and type code to confirm RINT-6611C applicability before order placement.

Q2: What installation and commissioning steps are required when replacing the RINT-6611C in an operational ACS800 drive? Replacement of the RINT-6611C requires the drive to be fully de-energized and the DC bus capacitors discharged before any board-level work is performed — typically a minimum wait of 5 minutes after main power disconnection, verified by DC bus voltage measurement. The replacement board should be installed in the same orientation as the original, with all connectors fully seated and locking clips engaged. After installation, the drive should be powered up in a no-load condition and the gate driver fault status verified via the CDP312R panel or drive parameter r0110 before reconnecting the motor load. NANKMOS supplies each RINT-6611C pre-tested to ABB factory test specifications, reducing commissioning risk.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's supply lead time for the RINT-6611C? NANKMOS provides a 12-Month Warranty on all RINT-6611C units covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing prior to dispatch. For in-stock units, standard dispatch is within 1–3 business days to global destinations. For urgent maintenance requirements, expedited shipping options are available. Contact NANKMOS at [email protected] or +86 18359268345 to confirm current stock availability and lead time for your location.
