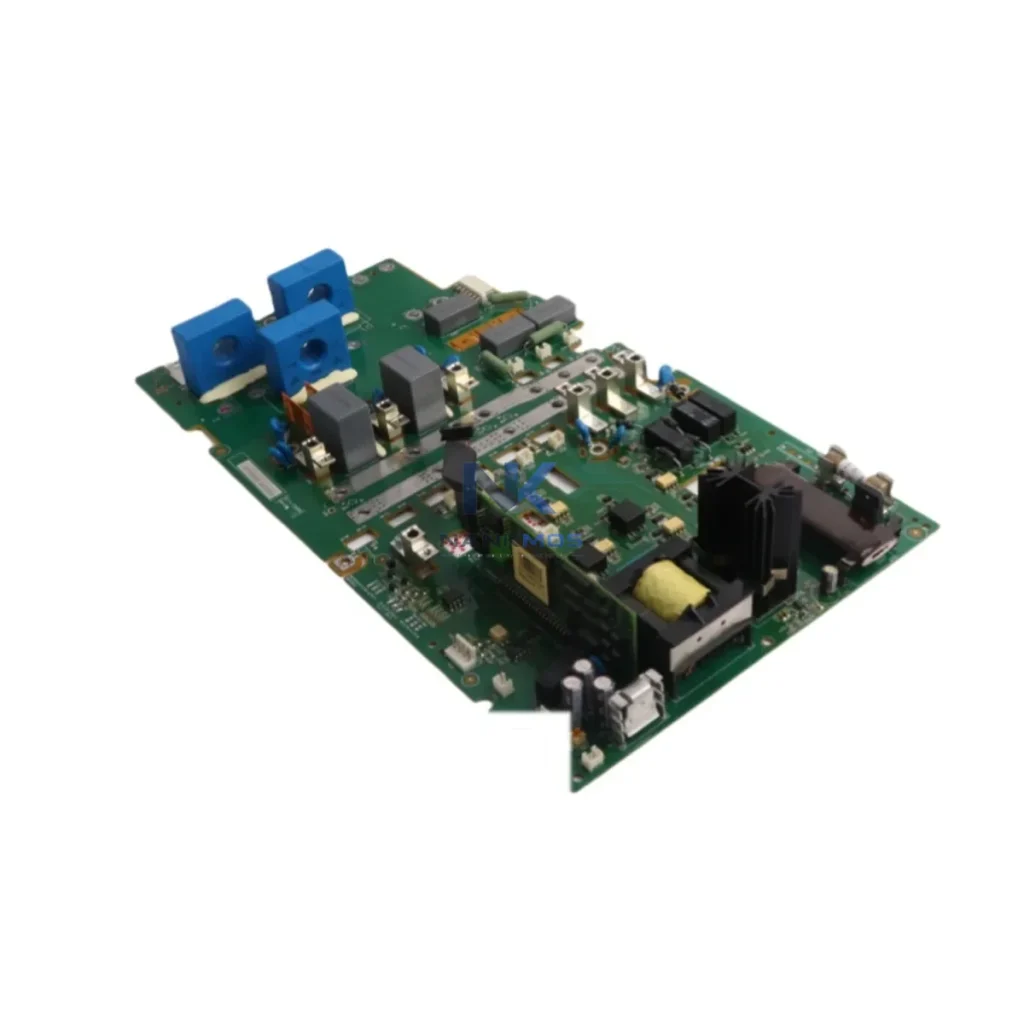

ABB RINT-6621C 6830696F Interface Board

Product Details

RINT-6621C 6830696F Product Description

The ABB RINT-6621C (part number 6830696F) is a precision-engineered interface board designed for seamless integration within the ACS800 series AC drive control architecture. As a critical node in the drive's internal communication and signal routing hierarchy, this board ensures consistent data exchange between the control layer, I/O layer, and power electronics layer — maintaining system coherence across multi-drive installations, redundant configurations, and distributed automation platforms. Whether deployed in a standalone drive cabinet or as part of a coordinated motor control center (MCC), the RINT-6621C delivers the signal integrity and modular compatibility that modern industrial control systems demand.

In large-scale automation environments, the interface board does not operate in isolation. It functions as the connective tissue between the ACS800 drive's main control unit (RMIO board), the optional I/O extension modules (RAIO, RDIO), and the fieldbus adapter modules (RPBA, RCAN, RDNA) that bridge the drive to plant-level SCADA or DCS networks. When paired with the RDCU drive control unit or the APBU branching unit in multi-drive configurations, the RINT-6621C ensures that signal paths remain stable under variable load conditions, enabling precise torque and speed regulation across coordinated drive groups. This level of contextual integration is essential in applications where drive synchronization directly impacts process quality — such as paper machine line shafts, conveyor coordination in mining operations, or pump sequencing in water treatment facilities.

From a control architecture perspective, the RINT-6621C supports the layered design philosophy that underpins modern industrial automation. At the control layer, it interfaces with the RMIO-11C or RMIO-02C main control boards, receiving reference signals and transmitting feedback data with minimal latency. At the I/O layer, it facilitates analog and digital signal conditioning, ensuring that sensor inputs from proximity switches, encoders, and process transmitters are accurately interpreted by the drive's control logic. At the communication layer, the board's compatibility with PROFIBUS-DP (via RPBA-01), DeviceNet (via RDNA-01), and Modbus RTU (via RMBA-01) adapters allows the ACS800 drive to participate in open, interoperable fieldbus architectures — a prerequisite for integration into Siemens SIMATIC, Rockwell ControlLogix, or Schneider Modicon PLC environments.

Redundancy and fault tolerance are equally addressed through the RINT-6621C's role in the ACS800's internal diagnostics framework. The board supports the drive's adaptive programming environment (DriveAP), enabling engineers to configure fault relay outputs, warning thresholds, and event logging parameters that feed into plant-level alarm management systems. In power generation and petrochemical applications, where unplanned drive downtime carries significant operational and safety consequences, this diagnostic transparency allows maintenance teams to implement predictive maintenance strategies — scheduling board replacements during planned outages rather than reacting to unexpected failures.

Installation and commissioning of the RINT-6621C follow ABB's standard ACS800 hardware replacement procedures. The board is mounted on the drive's internal backplane using a guided connector system that prevents misalignment during insertion. After installation, parameter group 98 (Option Modules) must be verified using DriveWindow or the CDP control panel to confirm that the drive recognizes the new board and that all I/O channels are mapped correctly. Engineers should also verify the fiber optic connections to the AINT or BINT inverter control boards, as these links carry the PWM reference signals that the RINT-6621C helps route within the drive's internal architecture.

For multi-drive systems using the APBU-44C or APBU-12C branching units, the RINT-6621C's role extends to ensuring that the common DC bus architecture maintains stable communication between the supply unit and the inverter units. In regenerative drive configurations — common in crane, hoist, and winder applications — this signal stability is critical for coordinating energy flow between motoring and braking drives, maximizing energy recovery efficiency while protecting the DC bus from overvoltage events.

Long-term maintainability is a core design consideration for the RINT-6621C. ABB's modular hardware philosophy means that this board can be replaced without disturbing adjacent components, minimizing mean time to repair (MTTR) in field service scenarios. All units supplied by NANKMOS are pre-shipment tested against ABB's functional specifications, verifying signal continuity, connector integrity, and compatibility with the ACS800 firmware baseline. Each unit is covered by a 12-Month Warranty, providing procurement teams and plant engineers with the assurance needed for long-term spare parts planning and capital expenditure justification.

Inventory availability is maintained to support both immediate replacement needs and planned maintenance programs. NANKMOS stocks the RINT-6621C 6830696F to serve global customers in power generation, petrochemicals, oil and gas, water treatment, mining, metallurgy, marine propulsion, packaging lines, and process control industries — ensuring that critical drive components are accessible when and where they are needed.

The RINT-6621C achieves its full value when considered within the broader ACS800 automation platform. At the drive level, it works in concert with the RMIO-11C main control board, which executes the drive's direct torque control (DTC) algorithm and manages all high-level parameter functions. The RDCU-02C drive control unit extends this capability in multi-drive architectures, providing a centralized control interface for drive groups connected via the APBU-44C branching unit.

I/O expansion is handled by the RAIO-01 analog I/O extension module and the RDIO-01 digital I/O extension module, both of which connect through the RINT-6621C's signal routing infrastructure. For applications requiring galvanic isolation between the drive's control circuits and field instrumentation, signal isolators such as the ABB AI523 analog input isolator are commonly integrated upstream of the drive's I/O terminals.

At the communication layer, the RPBA-01 PROFIBUS-DP adapter enables the ACS800 to participate in PROFIBUS networks managed by Siemens S7-300/S7-400 PLCs, while the RDNA-01 DeviceNet adapter supports integration with Rockwell Automation ControlLogix and CompactLogix platforms. For Ethernet-based architectures, the RETA-01 Ethernet adapter provides Modbus TCP connectivity, allowing the drive to be monitored and controlled via standard industrial Ethernet infrastructure.

Power supply integrity for the drive's control electronics is maintained by the APOW-01 auxiliary power supply module, which ensures that control circuits remain energized during main power interruptions — a critical requirement in applications where drive parameter retention and safe state management are mandatory. HMI interaction is facilitated by the CDP312R control panel, which provides local parameter access, fault history review, and drive commissioning functions without requiring a laptop or DriveWindow software connection.

Power Generation: In gas turbine and steam turbine auxiliary systems, the ACS800 with RINT-6621C controls boiler feed pumps, cooling water pumps, and forced draft fans. The board's reliable signal routing ensures that speed references from the plant DCS are accurately translated into drive output, maintaining process stability during load transients and grid disturbances.

Petrochemicals and Oil & Gas: Compressor and pump drives in hazardous area installations rely on the ACS800's robust control architecture. The RINT-6621C's compatibility with PROFIBUS-DP and Modbus RTU fieldbus adapters enables seamless integration with Honeywell Experion, Emerson DeltaV, and ABB System 800xA DCS platforms, supporting both regulatory control and safety instrumented system (SIS) interfaces.

Water Treatment and Municipal Infrastructure: Variable speed pump control in water treatment plants benefits from the ACS800's energy optimization algorithms. The RINT-6621C supports the I/O configurations required for pressure and flow feedback loops, enabling the drive to participate in SCADA-managed pump sequencing strategies that minimize energy consumption and extend pump service life.

Mining and Metallurgy: Conveyor drives, ball mill drives, and hoisting systems in mining operations demand high torque accuracy and fault tolerance. The RINT-6621C's role in the ACS800's internal diagnostics framework supports the predictive maintenance programs that reduce unplanned downtime in these high-consequence environments.

Marine Propulsion and Offshore: Thruster drives and auxiliary machinery drives on offshore platforms and vessels use the ACS800 in DNV-GL and ABS-certified configurations. The RINT-6621C's operating temperature range and humidity tolerance align with the environmental requirements of marine electrical rooms and machinery spaces.

Packaging and Discrete Manufacturing: Multi-axis coordinated drive systems in packaging lines use the ACS800's master-follower functionality, with the RINT-6621C ensuring that inter-drive communication signals remain synchronized across the production line — maintaining registration accuracy and minimizing product waste.

Q1: Is the RINT-6621C 6830696F compatible with all ACS800 drive variants, and what firmware version is required?The RINT-6621C is compatible with the ACS800-01, -02, -04, -07, -11, -17, and -31 drive variants. Firmware compatibility should be verified against the drive's parameter group 98 (Option Modules) using DriveWindow Light or the CDP312R control panel. NANKMOS recommends confirming the drive's existing firmware version before installation; all supplied units are tested against the standard ACS800 firmware baseline to ensure plug-and-play compatibility in the majority of field configurations.

Q2: How does the RINT-6621C integrate with existing PROFIBUS or Modbus fieldbus architectures, and what configuration steps are required?The RINT-6621C itself does not contain a fieldbus interface; it provides the internal signal routing infrastructure that supports the fieldbus adapter modules (RPBA-01 for PROFIBUS-DP, RMBA-01 for Modbus RTU, RDNA-01 for DeviceNet) installed in the drive's option slots. After replacing the RINT-6621C, engineers should verify that the fieldbus adapter is recognized in parameter group 98 and that the node address, baud rate, and process data mapping parameters are correctly configured. No changes to the PLC or DCS fieldbus configuration are typically required if the drive's node address and data mapping are preserved.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability for the ACS800 platform?The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions, including signal continuity faults, connector failures, and component-level defects identified during the warranty period. NANKMOS maintains dedicated inventory of ACS800 interface boards, control boards, and option modules to support both immediate replacement needs and planned maintenance programs. Customers with multi-site or multi-drive installations are encouraged to contact NANKMOS to discuss volume procurement and consignment stock arrangements that ensure spare parts availability aligned with their maintenance schedules.
