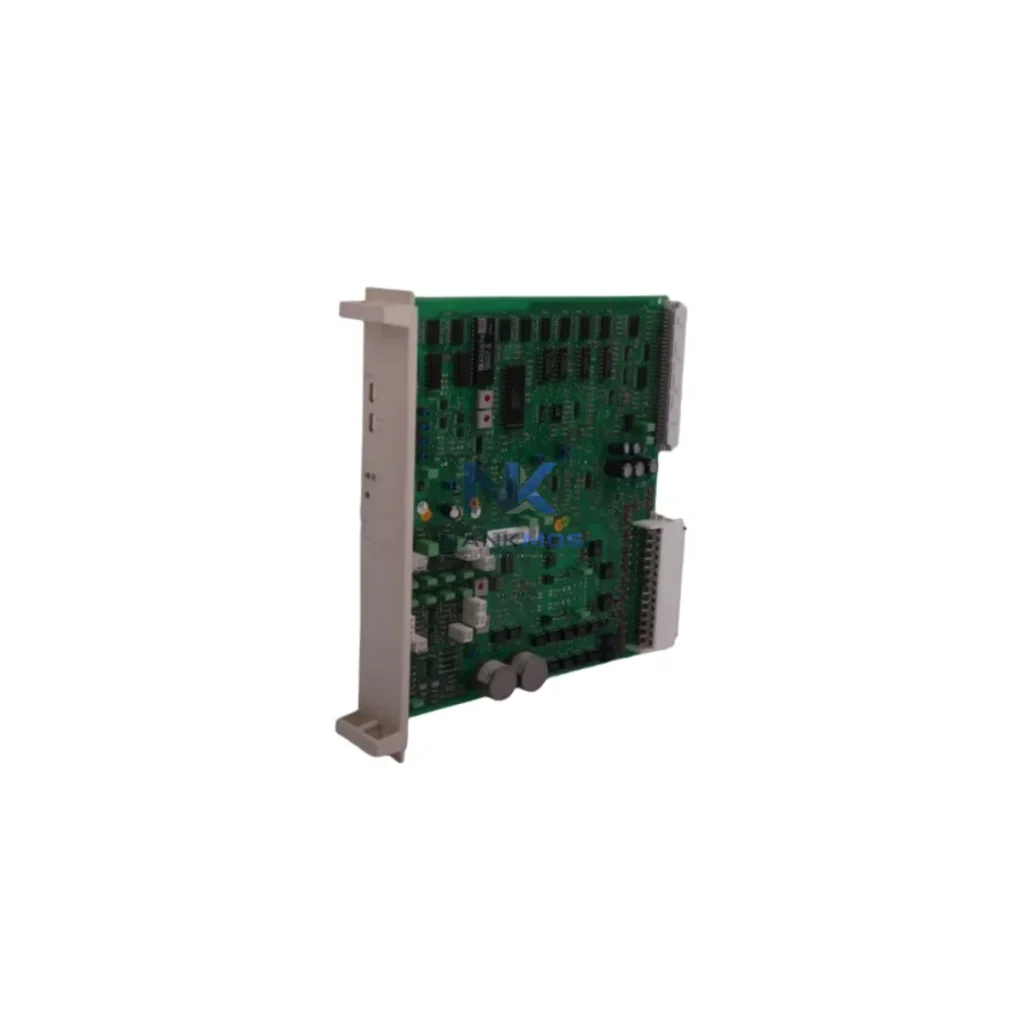

ABB RMIO-01 Drive Control Module

Product Details

RMIO-01 Product Description

The ABB RMIO-01 is a high-performance drive control and network interface module engineered for the ACS800 series of industrial AC drives. Designed to serve as the central communication and control backbone within modern smart factory architectures, the RMIO-01 enables seamless data exchange between field-level drive systems and upper-layer automation platforms — including PLCs, SCADA systems, HMIs, and edge computing gateways. Its role in the industrial data chain extends from real-time signal acquisition at the motor level to protocol-level integration with plant-wide control networks, making it an essential component for facilities pursuing full operational transparency and remote diagnostic capability.

In today's connected manufacturing environment, the ability to bridge drive-level intelligence with supervisory control systems is no longer optional — it is a prerequisite for competitive production. The RMIO-01 fulfills this requirement by providing a structured, protocol-compliant communication pathway that supports continuous data flow across every layer of the automation hierarchy. Whether deployed in a standalone drive application or integrated into a multi-axis coordinated motion system, the RMIO-01 delivers the network stability, data integrity, and diagnostic depth that modern industrial operations demand.

The RMIO-01 sits at the intersection of drive-level control and plant-wide data infrastructure. Understanding its role requires tracing the complete data flow from field device to enterprise system.

At the field level, motor speed, torque feedback, current draw, and fault status are continuously sampled by the ACS800 drive's internal measurement circuits. The RMIO-01 aggregates this real-time process data and formats it for transmission over the DDCS fiber optic ring — a deterministic, noise-immune communication channel purpose-built for industrial drive environments. This fiber-based topology ensures that even in electrically noisy production floors with heavy switching loads, data integrity is maintained without packet loss or timing jitter.

When a fieldbus adapter such as the RPBA-01 (PROFIBUS-DP) or RDNA-01 (DeviceNet) is mounted to the RMIO-01, the drive becomes a fully addressable node on the plant's primary fieldbus network. A Siemens S7-300 or Allen-Bradley ControlLogix PLC acting as the fieldbus master can then issue speed references, torque commands, and control word updates to the ACS800 in real time — with process variable feedback returned in the same cyclic data frame. This bidirectional, deterministic exchange is the foundation of closed-loop drive control in automated production lines.

Above the fieldbus layer, an industrial Ethernet switch — such as those in the ABB EKI series or a managed switch from the Hirschmann RS family — aggregates data from multiple fieldbus segments and forwards it to the plant SCADA server. SCADA platforms such as Wonderware InTouch or Ignition by Inductive Automation subscribe to drive data tags, enabling operators to monitor ACS800 operating parameters, trend historical performance, and configure alarm thresholds from a centralized control room interface.

For facilities deploying remote I/O architectures — where I/O modules such as the ABB CI854 or Beckhoff EK1100 EtherCAT coupler are distributed across the production floor — the RMIO-01 enables the ACS800 to participate as a peer device in the distributed control topology. Drive status and process values are made available to the remote I/O master, which consolidates field data for transmission to the DCS or PLC controller without requiring dedicated point-to-point wiring back to the control cabinet.

At the HMI layer, operator panels such as the ABB CP600 series or Siemens KTP700 connect to the drive network via PROFIBUS or Modbus RTU, presenting real-time drive status, fault codes, and production metrics to line operators. The RMIO-01's structured data model ensures that all standard ACS800 parameters — including output frequency, DC bus voltage, motor temperature, and active fault history — are consistently mapped and accessible to any connected HMI without custom protocol translation.

Edge computing gateways, such as the Moxa MGate series or Red Lion DA10D, can be positioned between the fieldbus network and the cloud or MES layer to perform local data preprocessing, protocol conversion, and buffered transmission. This architecture allows the RMIO-01-equipped ACS800 to contribute drive telemetry to IIoT platforms and digital twin environments without requiring modifications to the existing fieldbus infrastructure.

Protocol Fragmentation: Many production sites operate a mix of legacy and modern control systems — PROFIBUS segments alongside newer PROFINET or EtherNet/IP networks. The RMIO-01 addresses this by supporting multiple fieldbus adapter options, allowing the ACS800 to be integrated into whichever protocol standard governs the existing plant network. A single RMIO-01 with the appropriate adapter eliminates the need for standalone protocol converters between the drive and the control system.

Data Silos at the Drive Level: Without a structured network interface, drive operating data remains isolated within the drive itself — accessible only via the local keypad or a direct serial connection. The RMIO-01 breaks this isolation by making all ACS800 process variables and fault records available as network-addressable data objects, enabling SCADA historians to log drive performance continuously and maintenance teams to access fault data remotely without physical site visits.

Remote Monitoring and Diagnostics: Unplanned drive faults are among the most disruptive events in automated production. The RMIO-01 enables proactive fault management by transmitting drive alarm and fault status to the SCADA system in real time. Maintenance engineers can configure alarm thresholds for parameters such as motor overtemperature, overcurrent, and DC bus undervoltage — receiving notifications before a fault escalates to a production stoppage. Remote diagnostic access via the SCADA or DCS platform allows fault analysis and parameter adjustment without dispatching a technician to the drive location.

Production Line Transparency: In multi-drive applications — such as coordinated conveyor systems, pump stations, or multi-axis winding lines — the RMIO-01 enables each ACS800 to report its operating state to a central supervisory system. Production managers gain real-time visibility into drive loading, energy consumption, and throughput metrics across the entire line, supporting data-driven decisions on maintenance scheduling, energy optimization, and capacity planning.

System Scalability: As production requirements evolve, the RMIO-01's modular fieldbus adapter architecture allows the ACS800's network connectivity to be upgraded without replacing the drive. A facility migrating from PROFIBUS to PROFINET can swap the fieldbus adapter while retaining the existing RMIO-01 and drive hardware — protecting the capital investment in the drive system while accommodating network infrastructure upgrades.

Q1: What fieldbus protocols does the ABB RMIO-01 support?The RMIO-01 supports DDCS (fiber optic) natively and extends to PROFIBUS-DP, DeviceNet, Modbus RTU, and CANopen via optional fieldbus adapter modules (RPBA-01, RDNA-01, RMBA-01, RCAN-01). This makes it compatible with the majority of PLC and SCADA platforms deployed in industrial automation environments.

Q2: Can the RMIO-01 be used for remote diagnostics and fault monitoring?Yes. When integrated into a SCADA or DCS network via its fieldbus interface, the RMIO-01 exposes all ACS800 fault codes, alarm states, and process variables as network data objects. Remote monitoring platforms can subscribe to these data points for continuous fault logging, threshold-based alarming, and remote parameter inspection — eliminating the need for on-site manual fault reading in most diagnostic scenarios.

Q3: How does the RMIO-01 ensure network stability in electrically noisy environments?The RMIO-01's DDCS interface uses fiber optic transmission, which is inherently immune to electromagnetic interference from motor switching, variable frequency drive output harmonics, and high-current bus systems. For fieldbus segments using copper media, the RMIO-01's adapter interface complies with the electrical isolation and signal conditioning requirements of each respective fieldbus standard, ensuring reliable data transmission in demanding industrial environments.

Q4: What warranty and pre-shipment testing does the RMIO-01 include?Every RMIO-01 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify communication interface integrity, I/O channel operation, and firmware compatibility with ACS800 drive systems. Global stock is maintained to support rapid deployment for maintenance replacements and new installation projects.
