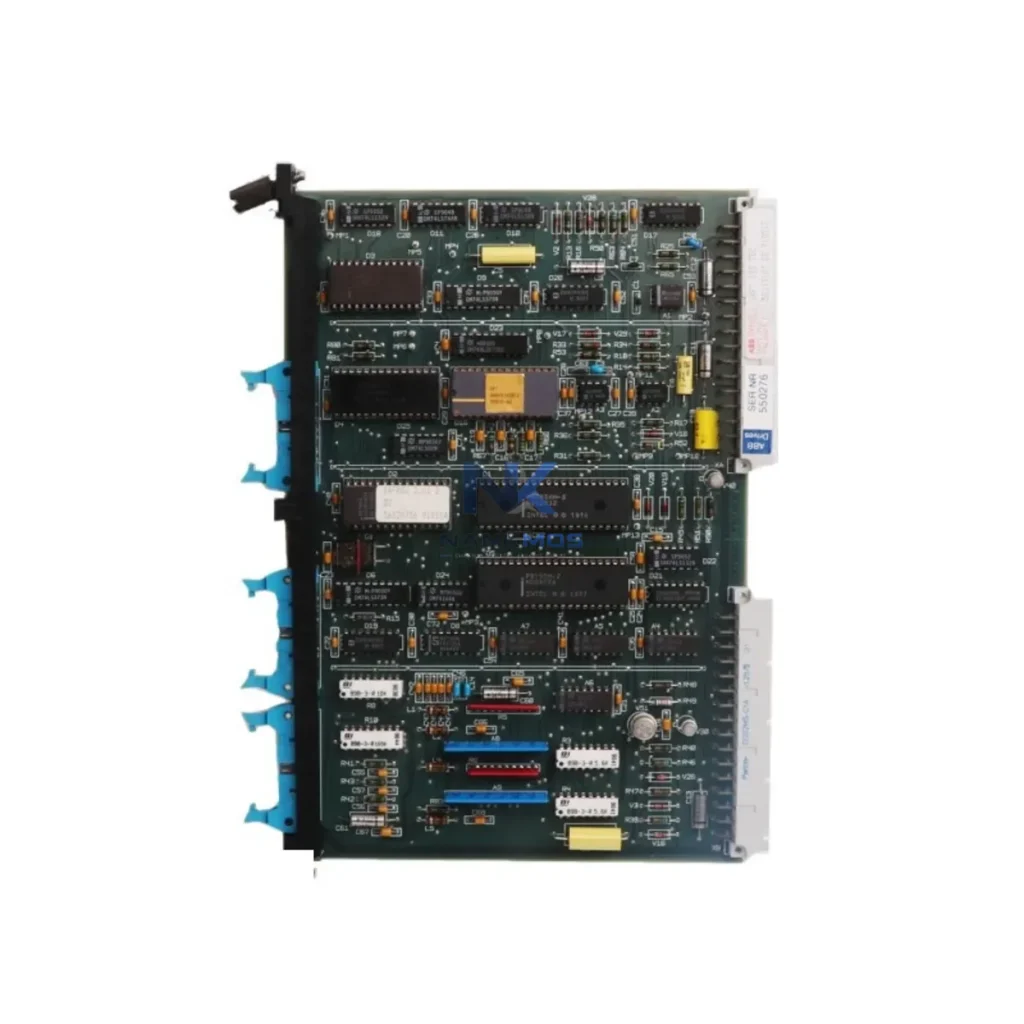

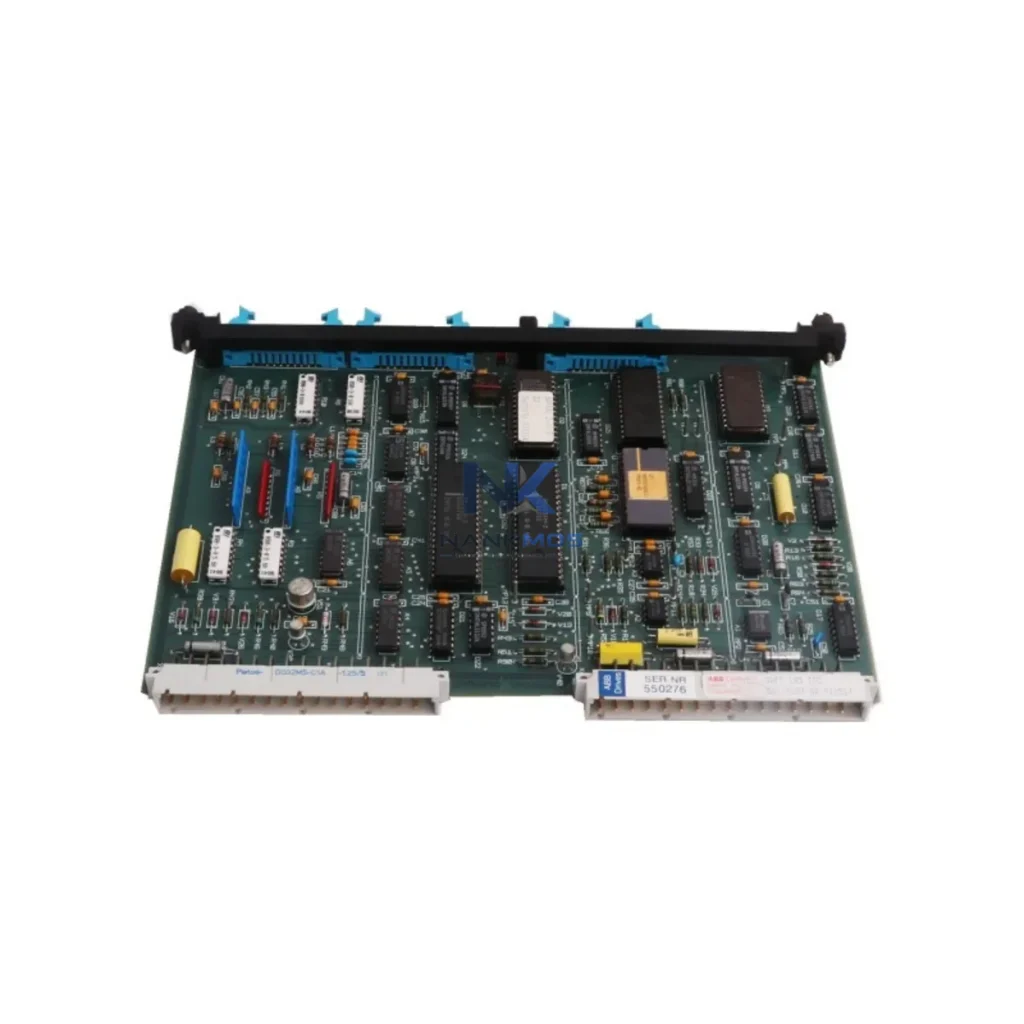

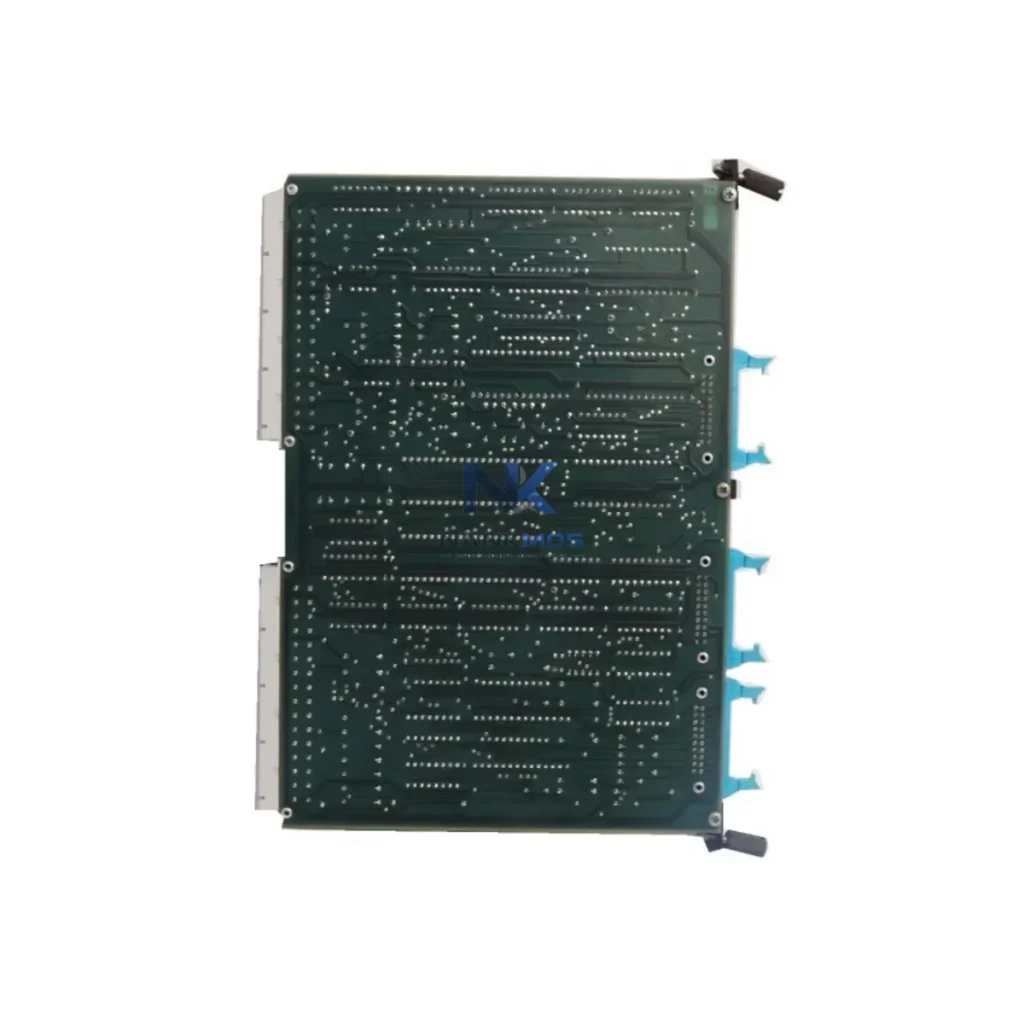

ABB SAFT185TBC SAFT 185 TBC Converter Control Board

Product Details

SAFT185TBC SAFT 185 TBC Product Description

The ABB SAFT185TBC is a high-performance converter control board engineered for the ACS600 and ACS800 series variable frequency drives. Designed to operate at the intersection of motor control, energy monitoring, and production-line optimization, this board delivers the signal processing and gate-drive coordination that keeps industrial drive systems running at peak efficiency. In environments where every kilowatt-hour counts — from automotive assembly to food processing and heavy manufacturing — the SAFT185TBC provides the hardware foundation for measurable energy savings, reduced thermal loading, and extended equipment service life.

The SAFT185TBC does not operate in isolation — it is a critical node within a broader power-aware automation architecture. In a typical ACS800 drive system, the SAFT185TBC interfaces directly with the AINT board (the main control board) and the APOW power supply board, forming the core control triad that governs inverter switching sequences. When paired with the RDCO-01 DDCS communication adapter, the board participates in real-time data exchange with higher-level controllers, enabling coordinated energy dispatch across multi-drive production cells.

At the PLC level, a Siemens S7-300 or ABB AC500 PLC issues speed and torque references via PROFIBUS-DP or Modbus RTU. The SAFT185TBC translates these references into precise gate-drive pulses for the IGBT power modules, ensuring that motor acceleration and deceleration profiles are executed with minimal reactive power draw. This tight integration with the PLC layer is what allows production engineers to implement demand-response strategies — ramping down non-critical conveyor motors during peak tariff windows without disrupting overall line throughput.

On the energy monitoring side, the SAFT185TBC works in concert with power measurement modules such as the ABB M2M or third-party DIN-rail power analyzers that feed real-time kW and power-factor data to a SCADA system. When the SCADA platform — running on platforms like Wonderware InTouch or Ignition — detects a power-factor deviation, it can instruct the ACS800 drive to adjust its reactive current compensation, a command that ultimately reaches the IGBT gates through the SAFT185TBC. This closed-loop energy management loop is a cornerstone of ISO 50001-aligned factory energy programs.

HMI panels, such as the ABB CP600 or Siemens TP700 Comfort, display drive status, output frequency, and motor current drawn from the ACS800's parameter set. Operators can monitor the health of the converter control layer in real time, catching early signs of gate-drive degradation before they escalate into unplanned downtime. I/O expansion modules connected to the ACS800's standard I/O board relay digital fault signals back to the PLC, triggering predictive maintenance workflows that keep the SAFT185TBC and its associated power stack in optimal condition.

In high-cycle manufacturing environments, the converter control board is the component most directly responsible for translating energy policy into physical motor behavior. A degraded or mismatched control board introduces switching irregularities that manifest as increased motor heating, elevated harmonic distortion on the supply bus, and erratic torque delivery — all of which translate directly into wasted energy and accelerated mechanical wear.

The SAFT185TBC addresses these failure modes by providing stable, well-timed gate pulses that keep the ACS600 or ACS800 drive operating within its designed efficiency envelope. In pump and fan applications — which account for a disproportionate share of industrial electricity consumption — even a 2–3% improvement in drive efficiency compounds significantly across thousands of operating hours. For conveyor and hoist applications, precise torque control during start-stop cycles reduces inrush current spikes that would otherwise stress the upstream transformer and increase peak-demand charges.

From a production-line rhythm perspective, a healthy SAFT185TBC ensures that the drive responds to speed references without lag or overshoot, maintaining the line takt time that production planners depend on. Unexpected drive faults caused by control board failures disrupt this rhythm, triggering emergency stops that cascade into downstream bottlenecks. By maintaining a verified, tested SAFT185TBC in the drive, maintenance teams eliminate one of the most common root causes of unplanned ACS800 downtime.

The board also supports the energy baseline measurement process. When commissioning a new energy-saving initiative, engineers use the ACS800's built-in energy calculator — fed by data processed through the SAFT185TBC — to establish a pre-intervention kWh baseline. Post-replacement measurements then quantify the efficiency gain, providing the documented evidence required for ISO 50001 energy audits and internal ROI reporting.

Q1: How does replacing a faulty SAFT185TBC reduce energy consumption? A degraded converter control board causes irregular IGBT switching, which increases switching losses and motor heating. Replacing it with a tested SAFT185TBC restores optimal PWM patterns, reducing both active power draw and thermal load on the drive cabinet. In continuous-duty applications, this can recover 2–5% of drive-level efficiency losses attributable to control-layer degradation.

Q2: Is the SAFT185TBC compatible with both ACS600 and ACS800 drive platforms? Yes. The SAFT185TBC is designed for use across the ACS600 and ACS800 series. Before installation, verify the drive's hardware revision and firmware version against ABB's compatibility matrix to confirm the correct board variant. If you are unsure, contact us with your drive nameplate data and we will confirm compatibility prior to shipment.

Q3: What testing is performed before the board is shipped? Every SAFT185TBC unit undergoes a full functional test prior to dispatch. This includes gate-drive signal verification, power supply rail checks, and communication interface validation. A test report is available upon request. Units that do not pass all test criteria are not shipped.

Q4: What does the 12-month warranty cover, and is inventory available for urgent orders? The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Stock is maintained for immediate dispatch; standard lead time is 1–3 business days. For urgent production-line recovery situations, contact us directly to confirm same-day dispatch availability.
