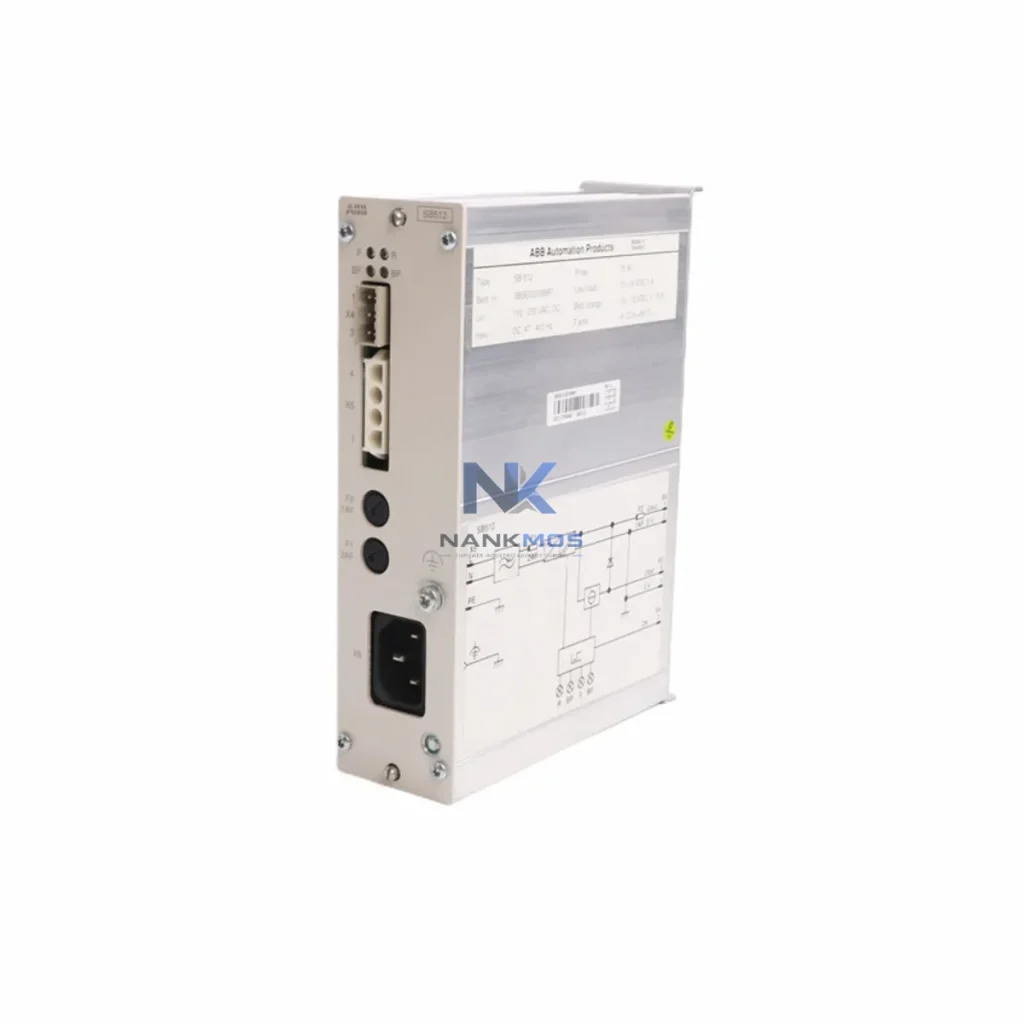

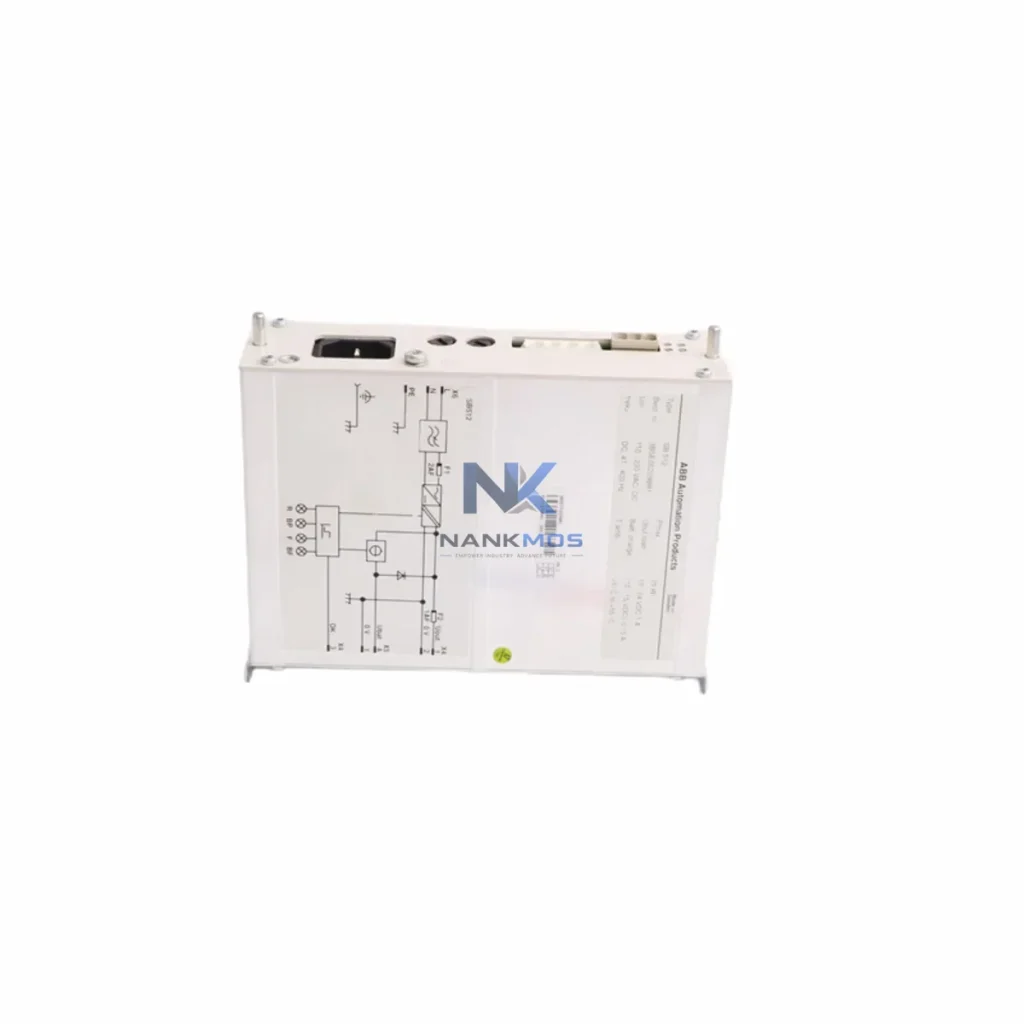

ABB SB512 3BSE002098R1 Power Supply Module

Product Details

SB512 3BSE002098R1 Product Description

The ABB SB512 (3BSE002098R1) is a dedicated system power supply module engineered for the ABB Advant Master distributed control system (DCS) architecture. Designed to deliver stable, regulated DC power across the Advant Master backplane, the SB512 ensures uninterrupted energy distribution to CPU modules, I/O sub-racks, and communication interfaces within the same control cabinet. Its role in the power layer is foundational: without a correctly rated and system-matched supply, the entire control hierarchy — from the master controller down to field-level signal conditioning — is at risk of instability, false trips, and degraded diagnostic accuracy. The SB512 addresses this by providing a tightly regulated output voltage with built-in protection against overload, short circuit, and thermal excursion, making it a reliable backbone for long-cycle industrial deployments in power generation, petrochemical processing, water treatment, and heavy manufacturing environments.

The SB512 3BSE002098R1 does not operate in isolation — it is the energy foundation upon which the entire Advant Master control platform depends. In a fully configured Advant Master architecture, the SB512 supplies regulated power to the PM511 / PM511V16 processor module, which serves as the primary CPU executing control logic and managing I/O polling cycles. Alongside the processor, the MB510 MasterBus 300 communication module relies on stable backplane voltage to maintain deterministic fieldbus communication with remote I/O stations and peer controllers. The AI810 analog input module and AO810 analog output module — responsible for 4–20 mA signal acquisition and actuation — require clean, ripple-free DC power to maintain signal resolution and prevent offset drift in precision process loops.

In redundant power configurations, the SB512 is paired with a second supply unit to form a hot-standby power architecture, ensuring that a single supply failure does not interrupt the control loop. This redundancy is especially critical in applications where the CI522A PROFIBUS DP communication interface is used to connect field devices such as variable frequency drives, smart valve positioners, and remote I/O clusters. The TB820 ModuleBus optical port module further extends the system's I/O reach over fiber-optic links, and its reliable operation depends directly on the power quality delivered by the SB512.

At the HMI and supervisory layer, operator workstations running ABB's Advant Station 500 series communicate with the Advant Master controller via Ethernet or MasterNet, with the controller's network interface modules drawing power from the same backplane supply chain. For cabinet-level signal conditioning, MTU210 termination units and marshalling panels interface between field wiring and the I/O modules, with the SB512 ensuring that the entire signal chain from field sensor to control room display remains electrically stable. In applications requiring relay output expansion, the DO810 digital output module drives relay coils and solenoid valves, where voltage sag from an undersized or failing power supply can cause spurious actuations — a risk entirely mitigated by the SB512's regulated output and built-in protection circuitry.

For installations requiring functional safety integration, the SB512 supports co-deployment with ABB's S800 I/O safety modules in hybrid architectures where the Advant Master handles standard process control while a dedicated safety layer manages SIL-rated shutdown functions. This modular, layered approach to power distribution — with the SB512 at its core — enables engineers to scale the control system from a single sub-rack to a multi-cabinet, multi-controller plant-wide DCS without redesigning the power architecture.

Power Generation & Utilities: In thermal and hydroelectric power plants, the Advant Master DCS manages turbine governor control, boiler combustion loops, and grid synchronization sequences. The SB512 ensures that the CPU and I/O modules maintaining these critical loops receive uninterrupted, regulated power — even during grid disturbances or load-shedding events that can cause input voltage fluctuations.

Petrochemical & Refinery Processing: Continuous process plants operating 24/7 cannot tolerate control system downtime. The SB512's redundant-capable design supports hot-standby power configurations in reactor control, distillation column management, and compressor surge protection systems, where a power supply failure could trigger costly emergency shutdowns.

Water & Wastewater Treatment: Municipal water authorities rely on Advant Master systems for pump station automation, chemical dosing control, and SCADA integration. The SB512 provides the stable backplane power required for reliable analog signal processing in pH, turbidity, and flow measurement loops.

Mining & Metallurgy: In ore processing and smelting operations, the Advant Master controls conveyor sequencing, crusher automation, and furnace temperature regulation. The SB512's wide input voltage range accommodates the variable power quality typical of mining site electrical infrastructure.

Marine & Offshore: Offshore platform automation and vessel machinery control systems demand compact, vibration-resistant power supply modules. The SB512's robust construction and thermal protection make it suitable for marine-grade control cabinet installations where space and reliability are equally critical.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems using Advant Master for motion sequencing and quality inspection benefit from the SB512's fast transient response, which prevents voltage dips during simultaneous I/O module activation at the start of production cycles.

Q1: Is the ABB SB512 3BSE002098R1 compatible with all Advant Master sub-rack configurations, including redundant CPU setups? Yes. The SB512 is designed for the Advant Master sub-rack backplane and is compatible with single and redundant CPU configurations using PM511 or PM511V16 processor modules. In redundant power setups, two SB512 units are installed in parallel with automatic load sharing and failover, ensuring zero-interruption power delivery to the entire sub-rack during a single supply fault. Verify the sub-rack model (e.g., SB510, SB520 series) against the SB512 installation manual to confirm slot and connector compatibility before installation.

Q2: What are the recommended commissioning checks before energizing the SB512 in an existing Advant Master cabinet? Prior to energizing, verify input voltage range against site supply (85–264 VAC or 100–370 VDC), inspect backplane connector pins for corrosion or mechanical damage, confirm that total sub-rack load current does not exceed the SB512's rated output, and check that all I/O modules are properly seated. After initial power-up, measure output voltage at the backplane test points and confirm it falls within the specified tolerance band. Review the SB512 status LED indicators for fault codes before enabling the CPU module and initiating the control program download.

Q3: How does NANKMOS ensure the quality and long-term reliability of the ABB SB512 3BSE002098R1 supplied, and what does the 12-Month Warranty cover? Every ABB SB512 3BSE002098R1 unit supplied by NANKMOS undergoes a pre-shipment functional test protocol that includes input/output voltage verification, load regulation testing, protection circuit activation checks, and thermal cycling inspection. Units are shipped in anti-static, shock-protected packaging with full traceability documentation. The 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Warranty claims are processed within 5 business days, with replacement units dispatched from in-stock inventory to minimize system downtime. Contact [email protected] or +86 18359268345 for warranty registration and technical support.
