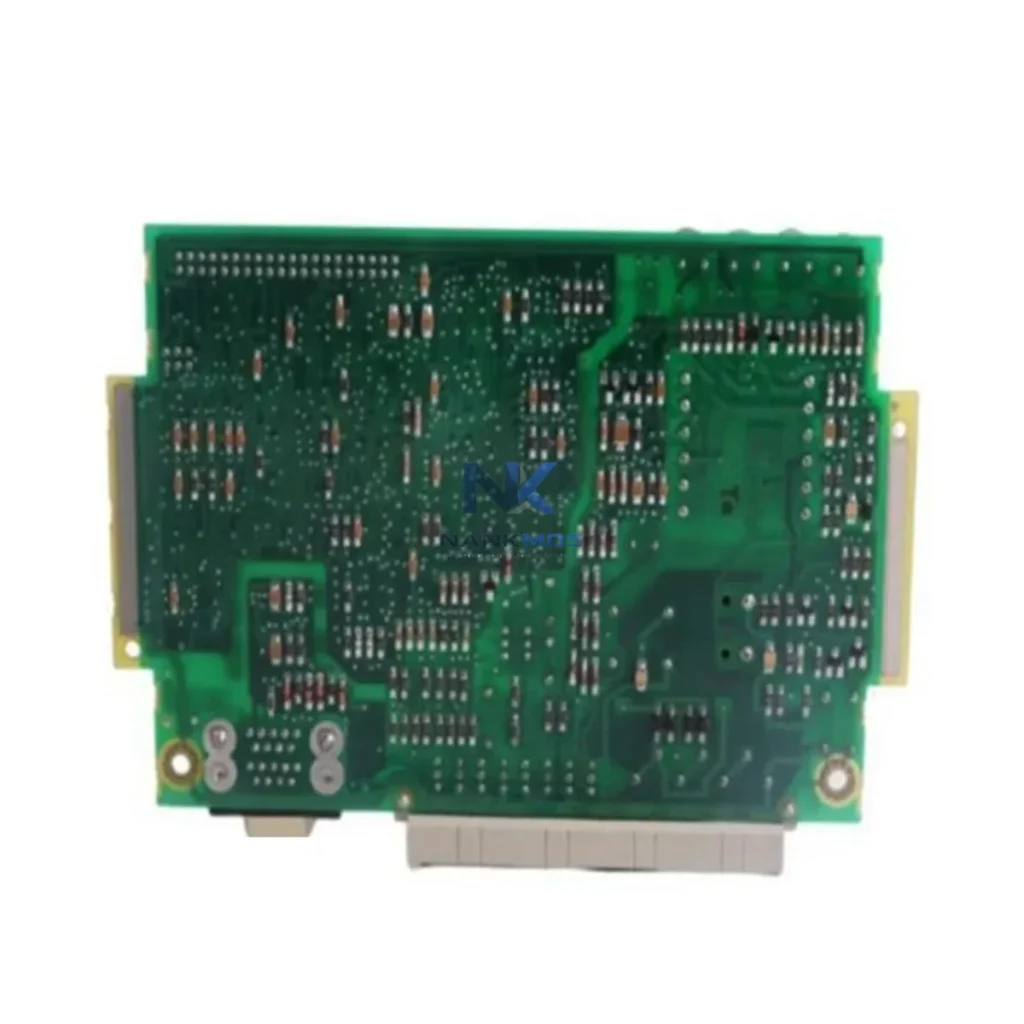

ABB SC300E-MPP Communication Processor Module

Product Details

SC300E-MPP Product Description

The ABB SC300E-MPP is a high-performance communication processor module engineered for the Symphony Plus distributed control architecture. Designed to serve as the central data link between field instrumentation, PLC controllers, remote I/O nodes, HMI panels, SCADA platforms, and upper-level MES or ERP systems, the SC300E-MPP delivers deterministic, low-latency data exchange across multi-protocol industrial networks. In smart factory environments where production transparency, real-time diagnostics, and seamless system integration are non-negotiable, this module provides the communication backbone that keeps every layer of the automation hierarchy synchronized and responsive.

From the moment a field sensor transmits a process variable — whether it is a temperature reading from a thermocouple transmitter, a flow signal from a Coriolis meter, or a discrete status from a motor protection relay — the SC300E-MPP ensures that data travels reliably through the network stack to reach the control logic, visualization layer, and historian without distortion or delay. Its multi-protocol gateway capability bridges legacy serial fieldbus segments with modern Ethernet-based architectures, eliminating the data silos that commonly fragment industrial sites operating mixed-generation equipment.

In a fully connected smart factory deployment, the SC300E-MPP occupies a critical position within the Symphony Plus controller rack, acting as the communication bridge between the process control domain and the supervisory network. At the field level, analog and digital signals from pressure transmitters, level sensors, and valve positioners are collected by ABB S800 remote I/O modules and fed into the Symphony Plus controller via the Modulebus backplane. The SC300E-MPP then aggregates this real-time process data and forwards it upstream over Modbus TCP or Profibus DP to the SCADA server — typically running ABB System 800xA or a third-party platform such as Wonderware InTouch or Ignition SCADA — where operators monitor KPIs, trend process variables, and respond to alarm conditions.

For sites integrating variable frequency drives such as the ABB ACS880 or ACS580 series, the SC300E-MPP enables drive status, speed reference, and fault diagnostics to be read directly into the DCS historian, removing the need for separate communication gateways at each drive panel. Similarly, motor control centers equipped with ABB UMC100 motor management relays can report current draw, thermal status, and trip events through the same Profibus segment managed by the SC300E-MPP, consolidating motor health data into a single supervisory view.

At the HMI layer, panel computers running ABB CP600 or equivalent operator terminals receive live process values from the Symphony Plus controller through the SC300E-MPP's Ethernet port, enabling operators on the plant floor to interact with setpoints, acknowledge alarms, and view trend displays without latency. For remote monitoring scenarios — common in water treatment, oil and gas, and power generation applications — the SC300E-MPP supports integration with edge gateway devices such as the ABB Ability Edge or third-party IIoT gateways, which tunnel process data securely to cloud-based dashboards or remote SCADA nodes over VPN-protected industrial Ethernet links.

When the automation architecture includes safety instrumented systems, the SC300E-MPP facilitates data exchange between the Symphony Plus process controller and ABB AC500-S safety PLCs, ensuring that process interlocks, emergency shutdown signals, and safety loop diagnostics are visible at the SCADA level without compromising SIL integrity. Industrial Ethernet switches — such as managed Layer 2 switches with PROFINET or EtherNet/IP support — form the network fabric through which the SC300E-MPP communicates with all upstream and downstream nodes, and proper VLAN segmentation at the switch level ensures that control traffic is isolated from general IT network traffic.

Many industrial sites operate with a mix of legacy serial fieldbus equipment and modern Ethernet-based controllers, creating protocol fragmentation that prevents unified data visibility. The SC300E-MPP directly addresses this challenge by acting as a multi-protocol gateway: it translates Profibus DP signals from older field devices into Modbus TCP frames that modern SCADA servers and cloud historians can consume natively, eliminating the need for standalone protocol converters that introduce additional failure points and maintenance overhead.

Data island problems — where individual machines or production cells log data locally without sharing it with the plant-wide historian — are resolved by connecting each subsystem's communication module to the SC300E-MPP's Profibus or Ethernet segment. Once integrated, every connected device contributes to a unified data model that supports OEE calculation, predictive maintenance scheduling, and energy consumption analysis across the entire production line.

Remote diagnostics capability is a core value proposition of the SC300E-MPP in distributed or unmanned installations. Maintenance engineers can interrogate module health, review communication error counters, and verify cyclic data exchange rates from a remote workstation connected to the plant network, reducing the need for on-site visits and accelerating mean time to repair. Alarm tracking is similarly enhanced: because all field device status signals pass through the SC300E-MPP on their way to the SCADA alarm server, alarm timestamps are synchronized to the controller clock, enabling accurate root-cause analysis and sequence-of-events reconstruction after process upsets.

For production lines undergoing capacity expansion, the SC300E-MPP's modular architecture within the Symphony Plus rack system allows additional I/O modules and communication nodes to be added without reconfiguring the existing network topology. This scalability ensures that the communication infrastructure grows in step with the production footprint, protecting the initial capital investment while supporting long-term digital transformation objectives.

Q1: What communication protocols does the ABB SC300E-MPP support, and how does it handle protocol conversion between Profibus and Modbus TCP? The SC300E-MPP supports Profibus DP and Modbus TCP as primary industrial protocols, with Ethernet connectivity for SCADA and HMI integration. Protocol conversion between Profibus field devices and Modbus TCP supervisory systems is handled internally by the module's firmware, which maps Profibus process data objects to Modbus register addresses. This eliminates the need for external protocol converters and reduces network latency to sub-cycle scan times, typically under 10 ms for standard process variable updates.

Q2: How does the SC300E-MPP ensure network stability in high-noise industrial environments? The module is designed to operate within the Symphony Plus rack environment, which provides EMC-shielded backplane communication and isolated power supply rails. For Ethernet segments, the SC300E-MPP supports managed switch integration with VLAN and QoS configuration to prioritize control traffic. Profibus DP segments are terminated with standard 120-ohm resistors at both ends of the cable run, and the module supports automatic baud rate detection to maintain stable communication even when segment topology changes during maintenance activities.

Q3: Can the SC300E-MPP be integrated with third-party SCADA platforms such as Ignition or Wonderware, and what is the recommended integration method? Yes. The SC300E-MPP exposes process data over Modbus TCP, which is natively supported by all major SCADA platforms including Ignition (Inductive Automation), Wonderware System Platform, and Siemens WinCC. The recommended integration method is to configure a Modbus TCP driver on the SCADA server pointing to the SC300E-MPP's Ethernet IP address, then map the required register addresses to SCADA tags. For ABB System 800xA environments, native Symphony Plus OPC DA/UA connectivity is available, providing higher-fidelity tag browsing and alarm integration.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed on the SC300E-MPP? Every SC300E-MPP unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes power-on functional verification, communication port continuity checks, firmware version confirmation, and visual inspection for physical damage. Units that fail any test criterion are quarantined and not shipped. Warranty coverage includes repair or replacement for manufacturing defects and functional failures under normal operating conditions. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
