ABB SDCS-AMC-DC-2COAT DC Drive Control Board

Product Details

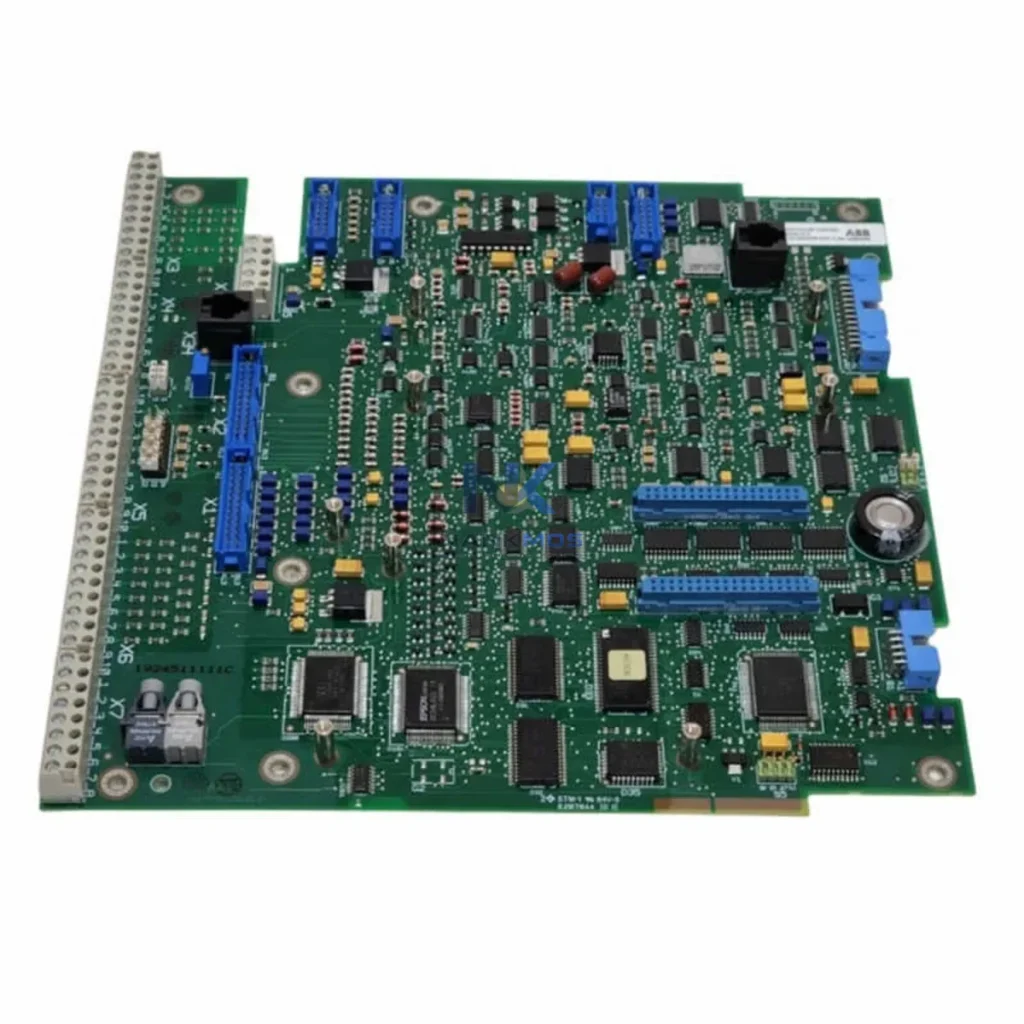

SDCS-AMC-DC-2COAT Product Description

The ABB SDCS-AMC-DC-2COAT is a conformal-coated DC drive control board engineered for the ABB DCS800 series DC drive platform. Designed to serve as the intelligence core of industrial DC motor control systems, this board integrates advanced fieldbus communication capabilities that bridge field-level devices with supervisory control layers across smart factory architectures. Whether deployed in heavy-duty paper mills, metal processing lines, crane systems, or continuous process plants, the SDCS-AMC-DC-2COAT delivers deterministic data exchange, real-time drive diagnostics, and seamless protocol interoperability across multi-vendor automation environments.

In modern industrial data architectures, the SDCS-AMC-DC-2COAT functions as a critical node in the plant-wide communication chain. It connects the DCS800 DC drive directly to PROFIBUS-DP or DeviceNet fieldbus networks, enabling the drive to participate as a fully addressable slave device within PLC-controlled automation cells. This eliminates the need for analog signal wiring between the drive and the controller, replacing it with high-speed digital data links that carry speed references, torque commands, fault codes, and real-time status data across the network backbone.

The SDCS-AMC-DC-2COAT sits at the intersection of field-level drive control and plant-wide data infrastructure. In a typical smart factory deployment, the data flow begins at the motor shaft — where encoders and tachometers feed speed and position signals into the DCS800 drive. The SDCS-AMC-DC-2COAT processes these signals internally and exposes them as structured process data objects (PDOs) on the PROFIBUS-DP network, making them immediately accessible to upstream controllers such as the ABB AC500 PLC or Siemens S7-300/S7-400 series controllers acting as PROFIBUS masters.

From the PLC layer, data flows upward to SCADA platforms — including ABB System 800xA, Wonderware InTouch, or Ignition SCADA — where operators monitor drive speed, current draw, torque output, and fault history in real time. The SDCS-AMC-DC-2COAT enables the DCS800 to report parameter sets and fault registers directly to these supervisory systems without manual polling, supporting alarm-driven workflows and automated fault response sequences.

For sites running DeviceNet topologies, the board integrates with Allen-Bradley ControlLogix or CompactLogix PLCs via DeviceNet scanner modules, enabling the DCS800 to participate in unified control architectures alongside other DeviceNet-compatible devices such as remote I/O blocks, smart sensors, and motor protection relays. This interoperability is critical in retrofit projects where existing DeviceNet infrastructure must accommodate new DC drive installations without rewiring the network backbone.

At the edge layer, data from the SDCS-AMC-DC-2COAT can be aggregated by industrial edge gateways — such as the Moxa MGate MB3000 series or HMS Anybus X-gateway — which translate PROFIBUS data into MQTT or OPC-UA streams for cloud-based analytics platforms. This enables predictive maintenance workflows where drive load trends, thermal data, and fault frequency are analyzed over time to schedule proactive maintenance before unplanned downtime occurs.

Remote I/O modules such as the ABB S900 I/O or Wago 750 series fieldbus couplers can be co-deployed on the same PROFIBUS segment as the DCS800, allowing the control system to simultaneously manage drive parameters and process I/O signals — temperature sensors, pressure transmitters, and flow meters — within a single network scan cycle. HMI panels, including ABB CP600 series or Siemens TP700 Comfort, connect to the SCADA layer to provide operators with graphical drive status dashboards, trend charts, and one-touch fault acknowledgment interfaces.

Industrial sites operating legacy DC drive systems frequently encounter data isolation problems — drives that run reliably but contribute no diagnostic data to the plant network. The SDCS-AMC-DC-2COAT directly resolves this by converting the DCS800 from a standalone analog-controlled drive into a fully networked, data-transparent device.

Protocol fragmentation is addressed through the board's native PROFIBUS-DP and DeviceNet support, eliminating the need for external protocol converters between the drive and the PLC. This reduces network latency, simplifies commissioning, and removes a common point of failure in multi-protocol architectures.

Data silos are broken down by exposing drive parameters — speed setpoints, actual speed, output current, DC bus voltage, fault codes, and control word status — as standard fieldbus data objects readable by any compliant master device. SCADA engineers can map these objects directly into historian databases for long-term trend analysis and regulatory compliance reporting.

Remote monitoring becomes practical because the SDCS-AMC-DC-2COAT allows drive fault events to propagate instantly through the PROFIBUS network to the SCADA alarm server, triggering SMS or email notifications to maintenance teams without requiring physical inspection of the drive cabinet. This is particularly valuable in unmanned substations, remote pump stations, and offshore installations where on-site response time is costly.

Production line transparency improves as the drive's real-time data feeds into MES dashboards, enabling production managers to correlate motor load data with product quality metrics, shift throughput, and energy consumption KPIs. The conformal coating (2COAT) ensures the board maintains reliable communication even in high-humidity, dusty, or chemically aggressive environments common in paper, cement, and chemical processing plants.

System expansion is supported by the PROFIBUS-DP multi-drop topology, which allows additional DCS800 drives — each equipped with SDCS-AMC-DC-2COAT boards — to be added to the network segment without architectural changes, scaling the connected drive fleet as production capacity grows.

Every SDCS-AMC-DC-2COAT unit shipped by NANKMOS undergoes pre-shipment functional testing to verify communication initialization, parameter read/write integrity, and fieldbus address configuration. Units are supplied with a 12-month warranty and are available from in-stock inventory for immediate dispatch, minimizing procurement lead times for urgent maintenance and retrofit projects.

Q1: What fieldbus protocols does the SDCS-AMC-DC-2COAT support, and is it compatible with existing PROFIBUS networks?The SDCS-AMC-DC-2COAT supports PROFIBUS-DP and DeviceNet protocols natively. It is fully compatible with standard PROFIBUS-DP networks operating at baud rates from 9.6 kbps to 12 Mbps, and integrates with any GSD-file-compliant PROFIBUS master, including Siemens, ABB, Schneider, and Rockwell PLCs. No additional protocol converters are required for standard PROFIBUS or DeviceNet topologies.

Q2: How does the board support remote diagnostics and fault monitoring in unmanned installations?The SDCS-AMC-DC-2COAT exposes the DCS800 fault register and status word as cyclic PROFIBUS data, enabling SCADA systems to detect and log fault events in real time without polling delays. Fault data can be forwarded to alarm management systems, historian databases, or cloud analytics platforms via edge gateways, supporting remote diagnostics workflows without requiring on-site personnel for initial fault identification.

Q3: Is the SDCS-AMC-DC-2COAT suitable for harsh industrial environments, and what does the 2COAT designation mean?Yes. The "2COAT" designation indicates that the PCB has received a conformal coating treatment applied in two layers, providing enhanced protection against moisture, dust, chemical vapors, and condensation. This makes the board suitable for deployment in paper mills, cement plants, offshore platforms, and other environments where standard PCBs would be vulnerable to corrosion or electrical leakage.

Q4: What warranty and stock availability does NANKMOS provide for the SDCS-AMC-DC-2COAT?NANKMOS supplies the SDCS-AMC-DC-2COAT with a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions. Units are held in verified in-stock inventory and undergo pre-shipment functional testing before dispatch. Same-day or next-business-day shipping is available for urgent maintenance and production-critical replacement orders.
