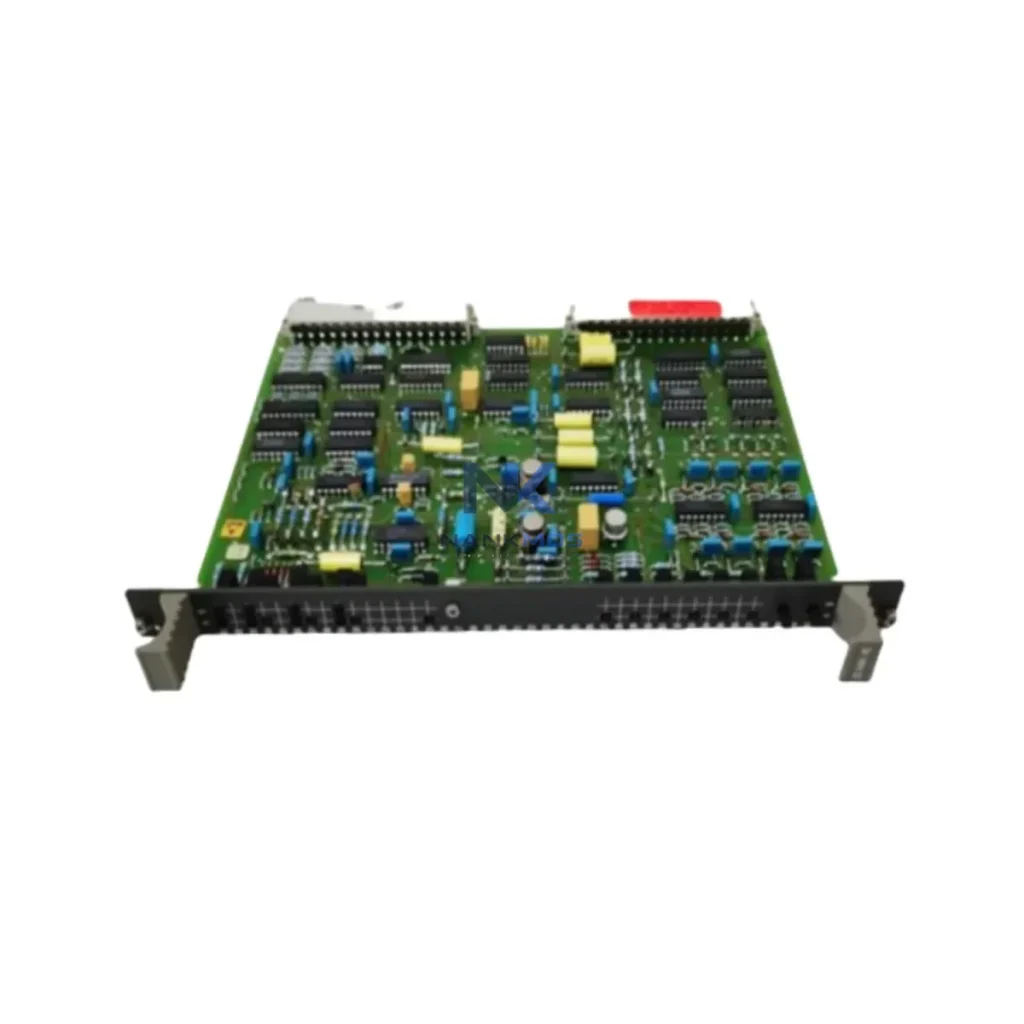

ABB SDCS-CON-4 3ADT313900R1501 DC Drive Control Board

Product Details

SDCS-CON-4 3ADT313900R1501 Product Description

The ABB SDCS-CON-4 (part number 3ADT313900R1501) is the core control and network interface board for the ABB DCS800 series DC drive platform — one of the most widely deployed DC drive families in heavy industry, pulp and paper, metals, marine, and process automation. Designed to bridge field-level drive hardware with plant-wide digital infrastructure, the SDCS-CON-4 enables real-time data exchange between the DC drive and upper-level control systems including PLCs, SCADA platforms, DCS controllers, and HMI terminals. In smart factory environments where every millisecond of drive status data matters, this board is the critical link that transforms a standalone DC drive into a fully networked, remotely diagnosable automation asset.

In a modern smart factory, the SDCS-CON-4 sits at the intersection of the physical drive layer and the digital data layer. The data flow begins at the motor and encoder level, where speed feedback, armature current, and torque signals are captured by the DCS800 drive hardware and processed by the SDCS-CON-4 control board in real time. From there, the board transmits structured process data — including actual speed, setpoint deviation, fault codes, and drive status words — upstream via the fieldbus network.

In a typical PROFIBUS-DP topology, the SDCS-CON-4 (equipped with an ABB RPBA-01 PROFIBUS adapter) connects as a slave node to a Siemens S7-300 or S7-400 PLC acting as the DP master. The PLC cyclically polls the drive for speed reference acknowledgment and status feedback, while simultaneously writing speed setpoints and control words to the drive. This closed-loop data exchange happens within 1–5 ms cycle times, enabling precise coordinated motion across multi-drive winder or extruder lines.

For DeviceNet-based architectures — common in automotive body shops and packaging lines — the SDCS-CON-4 paired with an ABB RDCO-02 DeviceNet adapter integrates directly into Allen-Bradley ControlLogix or CompactLogix PLC networks. The drive appears as a standard DeviceNet node, and the PLC's RSLogix 5000 or Studio 5000 environment can map drive parameters directly into the controller tag database, enabling seamless integration with Rockwell FactoryTalk View SCADA and HMI terminals.

At the SCADA and MES layer, real-time drive data from the SDCS-CON-4 feeds into historian platforms such as OSIsoft PI, Wonderware InTouch, or Ignition SCADA. Energy consumption trends, production speed profiles, and fault event logs are visualized on operator HMI panels — including ABB CP600 series HMIs or Siemens SIMATIC HMI TP/MP series — giving production engineers full visibility into drive performance without physical access to the switchgear room.

For remote diagnostic scenarios, the SDCS-CON-4's network connectivity enables integration with edge gateway devices such as the ABB Ability Edge or third-party IIoT gateways running MQTT/OPC-UA translation. Drive fault codes, thermal status, and load profiles are pushed to cloud-based asset management platforms, where predictive maintenance algorithms flag anomalies before they cause unplanned downtime. Remote I/O modules — such as ABB CI830 or Siemens ET 200SP distributed I/O — extend the diagnostic reach to auxiliary sensors and actuators connected to the drive system, completing the data chain from field device to enterprise dashboard.

In multi-drive systems, the SDCS-CON-4 works alongside ABB SDCS-POW-4 power boards, SDCS-IOB-3 I/O expansion boards, and SDCS-FEX-2 field excitation boards to form a complete DCS800 drive assembly. The network board's role is to ensure that every parameter change, fault event, and performance metric generated by this hardware stack is reliably transmitted to the control room — making it the data backbone of the entire drive system.

Protocol Fragmentation: Many industrial sites run mixed fieldbus environments — PROFIBUS on legacy lines, DeviceNet on newer cells, and Modbus TCP on energy monitoring systems. The SDCS-CON-4's modular adapter architecture allows the same control board to be configured for different protocol environments by swapping the RDCO or RPBA fieldbus adapter module, eliminating the need for separate drive hardware per protocol zone.

Data Islands and Drive Opacity: Without a network interface board, DC drives operate as black boxes — operators can only read status from local keypad displays. The SDCS-CON-4 eliminates this data island by exposing all drive parameters, fault histories, and real-time process values to the plant network, enabling centralized monitoring across dozens of drives from a single SCADA workstation.

Remote Monitoring and Alarm Traceability: When a drive trips on overcurrent or thermal overload, the SDCS-CON-4 immediately transmits the fault code and timestamp to the PLC and SCADA system. Alarm management software can then correlate the drive fault with upstream process events — such as a sudden load spike from a jammed conveyor — enabling root cause analysis without manual log retrieval from the drive keypad.

Production Line Transparency: In paper mills, steel rolling mills, and cable manufacturing lines where multiple DCS800 drives control different process sections, the SDCS-CON-4 enables synchronized speed referencing and load sharing data to be visible at the SCADA level. Production supervisors can track line speed consistency, identify underperforming drive sections, and schedule maintenance windows based on actual performance data rather than fixed time intervals.

System Scalability: As production capacity expands, additional DCS800 drives with SDCS-CON-4 boards can be added to the fieldbus network without architectural changes. The PROFIBUS-DP network supports up to 126 nodes, and DeviceNet supports up to 64 nodes, providing substantial headroom for future drive additions without rewiring or PLC hardware upgrades.

Q1: What fieldbus protocols does the SDCS-CON-4 3ADT313900R1501 support, and how are they configured? The SDCS-CON-4 supports PROFIBUS-DP, DeviceNet, CANopen, and Modbus RTU through ABB's modular fieldbus adapter system. Protocol selection is made by installing the corresponding adapter module (e.g., RPBA-01 for PROFIBUS, RDCO-02 for DeviceNet) into the dedicated adapter slot on the SDCS-CON-4 board. Configuration is performed via ABB DriveWindow or the drive keypad, with GSD/EDS files available for PLC integration.

Q2: What is the typical communication cycle time, and is it suitable for real-time motion control? In PROFIBUS-DP mode, the SDCS-CON-4 achieves cyclic data exchange at 1.5–12 Mbps baud rates, with process data cycle times of 1–10 ms depending on network load and number of nodes. This is sufficient for coordinated speed control in winder, extruder, and hoist applications. For sub-millisecond motion synchronization, ABB's DDCS fiber-optic link (used with SDCS-COM-8 boards) is recommended instead.

Q3: How does the SDCS-CON-4 support remote diagnostics and predictive maintenance? The board continuously logs fault codes, warning states, motor thermal status, and process variable deviations in the DCS800 drive's internal fault history. These parameters are accessible via the fieldbus network in real time, allowing SCADA systems and edge gateways to monitor drive health continuously. Integration with OPC-UA servers or MQTT brokers via protocol gateways enables cloud-based predictive maintenance dashboards to receive drive health data without on-site access.

Q4: What warranty and pre-shipment testing does this unit include? Every SDCS-CON-4 3ADT313900R1501 unit supplied by NANKMOS includes a 12-month warranty covering functional defects under normal operating conditions. Prior to shipment, each board undergoes pre-shipment functional testing to verify communication interface integrity, I/O channel operation, and firmware version compatibility with DCS800 drive firmware. Units are shipped with ESD-protective packaging and traceable documentation.
