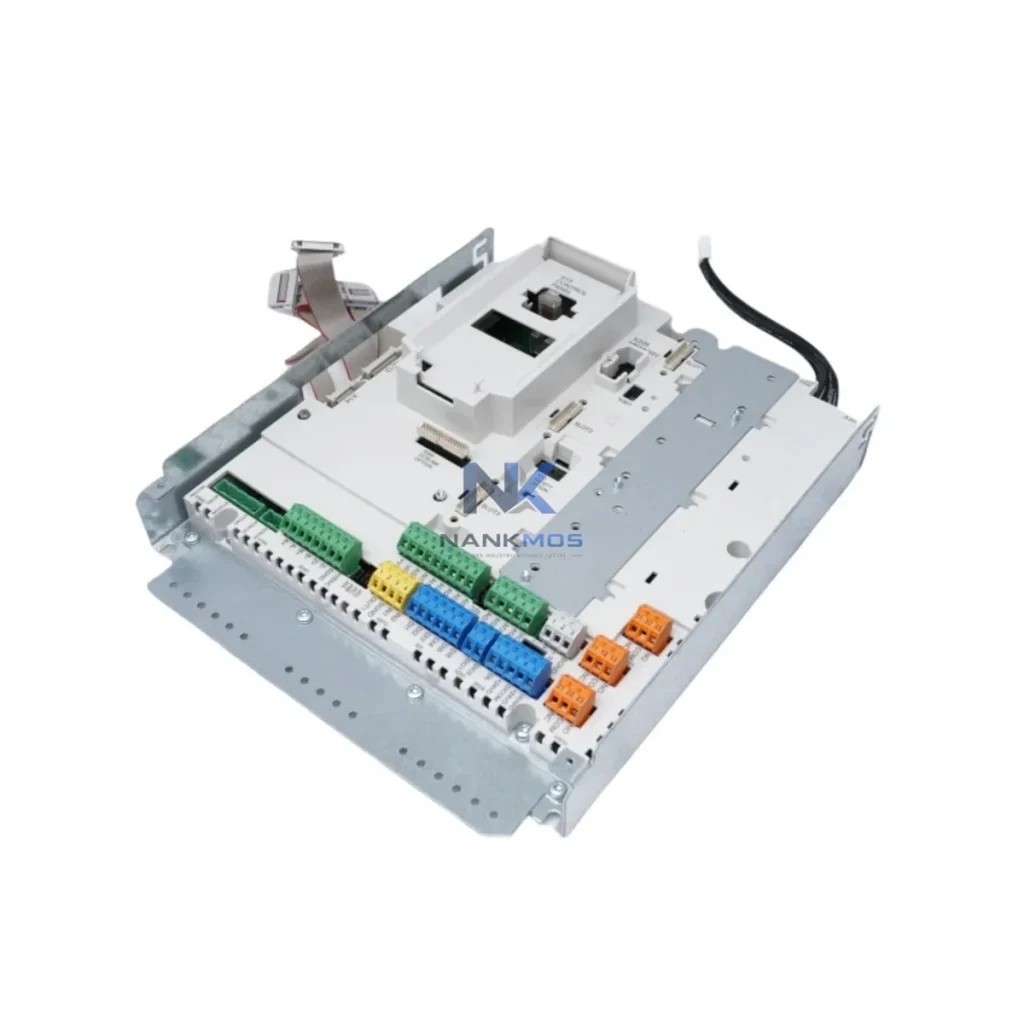

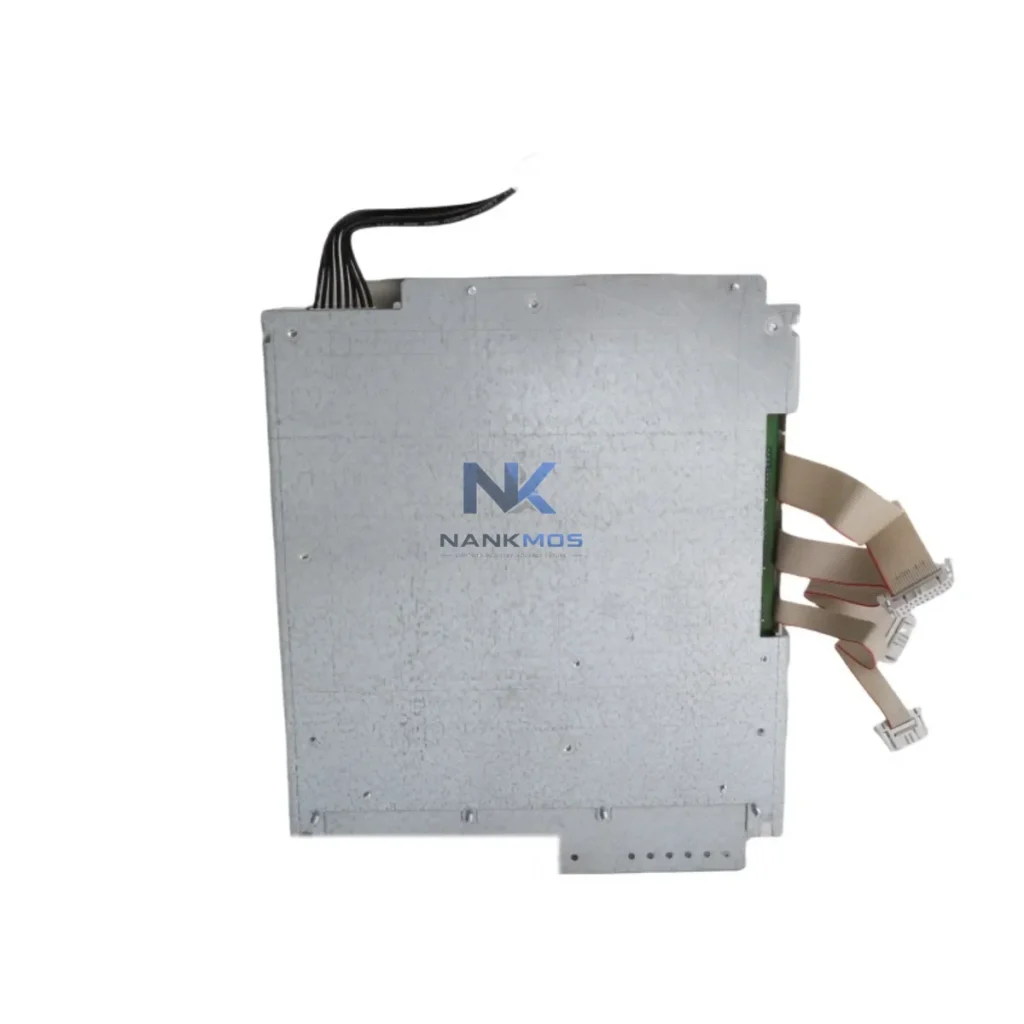

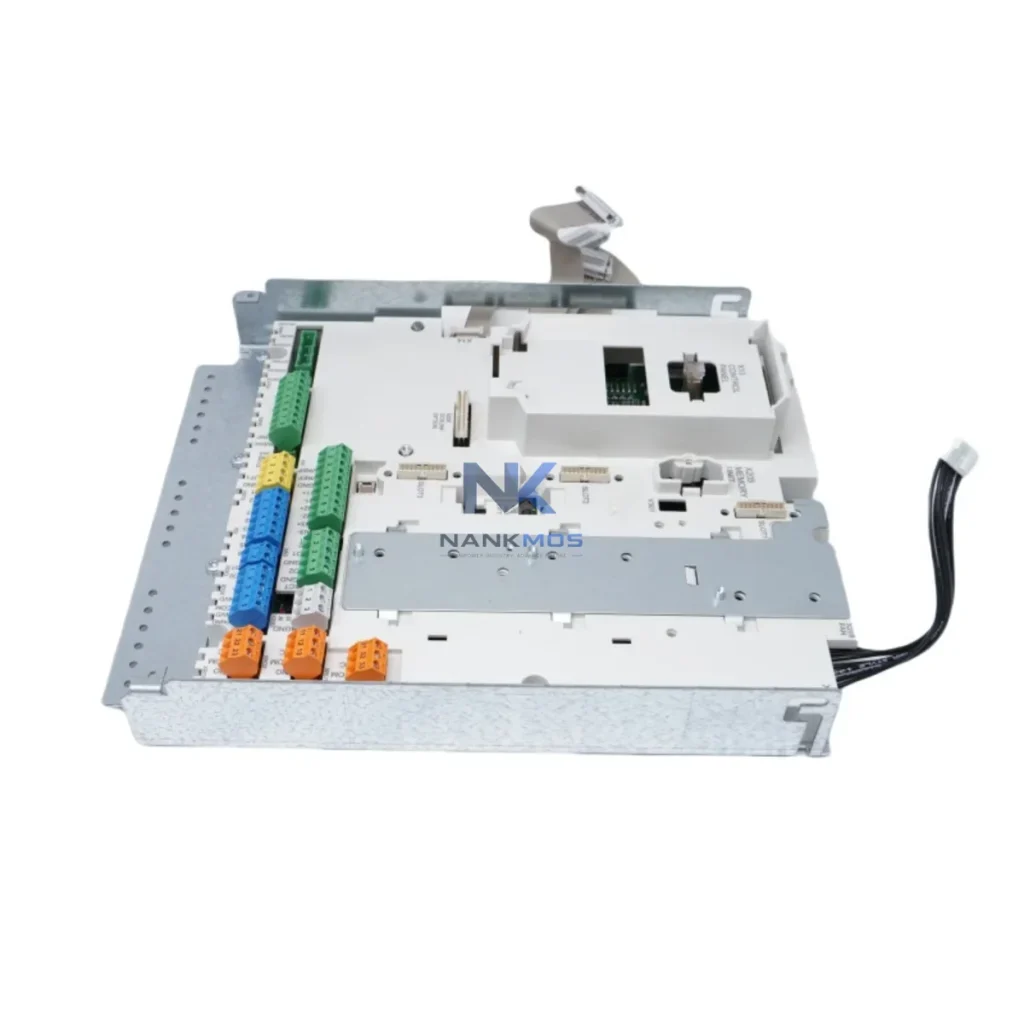

ABB SDCS-CON-H01 3ADT320000R1501

Product Details

SDCS-CON-H01 3ADT320000R1501 Product Description

The ABB SDCS-CON-H01 (part number 3ADT320000R1501) is a dedicated network interface and communication gateway module engineered for ABB DCS800 series DC drives. Designed to bridge the gap between legacy DC drive hardware and modern industrial communication architectures, this module enables seamless PROFIBUS-DP connectivity, allowing DCS800 drives to participate fully in real-time fieldbus networks. In smart factory environments where data continuity, protocol standardization, and remote diagnostics are non-negotiable, the SDCS-CON-H01 delivers the industrial-grade communication backbone that automation engineers demand.

From signal acquisition at the drive level through to SCADA visualization and cloud-ready edge reporting, the SDCS-CON-H01 occupies a critical node in the industrial data chain. It converts drive-level status signals — speed feedback, torque reference, fault codes, and current measurements — into structured PROFIBUS-DP telegrams that upstream controllers, HMI panels, and supervisory systems can consume without additional protocol translation layers. This direct integration eliminates data latency, reduces wiring complexity, and ensures that every operational parameter of the DCS800 drive is visible and actionable from the control room.

Every unit ships pre-tested and is backed by a 12-month warranty, with verified in-stock availability for immediate dispatch to global industrial sites.

In a fully connected smart factory, the SDCS-CON-H01 acts as the communication spine between the DCS800 DC drive and the broader automation ecosystem. At the field level, the DCS800 drive controls critical rotating equipment — winders, extruders, hoists, and paper machine sections — generating continuous streams of speed, current, torque, and fault data. Without a dedicated network interface, this data remains trapped at the drive level, invisible to the control layer above.

Once the SDCS-CON-H01 is installed in the DCS800's option slot, the drive becomes a fully addressable PROFIBUS-DP slave node. A Siemens S7-300 or S7-400 PLC acting as PROFIBUS master can now poll the drive cyclically, reading actual speed and current values while writing speed references and control commands — all within a single fieldbus scan cycle. This tight PLC-to-drive integration eliminates the need for analog setpoint wiring and discrete I/O status signals, replacing them with a single, deterministic digital data channel.

Moving up the automation pyramid, the PROFIBUS-DP network connects to an ABB AC500 PLC or a Siemens ET 200M remote I/O station, which aggregates data from multiple drives and field instruments before forwarding it to the plant's SCADA system via Industrial Ethernet. An ABB System 800xA or Wonderware InTouch HMI can then display real-time drive parameters, trend historical data, and generate alarm notifications when the DCS800 reports overcurrent, overvoltage, or encoder fault conditions.

For facilities running mixed drive fleets, the SDCS-CON-H01 can coexist on the same PROFIBUS segment as ABB ACS800 AC drive communication modules (such as the RPBA-01 PROFIBUS adapter) and ABB ACSM1 servo drive fieldbus interfaces, enabling a unified network topology where both AC and DC drives report to the same PLC master. This homogeneous network architecture simplifies commissioning, reduces spare parts inventory, and allows a single SCADA historian — such as OSIsoft PI or ABB 800xA Information Management — to capture data from the entire drive population.

At the edge layer, an industrial gateway device such as the Moxa MGate MB3270 or a Hilscher netTAP NT 100 can bridge the PROFIBUS-DP segment to Modbus TCP or OPC-UA, making DCS800 drive data available to MES platforms, ERP systems, and cloud analytics dashboards without modifying the existing fieldbus infrastructure. This protocol bridging capability is essential for Industry 4.0 retrofit projects where legacy PROFIBUS installations must coexist with modern Ethernet-based control architectures.

Power supply stability for the communication module is ensured by a dedicated 24 VDC rail, typically sourced from a Phoenix Contact QUINT or PULS DIMENSION industrial power supply, which provides the clean, regulated voltage that PROFIBUS transceivers require for reliable signal integrity across long cable runs. Surge protection devices on the PROFIBUS cable shield further protect the SDCS-CON-H01 from transient voltages in electrically noisy industrial environments such as steel mills, paper plants, and chemical processing facilities.

Many industrial sites operating DCS800 DC drives face a common set of connectivity challenges: drives that cannot report their status to the control system in real time, protocol mismatches between legacy fieldbus segments and new Ethernet-based infrastructure, and maintenance teams that must physically walk to the drive cabinet to read fault codes from the local keypad. The SDCS-CON-H01 directly addresses each of these pain points.

Protocol Unification: Sites running mixed PROFIBUS and Modbus RTU networks often struggle with data silos where drive data cannot flow freely to the SCADA layer. By standardizing DCS800 communication on PROFIBUS-DP through the SDCS-CON-H01, engineers eliminate the need for custom protocol converters and reduce the risk of data translation errors that can trigger nuisance alarms or mask genuine fault conditions.

Remote Diagnostics and Fault Tracing: With the SDCS-CON-H01 active, maintenance engineers can read the DCS800's full fault history, active alarm codes, and real-time parameter values directly from the SCADA workstation or HMI panel — without entering the drive room. This remote visibility dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies by enabling trend analysis on key drive parameters such as DC bus voltage, motor current, and heatsink temperature.

Production Line Transparency: In paper mills, metal processing lines, and textile plants where DCS800 drives control section speeds, the SDCS-CON-H01 enables the SCADA system to monitor actual versus setpoint speed for every drive section simultaneously. Deviations that indicate mechanical wear, belt slip, or load imbalance are immediately visible as trend deviations on the HMI, allowing operators to intervene before a process upset escalates to an unplanned shutdown.

System Scalability: As production capacity expands, additional DCS800 drives can be added to the existing PROFIBUS-DP segment without modifying the PLC program structure — simply assign a new PROFIBUS node address to each new SDCS-CON-H01 module and update the GSD file in the PLC configuration tool. This plug-and-extend architecture minimizes engineering time for capacity expansion projects and ensures that new drives are immediately visible to the SCADA historian from day one.

Q1: What is the maximum PROFIBUS-DP baud rate supported by the SDCS-CON-H01? The SDCS-CON-H01 supports PROFIBUS-DP baud rates up to 12 Mbit/s, automatically adapting to the baud rate set by the PROFIBUS master. This ensures compatibility with both legacy 187.5 kbit/s installations and modern high-speed 12 Mbit/s segments without requiring manual configuration on the module itself.

Q2: Can the SDCS-CON-H01 operate on the same PROFIBUS segment as other ABB drive communication modules? Yes. The SDCS-CON-H01 is fully compatible with mixed PROFIBUS-DP segments that include other ABB fieldbus adapters such as the RPBA-01 (for ACS800 drives) and FPBA-01 (for ACS880 drives). Each module operates as an independent PROFIBUS slave with its own node address, and the PLC master manages all nodes within the same cyclic polling cycle. Network stability is maintained as long as total segment loading and cable length remain within PROFIBUS-DP specification.

Q3: How does the SDCS-CON-H01 support remote diagnostics and predictive maintenance? The module continuously maps DCS800 drive parameters — including DC bus voltage, output current, motor speed, fault codes, and warning status — to PROFIBUS-DP process data words that the PLC reads cyclically. SCADA systems connected to the PLC can log these values to a historian database, enabling trend analysis, alarm threshold configuration, and remote fault acknowledgment without physical access to the drive cabinet. This capability is foundational for condition-based maintenance programs in facilities with large drive populations.

Q4: What pre-shipment testing and warranty coverage does the SDCS-CON-H01 include? Every SDCS-CON-H01 unit undergoes functional communication testing prior to dispatch, verifying PROFIBUS-DP node initialization, cyclic data exchange, and parameter read/write operations. The module is supplied with a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions. In-stock units are available for immediate shipment to minimize drive downtime on critical production lines.
