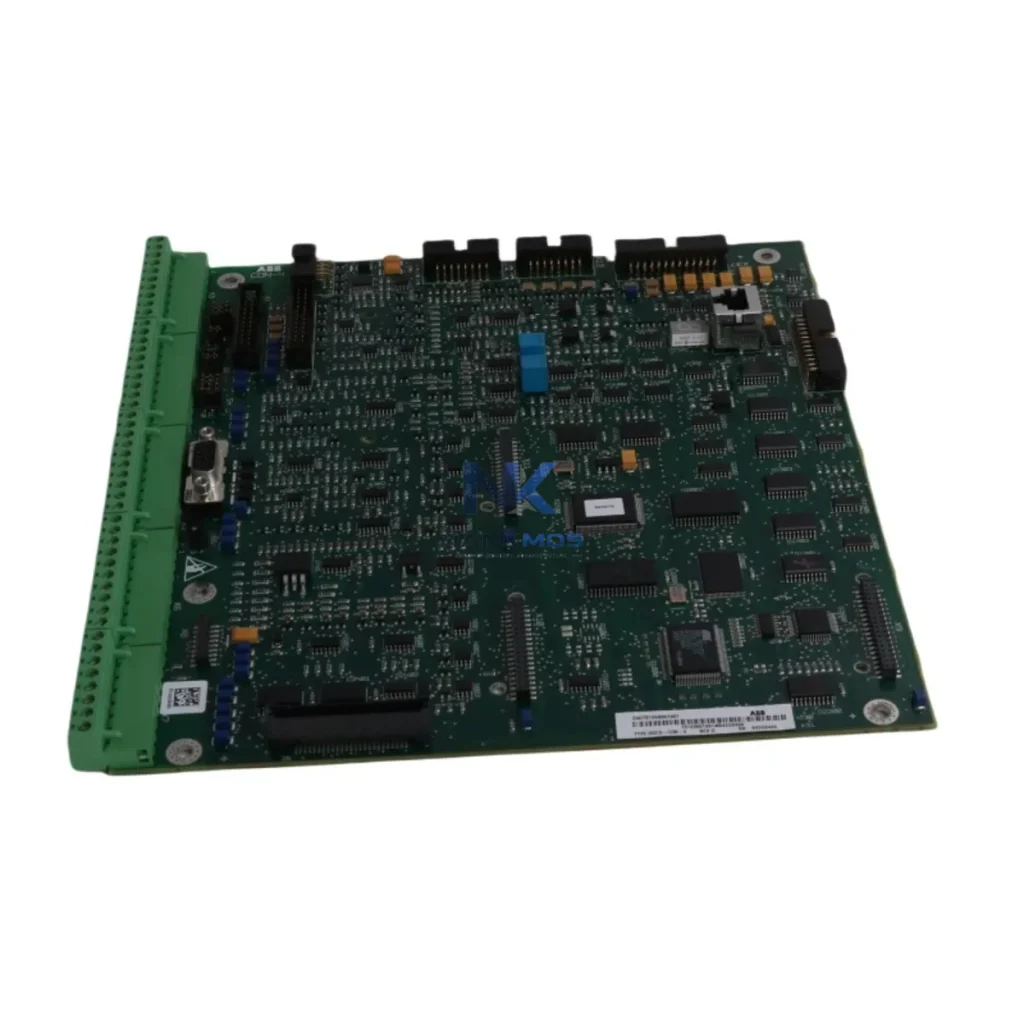

ABB SDCS-CON2B COAT DCS Drive Control Board

Product Details

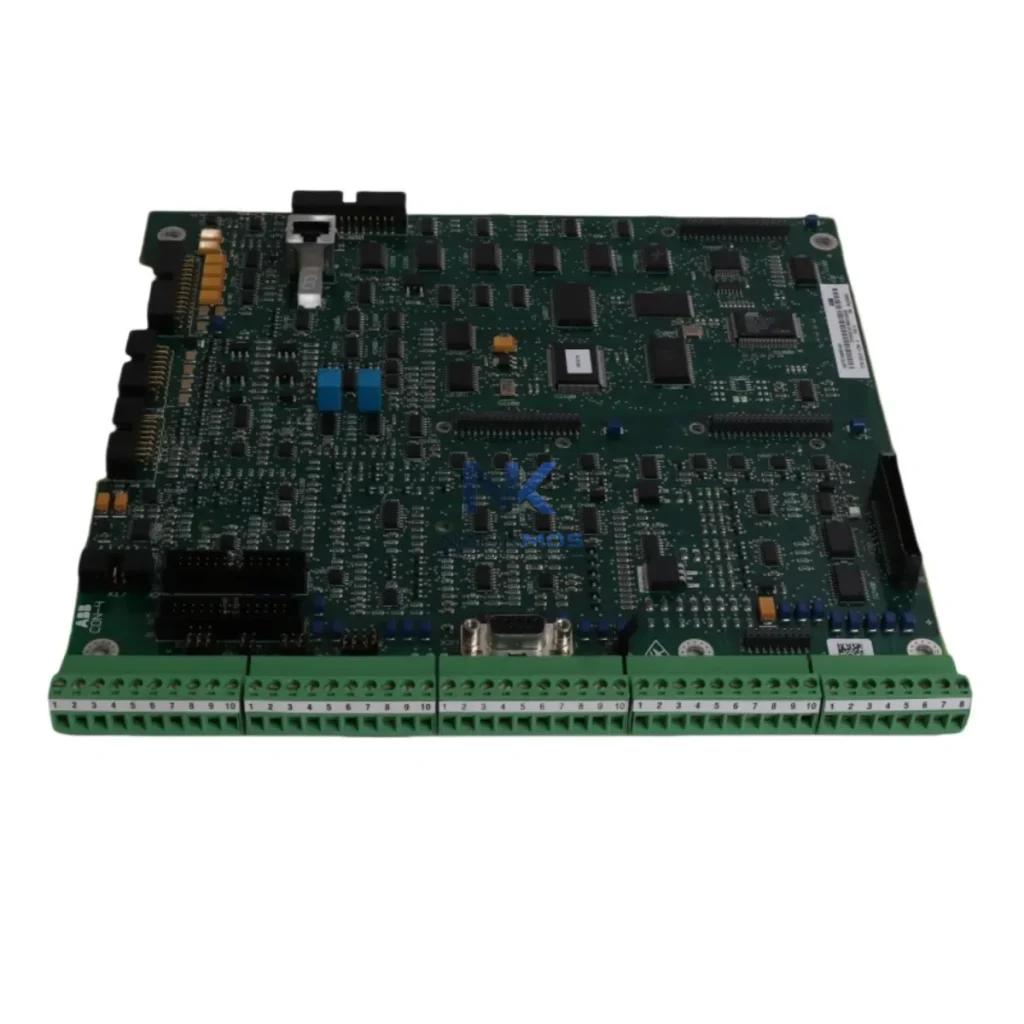

SDCS-CON2B COAT Product Description

The ABB SDCS-CON-2B-COAT is a conformal-coated DC drive control board engineered for deployment within ABB's DCS series drive architecture — including the DCS400, DCS550, and DCS800 platforms. Designed to serve as the central intelligence layer of the DC drive system, this control board manages speed regulation, current loop control, field excitation sequencing, and real-time diagnostic feedback across the full drive operating envelope. Its conformal coating provides enhanced protection against humidity, condensation, and airborne contaminants, making it suitable for demanding industrial environments including marine propulsion, petrochemical processing, and heavy manufacturing.

Within a layered industrial control architecture, the SDCS-CON-2B-COAT occupies the drive control layer — interfacing upward to the supervisory PLC or DCS controller and downward to the power electronics, motor feedback devices, and field supply circuits. This positional role makes it a critical integration point for system-wide signal consistency, closed-loop performance, and fault propagation management. Engineers deploying this board benefit from ABB's standardized firmware baseline, which ensures compatibility with existing DCS800 parameter sets and simplifies commissioning in multi-drive installations.

The SDCS-CON-2B-COAT is not a standalone component — it is a system-integrated control node that derives its full value from the surrounding drive and automation architecture. In a complete DCS800 drive assembly, the control board operates in close coordination with the SDCS-POW-4 power supply board, which provides the regulated 24 VDC control voltage essential for stable board operation. The SDCS-IOB-3 I/O expansion board extends the digital and analog signal capacity of the control layer, enabling connection to external interlocks, process transmitters, and operator panels without overloading the base control board's I/O budget.

At the communication layer, the SDCS-CON-2B-COAT interfaces with fieldbus adapter modules such as the RDCO-03 (DDCS fiber optic link) or RPBA-01 (PROFIBUS-DP adapter), enabling the drive to participate in plant-wide SCADA or DCS networks. This allows the supervisory controller — typically an ABB AC500 PLC or a third-party Siemens S7-300/S7-400 system — to issue speed references, read drive status, and execute coordinated start/stop sequences across multiple drive axes.

For motor feedback, the control board accepts pulse encoder signals routed through the SDCS-IOB-3 or dedicated encoder interface cards, ensuring accurate closed-loop speed regulation even under variable load conditions. In applications requiring field weakening or regenerative braking, the SDCS-CON-2B-COAT manages the field excitation sequencing in coordination with the SDCS-FEX-2 field excitation board, maintaining optimal flux levels across the full speed range.

At the HMI layer, the drive system integrates with ABB's CDP312R control panel or remote keypad, providing local parameter access, fault history review, and manual speed override capability without requiring a laptop or engineering workstation. For larger installations, the drive data is aggregated through an ABB AC500 PM573 or equivalent CPU module, which coordinates multi-drive sequencing, interlocking, and production recipe management.

In cabinet-level design, the SDCS-CON-2B-COAT is mounted within the DCS800 drive chassis alongside the SDCS-PIN-51 pulse encoder interface and the SDCS-COM-8 communication option board. Terminal blocks, shielded signal cables, and EMC ferrite cores complete the installation, ensuring signal integrity between the control board and external field devices. The conformal coating on the SDCS-CON-2B-COAT variant provides additional resilience in environments where standard boards would be vulnerable to moisture ingress or chemical vapors — a critical advantage in coastal, offshore, or chemical plant installations.

Power Generation & Utilities: In thermal power stations and hydroelectric facilities, the SDCS-CON-2B-COAT controls DC exciter drives and auxiliary motor systems. Its closed-loop speed regulation and fieldbus connectivity allow integration with plant DCS systems, enabling coordinated load dispatch and fault isolation without manual intervention.

Petrochemical & Oil Refining: Refinery pump and compressor drives operating in Zone 2 hazardous areas benefit from the conformal coating's resistance to H₂S, hydrocarbon vapors, and high-humidity conditions. The board's diagnostic output channels feed fault data directly to the plant safety instrumented system (SIS), supporting IEC 61511 compliance workflows.

Marine Propulsion & Offshore: Vessel DC propulsion systems and thruster drives require control boards rated for salt-air environments. The COAT variant of the SDCS-CON-2B meets IEC 60068-2-52 salt mist requirements, making it the preferred choice for offshore platform auxiliary drives and dynamic positioning motor controllers.

Mining & Metallurgy: Hoist drives, conveyor systems, and rolling mill DC motors in mining and steel production environments demand robust control electronics capable of withstanding vibration, dust, and thermal cycling. The SDCS-CON-2B-COAT's hardened design supports continuous duty cycles and high-inertia load profiles typical of these applications.

Water Treatment & Municipal Infrastructure: Pump station DC drives and sluice gate actuators in water treatment plants benefit from the board's Modbus RTU compatibility, enabling integration with SCADA systems for remote monitoring, flow control, and predictive maintenance scheduling.

Packaging & Process Lines: High-speed packaging machinery using DC servo drives requires precise speed synchronization across multiple axes. The SDCS-CON-2B-COAT's fast current loop response and encoder feedback capability support line speed matching, tension control, and registration accuracy in web-fed and rotary packaging systems.

Q1: Is the SDCS-CON-2B-COAT compatible with both DCS550 and DCS800 drive platforms? The SDCS-CON-2B-COAT is primarily designed for the DCS800 platform and shares hardware lineage with the DCS550 series. Compatibility depends on the specific firmware version and hardware revision of the target drive chassis. Before installation, verify the drive's hardware revision against ABB's compatibility matrix (document 3ADW000379). In most DCS800 installations, the SDCS-CON-2B-COAT is a direct replacement for the standard SDCS-CON-2B, with the COAT suffix indicating conformal coating only — no firmware or parameter changes are required.

Q2: What fieldbus protocols does the SDCS-CON-2B-COAT support for SCADA and DCS integration? The control board supports fieldbus communication through optional adapter modules installed in the drive's communication slot. Supported protocols include PROFIBUS-DP (via RPBA-01), Modbus RTU (via RMBA-01), DeviceNet (via RDNA-01), CANopen (via RCAN-01), and DDCS fiber optic link (via RDCO-03) for ABB DriveLink networks. This protocol flexibility allows the SDCS-CON-2B-COAT to integrate into virtually any plant automation architecture, from legacy DCS platforms to modern IIoT-enabled SCADA systems.

Q3: What does the 12-Month Warranty cover, and is pre-shipment testing included? Every SDCS-CON-2B-COAT unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Pre-shipment functional testing is performed on each unit to verify power-up behavior, I/O channel integrity, communication port functionality, and firmware version consistency. Units that fail any test parameter are quarantined and not shipped. Warranty coverage includes repair or replacement for manufacturing defects, component failures, and firmware anomalies under normal operating conditions. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
