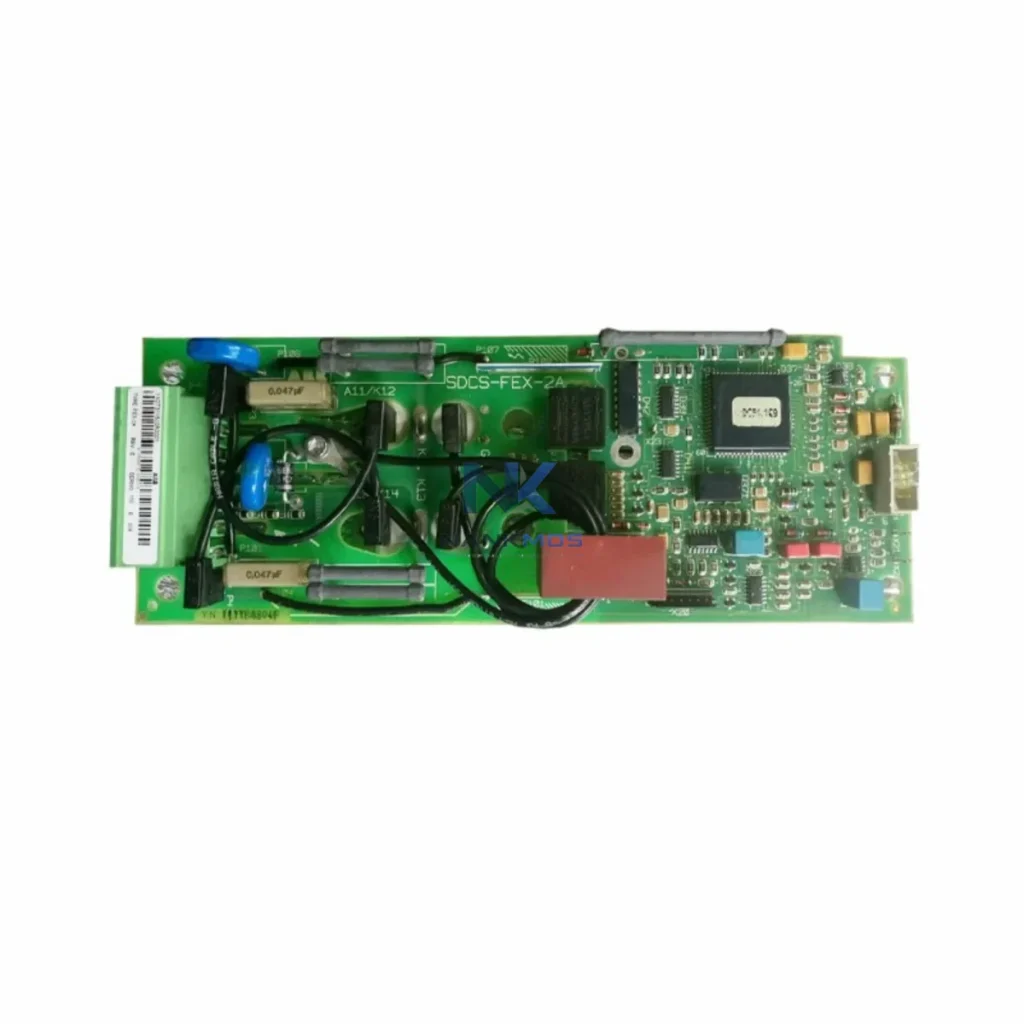

ABB SDCS-FEX-2A 3ADT311500R1 DC Drive Excitation Module

Product Details

SDCS-FEX-2A 3ADT311500R1 Product Description

The ABB SDCS-FEX-2A (part number 3ADT311500R1) is a dedicated field excitation module engineered for seamless integration within ABB's SDCS and DCS800 DC drive control architecture. Designed to deliver stable, regulated field current to DC motors, this module occupies a critical role in the excitation layer of industrial drive systems — ensuring precise motor magnetization, consistent torque response, and long-term operational reliability across demanding process environments.

In modern DC drive architectures, the excitation subsystem is not a peripheral component — it is a foundational element that directly governs motor flux, speed regulation accuracy, and dynamic response. The SDCS-FEX-2A integrates natively with the SDCS control board ecosystem, receiving field current reference signals from the main drive controller and executing closed-loop excitation regulation with high precision. This tight coupling between the control layer and the excitation layer eliminates signal latency, reduces tuning complexity, and supports deterministic drive behavior across the full speed range.

Every unit supplied by NANKMOS undergoes pre-shipment functional verification, including field current output testing, thermal cycling checks, and communication interface validation. A 12-Month Warranty is included as standard, covering manufacturing defects and component-level failures. Contextual Integration support is available to assist engineering teams with drive commissioning, parameter configuration, and system-level validation.

The SDCS-FEX-2A operates as part of a layered DC drive architecture where each module contributes a defined function to the overall control hierarchy. At the control layer, the SDCS-CON-2 or SDCS-CON-4 main control board generates the field current reference and manages closed-loop speed and torque regulation. The SDCS-FEX-2A receives this reference and executes field excitation with high accuracy, maintaining motor flux at the commanded level regardless of load variation.

Power delivery to the excitation circuit is managed through the SDCS-POW-4 power supply board, which provides regulated auxiliary voltages to both the control and excitation subsystems. In multi-drive installations, the SDCS-DSL-4 serial link board enables high-speed communication between the drive controller and external supervisory systems, including ABB AC500 PLCs or Symphony Plus DCS platforms, ensuring that excitation status and field current feedback are available at the system level for diagnostics and process optimization.

At the I/O layer, SDCS-IOB-3 or SDCS-IOB-4 I/O extension boards expand the drive's analog and digital I/O capacity, supporting speed feedback from pulse encoders, external fault signals, and process interlocks. Signal integrity between the drive and field devices is maintained through ABB signal isolators and WAGO 750-series terminal modules, which prevent ground loops and ensure clean reference signals reach the excitation controller.

For HMI integration, ABB CP600 operator panels or ABB Panel Builder-based interfaces provide real-time visualization of field current, motor speed, drive status, and fault history. In redundant drive architectures — common in steel rolling mills, paper machines, and large pump stations — a standby SDCS-FEX-2A module can be held in warm standby configuration, with automatic switchover triggered by the SDCS-CON controller upon detection of excitation fault conditions.

Protection coordination is handled through ABB SACE Tmax or S200 series circuit breakers at the incoming supply, with motor protection relays such as the ABB M102-M providing thermal overload, phase loss, and locked rotor protection. This layered protection architecture ensures that a fault in the excitation circuit is isolated without cascading to the broader drive system or process line.

Steel & Metals Processing: In rolling mill drives and coiler/uncoiler systems, the SDCS-FEX-2A maintains precise field weakening control during speed transitions above base speed, enabling wide-range speed regulation with consistent torque output. The module's closed-loop excitation response supports the tight speed tolerances required for strip tension control and gauge consistency.

Paper & Pulp Manufacturing: Paper machine section drives demand coordinated speed control across multiple drive stands. The SDCS-FEX-2A ensures that field current remains stable during draw ratio adjustments, preventing web breaks caused by torque disturbances in the excitation circuit. Its integration with the SDCS-CON controller allows section-to-section speed synchronization through the drive's internal cascade control architecture.

Mining & Mineral Processing: Hoist drives, conveyor drives, and crusher drives in mining applications require robust excitation control under high-inertia load conditions. The SDCS-FEX-2A's regulated field output supports four-quadrant operation, enabling regenerative braking energy recovery and controlled deceleration in downhill conveyor applications.

Chemical & Petrochemical Plants: In extruder drives and agitator drives within hazardous process environments, the SDCS-FEX-2A operates within sealed control cabinets rated for the installation zone. Its compatibility with the DCS800 drive platform allows integration with plant-wide DCS systems via PROFIBUS DP or Modbus RTU communication adapters.

Marine & Offshore: Deck machinery drives, winch drives, and thruster control systems on vessels require excitation modules that maintain performance under vibration, humidity, and wide ambient temperature variation. The SDCS-FEX-2A's industrial-grade construction and ABB's marine type approval for the DCS800 platform make it suitable for these demanding installation environments.

Q1: Is the SDCS-FEX-2A compatible with both the SDCS and DCS800 drive platforms? The SDCS-FEX-2A is designed for use within the SDCS control board architecture, which forms the control core of the DCS800 DC drive series. It interfaces directly with the SDCS-CON main control board via the internal backplane bus. For DCS800 drives that include an integrated excitation circuit, the SDCS-FEX-2A serves as the dedicated excitation expansion module. Compatibility should be confirmed against the specific DCS800 drive variant and firmware version during commissioning. NANKMOS Contextual Integration support can assist with compatibility verification and parameter configuration.

Q2: What pre-shipment testing is performed on the SDCS-FEX-2A, and what does the 12-Month Warranty cover? Each SDCS-FEX-2A unit supplied by NANKMOS undergoes functional verification including field current output measurement, internal bus communication check, and thermal stress testing prior to shipment. The 12-Month Warranty covers manufacturing defects, component-level failures, and functional non-conformance under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside specified environmental limits. Warranty claims are processed directly through NANKMOS with a target response time of 3 business days.

Q3: How should the SDCS-FEX-2A be installed and commissioned within an existing SDCS-based drive system? Installation requires mounting the module in the designated slot within the SDCS control board assembly, ensuring correct backplane connector seating and secure mechanical fastening. Commissioning involves setting field current reference parameters in the SDCS-CON controller, verifying closed-loop excitation response at no-load and full-load conditions, and confirming fault detection thresholds. ABB's DCS800 Firmware Manual and SDCS Hardware Manual provide the authoritative parameter reference. NANKMOS Contextual Integration support is available to guide engineering teams through the commissioning sequence and assist with drive parameter optimization for specific motor and load characteristics.
