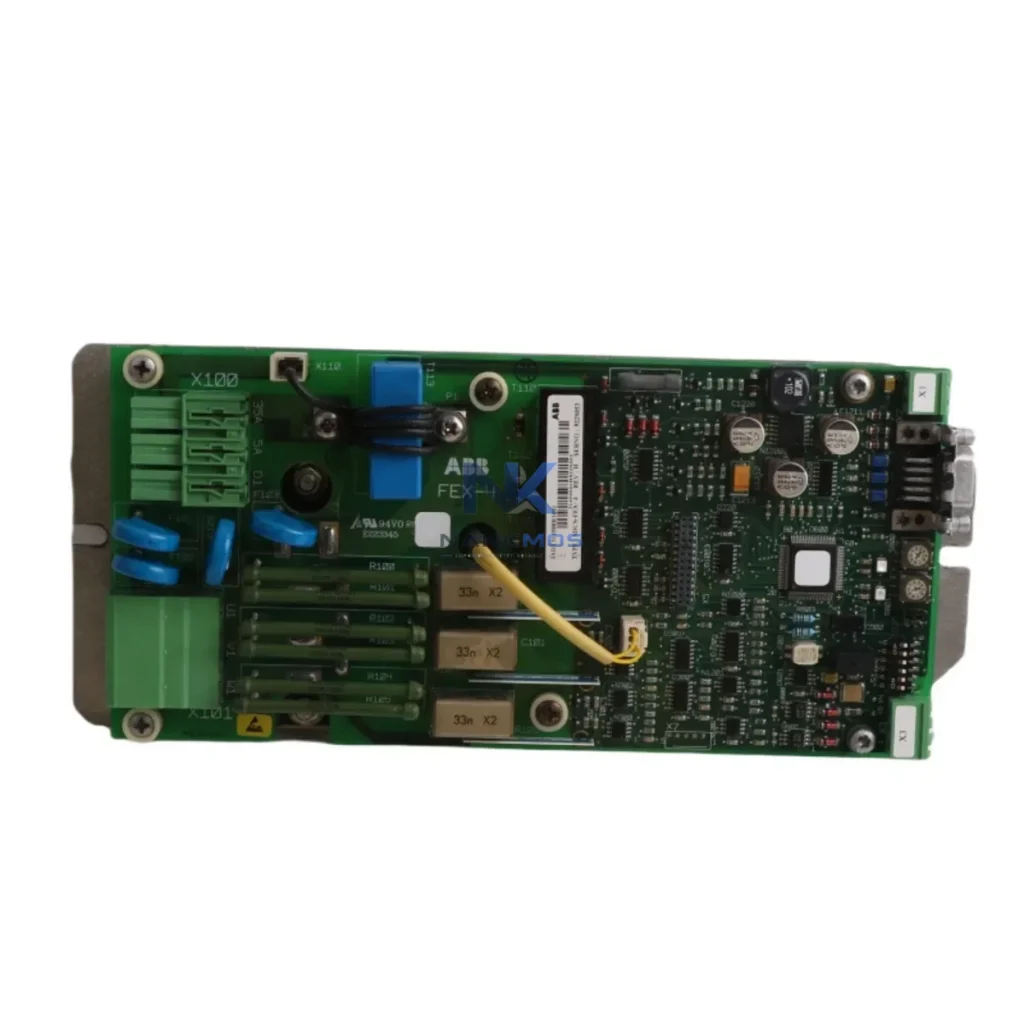

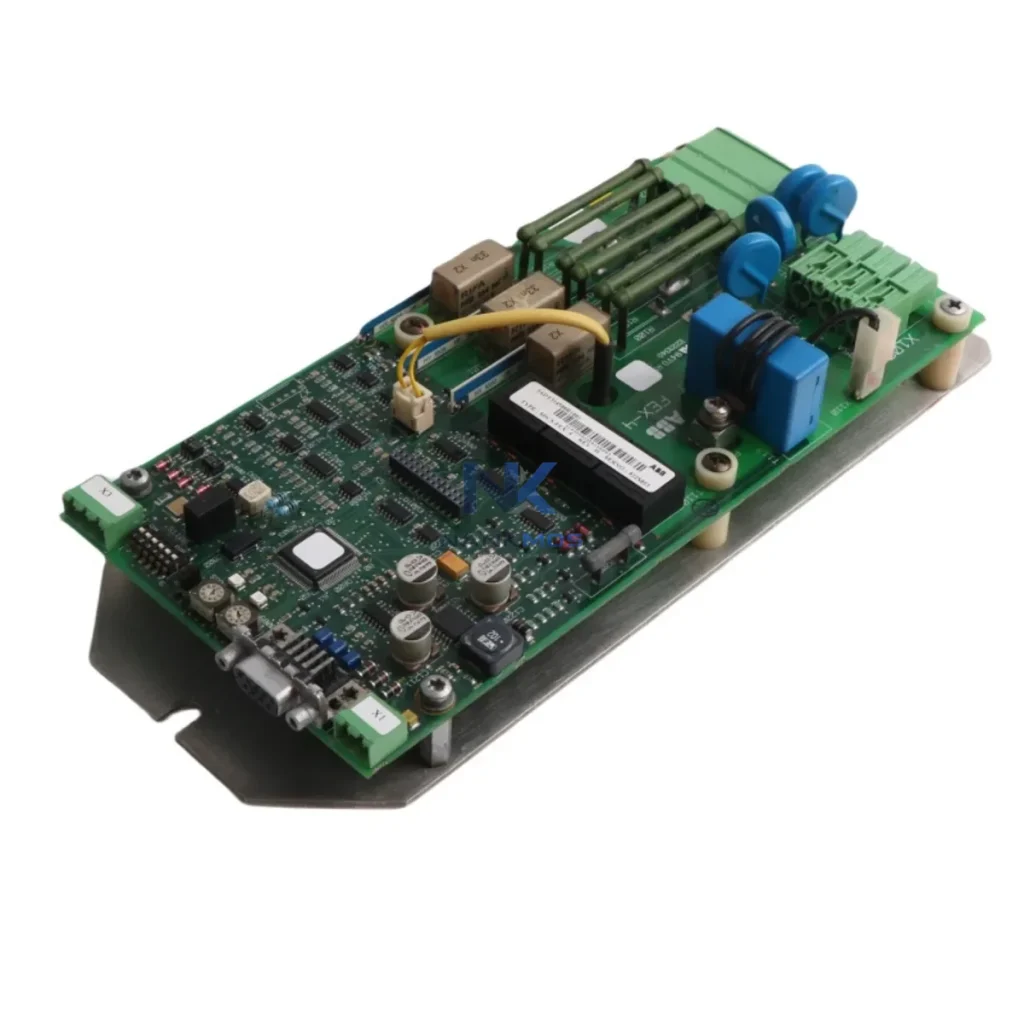

ABB SDCS-FEX-425 INT Field Exciter Board

Product Details

SDCS-FEX-425 INT Product Description

The ABB SDCS-FEX-425 is a precision field exciter board engineered for the DCS800 series DC drive platform — one of ABB's most widely deployed drive families in heavy industrial environments. Designed to regulate field current in DC motors with high accuracy, the SDCS-FEX-425 is not merely a power electronics component; it is a critical node in the modern smart factory data chain. From signal acquisition at the motor terminals to real-time feedback loops in SCADA and HMI systems, this board enables seamless data flow across the full automation stack.

In today's connected industrial facilities — spanning power generation, petrochemical processing, steel rolling mills, paper manufacturing, and marine propulsion — the ability to monitor, diagnose, and control DC drive field excitation remotely is no longer optional. The SDCS-FEX-425 integrates directly with the DCS800's onboard communication architecture, supporting protocol-level connectivity to Modbus RTU/TCP, PROFIBUS DP, and CANopen networks via compatible fieldbus adapter modules such as the RDCO-02 and RDNA-01. This makes it fully compatible with upstream PLC controllers — including ABB AC500 series and Siemens S7-300/400 platforms — and downstream SCADA/HMI systems running on platforms such as Wonderware, iFIX, or WinCC.

The board's role in the data link begins at the field winding level. Field current feedback is sampled at high resolution and transmitted through the DCS800's internal bus to the main control board (SDCS-CON-4), where it is processed alongside armature current, speed reference, and torque demand signals. This consolidated data stream is then made available to remote I/O modules, edge gateways, and industrial Ethernet switches — enabling plant-wide visibility of DC drive health without requiring physical access to the drive cabinet.

A typical smart factory deployment using the SDCS-FEX-425 begins at the DC motor field winding, where the board precisely controls field current to maintain optimal flux conditions across varying load profiles. This excitation data — current magnitude, response time, fault flags — is captured by the SDCS-CON-4 main control board and made available on the DCS800's internal communication bus.

From there, a RDCO-02 DDCS fiber optic communication module or an RDNA-01 DeviceNet adapter bridges the drive's internal data to the plant's fieldbus backbone. Industrial Ethernet switches — such as those in the ABB EKS series or equivalent managed switches with PROFINET/Modbus TCP support — route this data upstream to the control room. PLC controllers, including the ABB AC500-eCo or Siemens S7-400H redundant controllers, receive real-time field excitation status and integrate it into the broader motor control and protection logic.

Remote I/O modules positioned near the drive cabinet — such as ABB S800 I/O or Wago 750-series modules — collect additional analog signals (temperature, vibration, bearing condition) from sensors mounted on the DC motor. These signals, combined with the SDCS-FEX-425's field current data, are aggregated at an edge gateway running OPC-UA or MQTT protocols, enabling cloud-level data visualization and predictive maintenance analytics.

At the HMI layer, operators interact with drive status through panels such as the ABB CP600 series or Siemens TP1200 Comfort, where field excitation trends, fault histories, and alarm states are displayed in real time. SCADA platforms — including Wonderware System Platform or Ignition by Inductive Automation — subscribe to the OPC-UA data streams from the edge gateway, enabling plant-wide dashboards that correlate DC drive performance with production throughput, energy consumption, and equipment health indices.

Variable frequency drives and soft starters on adjacent AC motor circuits — such as the ABB ACS880 series — share the same industrial Ethernet backbone, allowing unified energy monitoring across both AC and DC drive populations. This cross-drive visibility is essential for facilities pursuing ISO 50001 energy management certification or Industry 4.0 digital twin initiatives.

Many industrial sites operating legacy DC drive systems face a common set of challenges: protocol fragmentation, data silos, limited remote visibility, and reactive rather than predictive maintenance postures. The SDCS-FEX-425, deployed within the DCS800 platform, directly addresses these pain points.

Protocol Fragmentation: Older DC drive installations often rely on proprietary serial communication or hardwired analog signals that cannot be natively integrated into modern Modbus TCP or PROFIBUS DP networks. By pairing the SDCS-FEX-425 with compatible fieldbus adapter modules, engineers can bridge legacy field excitation data into standard industrial protocols without replacing the entire drive system — preserving capital investment while enabling network-level integration.

Data Silos and Production Transparency: Field excitation data isolated within the drive cabinet provides no value to upstream production management systems. The SDCS-FEX-425's integration pathway — through the DCS800 communication bus to SCADA and MES platforms — eliminates this silo, making DC motor field health a visible, actionable parameter in production dashboards and OEE calculations.

Remote Monitoring and Alarm Tracking: Without network-connected field excitation monitoring, fault events in DC motors often go undetected until catastrophic failure occurs. The SDCS-FEX-425 enables continuous remote monitoring of field current levels, overcurrent faults, and field loss conditions. Alarm states are propagated through the PLC and SCADA layers, triggering automated notifications and enabling remote diagnostics before on-site intervention is required.

System Expansion: As production lines scale, additional DC drive nodes can be added to the existing PROFIBUS or Modbus network without architectural redesign. The DCS800 platform's modular communication structure — anchored by boards like the SDCS-FEX-425 — supports incremental expansion while maintaining network stability and deterministic communication timing.

Q1: What communication protocols does the SDCS-FEX-425 support for SCADA/HMI integration? The SDCS-FEX-425 operates within the DCS800 drive platform, which supports Modbus RTU, Modbus TCP, PROFIBUS DP, and CANopen via optional fieldbus adapter modules (e.g., RDCO-02, RDNA-01). Field excitation data — including current feedback, fault status, and diagnostic parameters — is accessible to SCADA and HMI systems through these standard industrial protocols.

Q2: How is network stability maintained in high-noise industrial environments? The DCS800 platform, including the SDCS-FEX-425, is designed for operation in electrically noisy industrial environments. Fiber optic communication options (via RDCO-02) provide galvanic isolation and immunity to electromagnetic interference. Managed industrial Ethernet switches with VLAN segmentation further ensure deterministic, low-latency data transmission across the plant network.

Q3: Can the SDCS-FEX-425 support remote diagnostics without on-site access? Yes. When integrated with the DCS800's communication architecture and connected to an edge gateway or OPC-UA server, the SDCS-FEX-425's field excitation parameters — including real-time current values, fault codes, and historical trends — can be accessed remotely via SCADA platforms or cloud-based monitoring dashboards. This enables predictive maintenance and rapid fault response without requiring physical presence at the drive cabinet.

Q4: What warranty and pre-shipment testing standards apply to the SDCS-FEX-425? All SDCS-FEX-425 units supplied by NANKMOS carry a 12-month warranty and are pre-shipment tested to verify field excitation performance, communication interface integrity, and board-level functionality. In-stock availability ensures fast global dispatch, minimizing production downtime for replacement or expansion projects.
