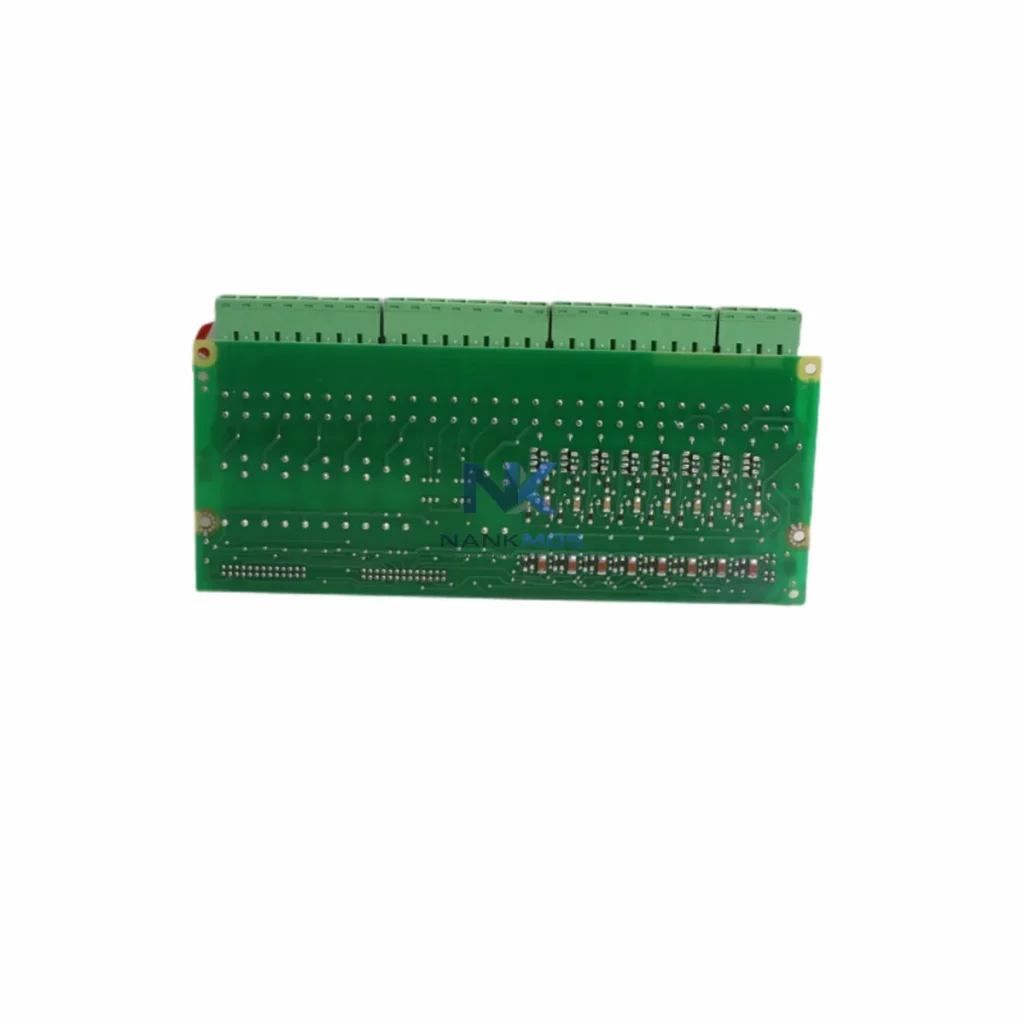

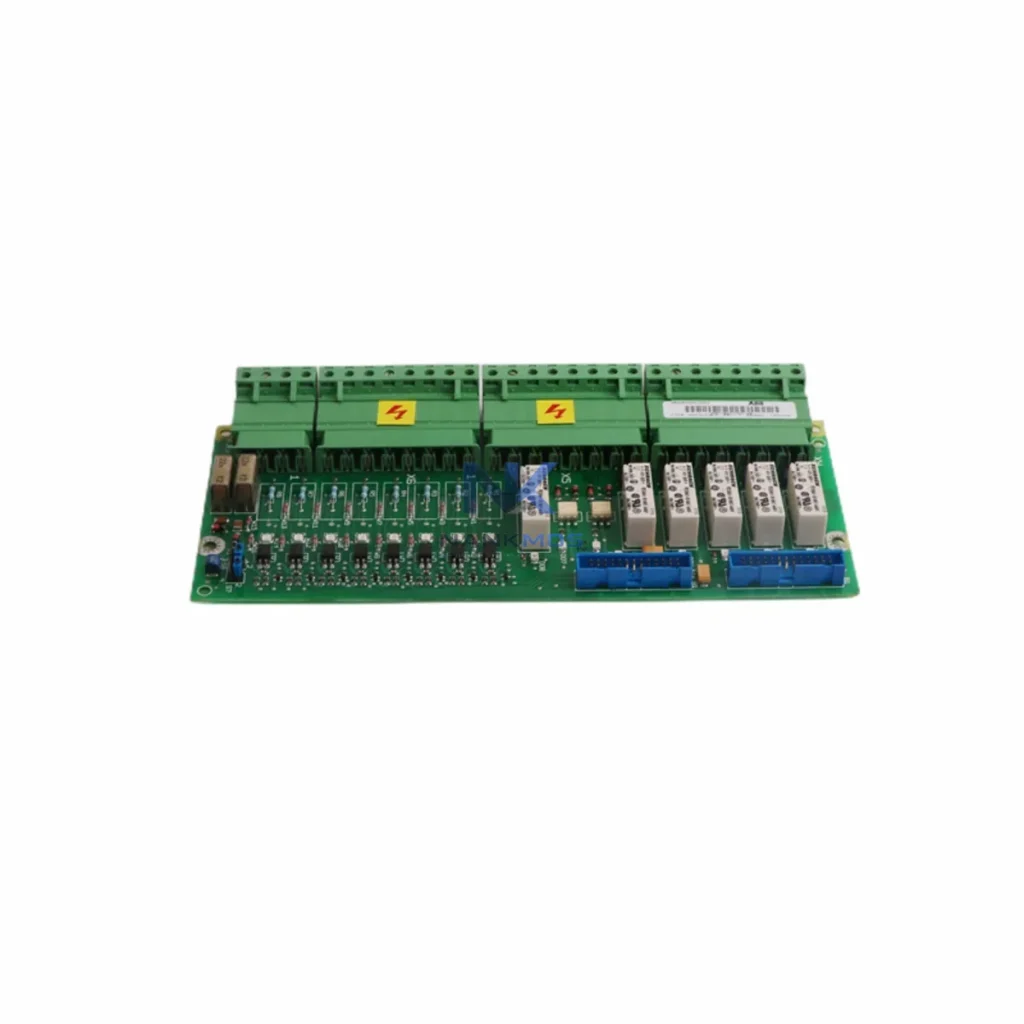

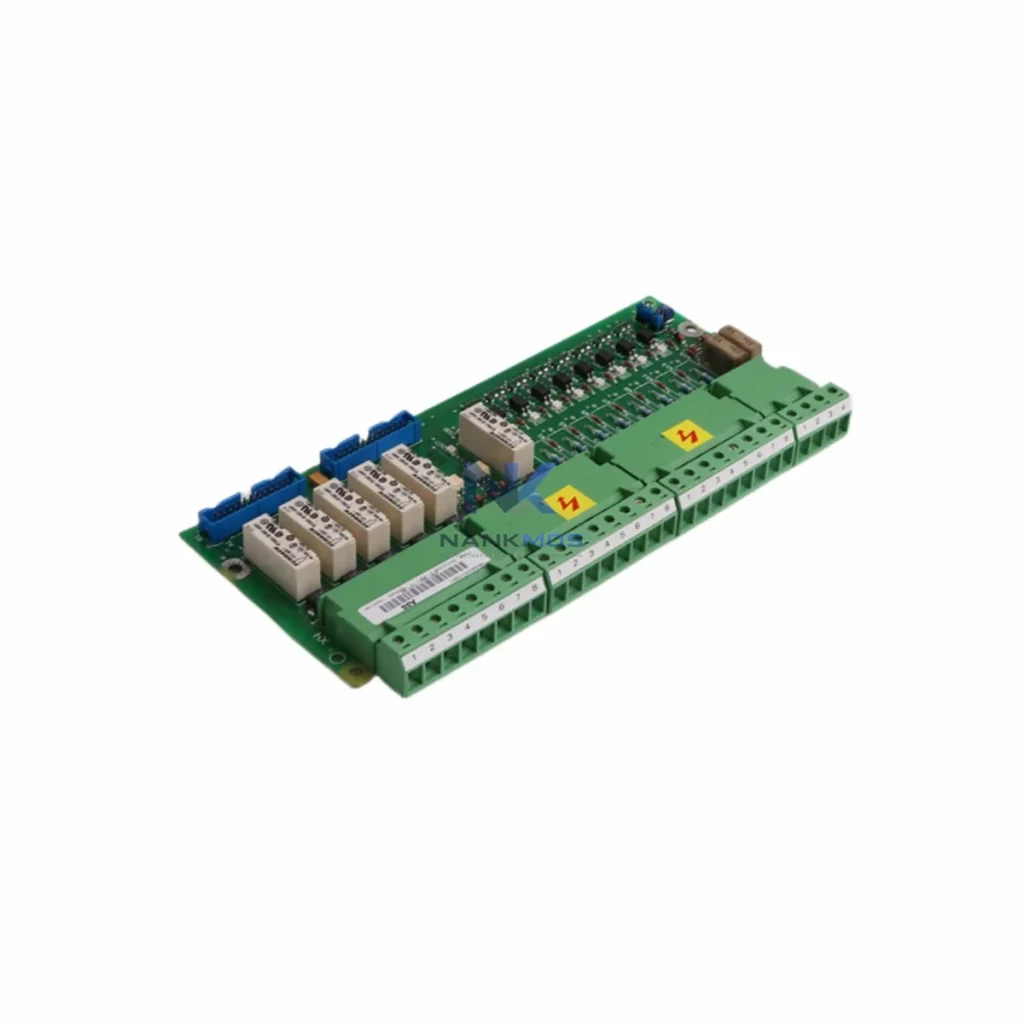

ABB SDCS-IOB-21 3BSE005176R1 I/O Board Field Kit

Product Details

SDCS-IOB-21 3BSE005176R1 Product Description

The ABB SDCS-IOB-21 (part number 3BSE005176R1) is a precision-engineered I/O Board Field Kit designed for the DCS800 series DC drive platform. In modern smart factory environments, the integrity of the data link between field-level devices and supervisory control systems is the backbone of operational efficiency. The SDCS-IOB-21 serves as a critical node in this chain — bridging analog and digital signal acquisition from motors, encoders, and process sensors directly into the DCS800 drive's control architecture, enabling seamless upstream communication to PLC controllers, SCADA platforms, and HMI visualization systems.

As industrial facilities transition toward Industry 4.0 architectures, the demand for reliable, low-latency I/O interfaces has never been greater. The SDCS-IOB-21 addresses this need by providing a robust, field-proven signal conditioning and I/O expansion capability that integrates natively with ABB's DCS800 DC drive ecosystem. Whether deployed in heavy-duty motor control centers, paper mill drives, metal rolling lines, or crane and hoist applications, this board ensures that every analog input, digital feedback signal, and encoder pulse is accurately captured, conditioned, and transmitted without data loss or timing errors.

In a fully connected smart factory, the SDCS-IOB-21 operates at the intersection of physical process signals and digital data infrastructure. Consider a typical heavy industry deployment: a DC motor driving a rolling mill stand generates analog speed feedback, torque reference signals, and digital status outputs. The SDCS-IOB-21 captures these signals at the drive level within the DCS800 controller, conditioning and routing them through the drive's internal bus to the main control board.

From the DCS800 control board, data flows upstream via a communication adapter — for example, the SDCS-COM-8 PROFIBUS-DP module or the SDCS-COM-5 Modbus RTU adapter — to a plant-level PLC such as an ABB AC500 or Siemens S7-300/S7-400. The PLC aggregates drive status, speed references, and fault codes alongside signals from remote I/O modules, proximity sensors, and pressure transmitters distributed across the production line. This consolidated data stream is then forwarded to an industrial Ethernet switch — such as an ABB AF series managed switch or a Hirschmann RS20 — which routes traffic across the plant network backbone to the SCADA server.

At the SCADA layer, platforms such as ABB System 800xA or Wonderware AVEVA System Platform receive real-time drive data from the DCS800 via the PROFIBUS gateway, displaying motor speed trends, current draw, and alarm states on operator HMI panels. Simultaneously, edge gateway devices — such as the ABB Edge Connect or a Moxa MGate protocol converter — can translate PROFIBUS or Modbus data into MQTT or OPC-UA streams for cloud-based analytics platforms, enabling predictive maintenance algorithms to monitor motor health and bearing wear trends remotely.

The SDCS-IOB-21 also plays a role in closed-loop control architectures. Encoder feedback signals captured by the board feed directly into the DCS800's speed regulation loop, ensuring precise motor control with millisecond response times. This tight integration between field signal acquisition and drive control logic is what makes the SDCS-IOB-21 indispensable in applications where speed accuracy and torque linearity are critical — such as winding tension control, where even minor signal delays can cause web breaks or product defects.

For facilities running mixed-protocol environments, the SDCS-IOB-21's compatibility with multiple SDCS communication adapters means it can coexist with DeviceNet nodes (via SDCS-COM-6), EtherNet/IP gateways, and legacy serial Modbus RTU networks without requiring separate signal converters or protocol bridges. This flexibility significantly reduces integration complexity and commissioning time when retrofitting older DC drive systems into modern IIoT-enabled plant networks.

Many industrial facilities operating legacy DC drive systems face a common set of challenges: protocol fragmentation, data silos between drive-level controllers and plant SCADA systems, and limited visibility into real-time motor performance. The SDCS-IOB-21 directly addresses these pain points within the DCS800 ecosystem.

Protocol Unification: By serving as the native I/O interface within the DCS800 platform, the SDCS-IOB-21 eliminates the need for external signal converters between the drive and its upstream communication adapters. Combined with SDCS-COM series fieldbus modules, it enables a single, unified data path from motor shaft to SCADA dashboard — whether the plant network runs PROFIBUS-DP, Modbus RTU, or DeviceNet.

Eliminating Data Silos: Without a properly functioning I/O board, drive-level data — speed feedback, current limits, fault codes, encoder counts — remains trapped within the drive controller and invisible to plant-level systems. The SDCS-IOB-21 restores this data visibility, feeding real-time drive parameters into PLC data tables and SCADA historian databases for trend analysis and compliance reporting.

Remote Monitoring and Diagnostics: With the SDCS-IOB-21 in place, maintenance engineers can remotely interrogate DCS800 drive parameters via PROFIBUS master stations or Modbus TCP gateways, reading fault logs, adjusting speed references, and monitoring thermal status without physical access to the drive cabinet. This capability is particularly valuable in hazardous or hard-to-reach installations such as offshore platforms, underground mining conveyors, or high-bay crane systems.

Production Line Transparency: Real-time I/O data from the SDCS-IOB-21 enables SCADA systems to generate production KPI dashboards — tracking motor uptime, energy consumption per production cycle, and drive fault frequency. This transparency supports lean manufacturing initiatives and helps maintenance teams prioritize preventive interventions before unplanned downtime occurs.

Alarm Tracking and System Expansion: The board's digital I/O channels support alarm relay outputs that can trigger plant-wide alarm management systems when drive faults occur. As production capacity grows, additional SDCS-IOB-21 boards can be installed in parallel DCS800 drives across expanded motor control centers, scaling the data acquisition network without architectural redesign.

Q1: What communication protocols does the SDCS-IOB-21 support for SCADA integration?The SDCS-IOB-21 itself is an internal I/O expansion board for the DCS800 drive platform. SCADA and PLC integration is achieved by pairing it with SDCS-COM series communication adapters: SDCS-COM-8 for PROFIBUS-DP, SDCS-COM-5 for Modbus RTU, and SDCS-COM-6 for DeviceNet. This combination enables full bidirectional data exchange between the DCS800 drive and plant-level control systems.

Q2: How does the SDCS-IOB-21 support remote diagnostics and fault monitoring?When integrated with a PROFIBUS-DP or Modbus RTU master, the SDCS-IOB-21 enables remote read/write access to DCS800 drive parameters, including fault codes, speed references, current limits, and I/O status. Maintenance teams can monitor drive health from a central SCADA workstation or mobile HMI without requiring physical access to the drive cabinet, reducing mean time to repair (MTTR) significantly.

Q3: Is the SDCS-IOB-21 compatible with modern IIoT and edge computing architectures?Yes. While the SDCS-IOB-21 operates within the DCS800's native backplane, its data can be bridged to IIoT platforms via edge gateway devices such as Moxa MGate converters or ABB Edge Connect units, which translate PROFIBUS or Modbus data into OPC-UA or MQTT streams. This allows DCS800 drive data to be ingested by cloud analytics platforms for predictive maintenance and energy optimization applications.

Q4: What warranty and quality assurance does the SDCS-IOB-21 carry?Every SDCS-IOB-21 3BSE005176R1 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Each board undergoes pre-shipment functional testing to verify I/O channel integrity, communication interface continuity, and compatibility with DCS800 drive firmware. In-stock units are available for immediate dispatch with full traceability documentation.
