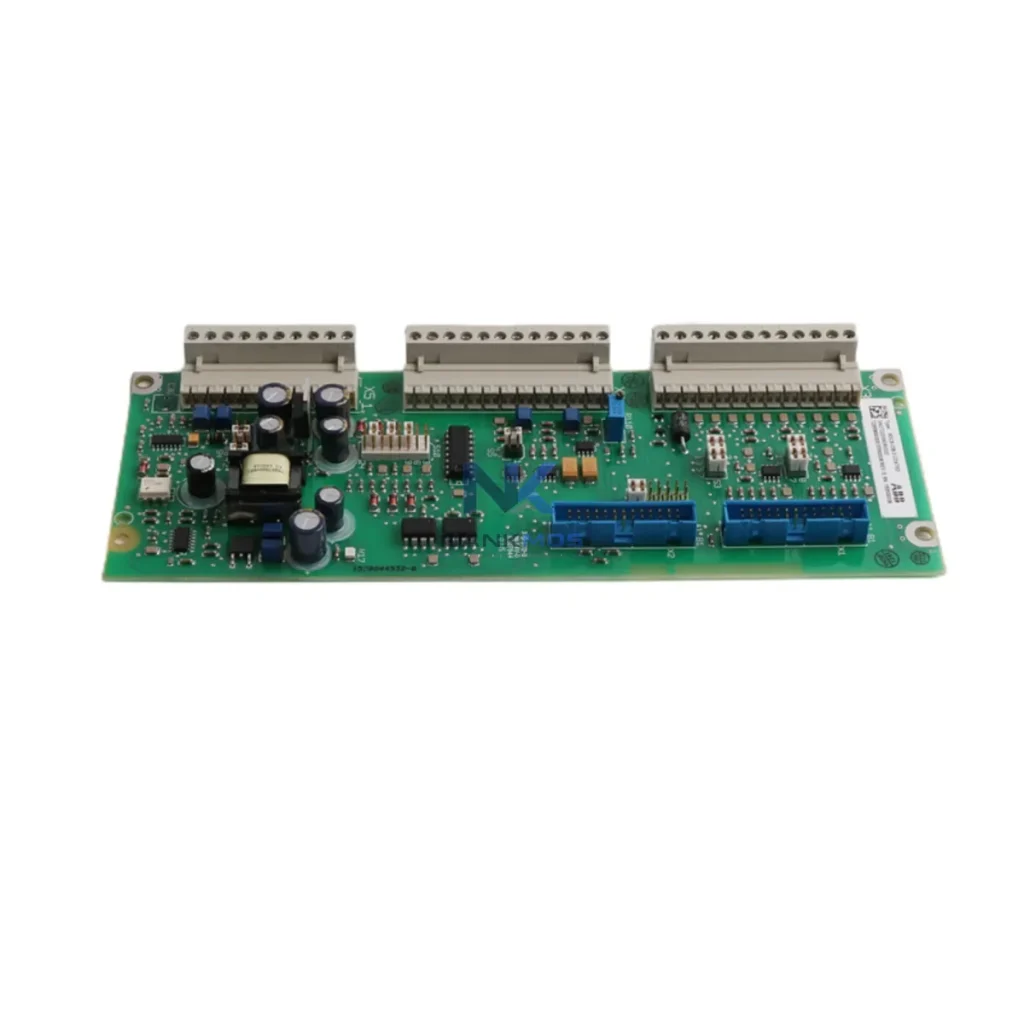

ABB SDCS-IOB-23-COAT 3ADT220090R0023 I/O Connection Board

Product Details

SDCS-IOB-23-COAT 3ADT220090R0023 Product Description

The ABB SDCS-IOB-23-COAT is a conformal-coated I/O connection board engineered for the ABB DCS800 series DC drive platform. Designed to operate reliably in demanding industrial environments, this board serves as the critical interface between the drive's control logic and field-level signals — enabling precise motor control, real-time feedback, and energy-aware automation across high-throughput production lines. With its robust signal routing architecture and compatibility with ABB's broader drive ecosystem, the SDCS-IOB-23-COAT plays a direct role in reducing unnecessary energy consumption, stabilizing production rhythm, and extending equipment service life.

In a fully integrated DC drive system, the SDCS-IOB-23-COAT acts as the nerve center for field signal management. It connects directly to the SDCS-CON-4 control board, which governs the DCS800's core speed and torque regulation algorithms. Together, they form a closed-loop control architecture that continuously adjusts motor output based on real-time load conditions — preventing energy waste caused by motor overdrive or uncontrolled deceleration.

On the field side, the board interfaces with incremental encoders and analog tachometers to deliver accurate speed feedback to the drive's control layer. This feedback loop is essential for maintaining consistent production line speed without excess power draw. When paired with an ABB AC500 PLC or a third-party SCADA system via the SDCS-COM-8 fieldbus adapter (supporting PROFIBUS-DP or Modbus RTU), the SDCS-IOB-23-COAT enables centralized energy monitoring and remote parameter adjustment — reducing the need for manual intervention and unplanned downtime.

For facilities deploying ABB Panel Builder or integrating with ABB Ability™ Energy Manager, the I/O board's signal outputs can feed into power monitoring dashboards, allowing plant engineers to track motor load profiles, identify inefficiency windows, and schedule predictive maintenance before thermal stress causes failure. This is particularly valuable in high-cycle applications such as winding machines, where the SDCS-IOB-3 and SDCS-IOB-23-COAT are often deployed in tandem to handle separate I/O zones within the same drive cabinet.

The conformal coating on this variant ensures reliable operation in humid, dusty, or chemically aggressive environments — common in paper mills, metal rolling lines, and marine applications — where uncoated boards would degrade rapidly, leading to signal errors, unplanned stops, and elevated energy consumption from repeated restart cycles. Alongside the SDCS-PIN-51 power interface board and the SDCS-FEX-2 field excitation module, the SDCS-IOB-23-COAT completes a robust drive control stack capable of sustaining continuous high-load operation with minimal thermal overhead.

Production line energy efficiency is rarely achieved through a single component — it is the result of precise signal integrity, accurate feedback, and coordinated control across every layer of the drive system. The SDCS-IOB-23-COAT contributes to this goal by ensuring that every analog and digital signal between the DCS800 drive and the connected field devices is transmitted cleanly and without latency. Signal degradation at the I/O level is a common but underappreciated source of energy waste: when feedback signals are noisy or delayed, the drive compensates by applying excess torque, consuming more power than the load actually requires.

By maintaining clean signal paths, the SDCS-IOB-23-COAT allows the DCS800's internal energy optimization algorithms to operate at full effectiveness. In regenerative braking applications — such as crane hoists or downhill conveyors — accurate I/O feedback enables the drive to recover kinetic energy back to the DC bus, reducing net energy consumption by up to 30% compared to resistive braking systems. This regenerative capability, coordinated through the I/O board's encoder and analog inputs, directly reduces electricity costs and lowers thermal load on the drive cabinet.

From a production rhythm perspective, the board's reliable I/O mapping ensures that start/stop sequences, speed ramp profiles, and fault responses are executed precisely and consistently. Inconsistent I/O behavior leads to production stoppages, extended restart cycles, and increased wear on mechanical components — all of which translate into higher energy consumption per unit of output. With the SDCS-IOB-23-COAT in place, plant operators can configure tighter speed tolerances and more aggressive energy-saving ramp profiles, knowing that the I/O layer will faithfully execute every command without signal loss or timing errors.

All units supplied by NANKMOS are drawn from verified, pre-tested inventory. Each SDCS-IOB-23-COAT undergoes functional verification prior to shipment, confirming signal continuity, coating integrity, and connector condition. This pre-shipment testing protocol ensures that replacement boards integrate seamlessly into existing DCS800 installations, minimizing commissioning time and eliminating the risk of introducing a faulty component into a live production environment. Combined with a 12-month warranty, this makes the SDCS-IOB-23-COAT a low-risk, high-value choice for maintenance teams managing critical DC drive infrastructure.

Q1: How does the SDCS-IOB-23-COAT contribute to energy savings in a DCS800 drive system? The board ensures accurate, low-latency signal transmission between field devices and the DCS800 control layer. Clean I/O signals allow the drive's energy optimization algorithms to operate correctly — preventing over-torque conditions, enabling regenerative braking, and supporting precise speed control that minimizes excess power consumption.

Q2: Is the SDCS-IOB-23-COAT compatible with all DCS800 variants and firmware versions? The SDCS-IOB-23-COAT (3ADT220090R0023) is designed for the ABB DCS800 DC drive series. It is compatible with standard DCS800 control board configurations using the SDCS-CON-4. For specific firmware version compatibility or hardware revision matching, we recommend confirming your drive's existing board revision before ordering. Our technical team can assist with cross-referencing.

Q3: What is the recommended replacement scenario for this board, and how quickly can it be deployed? This board is typically replaced when I/O signal faults, encoder feedback errors, or analog input anomalies are diagnosed in a DCS800 system. Because NANKMOS maintains ready-to-ship inventory with pre-shipment testing completed, replacement units can be dispatched promptly. Installation is a direct board swap within the drive cabinet, with no firmware changes required in most cases.

Q4: What warranty and post-sale support does NANKMOS provide for the SDCS-IOB-23-COAT? All SDCS-IOB-23-COAT units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit is pre-tested before dispatch to verify functional integrity. Post-sale technical support is available for installation guidance, compatibility verification, and fault diagnosis. Contact our team at [email protected] or +86 18359268345 for assistance.
