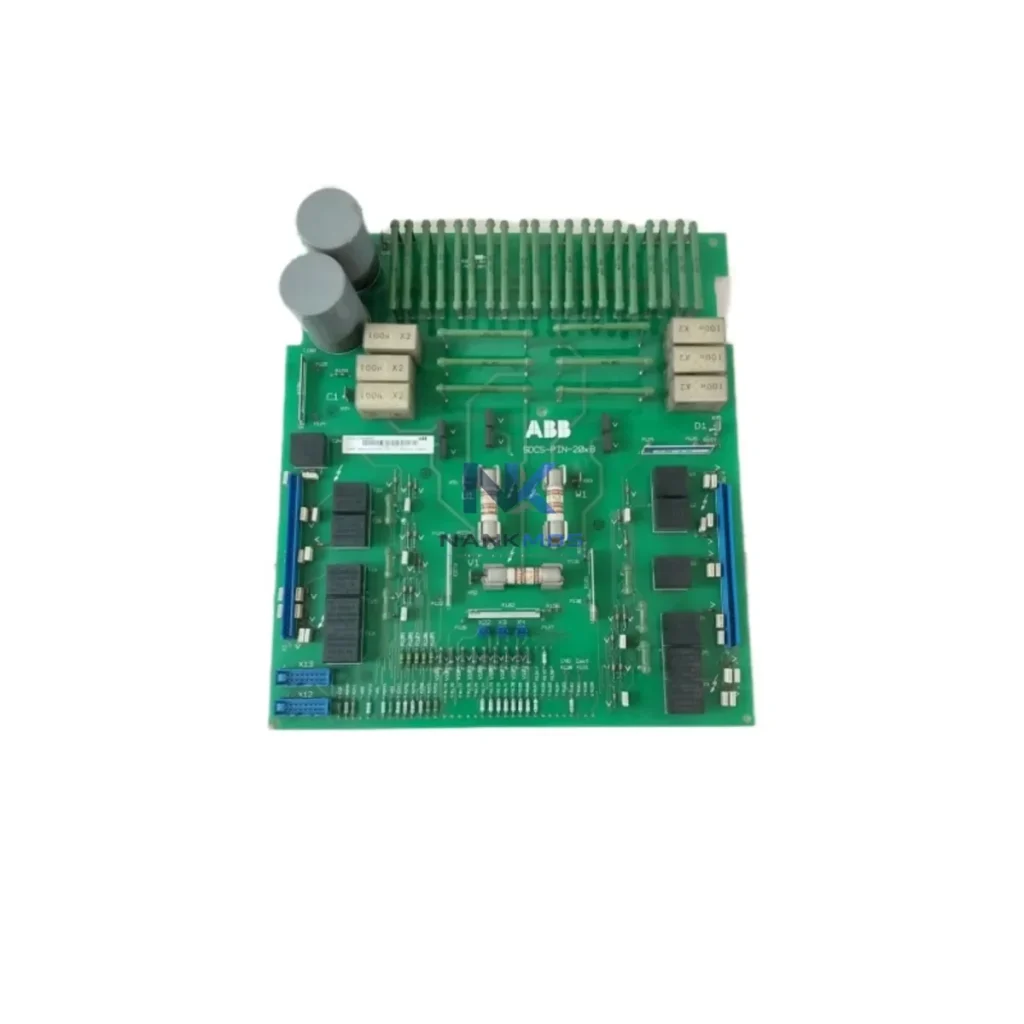

SDCS-PIN-205B 3ADT312500R0001 Product Description

The ABB SDCS-PIN-205B (3ADT312500R0001) is a power interface board engineered specifically for the DCS800 series DC drive platform, serving as the critical signal and power bridge between the drive's control layer and its thyristor power section. In a complete industrial automation architecture, this board does not operate in isolation — it is a precision-matched component within a tightly integrated system where every layer must communicate reliably and respond predictably under load.

At the control layer, the SDCS-PIN-205B interfaces directly with the SDCS-CON-4 control board, which handles closed-loop speed and torque regulation, PID control, and fieldbus communication. The CON-4 generates firing angle commands that the PIN-205B translates into precise thyristor gate signals, ensuring accurate armature current control across the full speed range. This tight coupling between control and power sections is what enables the DCS800 to deliver the dynamic response required in demanding applications such as paper machine drives, winding systems, and rolling mills.

On the I/O and feedback layer, the SDCS-PIN-205B works in coordination with the SDCS-FEX-2 field excitation board, which manages the DC motor's field winding current. Proper coordination between armature power (via PIN-205B) and field excitation (via FEX-2) is essential for field-weakening operation and extended speed range control. Alongside these, the SDCS-DSL-4 diagnostic and signal layer board provides real-time monitoring of internal drive signals, enabling engineers to capture waveform data and verify firing symmetry during commissioning.

For communication and supervisory integration, the DCS800 platform supports fieldbus adapter modules including the RDNA-01 (DeviceNet), RPBA-01 (PROFIBUS-DP), and RCAN-01 (CANopen) adapters. These modules connect to the SDCS-CON-4 and allow the drive — including all parameters managed through the power interface — to be monitored and controlled from a PLC or SCADA system. In Siemens S7 or Allen-Bradley ControlLogix environments, this enables seamless integration of the DCS800 into existing plant-wide automation networks without requiring proprietary gateways.

At the power supply layer, the DCS800 drive cabinet typically incorporates the SDCS-POW-4 auxiliary power supply board, which provides regulated 24 VDC logic power to the control and interface boards including the SDCS-PIN-205B. Stable auxiliary power is non-negotiable for reliable thyristor firing — any ripple or dropout at the logic supply level can cause asymmetric firing and introduce torque ripple into the motor shaft. The POW-4 is therefore a critical upstream dependency for the PIN-205B's correct operation.

For HMI and parameter management, the DCS800 ecosystem supports the CDP312R control panel and the DriveWindow PC tool, both of which allow engineers to configure firing angle limits, current ramp rates, and protection thresholds that directly govern how the SDCS-PIN-205B operates under varying load conditions. During commissioning, these tools are indispensable for verifying that the power interface is correctly calibrated to the motor's nameplate data and the application's torque profile.

In redundancy-critical applications, engineers often deploy dual DCS800 drives in master-follower or load-sharing configurations. In such architectures, each drive unit contains its own SDCS-PIN-205B, and synchronization between the two power sections is managed at the control layer via the SDCS-CON-4's built-in follower mode. This approach is common in large winding machines and mine hoists where a single drive failure cannot be tolerated. Having verified spare SDCS-PIN-205B boards in inventory is therefore a standard practice in high-availability plant maintenance programs.

The SDCS-PIN-205B finds application across a broad spectrum of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, wide-speed-range motion control:

Metals and Rolling Mills: In steel and aluminum rolling mill drives, the DCS800 with SDCS-PIN-205B provides the precise armature current control needed to maintain constant torque during billet reduction passes. The board's reliable thyristor firing ensures smooth torque transitions that protect both the mechanical drivetrain and the rolled product quality.

Pulp and Paper: Paper machine section drives demand exceptional speed synchronization across multiple drive points. The SDCS-PIN-205B's stable power interface ensures that each DCS800 drive section responds identically to speed reference changes, preventing web breaks caused by differential tension between sections.

Mining and Hoisting: Mine hoist drives require fail-safe braking and controlled deceleration. The SDCS-PIN-205B supports four-quadrant operation through the DCS800's regenerative braking capability, allowing controlled lowering of loads with energy returned to the supply network.

Chemical and Petrochemical: In hazardous area installations, the DCS800 drive with SDCS-PIN-205B is often installed in pressurized or purged enclosures. The board's robust design tolerates the elevated ambient temperatures common in process plant drive rooms, and its compatibility with PROFIBUS-DP fieldbus adapters allows integration into Siemens PCS 7 or Honeywell Experion DCS environments.

Water and Wastewater: Large pump and compressor drives in water treatment facilities benefit from the DCS800's soft-start and energy-saving field-weakening modes, both of which are enabled by the precise power interface function of the SDCS-PIN-205B. Reduced mechanical stress on pump impellers and extended motor bearing life are direct operational benefits.

Marine and Offshore: Shipboard DC drives for anchor winches, mooring systems, and deck machinery operate in environments with significant vibration and humidity. The SDCS-PIN-205B's panel-mount design within the DCS800 cabinet provides the mechanical stability required for marine classification society approvals.

Q1: Is the SDCS-PIN-205B (3ADT312500R0001) compatible with all DCS800 frame sizes, and what control board does it pair with? The SDCS-PIN-205B is designed for use within the DCS800 series DC drive platform and interfaces with the SDCS-CON-4 control board. It is matched to specific DCS800 frame sizes based on the drive's current rating and power section configuration. Before installation, engineers should verify the drive's hardware revision and frame size against ABB's DCS800 hardware manual (3ADW000379) to confirm compatibility. If you are replacing a failed board, the reference number 3ADT312500R0001 is the definitive identifier for sourcing the correct revision. Our team can assist with cross-referencing your drive's serial number to confirm fitment prior to shipment.

Q2: What commissioning steps are required after replacing the SDCS-PIN-205B, and are any parameter resets necessary? After installing a replacement SDCS-PIN-205B, the drive should be powered up in a de-energized state (control power only) and the firing circuit symmetry verified using the DriveWindow diagnostic tool or the CDP312R panel. Key parameters to verify include the firing angle limits (Group 20), current controller gains (Group 26), and field excitation coordination settings (Group 28) in the DCS800 parameter set. In most cases, these parameters are stored in the SDCS-CON-4 and are not lost during a PIN board replacement, but a full functional test under load is recommended before returning the drive to production service. Our 12-Month Warranty covers board-level defects, and our technical team provides post-sale commissioning guidance at no additional charge.

Q3: What is the lead time and warranty coverage for the SDCS-PIN-205B 3ADT312500R0001, and how is long-term spare parts supply managed? The SDCS-PIN-205B 3ADT312500R0001 is held in stock and available for immediate shipment with standard global logistics lead times of 3–7 business days depending on destination. All units undergo functional testing prior to dispatch, and each board is covered by a 12-Month Warranty against manufacturing defects and premature failure under normal operating conditions. For customers managing long-term maintenance programs on DCS800 fleets, we recommend holding at least one spare SDCS-PIN-205B per drive group as a critical spare, given that this board is a single point of failure in the drive's power conversion chain. Contextual Integration support — including cross-referencing with SDCS-CON-4, SDCS-FEX-2, and SDCS-POW-4 spares — is available on request to help build a complete drive-level spare parts kit.
