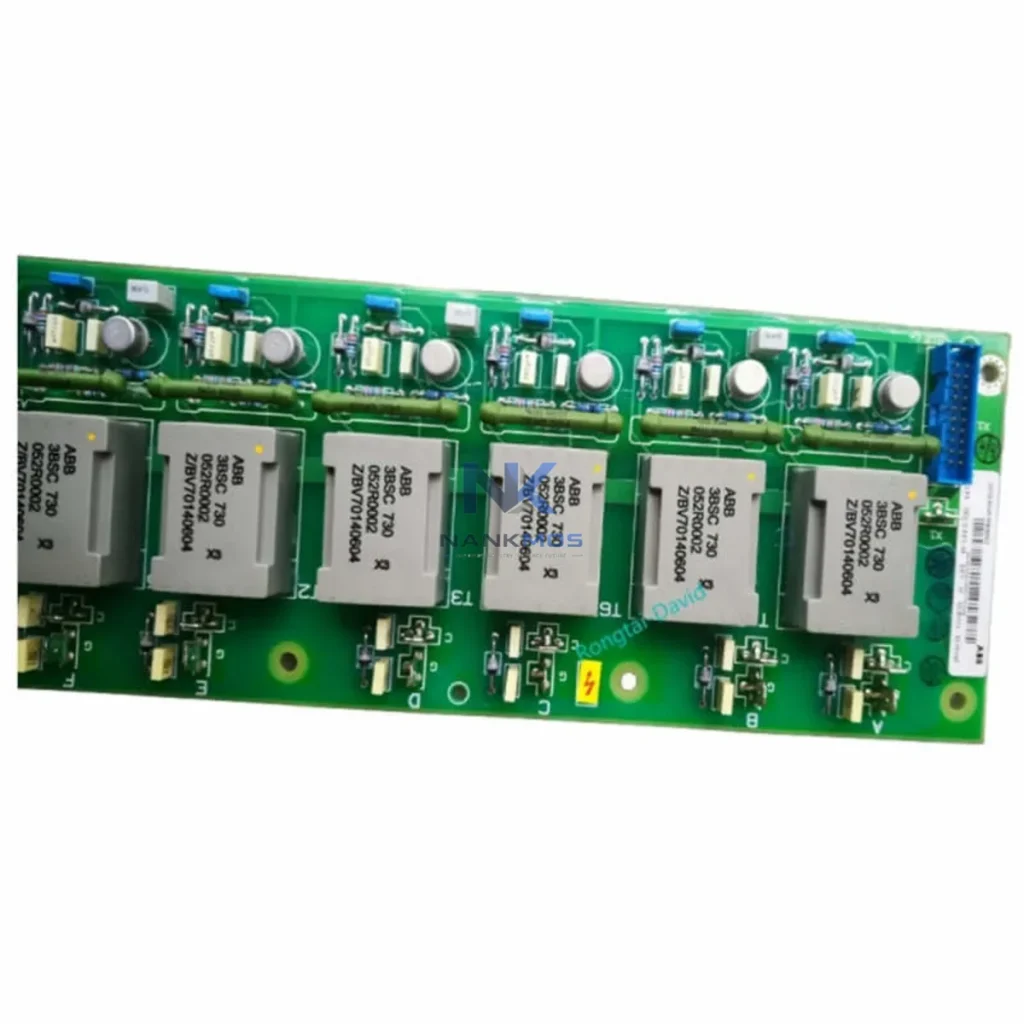

ABB SDCS-PIN-48-SD DC Drive Control Board

Product Details

SDCS-PIN-48-SD Product Description

The ABB SDCS-PIN-48-SD is a precision-engineered pulse interface board designed for seamless integration within the ABB SDCS DC drive control architecture. As a dedicated signal conditioning and pulse routing module, it occupies a critical position in the control layer, ensuring accurate firing pulse transmission between the control electronics and the thyristor power bridge. Its role extends beyond simple signal relay — it actively contributes to system consistency, diagnostic transparency, and long-term operational reliability across demanding industrial environments.

In modern DC drive systems, the integrity of gate pulse signals directly determines converter performance, torque linearity, and fault response speed. The SDCS-PIN-48-SD addresses this requirement with galvanically isolated pulse channels, matched propagation delays, and robust noise immunity — all essential attributes for high-current thyristor converters operating in electrically noisy industrial cabinets.

The SDCS-PIN-48-SD does not operate in isolation — it is an integral node within a layered automation architecture. Understanding its contextual integration requires examining how it interacts with adjacent modules across the control, power, communication, and protection layers.

At the control layer, the SDCS-PIN-48-SD interfaces directly with the SDCS-CON-4 main control board, which executes the closed-loop speed and current regulation algorithms. The CON-4 generates the firing angle commands that the PIN-48-SD translates into precisely timed gate pulses. This tight coupling ensures sub-millisecond pulse accuracy, which is essential for stable torque control in high-inertia drive applications.

The power layer is served by the thyristor bridge assembly within the DCS800 converter, which receives the gate pulses from the SDCS-PIN-48-SD. Proper pulse timing directly governs the converter's DC output voltage and current waveform quality. In multi-converter installations, the SDCS-POW-4 power supply board provides the regulated internal voltages that sustain both the control electronics and the pulse interface circuitry.

For I/O and signal conditioning, the SDCS-IOB-3 I/O extension board expands the analog and digital signal capacity of the drive system, enabling integration of external speed references, torque limits, and process feedback signals. The SDCS-PIN-48-SD's clean pulse outputs complement the IOB-3's signal integrity by preventing gate noise from coupling back into the analog measurement circuits.

At the communication layer, the DCS800 platform supports fieldbus connectivity via optional adapter modules such as the RDCO-03 (DDCS fiber optic link) or RPBA-01 (PROFIBUS-DP adapter), enabling the drive to participate in plant-wide SCADA, DCS, or PLC-based supervisory control. The SDCS-PIN-48-SD's reliable pulse delivery ensures that drive responses to fieldbus commands are executed with the precision that networked control systems demand.

The HMI layer is typically served by the CDP312R control panel or an external operator station connected via the drive's serial interface. Real-time diagnostics, fault history, and parameter access are available through these interfaces, allowing maintenance engineers to correlate pulse interface status with drive performance trends without interrupting production.

For protection and redundancy, the DCS800 architecture incorporates overcurrent, overvoltage, and thermal protection functions managed by the SDCS-CON-4. The SDCS-PIN-48-SD contributes to fault isolation by ensuring that gate pulse failures are immediately detectable, enabling the control board to initiate a controlled shutdown before thyristor damage occurs. In critical applications, spare SDCS-PIN-48-SD boards are maintained on-site to minimize mean time to repair (MTTR).

The maintenance layer benefits from the board's modular design — replacement requires no special tooling, and the board's self-contained pulse generation circuitry allows bench-level testing prior to installation. Combined with ABB's documented commissioning procedures, this supports efficient scheduled maintenance cycles and reduces unplanned downtime.

The SDCS-PIN-48-SD is deployed across a wide spectrum of heavy industrial applications where DC drive performance is mission-critical:

Steel and Metals Processing: In rolling mills and wire drawing lines, precise torque control at the thyristor converter level is essential for maintaining product dimensional tolerances. The SDCS-PIN-48-SD's accurate pulse timing supports the tight speed regulation required in tandem drive configurations, where multiple DCS800 converters must operate in synchronized speed ratios.

Paper and Pulp Manufacturing: Section drives in paper machines demand exceptional speed stability across wide load variations. The pulse interface board's consistent gate signal delivery ensures that the thyristor converter responds predictably to speed reference changes, supporting the tension control loops that govern web quality.

Mining and Mineral Processing: Hoist drives, conveyor systems, and grinding mill drives in mining applications subject DC drive electronics to high vibration, dust ingress, and wide temperature swings. The SDCS-PIN-48-SD's robust construction and galvanic isolation provide the noise immunity needed to maintain reliable operation in these harsh environments.

Marine and Offshore: Vessel propulsion systems and deck machinery using DC drive technology require components with proven reliability in high-humidity, salt-air environments. The SDCS-PIN-48-SD's industrial-grade design supports the demanding duty cycles of marine applications, where unscheduled maintenance is operationally and financially costly.

Chemical and Petrochemical Plants: Pump and compressor drives in process industries operate continuously, often for years between planned shutdowns. The SDCS-PIN-48-SD's long service life and availability as a stocked spare part support the maintenance strategies of facilities that cannot tolerate extended drive outages.

Water and Wastewater Treatment: Variable-speed pump drives in water infrastructure benefit from the DCS800 platform's energy efficiency and the SDCS-PIN-48-SD's contribution to converter reliability, supporting the 24/7 operational requirements of municipal utilities.

Q1: Is the SDCS-PIN-48-SD compatible with all DCS800 converter frame sizes? The SDCS-PIN-48-SD is designed for use within the ABB SDCS control electronics rack, which is common across the DCS800 series. Compatibility depends on the specific converter frame size and the number of thyristor pulse channels required. For multi-bridge configurations (e.g., four-quadrant converters), verify the pulse channel count against your converter's thyristor bridge topology. NANKMOS technical support can assist with compatibility confirmation based on your drive's nameplate data and order code.

Q2: What is the recommended spare parts strategy for the SDCS-PIN-48-SD in a critical production environment? For facilities where DC drive downtime directly impacts production output, maintaining at least one spare SDCS-PIN-48-SD board on-site is strongly recommended. The board's modular design allows rapid replacement without drive reconfiguration, and its 12-Month Warranty provides assurance of quality for newly installed spares. NANKMOS maintains stock of SDCS-PIN-48-SD boards to support urgent replacement requirements with fast global shipping.

Q3: How does the SDCS-PIN-48-SD contribute to long-term drive system maintainability? The SDCS-PIN-48-SD's self-contained pulse generation architecture simplifies fault diagnosis — a pulse interface failure produces a distinct fault code on the SDCS-CON-4 and CDP312R panel, allowing maintenance engineers to isolate the faulty board quickly. Its compatibility with ABB's standard SDCS rack mounting means replacement requires no mechanical modifications. Combined with NANKMOS's 12-Month Warranty and documented commissioning support, the SDCS-PIN-48-SD supports a predictive maintenance strategy that extends overall drive system service life.
