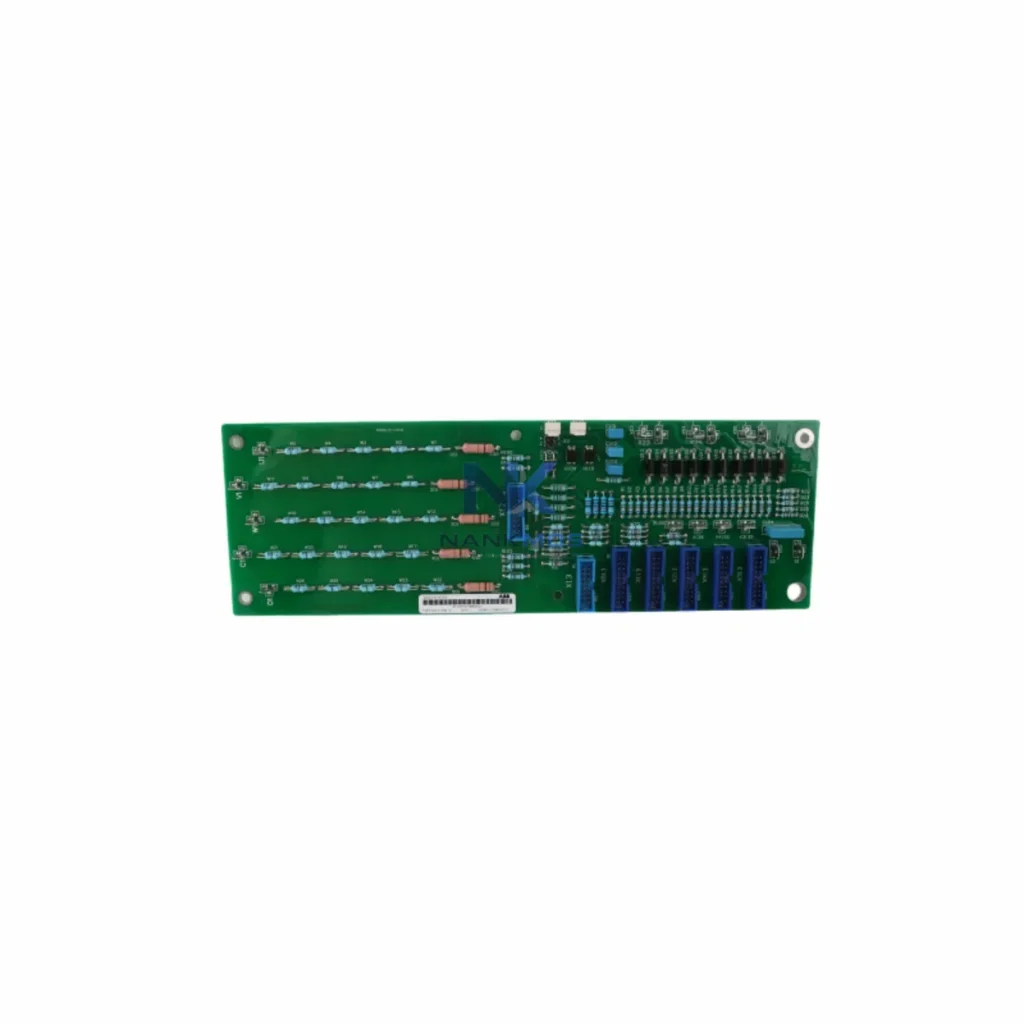

ABB SDCS-PIN-52 3BSE011316R1

Product Details

SDCS-PIN-52 3BSE011316R1 Product Description

The ABB SDCS-PIN-52 (3BSE011316R1) is a precision pulse measurement interface card engineered for the ABB DCS800 series DC drive platform. Designed to bridge encoder feedback signals with higher-level control and communication architectures, the SDCS-PIN-52 plays a critical role in the real-time data chain that connects field-level rotating machinery to PLC controllers, SCADA systems, and HMI visualization layers. In smart factory environments where production continuity depends on accurate speed and position data, this interface card ensures that every pulse from a motor encoder is captured, validated, and transmitted without latency or signal degradation.

As industrial facilities transition toward fully networked automation architectures, the demand for reliable, protocol-aware interface hardware has never been greater. The SDCS-PIN-52 addresses this need by providing a stable, high-resolution pulse input channel that integrates directly into the DCS800 drive's internal communication bus, enabling seamless data exchange with upstream control systems including ABB AC500 PLCs, ABB Freelance DCS controllers, and third-party SCADA platforms via standard fieldbus gateways.

In a fully integrated smart factory, the SDCS-PIN-52 sits at the foundation of the motor feedback data chain. The process begins at the field level, where an incremental encoder mounted on a DC motor shaft generates high-frequency pulse trains representing rotational speed and angular position. The SDCS-PIN-52 captures these signals with precision and feeds them directly into the DCS800 drive's closed-loop speed regulation algorithm, ensuring that torque and velocity are maintained within tight tolerances even under variable load conditions.

From the DCS800 drive, processed speed and status data is transmitted upstream via an ABB RDCO-03 DDCS communication module or an ABB RPBA-01 PROFIBUS adapter, bridging the drive's internal data bus to the plant-wide PROFIBUS-DP network. This network backbone connects to an ABB AC500 PLC acting as the primary process controller, which aggregates drive feedback alongside inputs from distributed ABB S800 remote I/O modules installed across the production floor. The PLC executes the control logic and forwards consolidated process data to an ABB Panel 800 HMI for operator visualization and alarm management.

For facilities running SCADA platforms such as ABB System 800xA or third-party solutions like Wonderware or Ignition, an ABB CI854A Ethernet/IP communication interface or a dedicated Moxa MGate protocol gateway translates the PROFIBUS data stream into Ethernet-based protocols (PROFINET, Modbus TCP, or OPC-UA), enabling real-time data ingestion into the SCADA historian. This allows production engineers to monitor motor speed trends, drive load curves, and fault event logs from any networked workstation or mobile device.

Power integrity across this data chain is maintained by ABB CP-E series DIN-rail power supplies, which provide stable 24 VDC to the drive control electronics, I/O modules, and communication gateways. For edge analytics and local data buffering, an ABB Edge Controller or equivalent industrial edge gateway can be deployed alongside the DCS800 panel, enabling local pre-processing of encoder data before transmission to cloud-based MES or ERP systems. Variable-speed auxiliary drives in the same production line — such as ABB ACS880 AC drives controlling conveyor or pump motors — can be integrated into the same PROFIBUS segment, creating a unified drive network managed from a single SCADA dashboard.

This end-to-end architecture — from encoder pulse capture through the SDCS-PIN-52, across the fieldbus network, through PLC and HMI layers, and into SCADA and edge analytics — represents the complete industrial data link that modern smart factories require for transparent, responsive, and remotely manageable production operations.

Protocol Fragmentation: Many legacy DC drive installations rely on proprietary or non-standard encoder interfaces that cannot communicate directly with modern PLC or SCADA systems. The SDCS-PIN-52 resolves this by providing a standardized pulse input channel within the DCS800 platform, which can then be bridged to PROFIBUS, Modbus, or Ethernet protocols via ABB's fieldbus adapter ecosystem — eliminating the need for custom signal conditioning hardware.

Data Islands and Blind Spots: Without a reliable encoder feedback interface, DC drive systems operate in open-loop or semi-closed-loop modes, creating speed accuracy gaps that are invisible to upstream control systems. The SDCS-PIN-52 closes this loop, ensuring that actual motor speed data — not estimated values — flows continuously into the PLC and SCADA layers, eliminating data islands in the drive network.

Remote Monitoring and Diagnostics: When drive faults occur on remote or unmanned production lines, rapid diagnosis is critical. With the SDCS-PIN-52 providing accurate encoder feedback, the DCS800 drive can generate precise fault codes (overspeed, encoder loss, speed deviation) that are transmitted in real time to the SCADA alarm management system. Maintenance engineers can remotely identify whether a fault originates from the encoder, the interface card, or the drive control board — reducing mean time to repair (MTTR) without requiring on-site inspection.

Production Line Transparency: In winding, rolling, or crane applications where speed synchronization between multiple DC drives is critical, the SDCS-PIN-52 enables each drive to report its actual speed to the master PLC, which enforces synchronization logic across the drive network. This transparency prevents material defects caused by speed mismatches and provides a complete audit trail of production speed profiles for quality management systems.

System Scalability: As production lines expand, additional DCS800 drives equipped with SDCS-PIN-52 cards can be added to the existing PROFIBUS or Modbus network without architectural changes. Each new drive node appears automatically in the SCADA system, maintaining consistent monitoring coverage across the expanded installation.

Q1: What encoder types are compatible with the SDCS-PIN-52 3BSE011316R1? The SDCS-PIN-52 is designed to accept incremental encoder signals in HTL (High Threshold Logic) and TTL (Transistor-Transistor Logic) voltage levels, which are the most common output types used in industrial DC motor encoders. It is compatible with standard A/B/Z channel quadrature encoders typically used in ABB DCS800 drive applications including winding lines, rolling mills, and crane hoists. For specific encoder voltage and frequency specifications, refer to the ABB DCS800 hardware manual or contact NANKMOS technical support.

Q2: Can the SDCS-PIN-52 be integrated with PROFIBUS or Modbus SCADA systems? Yes. While the SDCS-PIN-52 itself interfaces directly with the DCS800 drive's internal control bus, the drive can be connected to PROFIBUS-DP networks via an ABB RPBA-01 adapter, or to Modbus RTU networks via an ABB RMBA-01 adapter. These fieldbus modules expose all drive parameters — including encoder-derived speed and position data — to the SCADA or PLC network. For Ethernet-based SCADA integration (Modbus TCP, PROFINET, OPC-UA), an additional protocol gateway such as the ABB CI854A or a Moxa MGate unit is recommended.

Q3: How does the SDCS-PIN-52 support remote diagnostics and fault tracing? The SDCS-PIN-52 enables the DCS800 drive to generate encoder-specific fault codes (e.g., encoder signal loss, speed deviation beyond threshold, pulse count error) that are logged in the drive's internal fault history and transmitted to the connected PLC or SCADA system in real time. Remote maintenance teams can access these fault logs via the SCADA historian or through ABB's Drive Composer Pro software connected over Ethernet, allowing precise fault localization without physical access to the drive panel. This capability significantly reduces unplanned downtime on remote or unmanned production lines.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SDCS-PIN-52 3BSE011316R1? All SDCS-PIN-52 3BSE011316R1 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm signal integrity, connector condition, and firmware compatibility with the DCS800 drive platform. NANKMOS maintains verified inventory of ABB DCS800 series accessories, enabling rapid order fulfillment for both single-unit replacements and multi-unit project orders. For technical pre-sales consultation or post-sales support, contact [email protected] or +86 18359268345.
