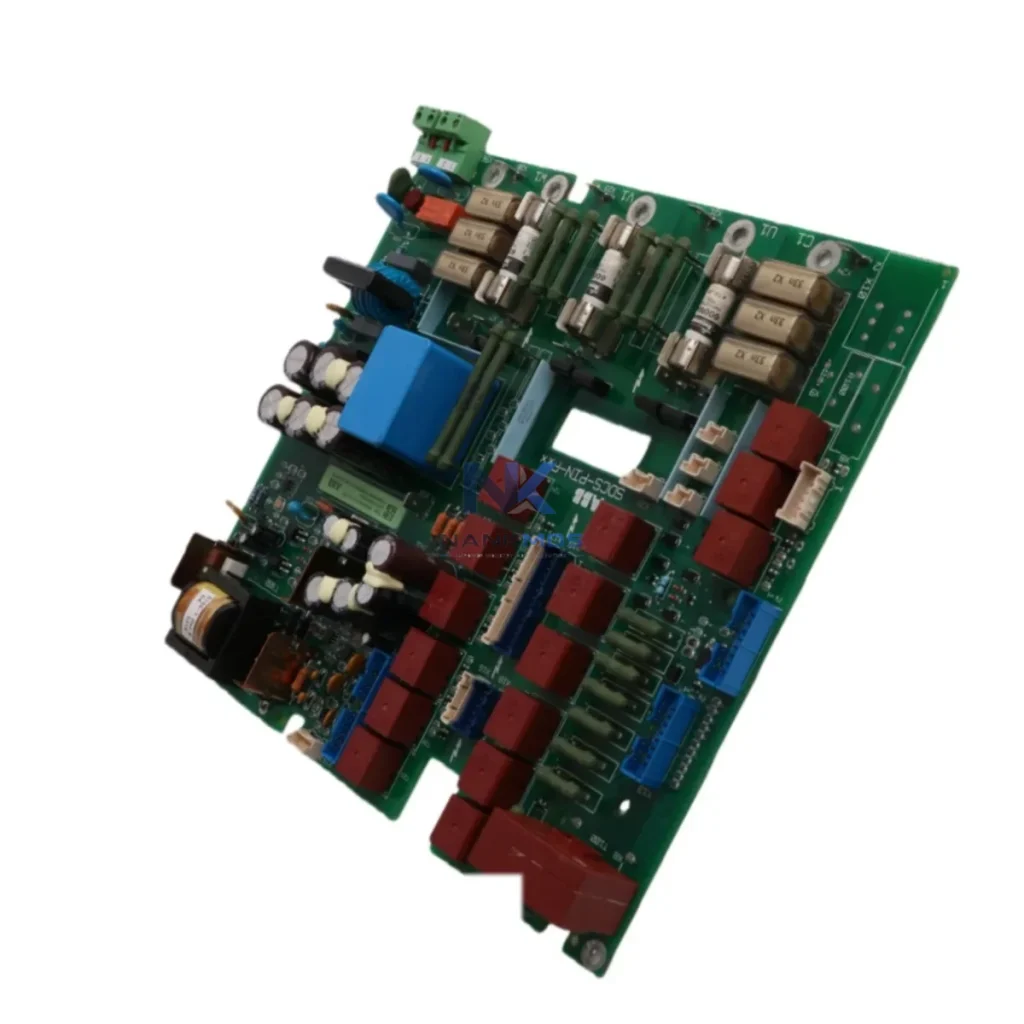

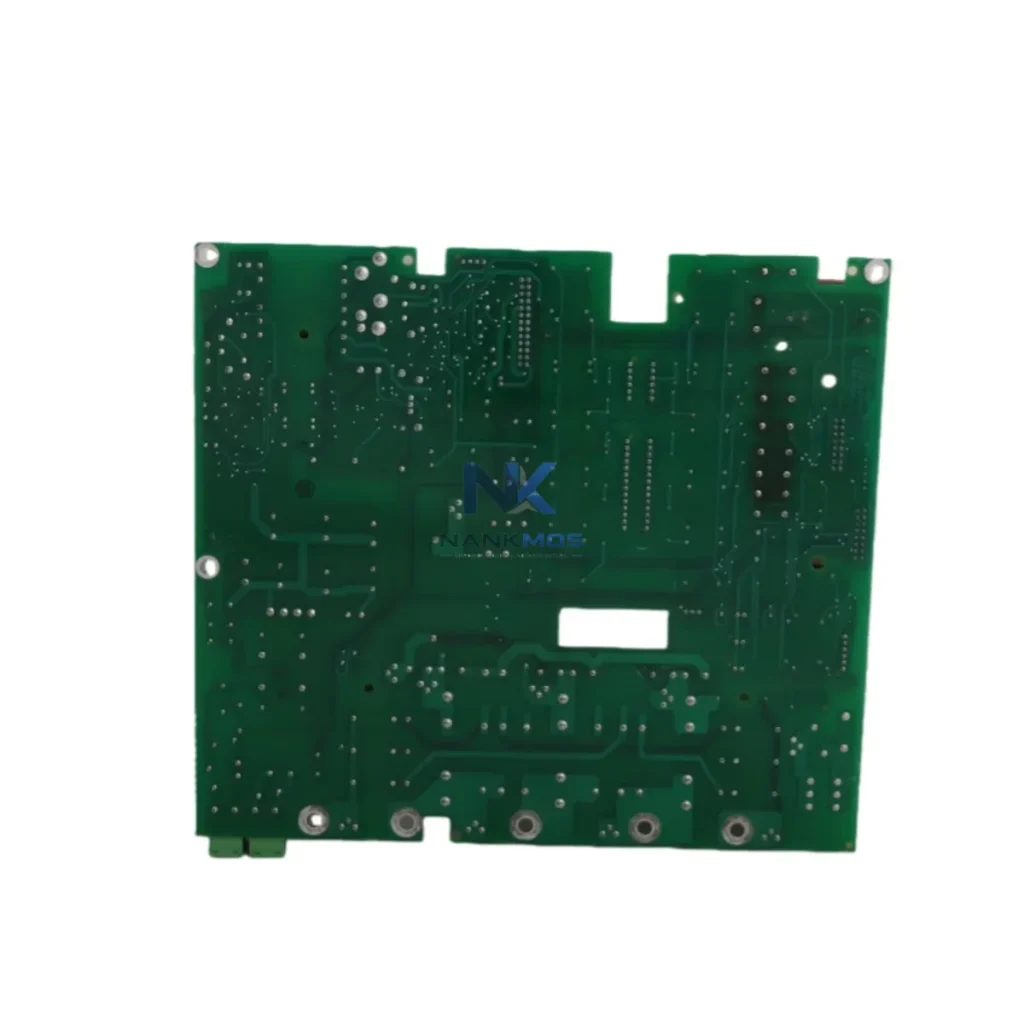

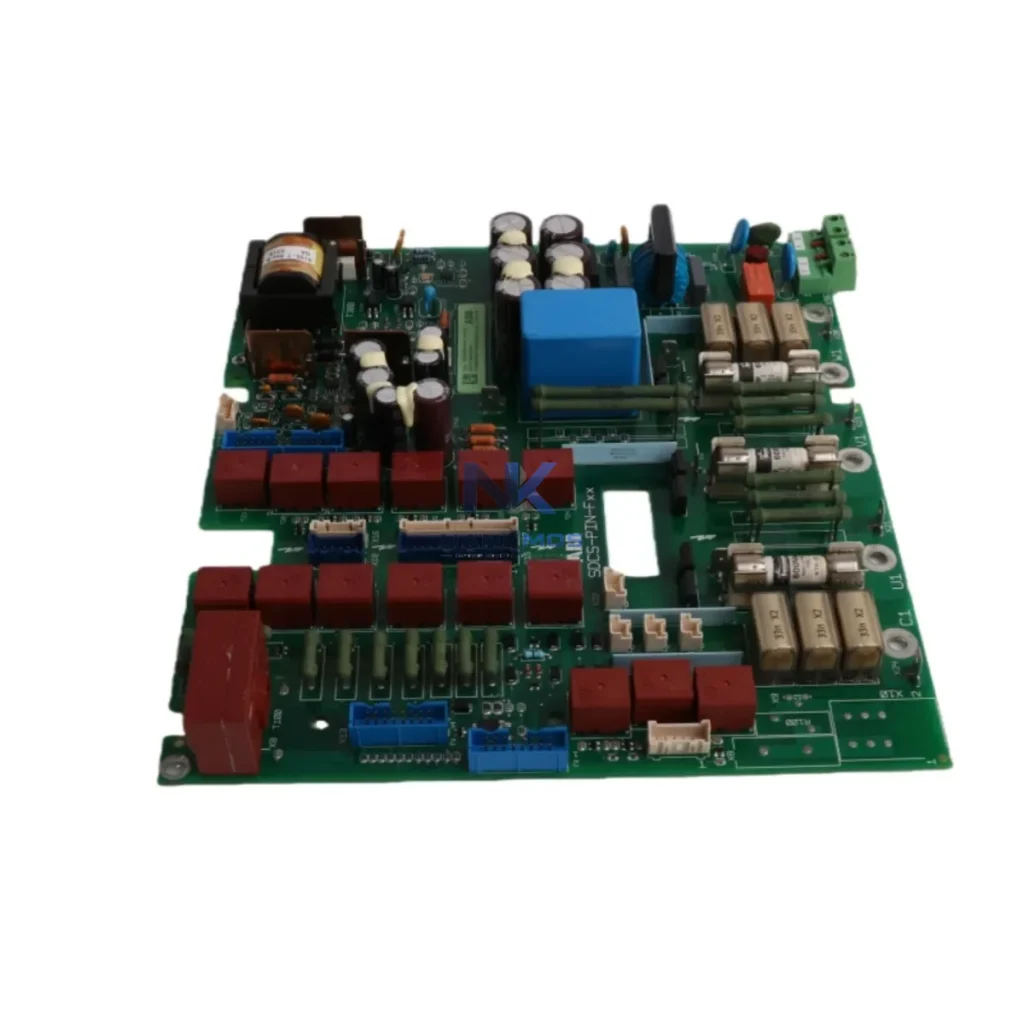

ABB SDCS-PIN-F01A 3ADT316300R1502 Network Interface Board

Product Details

SDCS-PIN-F01A 3ADT316300R1502 Product Description

The ABB SDCS-PIN-F01A (Part No. 3ADT316300R1502) is a high-performance network interface board engineered for the ABB DCS800 series DC drive platform. Designed to bridge field-level drive intelligence with upper-layer automation systems, this module enables seamless protocol conversion, real-time data exchange, and remote diagnostics across the full industrial communication stack — from sensor-level signal acquisition to SCADA visualization and enterprise MES integration.

In modern smart factory environments, DC drive systems must do more than convert power — they must communicate. The SDCS-PIN-F01A transforms the DCS800 from a standalone drive into a fully networked automation node, capable of transmitting speed references, torque feedback, fault codes, thermal status, and operational counters to any connected PLC, HMI, or edge gateway in real time. This connectivity is the foundation of transparent, data-driven production management.

Whether deployed in a paper mill, steel rolling line, crane hoist system, or marine propulsion application, the SDCS-PIN-F01A delivers the protocol flexibility and network stability required for continuous, uninterrupted industrial operation. Every unit ships pre-tested and is backed by a 12-month warranty, with in-stock availability for immediate procurement.

The SDCS-PIN-F01A sits at the intersection of drive-level intelligence and plant-wide automation networks. Understanding its role requires tracing the complete data flow from field device to control room.

At the field level, the DCS800 DC drive — equipped with the SDCS-PIN-F01A — receives analog and digital signals from upstream sensors: speed encoders, current transducers, temperature probes, and position feedback devices. These raw signals are processed internally by the DCS800's control board (such as the SDCS-CON-4 control unit) and converted into structured drive parameters — speed actual value, current limit, torque reference, fault word, and status word.

The SDCS-PIN-F01A then packages these parameters into fieldbus-compliant data frames and transmits them upstream via PROFIBUS-DP to a master PLC — for example, a Siemens S7-400 or ABB AC500 controller managing a multi-drive production line. The PLC processes the incoming drive data alongside inputs from remote I/O modules, safety relays, and distributed sensor nodes, then issues closed-loop control commands back to the DCS800 in real time.

For Ethernet-based architectures, the SDCS-PIN-F01A's EtherNet/IP capability allows direct integration with Allen-Bradley ControlLogix PLCs and Rockwell FactoryTalk SCADA systems, enabling high-speed cyclic data exchange over standard industrial Ethernet infrastructure — including managed industrial Ethernet switches with PROFINET/EtherNet/IP VLAN segmentation for network stability and deterministic latency.

At the supervisory layer, SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or ABB System 800xA subscribe to drive data published by the PLC or directly via OPC-UA edge gateways. Operators can monitor DCS800 drive health, track energy consumption trends, configure speed ramps, and acknowledge fault alarms — all from a centralized HMI dashboard without physical access to the drive cabinet.

For legacy Modbus RTU environments — common in older petrochemical plants or water treatment facilities — the SDCS-PIN-F01A's Modbus RTU interface connects the DCS800 to Schneider Modicon M340 PLCs or dedicated Modbus-to-OPC gateways, enabling protocol bridging between legacy serial networks and modern Ethernet-based SCADA systems. This eliminates data silos and allows legacy drive assets to participate fully in Industry 4.0 data architectures.

Edge computing nodes — such as Moxa UC-8100 or Advantech WISE-5000 series edge gateways — can aggregate drive data from multiple DCS800 units via the SDCS-PIN-F01A, apply local analytics (e.g., energy efficiency KPIs, predictive maintenance thresholds), and push structured data to cloud platforms or MES systems via MQTT or REST APIs. This edge-to-cloud pipeline is the backbone of transparent, real-time production monitoring in smart factory deployments.

Industrial sites running legacy DC drive systems frequently encounter four critical data challenges that the SDCS-PIN-F01A directly addresses:

Protocol Fragmentation: Many plants operate mixed-protocol environments — PROFIBUS on older German-engineered lines, EtherNet/IP on newer North American equipment, and Modbus RTU on legacy instrumentation. The SDCS-PIN-F01A's multi-protocol support eliminates the need for external protocol converters, reducing wiring complexity, latency, and potential failure points in the communication chain.

Data Silos and Drive Opacity: Without a network interface, DCS800 drives operate as black boxes — operators cannot access real-time speed, current, or fault data without local panel interaction. The SDCS-PIN-F01A makes every drive parameter visible to the SCADA layer, enabling production transparency, energy auditing, and condition-based maintenance scheduling.

Remote Monitoring and Diagnostics: For geographically distributed assets — offshore platforms, remote pumping stations, or multi-site manufacturing groups — the SDCS-PIN-F01A enables remote parameter reading, fault log retrieval, and drive configuration changes via the plant network, eliminating costly on-site service visits for routine diagnostics.

Alarm Tracking and System Expansion: As production lines scale, new drives must integrate seamlessly into existing PLC and SCADA architectures. The SDCS-PIN-F01A's standard fieldbus compliance ensures plug-and-play network expansion without custom engineering, while structured fault word transmission enables alarm management systems to correlate drive faults with upstream process events for root-cause analysis.

Q1: What communication protocols does the SDCS-PIN-F01A support, and is it compatible with third-party PLCs?The SDCS-PIN-F01A supports PROFIBUS-DP, EtherNet/IP, and Modbus RTU. It is compatible with major PLC platforms including Siemens S7 series, Allen-Bradley ControlLogix, Schneider Modicon, and ABB AC500, making it suitable for multi-vendor automation environments without additional protocol converters.

Q2: How does the SDCS-PIN-F01A ensure network stability and deterministic data transmission in high-noise industrial environments?The module is designed to ABB's industrial-grade EMC standards for the DCS800 platform, with shielded interface connections and compliance with PROFIBUS-DP and EtherNet/IP timing specifications. For Ethernet deployments, use of managed industrial switches with QoS prioritization is recommended to maintain deterministic cycle times under high network load.

Q3: Can the SDCS-PIN-F01A be used for remote diagnostics and parameter configuration without on-site access?Yes. Once integrated into a SCADA or DCS network via PROFIBUS-DP or EtherNet/IP, all DCS800 drive parameters accessible through the SDCS-PIN-F01A can be read and written remotely from the control room or via VPN-connected engineering workstations, enabling full remote diagnostics, fault acknowledgment, and speed/torque reference adjustment.

Q4: What pre-shipment testing and warranty coverage is provided with the SDCS-PIN-F01A?Every SDCS-PIN-F01A unit is pre-shipment tested for communication interface integrity and DCS800 compatibility before dispatch. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate delivery to minimize production downtime.
