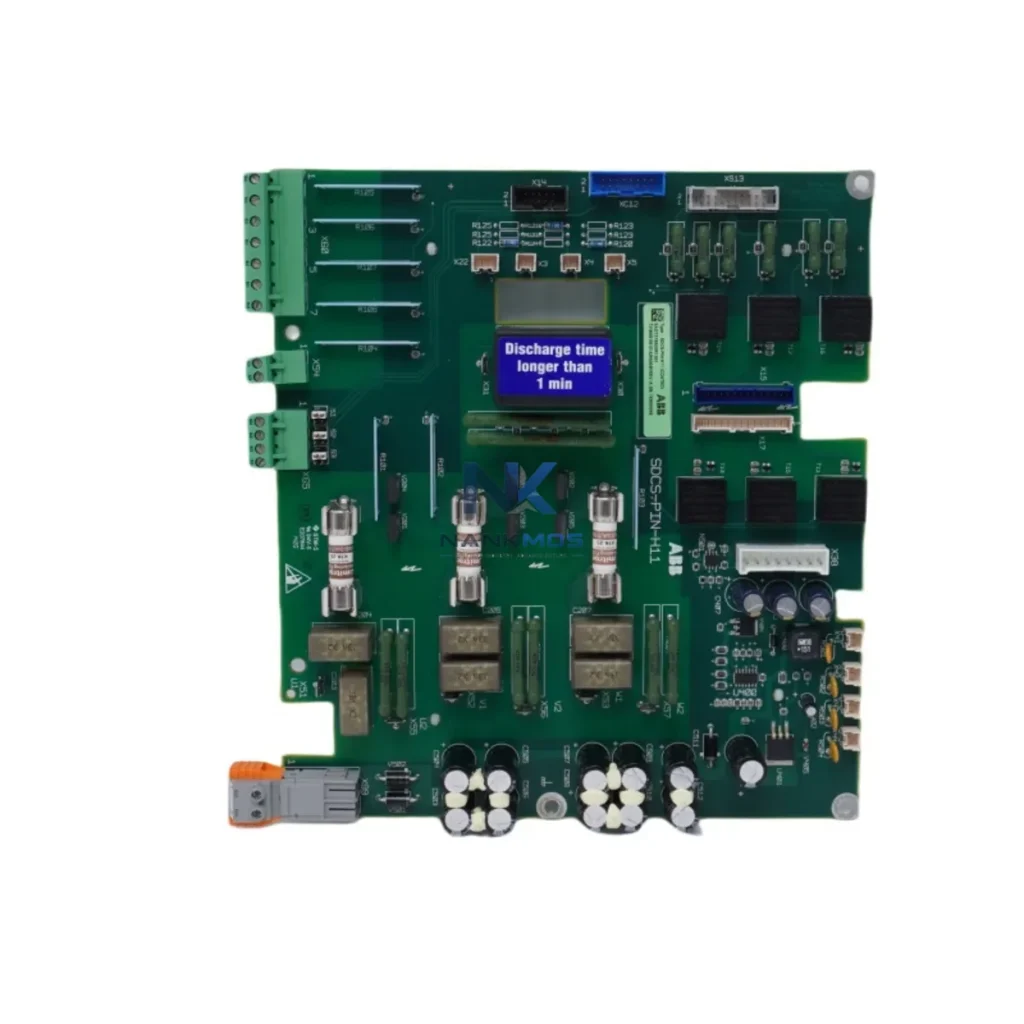

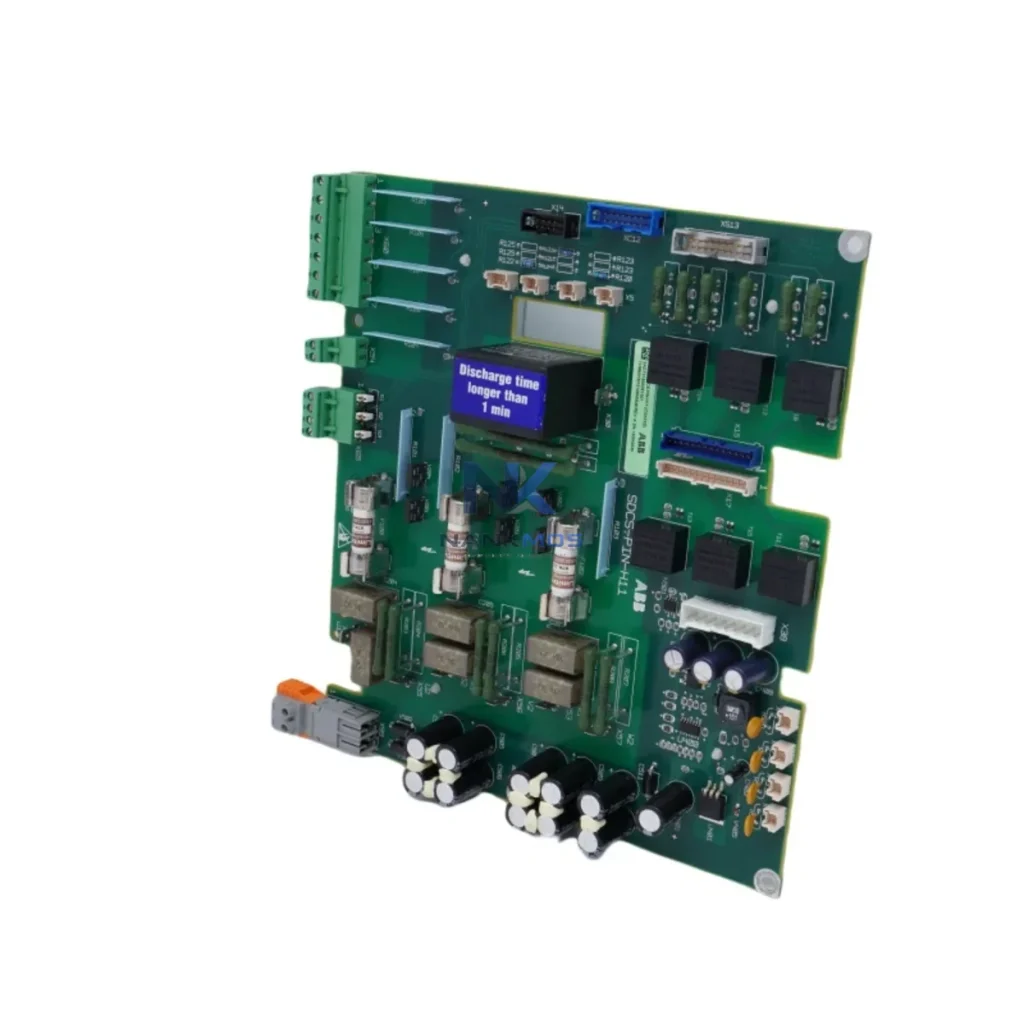

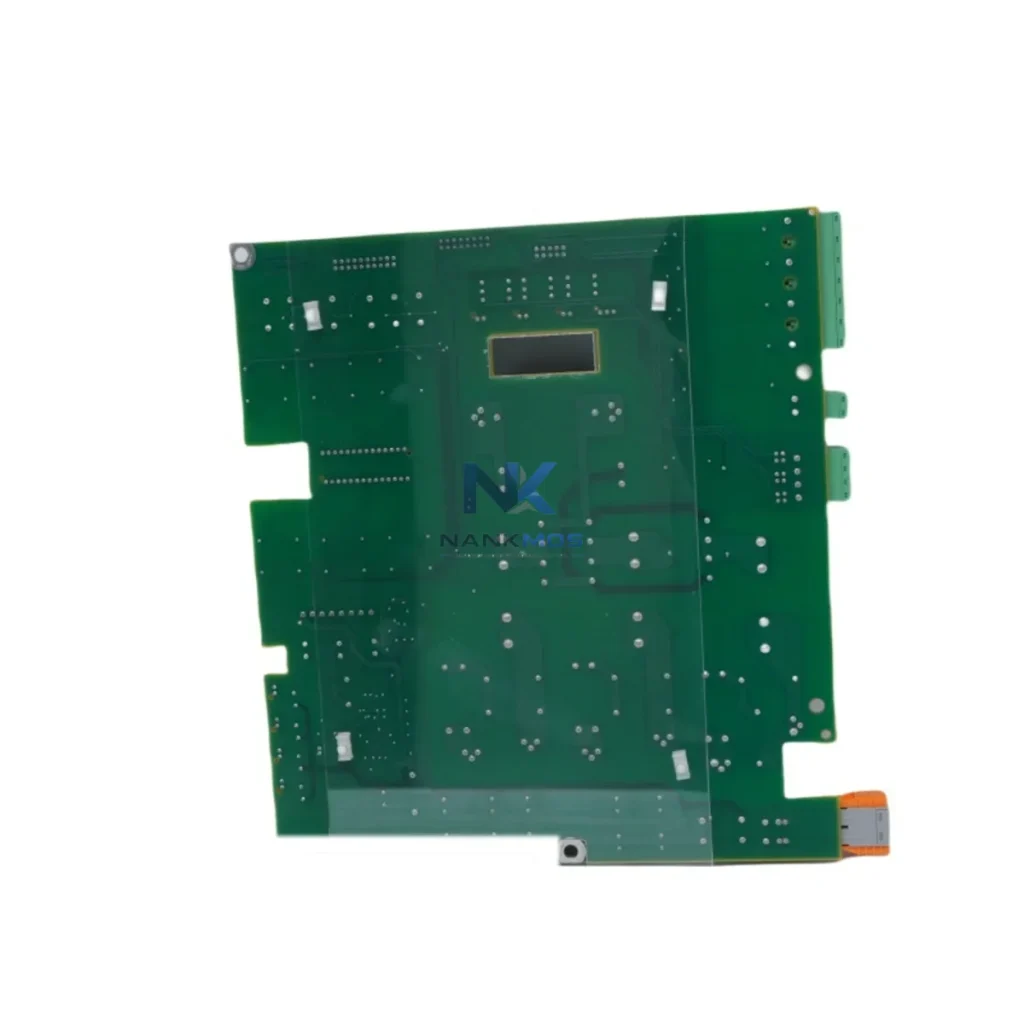

ABB SDCS-PIN-H41 3ADT320600R1501 Transformer Board

Product Details

SDCS-PIN-H41 3ADT320600R1501 Product Description

The ABB SDCS-PIN-H41 (part number 3ADT320600R1501) is a precision transformer board engineered for ABB DCS800 series DC drives, delivering reliable power signal isolation and network-ready interface capability across demanding industrial automation environments. As smart factories increasingly depend on seamless data flow between field devices, drive controllers, and supervisory systems, the SDCS-PIN-H41 plays a critical role in maintaining signal integrity at the hardware layer — the foundation of every connected automation architecture.

In modern industrial data link design, the transformer board is not merely a passive component. It serves as the electrical isolation barrier that protects communication integrity between the DCS800 drive's internal control logic and the broader plant network. Whether the upstream system is a Profibus DP master, a PROFINET IO controller, a Modbus RTU gateway, or an EtherNet/IP scanner, the SDCS-PIN-H41 ensures that signal coupling, noise rejection, and galvanic isolation meet the stringent requirements of continuous industrial operation — including power generation, petrochemical processing, water treatment, and marine propulsion applications.

In a fully connected smart factory, the ABB SDCS-PIN-H41 sits at the intersection of drive-level hardware and plant-wide communication infrastructure. The data flow begins at the field device layer: current and voltage feedback signals from DC motors are conditioned through the DCS800 drive's internal measurement chain, where the SDCS-PIN-H41 provides the transformer-based isolation that prevents ground loops and common-mode noise from corrupting the analog-to-digital conversion process.

These conditioned signals are then processed by the SDCS-CON-4 control board — the DCS800's primary intelligence unit — which executes closed-loop speed and torque regulation. The SDCS-CON-4 communicates upstream via optional fieldbus adapter boards such as the RDNA-01 (DeviceNet), RPBA-01 (Profibus DP), or RETA-01 (EtherNet/IP), translating drive status, fault codes, speed references, and torque feedback into standard industrial protocol frames readable by any PLC or DCS controller on the network.

At the PLC layer, a Siemens S7-300 or Allen-Bradley ControlLogix controller receives real-time drive data via Profibus DP or EtherNet/IP, enabling coordinated multi-drive sequencing across production lines. The PLC forwards aggregated process data to a Wonderware InTouch or Ignition SCADA platform via OPC-UA or Modbus TCP, where operators monitor drive load, motor speed trends, and energy consumption on live HMI dashboards. Remote I/O modules — such as the ABB CI854 or Beckhoff EK1100 EtherCAT coupler — extend the network reach to distributed field instruments without additional cabling infrastructure.

Edge gateway devices, including the Moxa MGate MB3480 Modbus-to-EtherNet/IP gateway or the HMS Anybus X-gateway, bridge legacy serial protocols to modern Ethernet backbones, ensuring that older DCS800 installations can participate in Industry 4.0 data architectures without full drive replacement. Industrial managed switches — such as the Hirschmann MACH104 or Cisco IE-3400 — provide the Layer 2 network backbone with VLAN segmentation, redundant ring topology (MRP/RSTP), and QoS prioritization that keeps drive control traffic latency-deterministic even under heavy SCADA polling loads.

The complete data chain — from motor feedback through the SDCS-PIN-H41 isolation stage, through the SDCS-CON-4 control processor, through the fieldbus adapter, through the PLC, and up to the SCADA historian — enables full production transparency: every speed setpoint change, every fault event, and every energy consumption spike is timestamped, logged, and available for remote diagnostic review without requiring on-site intervention.

Many industrial sites operating legacy DC drive systems face a common set of data integration challenges. Protocol fragmentation is the most pervasive: older DCS800 installations may communicate via proprietary ABB DDCS fiber-optic links that are incompatible with modern Ethernet-based SCADA systems. By pairing the SDCS-PIN-H41 with the appropriate fieldbus adapter and an edge gateway, engineers can bridge this protocol gap without replacing the drive itself — preserving capital investment while achieving full network visibility.

Data island isolation is another critical pain point. When drive fault data, motor temperature readings, and energy consumption metrics exist only within the drive's local memory and are not forwarded to the plant historian, maintenance teams lose the ability to perform predictive analysis. The SDCS-PIN-H41's role in maintaining clean signal isolation ensures that the data the SDCS-CON-4 generates is accurate and trustworthy — a prerequisite for any meaningful analytics or alarm management strategy.

Remote monitoring gaps are particularly costly in unmanned substations and offshore platforms. With the DCS800 properly networked via the SDCS-PIN-H41 and associated communication boards, remote diagnostic sessions can be conducted through ABB's DriveAP software or third-party OPC-UA clients, allowing engineers to read drive parameters, acknowledge faults, and adjust speed references from a central control room or even a mobile device — eliminating unnecessary site visits and reducing mean time to repair.

System scalability is addressed through the DCS800's modular board architecture. As production capacity expands, additional drives can be added to the Profibus or PROFINET segment without redesigning the network topology. The SDCS-PIN-H41's standardized form factor and ABB's consistent board ecosystem mean that spare parts management is simplified and cross-site standardization is achievable.

Q1: Does the SDCS-PIN-H41 support direct Ethernet or Modbus TCP communication? The SDCS-PIN-H41 is a transformer/isolation board internal to the DCS800 drive hardware stack. Ethernet or Modbus TCP connectivity is achieved by pairing the DCS800 with an optional fieldbus adapter board (e.g., RETA-01 for EtherNet/IP or RMBA-01 for Modbus RTU). The SDCS-PIN-H41 ensures signal integrity at the hardware layer that underpins all upstream communication.

Q2: What is the communication latency impact of adding the SDCS-PIN-H41 to the DCS800 control stack? As a passive transformer isolation component, the SDCS-PIN-H41 introduces negligible latency — typically sub-microsecond signal propagation delay. Network-level latency is determined by the fieldbus adapter and PLC scan cycle, not by the transformer board itself. Profibus DP cycle times of 1–5 ms and PROFINET IRT cycle times below 1 ms are achievable with a properly configured DCS800 system.

Q3: Is the SDCS-PIN-H41 compatible with ABB System 800xA and third-party SCADA platforms? Yes. When the DCS800 is equipped with the appropriate fieldbus adapter, it integrates with ABB System 800xA via PROFINET or Profibus DP, and with third-party SCADA platforms (Ignition, Wonderware, Inductive Automation) via OPC-UA or Modbus TCP gateways. The SDCS-PIN-H41 supports this integration by maintaining the signal quality required for reliable drive data reporting.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the SDCS-PIN-H41? All SDCS-PIN-H41 units supplied by NANKMOS carry a 12-month warranty and are pre-shipment tested to verify electrical isolation performance and board integrity before dispatch. In-stock units are available for immediate shipment, supporting urgent maintenance and unplanned replacement scenarios across global industrial sites.
