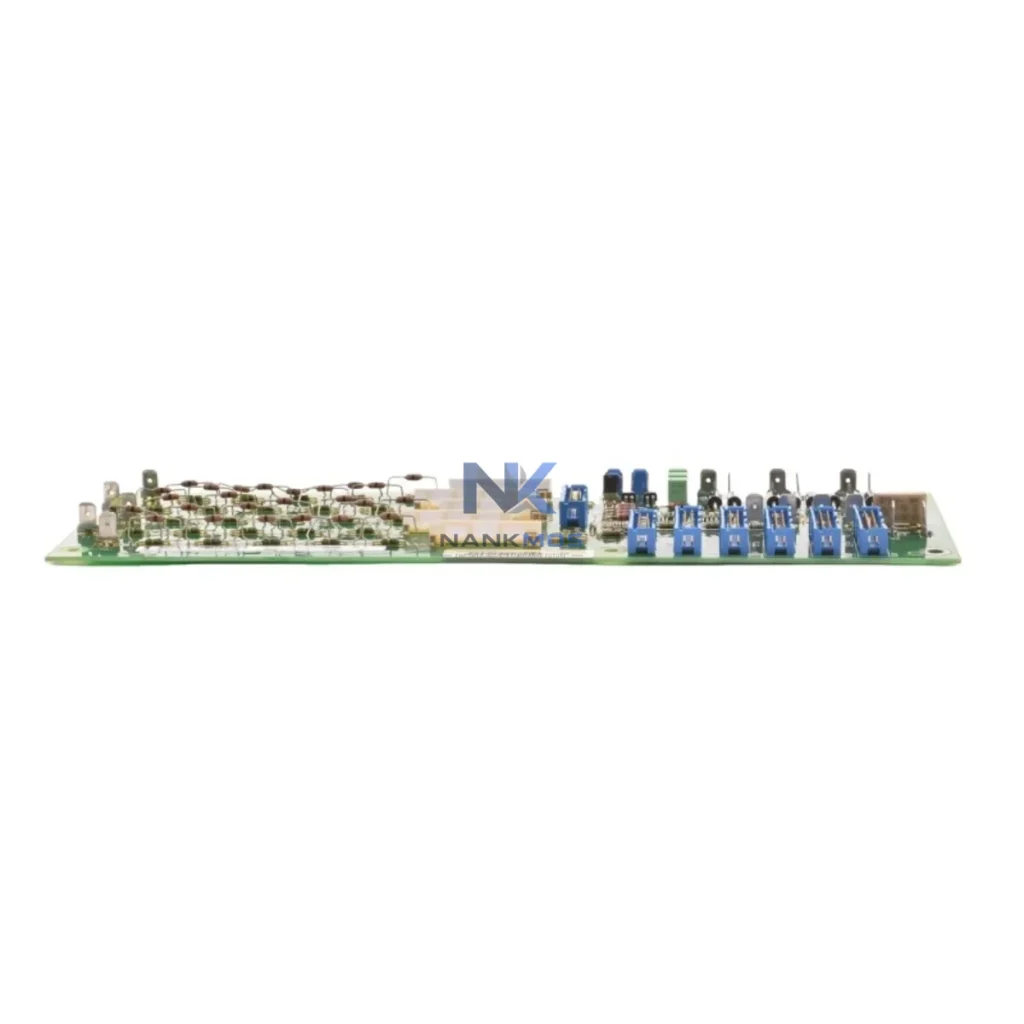

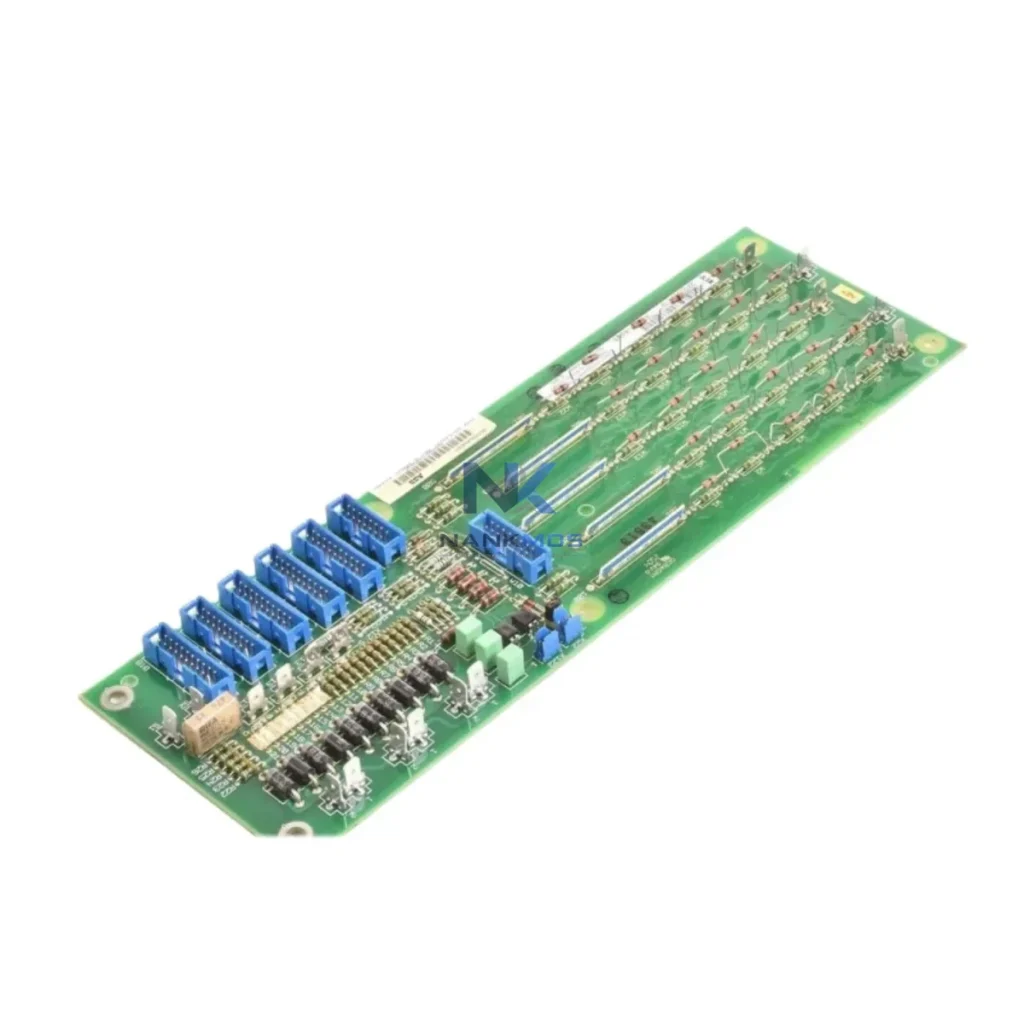

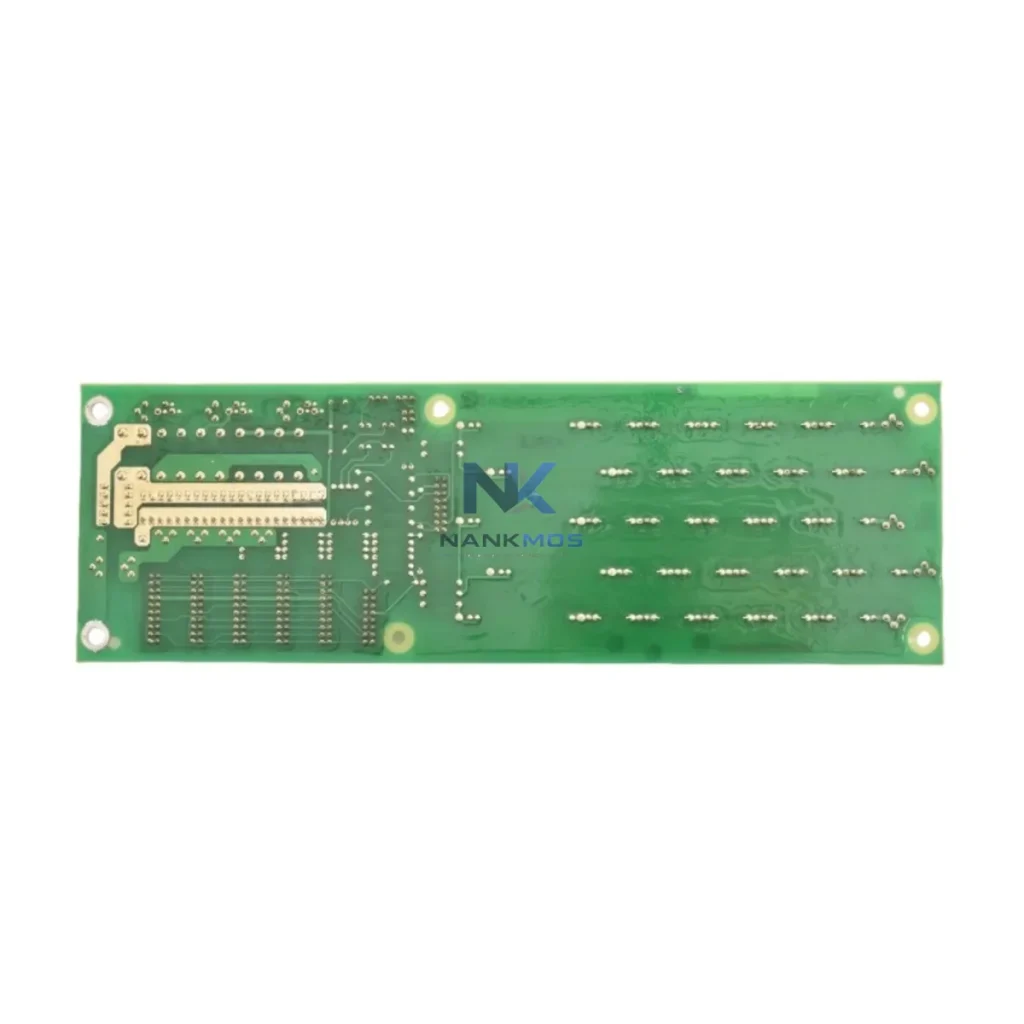

ABB SDCS-PIN-H51 3ADT320700R1501 DC Drive Power Supply Board

Product Details

SDCS-PIN-H51 3ADT320700R1501 Product Description

The ABB SDCS-PIN-H51 (part number 3ADT320700R1501) is a precision-engineered power supply interface board designed for the DCS800 series DC drive platform. Within a layered industrial control architecture, the power supply layer is the foundation upon which every other subsystem depends — from the control CPU and I/O modules to the communication gateways and HMI interfaces. The SDCS-PIN-H51 fulfills this foundational role by delivering stable, conditioned power to the drive's internal logic and signal processing circuits, ensuring that the entire DCS800 drive system operates within its rated electrical envelope under continuous industrial duty cycles.

In modern automation architectures, power integrity is not merely a hardware concern — it is a system-level design parameter. Voltage ripple, transient response, and thermal stability directly affect the reliability of fieldbus communication (PROFIBUS-DP, Modbus RTU), the accuracy of encoder feedback signals, and the determinism of the drive's closed-loop speed and torque control. The SDCS-PIN-H51 is engineered to meet ABB's internal power quality specifications for the DCS800 platform, making it a system-matched replacement that preserves the original drive's performance characteristics without requiring recalibration or parameter re-commissioning.

The SDCS-PIN-H51 does not operate in isolation — it is one node in a tightly coupled DCS800 drive architecture that spans multiple functional layers. Understanding its role requires mapping it against the full system stack:

Control Layer: The DCS800 drive's onboard control unit (SDCS-CON-4 or SDCS-CON-2B) executes the closed-loop speed and torque algorithms. The SDCS-PIN-H51 supplies the regulated voltages that keep this control unit operational. Any degradation in the power supply board directly manifests as instability in the control loop — making the SDCS-PIN-H51 a critical reliability component, not a peripheral one.

I/O and Signal Layer: The DCS800 platform supports analog and digital I/O expansion through modules such as the SDCS-IOB-3 and SDCS-IOB-21. These I/O boards share the internal power bus managed by the SDCS-PIN-H51. Stable power delivery ensures that analog reference signals (±10 V, 4–20 mA) and digital status outputs maintain their specified accuracy and switching thresholds across the full operating temperature range.

Communication Layer: Fieldbus connectivity in DCS800 systems is typically implemented via the RDCO-02 DDCS fiber optic link or RPBA-01 PROFIBUS adapter. These communication modules depend on the drive's internal power rail for their logic supply. The SDCS-PIN-H51's role in maintaining a clean internal power environment directly supports the deterministic communication timing required by PROFIBUS-DP cyclic data exchange and Modbus RTU polling cycles.

Power Layer: At the cabinet level, the DCS800 drive receives AC mains input and generates its own internal DC rails. The SDCS-PIN-H51 interfaces between the main power conversion stage and the logic/signal circuits, acting as a power conditioning and distribution board. This architecture isolates sensitive control electronics from the high-current switching transients of the power stage — a design principle shared across ABB's SDCS series boards including the SDCS-PIN-48 and SDCS-PIN-51.

HMI and Diagnostics Layer: Operators interface with the DCS800 via the CDP312R control panel or through a SCADA/DCS host connected via PROFIBUS or Modbus. Diagnostic data — drive status words, fault codes, current and speed feedback — is only reliable when the underlying control hardware is powered correctly. The SDCS-PIN-H51 ensures that the drive's self-diagnostic routines and parameter memory (stored in the SDCS-CON-4's flash) remain stable during power cycling and fault recovery sequences.

Protection and Redundancy Layer: In critical process applications — paper mills, metal rolling lines, mine hoists, and marine propulsion systems — DCS800 drives are often deployed in redundant configurations with automatic changeover. Maintaining a stock of pre-tested SDCS-PIN-H51 boards as hot spares is a standard maintenance strategy that reduces mean time to repair (MTTR) and supports the drive system's overall availability target.

The ABB DCS800 platform, and by extension the SDCS-PIN-H51 power supply board, is deployed across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, variable-speed applications:

Metal and Steel Processing: Rolling mill main drives, coiler/uncoiler drives, and tension control systems in hot and cold rolling lines rely on DCS800 drives for their precise torque response. The SDCS-PIN-H51 supports continuous-duty operation in high-ambient-temperature mill environments.

Mining and Mineral Processing: Hoist drives, conveyor drives, and crusher drives in underground and surface mining operations use DCS800 systems for their robustness and regenerative braking capability. Power supply board reliability is critical in remote mine sites where spare parts logistics are challenging.

Pulp and Paper: Section drives in paper machines require extremely tight speed synchronization across multiple DCS800 drive axes. The SDCS-PIN-H51 contributes to the inter-drive communication stability that makes this synchronization possible.

Marine Propulsion and Deck Machinery: Offshore and marine applications use DCS800 drives for anchor windlasses, mooring winches, and thruster systems. The SDCS-PIN-H51's compatibility with the DCS800's marine-rated configurations makes it suitable for these demanding environments.

Water and Wastewater Treatment: Pump and blower drives in municipal water treatment plants benefit from the DCS800's energy recovery capability. Reliable power supply boards reduce unplanned downtime in 24/7 continuous process environments.

Petrochemical and Refinery: Extruder drives, compressor drives, and agitator drives in hazardous-area process plants use DCS800 systems with appropriate enclosure ratings. The SDCS-PIN-H51 supports the drive's internal diagnostics that are essential for safe operation in these environments.

Q1: Is the SDCS-PIN-H51 (3ADT320700R1501) a direct drop-in replacement for all DCS800 drive variants? The SDCS-PIN-H51 is designed for specific DCS800 current ratings and hardware revisions. Before installation, verify the drive's nameplate current rating and the existing board's part number against ABB's DCS800 hardware manual. In most DCS800-H series configurations, the SDCS-PIN-H51 is a direct replacement that requires no parameter changes. Our technical team can assist with compatibility verification based on your drive's serial number and hardware revision code.

Q2: How does replacing the SDCS-PIN-H51 affect the drive's PROFIBUS or Modbus communication configuration? The SDCS-PIN-H51 is a power supply interface board and does not store communication parameters — these are held in the SDCS-CON-4 control board's non-volatile memory. Replacing the SDCS-PIN-H51 does not affect the drive's fieldbus node address, baud rate, or I/O mapping. After board replacement, perform a standard power-up sequence and verify drive status via the CDP312R panel or your SCADA host before returning the drive to service.

Q3: What warranty and supply assurance does NANKMOS provide for the SDCS-PIN-H51? All SDCS-PIN-H51 boards supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify power output stability and signal integrity before dispatch. We maintain in-stock inventory of SDCS-PIN-H51 boards to support urgent maintenance requirements, with global shipping available. For volume procurement, blanket order arrangements and consignment stock programs are available to support your planned maintenance schedules.
