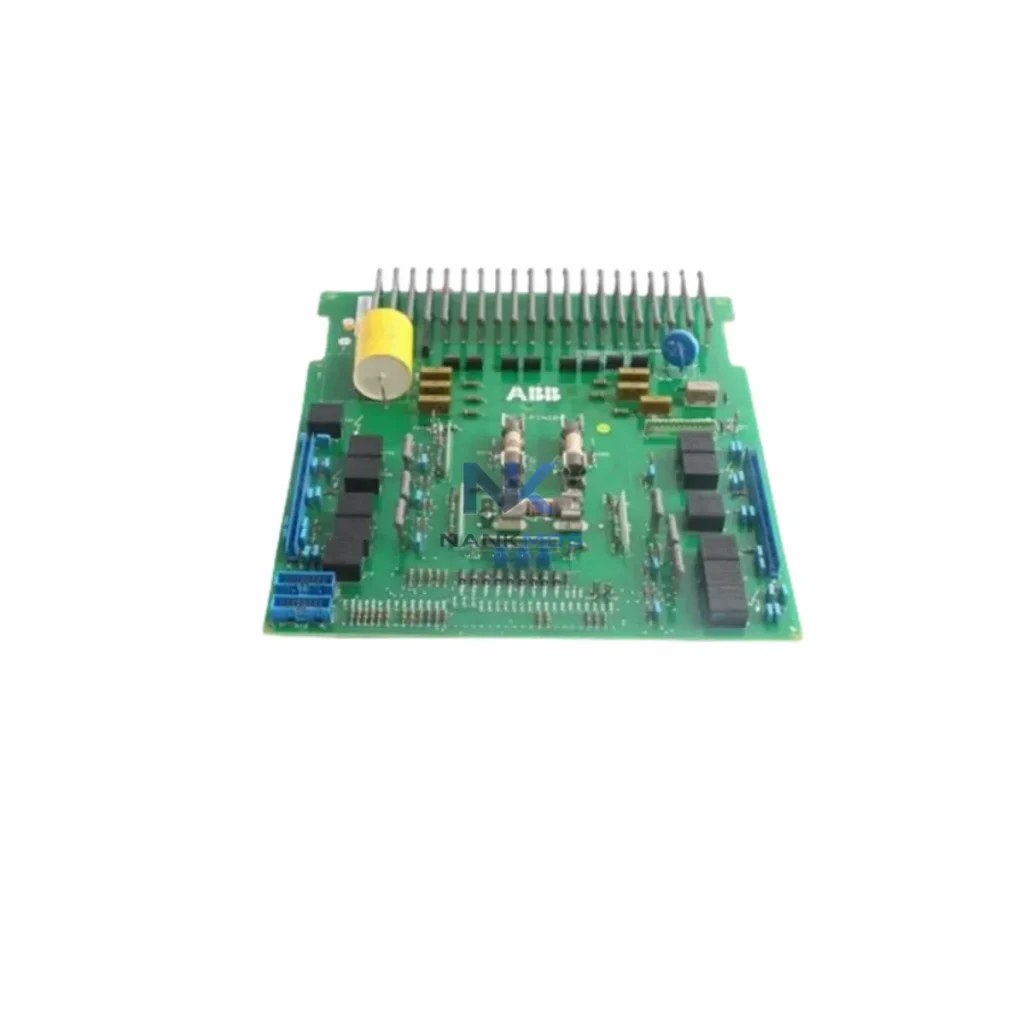

ABB SNAU4132 Network Interface Module

Product Details

SNAU4132 Product Description

The ABB SNAU4132 is a dedicated network interface module engineered for ABB ACS series variable frequency drives, enabling seamless protocol conversion and real-time data exchange across the full automation stack. In modern smart factory environments, the ability to bridge field-level drive signals with upper-level control and monitoring systems is no longer optional — it is the backbone of production transparency, predictive maintenance, and operational efficiency. The SNAU4132 delivers exactly this capability, serving as a critical communication node between the drive layer and the broader industrial network architecture.

Designed for demanding industrial environments, the SNAU4132 supports PROFIBUS DP and compatible Industrial Ethernet protocols, allowing ACS drives to communicate directly with PLCs, SCADA platforms, DCS systems, and HMI terminals without the need for additional signal converters or proprietary middleware. This native protocol compatibility dramatically reduces integration complexity and commissioning time on new and retrofit automation projects alike.

The SNAU4132 sits at the intersection of field device communication and plant-wide data visibility. In a typical smart factory deployment, the data flow begins at the motor and drive level: an ABB ACS580 or ACS880 variable frequency drive controls motor speed and torque based on process demands. The SNAU4132 module, installed directly into the drive's option slot, translates drive status, speed reference, current feedback, fault codes, and energy consumption data into PROFIBUS DP frames — ready for consumption by the automation controller layer.

At the PLC level, a Siemens S7-300 or S7-1500 PROFIBUS master polls the SNAU4132 cyclically, receiving real-time drive parameters and issuing control commands — start, stop, speed setpoint, direction — without any analog wiring. This digital command path eliminates signal degradation and simplifies cabinet wiring significantly. For sites running Industrial Ethernet backbones, the SNAU4132 enables the same data exchange over EtherNet/IP-compatible networks, connecting directly to managed industrial Ethernet switches such as those in the ABB or Hirschmann product families.

Moving up the architecture, SCADA platforms — including Wonderware InTouch, Ignition by Inductive Automation, or ABB System 800xA — receive structured drive data via OPC-UA or Modbus TCP gateways. An edge gateway or industrial IoT concentrator aggregates data from multiple SNAU4132-equipped drives, normalizes the data format, and pushes it to cloud dashboards or MES platforms for production analytics and energy monitoring. This architecture supports real-time KPI visualization, shift-level energy reporting, and predictive maintenance alerts based on drive load trends.

Remote I/O modules — such as ABB S900 remote I/O or compatible Wago 750-series fieldbus couplers — extend the network reach to distributed process points, feeding additional sensor data (temperature, pressure, flow) into the same PROFIBUS segment. HMI terminals, including ABB CP600 panels or third-party Weintek and Siemens TP series displays, visualize drive status, alarm history, and process trends directly from the PROFIBUS network, giving operators immediate situational awareness at the machine level.

For power quality and supply integrity, ABB industrial power supplies and UPS modules ensure the PROFIBUS segment and drive control circuits remain energized during grid fluctuations — a critical requirement for continuous process industries such as water treatment, chemical processing, and food and beverage manufacturing. The complete data chain — from motor shaft to SCADA dashboard — is made possible by the SNAU4132's reliable, low-latency protocol conversion at the drive interface layer.

Many industrial sites operate with a fragmented communication landscape: legacy drives using proprietary serial protocols, newer PLCs expecting PROFIBUS or Ethernet data, and SCADA systems unable to reach field devices without manual data entry or OPC bridging workarounds. The ABB SNAU4132 directly addresses these integration gaps.

Protocol unification: By converting drive-native communication into standard PROFIBUS DP frames, the SNAU4132 eliminates the need for custom protocol converters or serial-to-Ethernet gateways between the drive and the PLC. A single module standardizes the communication interface across all ACS drives on a PROFIBUS segment, reducing configuration overhead and spare parts complexity.

Data island elimination: Drive data — speed, current, fault status, energy consumption — that previously existed only on the drive's local keypad or proprietary software is now available network-wide. SCADA operators, maintenance engineers, and production managers all access the same real-time dataset, enabling coordinated decision-making and faster fault response.

Remote monitoring and diagnostics: With the SNAU4132 in place, maintenance teams can remotely read drive fault logs, reset alarms, adjust speed references, and monitor thermal load — all from the SCADA workstation or remote desktop session. This capability is particularly valuable for unmanned substations, remote pump stations, and multi-site manufacturing operations where on-site intervention is costly and time-consuming.

Production line transparency: Real-time drive data feeds production dashboards with OEE metrics, energy consumption per production batch, and motor health indicators. Alarm tracking becomes systematic: every drive fault is timestamped, logged, and correlated with production events, enabling root cause analysis and continuous improvement cycles.

System scalability: The PROFIBUS DP architecture supported by the SNAU4132 accommodates up to 126 nodes per segment, making it straightforward to expand the drive network as production capacity grows — without redesigning the communication infrastructure.

Q1: What communication protocols does the ABB SNAU4132 support, and is it compatible with third-party PROFIBUS masters?The SNAU4132 supports PROFIBUS DP as its primary fieldbus protocol, conforming to IEC 61158 standards. It is compatible with any PROFIBUS DP master controller, including Siemens S7 series, Schneider Modicon, and Rockwell ControlLogix systems equipped with PROFIBUS scanner cards. GSD files are available for seamless integration into third-party engineering environments.

Q2: How does the SNAU4132 perform in high-cycle SCADA polling environments — is there a risk of communication latency affecting drive control?The SNAU4132 is designed for deterministic cyclic data exchange, with typical PROFIBUS DP cycle times in the 1–10 ms range depending on network configuration and node count. For standard SCADA polling intervals (100 ms to 1 s), the module introduces no perceptible latency. For time-critical speed control loops, it is recommended to use the drive's native control word via PROFIBUS process data rather than acyclic parameter reads.

Q3: Can the SNAU4132 be used for remote diagnostics and parameter adjustment without interrupting drive operation?Yes. The SNAU4132 supports acyclic PROFIBUS DP communication (DPV1), which allows parameter read and write operations to be performed independently of the cyclic process data channel. This means maintenance engineers can remotely access drive parameters, read fault history, and adjust configuration values while the drive continues to operate — without any production interruption.

Q4: What warranty and pre-shipment testing does the SNAU4132 come with?Every ABB SNAU4132 unit supplied through NANKMOS is covered by a 12-Month Warranty and undergoes functional testing prior to shipment. Stock is available for immediate dispatch with global shipping support. For volume orders or project-specific lead time requirements, contact our team directly.
