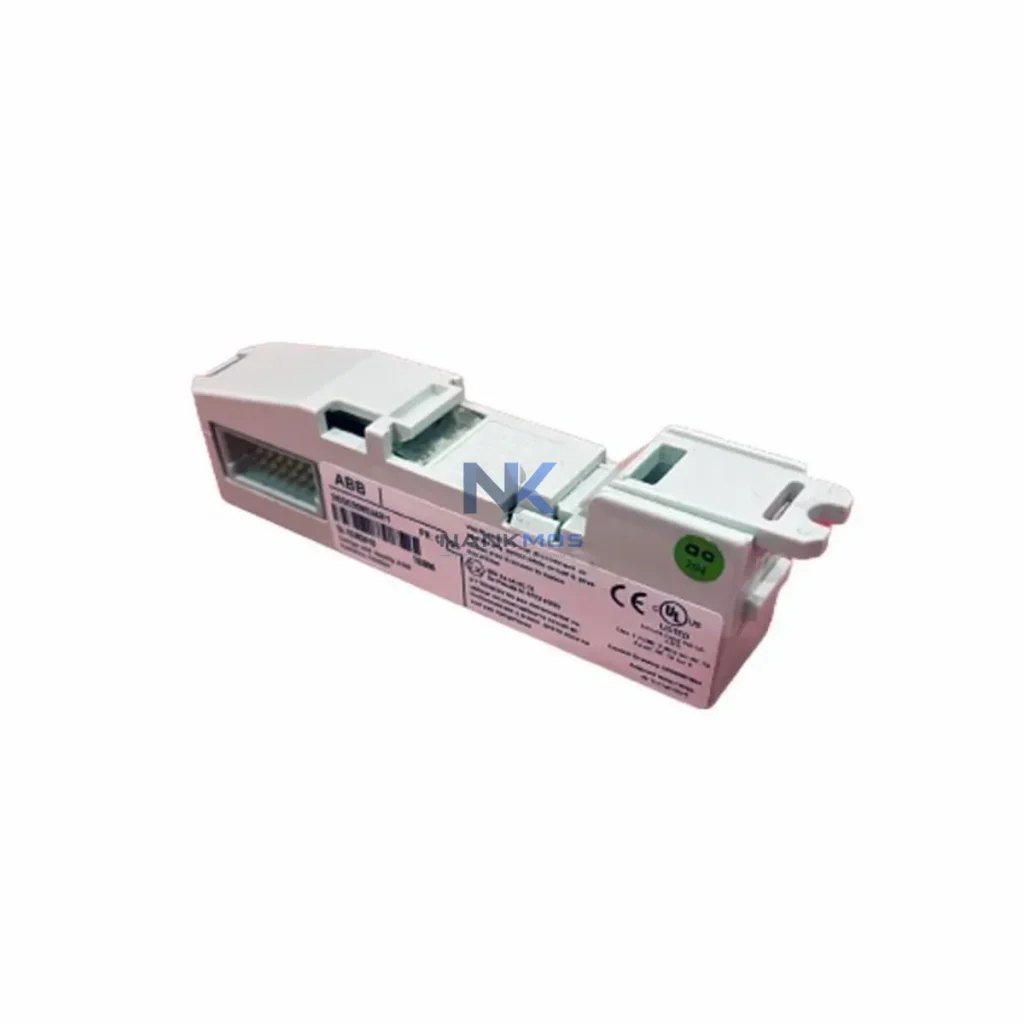

ABB TB806 Bus Inlet Module

Product Details

TB806 Product Description

The ABB TB806 is a PROFIBUS DP Bus Inlet Module engineered for seamless integration within the ABB System 800xA Distributed Control System architecture. Designed to serve as the physical and logical entry point for PROFIBUS DP field communication, the TB806 enables reliable, deterministic data exchange between field-level instrumentation and the upper-layer control and supervisory infrastructure. In smart factory environments where data continuity, protocol consistency, and network uptime are non-negotiable, the TB806 delivers the connectivity backbone that keeps automation assets online and visible.

From signal acquisition at the sensor level through to SCADA visualization and enterprise reporting, the TB806 occupies a critical node in the industrial data chain. Its role as a bus inlet ensures that PROFIBUS DP segments are correctly terminated, powered, and interfaced with the 800xA controller modules — eliminating signal degradation, bus collisions, and communication timeouts that commonly disrupt production continuity.

In a fully integrated smart factory, the ABB TB806 functions as the PROFIBUS DP segment anchor — the point where field-level signals enter the structured communication backbone of the 800xA DCS. Consider a typical process plant topology: temperature transmitters, pressure sensors, and flow meters at the field level generate continuous analog and digital signals. These devices connect via PROFIBUS DP to the TB806 bus inlet, which interfaces directly with ABB's CI854 PROFIBUS DP Communication Interface module. The CI854 manages the master-slave polling cycle, ensuring that each field device — whether a Yokogawa EJA series pressure transmitter or an Endress+Hauser Promag flowmeter — delivers its process value to the 800xA controller on a deterministic schedule.

Upstream from the TB806, the 800xA controller modules — such as the PM866 Process Controller — aggregate field data and execute control logic. Outputs are dispatched back through the PROFIBUS DP segment to actuators, control valves, and variable frequency drives. In motor control applications, the TB806-anchored PROFIBUS segment may carry command and feedback data for ABB ACS880 series drives, enabling closed-loop speed and torque control with full diagnostic visibility from the SCADA layer.

For remote I/O architectures, the TB806 supports integration with ABB's S800 I/O modules — including AI810, AO810, DI810, and DO810 — mounted in field cabinets and communicating over PROFIBUS DP back to the central 800xA system. This distributed I/O topology reduces cabling costs, improves signal integrity, and allows plant engineers to expand I/O capacity without redesigning the control network. The TB806 ensures that each S800 I/O node is correctly recognized by the 800xA engineering environment, enabling seamless tag mapping and alarm configuration.

At the HMI and SCADA layer, operators interact with live process data sourced through the TB806's PROFIBUS segment via ABB's 800xA Operations workplace. Trend displays, alarm lists, and faceplates reflect real-time values from field devices, with update cycles governed by the PROFIBUS DP polling rate. For plants running parallel SCADA platforms — such as Wonderware System Platform or Ignition by Inductive Automation — OPC DA/UA servers bridge the 800xA data model to third-party visualization tools, maintaining the TB806's field data as a live source for enterprise dashboards.

Edge connectivity is increasingly relevant in modern brownfield upgrades. When plants deploy edge gateways — such as the ABB Ability Edge or third-party devices like the Moxa MGate MB3000 series — the PROFIBUS DP data flowing through the TB806 can be captured, buffered, and forwarded to cloud analytics platforms. This enables predictive maintenance algorithms to monitor device health parameters — such as PROFIBUS DP diagnostic counters, bus error rates, and device response times — without modifying the existing control system architecture.

Industrial Ethernet switches, such as the ABB AF series or Hirschmann MACH series managed switches, form the backbone of the plant LAN that interconnects 800xA controllers, engineering workstations, and historian servers. The TB806's PROFIBUS DP segment feeds into this Ethernet backbone via the CI854 gateway, ensuring that field-level data is available across the plant network with appropriate redundancy and VLAN segmentation for cybersecurity compliance.

Protocol Fragmentation: Many industrial sites operate a mix of legacy PROFIBUS DP devices alongside newer PROFINET or EtherNet/IP assets. The TB806, as part of the 800xA PROFIBUS infrastructure, provides a stable DP segment that can coexist with PROFINET controllers through ABB's multi-protocol engineering environment — eliminating the need to replace functional field devices simply to achieve network uniformity.

Data Islands and Visibility Gaps: Without a properly configured bus inlet, PROFIBUS DP segments can suffer from termination errors, address conflicts, and intermittent device dropouts that create invisible data gaps in the historian and SCADA. The TB806 ensures correct bus termination and signal integrity, making every connected device consistently visible to the 800xA system and eliminating the silent data loss that undermines production KPI reporting.

Remote Monitoring and Diagnostics: The 800xA system's diagnostic capabilities — accessible through the TB806's PROFIBUS segment — allow maintenance engineers to remotely interrogate device status, read PROFIBUS DP diagnostic bytes, and identify failing field instruments before they cause process upsets. This remote diagnostic capability reduces unplanned downtime and supports condition-based maintenance strategies without requiring physical access to field cabinets.

Production Line Transparency: By anchoring a reliable PROFIBUS DP segment, the TB806 enables complete signal traceability from field sensor to SCADA display. Every process value, alarm event, and device status change is timestamped and logged in the 800xA historian, providing the data foundation for OEE analysis, batch reporting, and regulatory compliance documentation.

System Scalability: As production capacity expands, additional PROFIBUS DP devices can be added to the TB806 segment without disrupting existing network traffic — provided the segment's device count and cable length remain within PROFIBUS DP specification. This scalability makes the TB806 a long-term investment in the plant's communication infrastructure, supporting phased automation upgrades without requiring a full network redesign.

Q1: What is the maximum PROFIBUS DP transmission speed supported by the ABB TB806? The TB806 supports PROFIBUS DP communication at speeds up to 12 Mbit/s, consistent with the IEC 61158 standard. The actual operating speed is determined by the CI854 master configuration and the cable length of the DP segment — longer segments require lower baud rates to maintain signal integrity.

Q2: Is the ABB TB806 compatible with third-party PROFIBUS DP masters and field devices? Yes. The TB806 adheres to the PROFIBUS DP standard (IEC 61158 / EN 50170), making it compatible with any certified PROFIBUS DP master or slave device. It is optimized for use within the ABB System 800xA environment but can interface with PROFIBUS DP networks managed by Siemens S7 controllers, Schneider Electric Modicon platforms, or other certified DP masters.

Q3: How does NANKMOS verify the ABB TB806 before shipment? Every ABB TB806 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify communication interface integrity, connector condition, and module identification. Units are inspected against original ABB specifications and shipped with a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions.

Q4: Can the ABB TB806 support remote diagnostics and predictive maintenance integration? Yes. When integrated within the ABB System 800xA architecture, the TB806's PROFIBUS DP segment exposes device diagnostic data — including DP status bytes, error counters, and device health flags — to the 800xA Asset Optimization and condition monitoring tools. This data can be forwarded to edge gateways or cloud platforms for predictive maintenance analytics, enabling maintenance teams to act on early fault indicators before equipment failure occurs.
