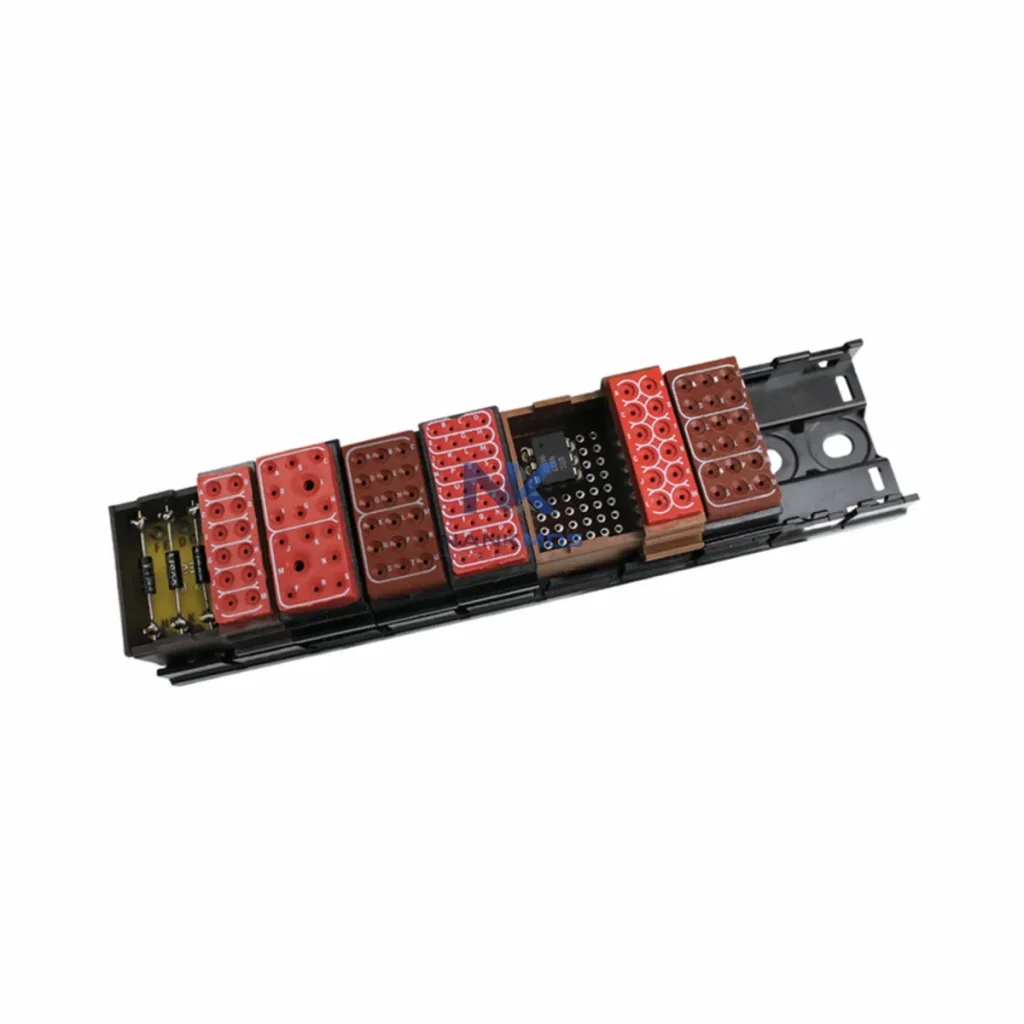

ABB TRL810K2 Terminal Module

Product Details

TRL810K2 Product Description

The ABB TRL810K2 terminal module is engineered as a precision field-wiring interface within the AC 800M distributed control system architecture. Rather than functioning as a standalone component, the TRL810K2 is designed to operate in close coordination with the full AC 800M ecosystem, ensuring signal integrity, modular scalability, and long-term maintainability across complex industrial installations.

At the control layer, the AC 800M CPU modules — such as the PM861AK01 and PM864A — serve as the processing core of the architecture. These controllers communicate with the I/O subsystem via the internal ModuleBus, where the TRL810K2 provides the physical termination point for field signals entering the S800 I/O modules. This clean separation between the controller logic layer and the field wiring layer is a fundamental design principle of the AC 800M platform, enabling engineers to replace or reconfigure I/O modules without disturbing field cabling — a critical advantage during maintenance windows in continuous-process environments.

Within the I/O layer, the TRL810K2 pairs directly with ABB S800 I/O modules including the AI810 (8-channel analog input), AO810V2 (8-channel analog output), DI810 (24 VDC digital input), and DO810 (24 VDC digital output). Each of these modules plugs into the terminal module, which carries the field wiring connections. This plug-and-play architecture dramatically reduces commissioning time and eliminates the need to re-terminate field cables during module swap-outs, supporting both planned maintenance and emergency replacement scenarios.

At the communication layer, the AC 800M platform supports PROFIBUS DP via the CI854AK01 communication interface module, as well as PROFINET and Modbus TCP through dedicated interface cards. The TRL810K2 supports this communication architecture by ensuring that field-level signal quality is maintained at the termination point — clean, noise-free signal entry is essential for reliable data transmission across fieldbus networks. In installations where HART-enabled field instruments are connected, the terminal module's wiring integrity directly affects HART communication quality over the 4–20 mA signal loop.

The power layer of the AC 800M system relies on dedicated power supply units such as the SD821 and SD822 to deliver stable 24 VDC to the I/O modules and field devices. The TRL810K2 operates within this power distribution architecture, and its correct installation ensures that field wiring does not introduce ground loops or common-mode noise that could compromise power supply stability or signal accuracy across the I/O rack.

For HMI and SCADA integration, the AC 800M platform connects to ABB's 800xA System (Extended Automation System) via OPC-UA or proprietary ABB communication protocols. The TRL810K2 contributes to this integration by ensuring that the field signal data presented to the 800xA historian and operator workstations is accurate and consistent. In high-availability architectures, redundant AC 800M controllers and I/O configurations depend on reliable termination modules to maintain signal continuity during controller switchover events.

In redundant architecture designs, the TRL810K2 is often deployed alongside redundant I/O modules and redundant communication paths. The TB820V2 ModuleBus modem and CI840A PROFIBUS interface are typical companions in redundant fieldbus topologies. The terminal module's passive, non-powered design means it introduces no single point of failure at the termination layer, supporting the overall system's high-availability objectives.

From a maintenance and diagnostics perspective, the TRL810K2's design allows field engineers to perform loop checks, signal verification, and wiring continuity tests directly at the terminal block without removing the I/O module. This capability is particularly valuable during commissioning of large-scale systems with hundreds of I/O points, where systematic loop checking at the terminal module level significantly accelerates the pre-startup acceptance testing process.

Process Manufacturing & Chemical Plants: In continuous-process facilities such as petrochemical refineries and specialty chemical plants, the TRL810K2 supports the AC 800M's role as the primary DCS controller. Field instruments including pressure transmitters, temperature sensors, and control valve positioners are terminated at TRL810K2 modules distributed across multiple marshalling cabinets. The modular termination architecture allows process engineers to expand I/O capacity incrementally as plant sections are commissioned, without redesigning the control cabinet layout.

Power Generation & Utilities: In power plant balance-of-plant (BOP) control systems and substation automation applications, the AC 800M with TRL810K2 termination modules provides the signal interface for protection relay inputs, generator excitation feedback, and auxiliary system monitoring. The terminal module's robust screw-terminal design withstands the vibration and thermal cycling common in turbine hall environments, ensuring long-term connection reliability without periodic re-torquing.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent treatment plants deploy the AC 800M platform for process control of filtration, dosing, and aeration systems. The TRL810K2 provides the field wiring interface for level sensors, flow meters, and pump control signals. Its compatibility with the full S800 I/O range allows water treatment engineers to mix analog and digital I/O within a single rack, optimizing cabinet space in compact pump station installations.

Mining & Minerals Processing: In mineral processing plants and underground mining operations, the AC 800M DCS controls conveyor systems, crushers, flotation cells, and thickener drives. The TRL810K2 terminal module provides reliable signal termination in environments subject to dust, vibration, and electrical noise from large motor drives. Its passive design ensures that field signal integrity is maintained even in electrically noisy environments adjacent to variable frequency drives (VFDs) and soft starters.

Marine & Offshore: Offshore platform automation and marine vessel control systems increasingly adopt the AC 800M platform for its proven reliability in harsh environments. The TRL810K2 supports these applications by providing a stable, vibration-resistant field wiring interface that meets the demanding installation requirements of marine classification societies. Its compact form factor is well-suited to the space-constrained control rooms typical of FPSO vessels and offshore drilling platforms.

Q1: Is the TRL810K2 compatible with all S800 I/O modules in the AC 800M system, and does it support hot-swap replacement? The TRL810K2 is designed as a universal termination base for the ABB S800 I/O module family within the AC 800M architecture. It is compatible with standard S800 analog and digital I/O modules including the AI810, AO810V2, DI810, and DO810 series. The terminal module remains in place with field wiring intact when the I/O module is removed, enabling hot-swap replacement of the I/O module without interrupting field wiring connections. This capability is essential for maintaining process continuity in applications where loop shutdown is not permissible. Engineers should verify the specific I/O module compatibility list in the ABB S800 I/O System Product Guide before finalizing the bill of materials for a new installation.

Q2: How does the TRL810K2 integrate into a redundant AC 800M architecture, and what are the key installation considerations? In redundant AC 800M configurations, the TRL810K2 is typically used with redundant I/O modules where each field signal is terminated at a single terminal module but connected to two I/O modules operating in active-standby mode. The terminal module's passive design ensures it does not introduce additional failure modes into the redundancy architecture. Key installation considerations include correct grounding of the terminal module's shield bar to prevent common-mode noise injection, proper cable segregation between analog and digital signal cables at the terminal block, and verification of the ModuleBus address configuration on the associated I/O module. For high-availability installations, NANKMOS recommends maintaining a spare TRL810K2 on-site as part of the critical spares inventory, supported by our 12-Month Warranty and in-stock availability commitment.

Q3: What is the long-term supply and warranty support position for the TRL810K2, and how does NANKMOS ensure product authenticity? NANKMOS maintains in-stock inventory of the TRL810K2 to support both new project builds and ongoing maintenance requirements for installed AC 800M systems. All units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure, with pre-shipment functional testing performed on each unit. Product authenticity is ensured through our established supply chain sourcing protocols. For engineering teams managing long-lifecycle DCS installations — where the AC 800M platform may remain in service for 15–20 years — NANKMOS provides a reliable source for both current-production and legacy-compatible components, reducing the risk of extended downtime due to spare parts unavailability. Contact our technical team at [email protected] or +86 18359268345 for availability confirmation and lead time quotation.
