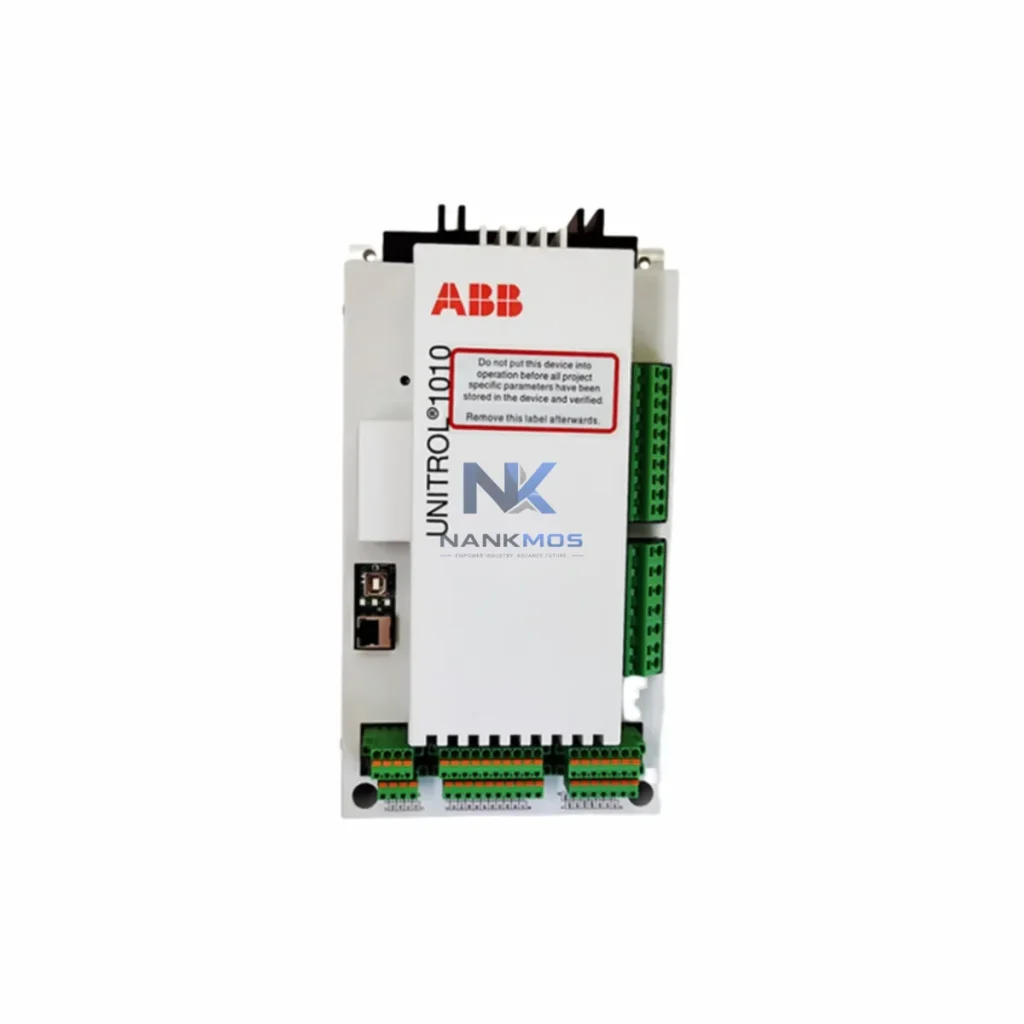

ABB UNITROL1010 3BHE035301R0001 UNS0121 A-Z,V1

Product Details

UNITROL1010 3BHE035301R0001 UNS0121 A-Z,V1 Product Description

The ABB 3BHE035301R0001 (UNS0121A-Z, V1) is a precision-engineered excitation control module designed for seamless integration within the ABB Unitrol 1010 automatic voltage regulator (AVR) platform. As a core functional component of generator excitation architecture, this module governs reactive power output, terminal voltage stability, and field current regulation across synchronous generators deployed in power generation, industrial drives, and utility-scale energy systems. Its role within the control hierarchy extends beyond standalone voltage regulation — it serves as the signal-processing and command-execution backbone of a layered excitation control system, coordinating with upstream supervisory controllers, downstream power electronics, and parallel protection relays to maintain grid-compliant generator performance under dynamic load conditions.

Engineered to ABB's Unitrol 1010 platform specifications, the 3BHE035301R0001 module delivers deterministic control response, high-resolution field current feedback, and robust fault-handling logic. It supports both manual and automatic excitation modes, enabling commissioning engineers to validate generator behavior across the full operating envelope before handover. The module's architecture is optimized for long-term reliability in continuous-duty environments including thermal power plants, hydroelectric stations, combined heat and power (CHP) facilities, marine propulsion systems, and large-scale industrial generators.

The 3BHE035301R0001 excitation module does not operate in isolation. Within a complete Unitrol 1010 excitation system, it interfaces directly with the UNS0110A-Z power interface module, which conditions the AC measurement inputs from the generator's current transformers (CTs) and voltage transformers (VTs) before passing calibrated signals to the control module for processing. The UNS0115A-Z field flashing module provides initial field energization during generator startup sequences, ensuring the excitation system reaches operational voltage before the AVR assumes closed-loop control.

At the supervisory level, the Unitrol 1010 system communicates with plant-level DCS or SCADA platforms via the UNS0881A-Z PROFIBUS DP communication module or equivalent MODBUS RTU gateway, enabling remote setpoint adjustment, alarm acknowledgment, and real-time excitation telemetry. In multi-generator installations, the UNS0116A-Z synchronization and parallel operation module coordinates reactive load sharing between generators, preventing circulating currents and ensuring stable parallel operation on the busbar.

Protection coordination is handled by the ABB REG216 or REG630 generator protection relay, which receives field current and terminal voltage data from the Unitrol 1010 system and issues trip commands to the generator circuit breaker in the event of over-excitation, under-excitation, or loss-of-field conditions. The ABB ACS880 or ACS580 drive series may be deployed on auxiliary motor loads within the same power plant control cabinet, sharing the same PROFIBUS or MODBUS communication backbone and coordinated through the plant's ABB Ability™ or Symphony Plus DCS.

Power supply integrity for the excitation control rack is maintained by the ABB CP-E or CP-S series 24VDC SMPS modules, which provide regulated auxiliary power to the Unitrol 1010 control electronics with built-in redundancy options. Terminal connections between the excitation panel and the generator field winding are managed through ABB ENTRELEC or Phoenix Contact PTFIX terminal blocks, ensuring secure, vibration-resistant field wiring in high-vibration generator hall environments. For installations requiring signal isolation between the excitation system and the plant DCS, ABB AI523 or equivalent analog signal isolator modules are inserted in the measurement loop to eliminate ground loops and protect sensitive control electronics.

HMI visualization of excitation system status — including field current, terminal voltage, reactive power output, and AVR mode — is typically provided through the ABB CP600 or CP635 operator panel mounted on the generator control panel door, connected via Ethernet or serial link to the Unitrol 1010 communication module. This layered architecture — from field winding through power interface, control module, communication gateway, protection relay, DCS, and HMI — represents the complete contextual integration environment in which the 3BHE035301R0001 delivers its designed control performance.

The ABB 3BHE035301R0001 excitation module is deployed across a broad range of power generation and industrial applications where precise terminal voltage control and reactive power management are operationally critical:

Thermal Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the Unitrol 1010 system with the 3BHE035301R0001 module maintains generator terminal voltage within ±0.5% of setpoint across load transients, supporting grid code compliance and reactive power dispatch requirements from the transmission system operator (TSO).

Hydroelectric Stations: Run-of-river and reservoir hydro plants deploy the Unitrol 1010 AVR for its fast response to load rejection events. The 3BHE035301R0001 module's high-bandwidth field current control prevents over-voltage during sudden load disconnection, protecting generator insulation and connected transformer windings.

Industrial Cogeneration (CHP): In paper mills, chemical plants, and refinery cogeneration units, the excitation module enables power factor control mode, allowing the generator to operate at a specified power factor setpoint to minimize reactive power import charges from the utility grid.

Marine Propulsion and Offshore Platforms: Shipboard generators and offshore platform power systems require excitation systems rated for high-vibration, high-humidity environments. The Unitrol 1010 platform's robust construction and the 3BHE035301R0001 module's sealed electronics make it suitable for marine classification society-approved installations.

Mining and Metallurgical Plants: Large synchronous motors driving ball mills, crushers, and compressors in mining operations use excitation systems architecturally similar to the Unitrol 1010 platform. The 3BHE035301R0001 module's field current regulation capability supports reactive power compensation in weak grid environments typical of remote mining sites.

Water and Wastewater Treatment: Pumping stations with standby diesel generators rely on AVR systems to ensure rapid voltage build-up during emergency start sequences. The Unitrol 1010 with 3BHE035301R0001 provides deterministic startup behavior and stable voltage regulation under varying pump load profiles.

Q1: Is the ABB 3BHE035301R0001 compatible with all Unitrol 1010 system configurations, and what companion modules are required for a complete excitation system? The 3BHE035301R0001 (UNS0121A-Z V1) is the core control module of the Unitrol 1010 AVR platform and must be used in conjunction with the UNS0110A-Z power interface module for CT/VT signal conditioning and the UNS0115A-Z field flashing module for startup excitation. Communication with plant DCS requires the UNS0881A-Z PROFIBUS DP module or equivalent MODBUS gateway. For parallel generator operation, the UNS0116A-Z synchronization module is required. All modules must be of compatible firmware revisions — V1 designation on the 3BHE035301R0001 should be matched against the Unitrol 1010 system firmware compatibility matrix available from ABB's Power Generation service documentation.

Q2: What are the installation and commissioning requirements for the 3BHE035301R0001 in a brownfield generator upgrade project? Brownfield installation requires verification of the existing generator's CT/VT ratios, field winding resistance, and ceiling voltage capability before configuring the Unitrol 1010 system parameters. The 3BHE035301R0001 module's AVR gain settings, stabilizer parameters, and limiter setpoints must be tuned to the specific generator's open-circuit and short-circuit characteristics using ABB's Unitrol 1010 commissioning software. Pre-commissioning checks include insulation resistance testing of field wiring, verification of auxiliary power supply voltage (typically 24VDC from the CP-E SMPS), and functional testing of all analog measurement inputs. A step-response test at reduced excitation level is recommended before full-load commissioning to validate AVR stability margins.

Q3: What warranty and long-term supply assurance does NANKMOS provide for the ABB 3BHE035301R0001? NANKMOS provides a 12-Month Warranty on the ABB 3BHE035301R0001 from the verified shipment date, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm module integrity before dispatch. For long-term maintenance planning, NANKMOS maintains inventory of Unitrol 1010 platform modules including companion UNS-series components, supporting multi-year spare parts programs for power plant operators. Global logistics support is available for urgent replacement requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
