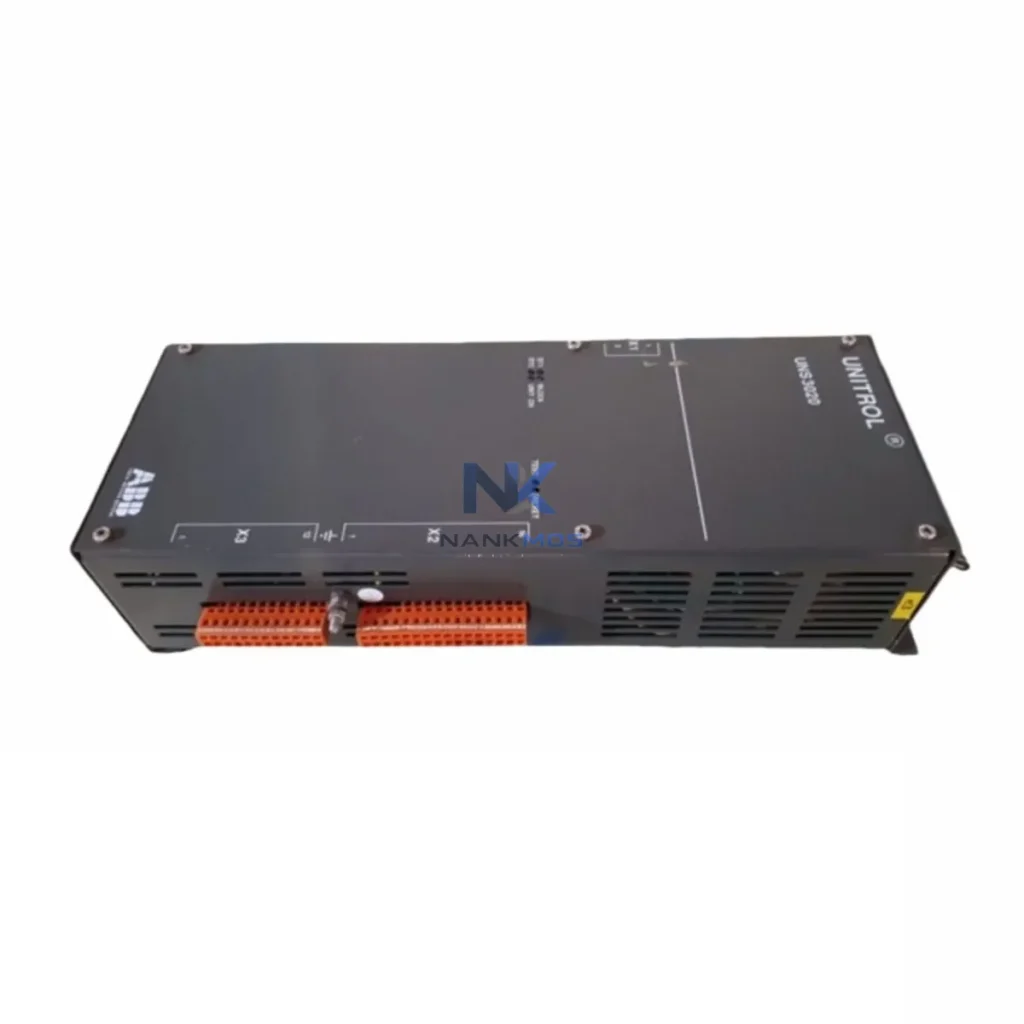

UNS3020A-Z HIEE205010R0001 Product Description

The ABB UNS3020A-Z (part number HIEE205010R0001) is a precision automatic voltage regulator (AVR) module engineered for deployment within ABB's Unitrol excitation control platform. Designed to deliver stable, high-accuracy terminal voltage regulation for synchronous generators, this module occupies a critical position in the generator excitation control layer — bridging the gap between the supervisory control system and the physical excitation hardware. Its system-matched design ensures seamless contextual integration within Unitrol 1000, Unitrol 5000, and Unitrol 6000 series architectures, making it a preferred choice for power generation, industrial drive systems, and utility-grade installations worldwide.

At NANKMOS, every UNS3020A-Z HIEE205010R0001 unit is subject to pre-shipment functional testing, covering voltage reference tracking, PID response verification, and communication interface integrity. All units are backed by a 12-Month Warranty and supported by a global inventory network capable of fulfilling urgent engineering and MRO requirements.

The UNS3020A-Z HIEE205010R0001 does not operate in isolation — it functions as the voltage regulation nucleus within a layered excitation and generator control architecture. Understanding its contextual integration requires examining how it interacts with adjacent modules across the full control stack.

At the control layer, the UNS3020A-Z interfaces directly with the Unitrol 5000 or Unitrol 6000 main excitation controller, receiving setpoint commands and transmitting measured terminal voltage, reactive power, and field current feedback. In redundant configurations, a second AVR channel — such as the UNS0881A-P (HIEE300900R0001) backup regulator board — operates in hot-standby mode, ensuring bumpless transfer in the event of primary channel failure. This redundancy architecture is fundamental to utility-grade and critical industrial generator installations.

At the I/O layer, the module connects to the UNITROL I/O expansion board (HIEE300024R0001) for additional discrete and analog signal routing. Field current measurement is handled via dedicated CT input circuits, while PT voltage sensing feeds directly into the AVR's internal measurement chain. Signal conditioning and isolation are provided by the HIEE300025R0001 signal isolation board, which prevents ground loop interference from corrupting voltage reference accuracy — a critical requirement in high-power generator environments where common-mode noise can reach several hundred volts.

At the communication layer, the UNS3020A-Z supports MODBUS RTU and PROFIBUS DP protocols, enabling integration with plant-level SCADA systems, DCS platforms such as the ABB System 800xA, and remote HMI terminals. In installations using ABB's AC500 PLC series (e.g., PM591 or PM592 CPU modules), the excitation system can be coordinated with broader plant automation sequences — including generator synchronization, load sharing, and automatic start/stop routines — via structured PROFIBUS or MODBUS data exchange.

At the power layer, the excitation power supply is typically sourced from a dedicated Unitrol thyristor power converter or PMG (Permanent Magnet Generator) excitation source, with the UNS3020A-Z providing the firing angle control signals. Auxiliary 24 V DC control power is supplied by a dedicated ABB CP-E 24/5.0 or CP-E 24/10.0 SMPS module, ensuring stable logic supply independent of generator terminal voltage fluctuations during startup and fault conditions.

At the HMI and diagnostics layer, the Unitrol platform supports local parameter access via the ABB CMT (Control and Monitoring Tool) software interface, connected through the module's RS-232 or USB service port. Remote diagnostics and trending are accessible through the ABB Ability™ Asset Suite or third-party SCADA historians. Alarm and event logging from the UNS3020A-Z feeds into the plant DCS, enabling predictive maintenance scheduling and reducing unplanned outage risk.

At the protection layer, the module integrates with generator protection relays — such as the ABB REG670 or REG216 generator protection IED — via hardwired trip and interlock signals. Loss-of-excitation (LOE), over-excitation (OEL), and under-excitation (UEL) limiters are implemented within the UNS3020A-Z firmware, providing a first line of defense before the protection relay operates. This layered protection philosophy minimizes nuisance trips while ensuring generator and transformer safety under abnormal operating conditions.

At the maintenance layer, the modular plug-in design of the UNS3020A-Z allows board-level replacement without full excitation system shutdown in dual-channel configurations. Spare module inventory management is simplified by the standardized HIEE205010R0001 part number, which is compatible across multiple Unitrol platform generations. NANKMOS maintains ready stock of this module to support emergency MRO requirements with short lead times.

Power Generation & Utilities: The UNS3020A-Z HIEE205010R0001 is widely deployed in gas turbine, steam turbine, and hydro generator excitation systems at utility power plants and industrial co-generation facilities. Its precise reactive power control capability supports grid code compliance requirements for power factor regulation and voltage support during grid disturbances. In island-mode microgrids and offshore platform power systems, the module's fast AVR response ensures stable voltage recovery following load steps or fault clearance events.

Oil, Gas & Petrochemical: In offshore platforms, LNG terminals, and refinery co-generation units, the UNS3020A-Z provides reliable excitation control for large synchronous motors and generators operating in hazardous area environments. Its PROFIBUS DP interface enables integration with Yokogawa CENTUM VP or Honeywell Experion DCS platforms, supporting unified control room operation across the entire facility electrical system.

Mining & Metallurgy: Large synchronous motors driving ball mills, SAG mills, and compressors in mining operations rely on stable excitation control for power factor correction and reactive power compensation. The UNS3020A-Z's VAR and PF control modes make it suitable for motor excitation applications where reactive power management directly impacts energy costs and grid tariff compliance.

Marine & Shipboard Power: Shipboard generator sets operating under DNV, Lloyd's Register, or ABS class requirements benefit from the UNS3020A-Z's fast transient response and redundant channel architecture. The module supports parallel generator operation with reactive load sharing, essential for vessel electrical systems with multiple generator sets operating in parallel on a common busbar.

Water Treatment & Infrastructure: Pumping stations and water treatment facilities using large synchronous motor drives for high-lift pumps and compressors deploy the UNS3020A-Z for motor excitation control, improving power factor and reducing reactive power charges from the utility. The module's robust design and long MTBF support the continuous-duty operational profile typical of water infrastructure applications.

Q1: Is the UNS3020A-Z HIEE205010R0001 compatible with both Unitrol 5000 and Unitrol 6000 excitation platforms? The UNS3020A-Z is designed for the Unitrol AVR module family and is compatible with Unitrol 5000 and select Unitrol 6000 configurations. Compatibility depends on the specific chassis revision and firmware version of the host excitation system. NANKMOS recommends providing your existing Unitrol system type and serial number for confirmation prior to ordering. All units are pre-shipment tested and covered by a 12-Month Warranty.

Q2: Can this module be installed in a redundant (dual-channel) excitation architecture, and what is the changeover behavior? Yes. In dual-channel Unitrol configurations, the UNS3020A-Z operates as either the primary or standby AVR channel. Changeover from primary to standby is bumpless — the standby channel tracks the primary channel's output continuously, ensuring seamless transfer without voltage transients on the generator terminal. The changeover logic is managed by the Unitrol system controller, with hardwired interlock signals preventing simultaneous activation of both channels. This architecture meets the redundancy requirements of IEC 60034-16 and utility grid code standards.

Q3: What is the lead time and warranty coverage for the UNS3020A-Z HIEE205010R0001 from NANKMOS? NANKMOS maintains ready inventory of the UNS3020A-Z HIEE205010R0001 to support urgent MRO and project requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. Each unit undergoes pre-shipment functional testing covering voltage regulation response, communication interface verification, and parameter integrity checks. All units are covered by a 12-Month Warranty from the date of shipment. For emergency requirements or large project quantities, contact [email protected] or +86 18359268345 for priority fulfillment.
