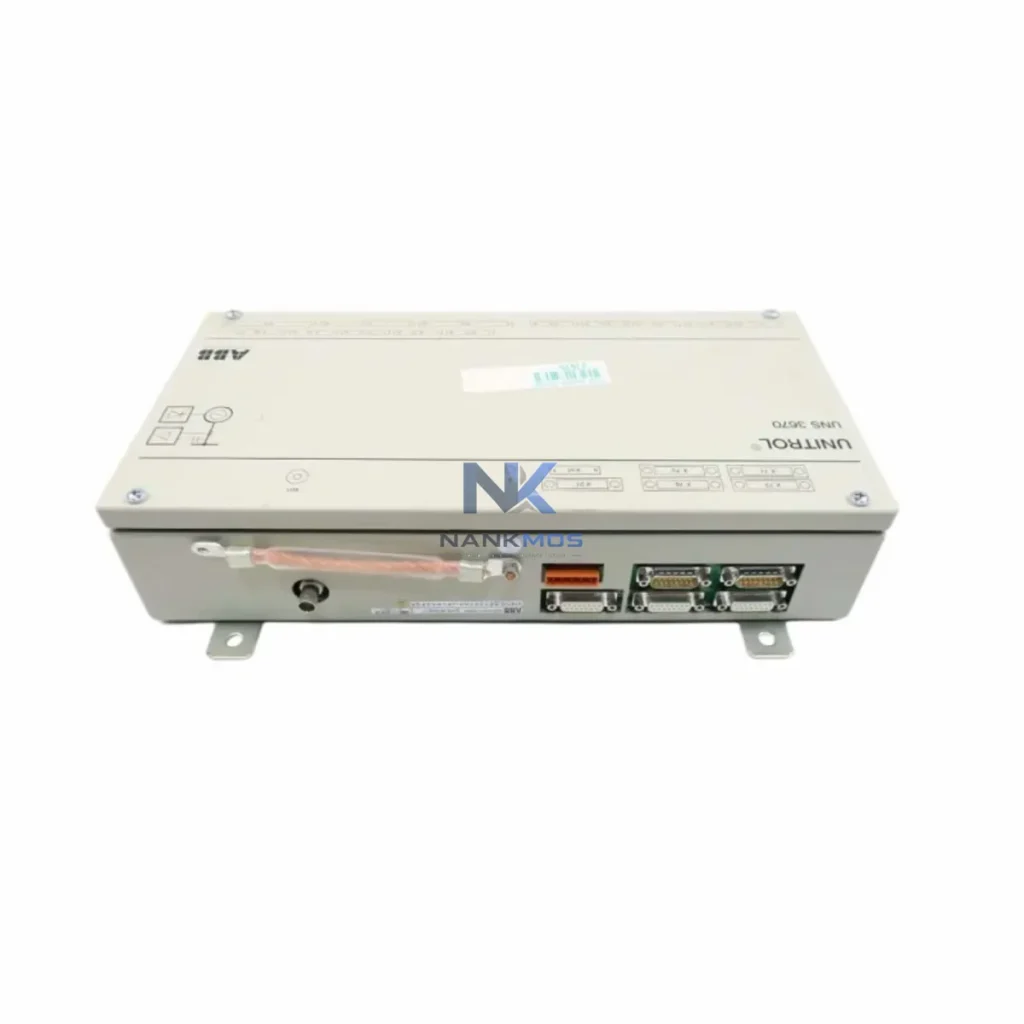

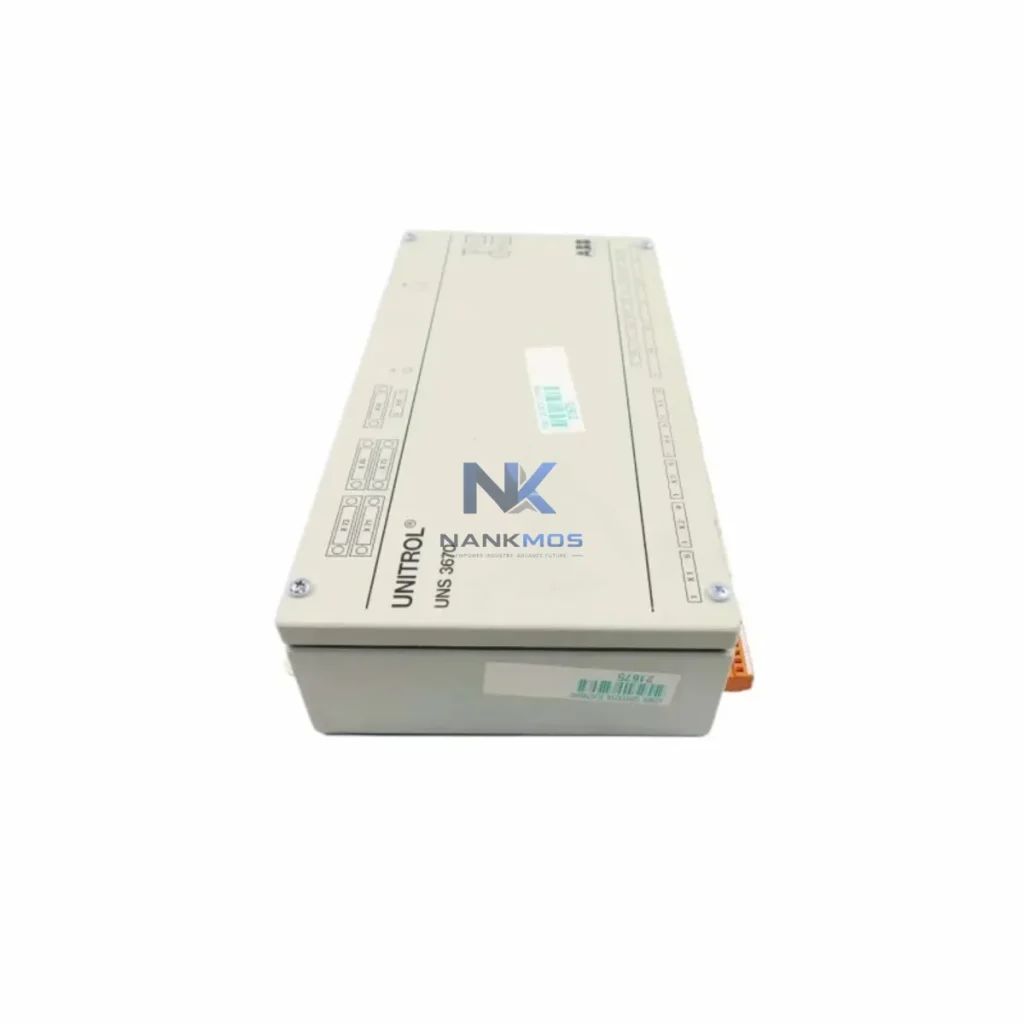

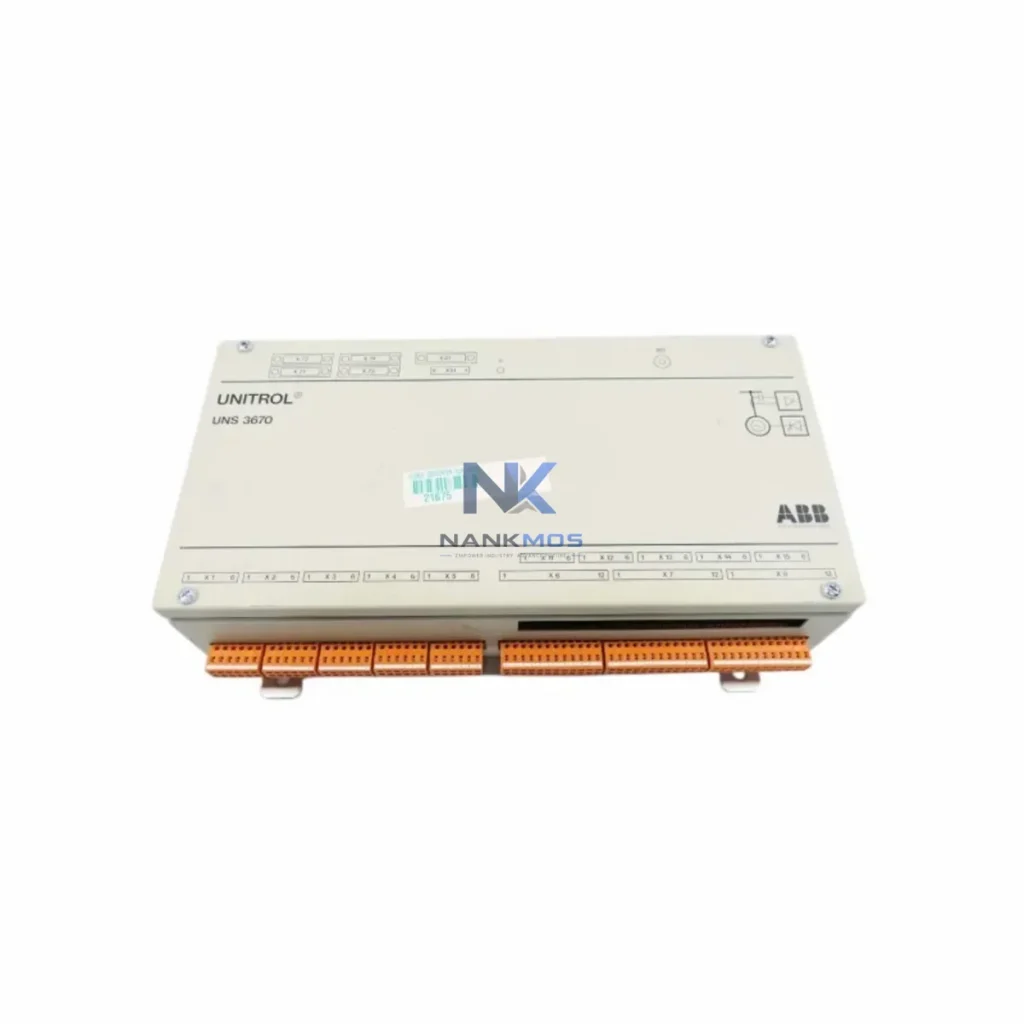

ABB UNS3670 HIEE205011R0001 Power Supply Board

Product Details

UNS3670 HIEE205011R0001 Product Description

The ABB HIEE205011R0001 is a precision-engineered power supply board designed for the UNITROL UNS3670 automatic voltage regulator (AVR) and excitation control system. As a core energy-control component within ABB's UNITROL platform, this board governs the regulated DC power delivery that sustains stable field excitation in synchronous generators and large AC motors across continuous industrial production environments. Its role extends beyond simple power conversion — it actively participates in load management, thermal regulation, and system-level energy efficiency by ensuring that downstream excitation circuits receive clean, stable voltage under variable load conditions.

In modern smart production lines where energy consumption is monitored at the component level, the HIEE205011R0001 contributes directly to reducing reactive power losses and minimizing heat dissipation within the excitation cabinet. By maintaining tight output voltage tolerances, it prevents over-excitation events that would otherwise increase copper losses in the generator windings and elevate thermal load across the entire drive train. This translates to measurable reductions in cooling energy demand and extended mean time between failures (MTBF) for connected rotating machinery.

The HIEE205011R0001 does not operate in isolation — it is an integral node within a broader power-aware automation architecture. In a typical UNS3670-based excitation system, this board interfaces directly with the ABB UNITROL UNS3670 main controller board, which processes AVR feedback signals and issues excitation set-point commands. The power supply board ensures that the controller logic, gate drive circuits, and analog measurement channels all receive stable, noise-free DC rails, which is a prerequisite for accurate reactive power regulation.

At the drive level, the UNS3670 excitation system commonly operates alongside ABB ACS880 or ACS580 variable frequency drives managing the mechanical load on the same bus. When the HIEE205011R0001 maintains excitation stability, it indirectly supports the VFD's ability to regulate motor torque without triggering reactive current compensation cycles — reducing unnecessary switching losses in the drive's IGBT stage. Similarly, ABB AC500 PLC modules deployed in the plant automation layer can read generator power factor and excitation current via PROFIBUS or PROFINET communication modules, using that data to coordinate load shedding and demand response strategies across the production line.

Power monitoring is typically handled by ABB M2M or CM series power measurement modules, which track active power (kW), reactive power (kVAR), and power factor in real time. When the HIEE205011R0001 ensures clean excitation supply, these instruments report stable, predictable values — simplifying the work of SCADA systems such as ABB System 800xA or third-party platforms in building accurate energy consumption baselines. I/O modules within the excitation cabinet relay status signals — including supply rail health, over-temperature flags, and fault outputs — to the plant DCS or HMI panels, enabling operators to monitor excitation system health without physical inspection.

In installations where ABB CP600 or CP400 HMI panels are deployed, operators can visualize excitation voltage trends, generator reactive output, and power supply board status on a single screen. This integration reduces the diagnostic time required to isolate energy inefficiencies and supports predictive maintenance workflows by correlating power supply drift with downstream performance degradation in the generator or connected motor loads.

Industrial production lines that rely on synchronous generators or large synchronous motors for process drives face a persistent challenge: excitation instability leads to reactive power fluctuations that propagate across the plant bus, increasing apparent power demand, elevating transformer losses, and triggering unnecessary protective relay operations. The ABB HIEE205011R0001, by sustaining the regulated power supply that the UNS3670 AVR depends on, directly addresses this root cause.

When excitation is stable, the generator operates closer to its rated power factor, reducing the reactive current component that contributes to I²R losses in cables, busbars, and transformer windings. Over a full production shift, this reduction in reactive losses translates to lower energy bills, reduced heat generation in the electrical distribution system, and extended insulation life in connected equipment. Facilities that have implemented proactive power supply board maintenance — replacing aging HIEE205011R0001 units before failure — report fewer unplanned generator trips and more consistent production line throughput.

From a production rhythm perspective, an unplanned excitation system failure can halt an entire generator-fed production island for hours. By maintaining a verified spare HIEE205011R0001 in inventory and performing scheduled replacement at defined service intervals, maintenance teams can execute planned outages during low-demand windows rather than responding to emergency shutdowns. This shift from reactive to predictive maintenance directly improves Overall Equipment Effectiveness (OEE) and reduces the energy penalty associated with cold-start restarts of large rotating machinery.

The board's compatibility with the UNITROL UNS3670 platform also means that energy optimization settings programmed into the AVR — such as power factor set-points, reactive droop compensation, and load-sharing parameters — are preserved and executed reliably. Any degradation in the power supply board's output quality would corrupt these control parameters, causing the generator to operate outside its optimal efficiency window. Replacing a worn HIEE205011R0001 with a tested, in-specification unit restores the AVR's ability to execute its energy management program precisely as configured.

Q1: How does replacing the HIEE205011R0001 improve plant energy efficiency? A degraded power supply board introduces voltage ripple and instability into the UNS3670 excitation control circuit. This causes the AVR to hunt — continuously adjusting excitation current in response to noise rather than actual load changes — which increases reactive power output and raises I²R losses across the generator and distribution system. Installing a tested HIEE205011R0001 restores stable excitation, allowing the generator to operate at its programmed power factor set-point and minimizing unnecessary reactive current generation.

Q2: Is the HIEE205011R0001 compatible with all UNS3670 variants and firmware revisions? The HIEE205011R0001 is the designated power supply board for the ABB UNITROL UNS3670 excitation controller. It is designed to be compatible across the UNS3670 platform variants. For installations with customized firmware or hardware modifications, we recommend verifying the board revision against your system documentation or contacting our technical team prior to installation. All units are pre-tested to confirm output voltage and ripple specifications before dispatch.

Q3: What does the 12-Month Warranty cover, and what is the testing process before shipment? Every HIEE205011R0001 unit is subject to a full functional test prior to dispatch, verifying regulated output voltage, load regulation performance, and absence of component-level defects. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair. Warranty claims are processed through our standard RMA procedure — contact [email protected] with your order reference and fault description to initiate a claim.

Q4: What is the typical lead time, and do you maintain stock for urgent replacement requirements? The HIEE205011R0001 is maintained in stock for immediate dispatch to support urgent maintenance and unplanned outage scenarios. Standard orders are processed and shipped within 1–2 business days. For facilities managing critical generator assets, we recommend maintaining at least one verified spare unit on-site to eliminate lead time risk during unplanned excitation system failures. Contact [email protected] or call +86 18359268345 to confirm current stock availability and arrange priority dispatch if required.
