ABB ZCU-12L Drive Control Unit

Product Details

ZCU-12L Product Description

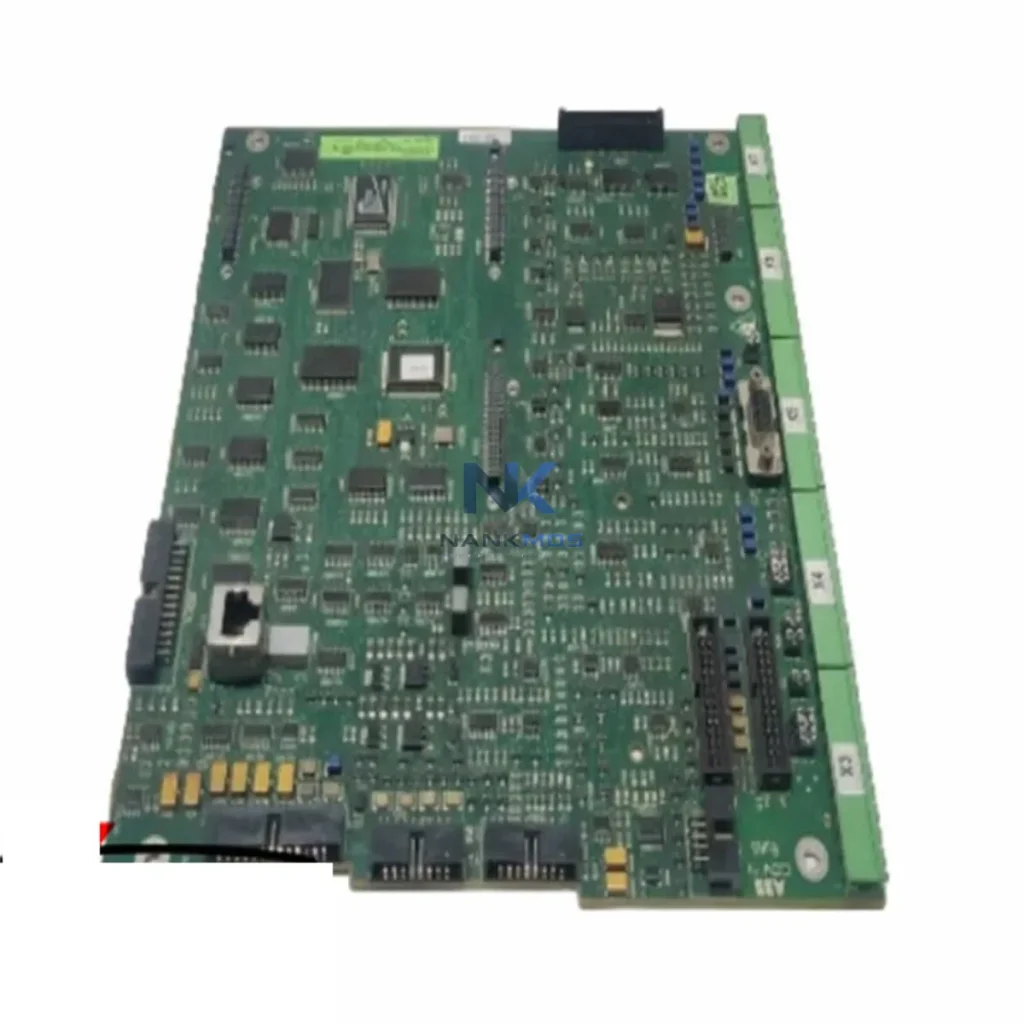

The ABB ZCU-12L is a dedicated drive control unit engineered for seamless integration within the ACS880 variable speed drive platform. Designed to serve as the intelligence layer of ABB's industrial drive architecture, the ZCU-12L coordinates signal processing, motor control algorithms, communication interfacing, and real-time diagnostics across the full drive system. Its role extends beyond standalone operation — it is a system-matched component that ensures consistent performance, modular expandability, and long-term maintainability within complex automation environments.

In modern industrial control architecture, the drive control unit occupies a critical position between the control layer and the execution layer. The ZCU-12L receives setpoint commands from upstream PLCs or DCS systems — such as ABB AC500 series controllers or third-party Siemens S7-300/400 platforms — and translates them into precise motor control outputs via the ACS880 power stage. This bidirectional signal flow ensures that speed references, torque limits, and fault feedback are handled with deterministic timing, reducing latency in closed-loop control scenarios common in process industries.

The ZCU-12L supports ABB's DDCS (Distributed Drive Control System) fiber-optic communication protocol, enabling high-speed, noise-immune data exchange between the control unit and external I/O extension modules such as the RDIO-01 digital I/O extension or RAIO-01 analog I/O module. This architecture allows engineers to expand the drive's I/O capacity without compromising signal integrity — a key requirement in applications where analog feedback from pressure transmitters, flow sensors, or encoder signals must be processed with high accuracy.

From a communication layer perspective, the ZCU-12L is compatible with a range of fieldbus adapter modules including FPBA-01 PROFIBUS DP, FENA-21 EtherNet/IP and PROFINET, and FDNA-01 DeviceNet. This flexibility allows the ACS880 drive to be integrated into virtually any plant-level communication backbone, whether the facility operates on a legacy PROFIBUS network or a modern EtherNet/IP topology. The control unit manages the fieldbus interface transparently, ensuring that PLC-level commands are executed without additional gateway hardware in most standard configurations.

Power layer coordination is equally important in ACS880 system design. The ZCU-12L interfaces directly with the drive's AINT-02 or AINT-11 inverter control boards, managing the gate drive signals for the IGBT power modules. In multi-drive configurations — such as those using the ACS880-104 common DC bus drive — the ZCU-12L participates in coordinated power sharing and regenerative braking management, contributing to energy efficiency and reducing thermal stress on individual power components. This makes it particularly valuable in applications such as crane systems, winders, and multi-axis coordinated motion platforms.

For HMI and operator interface integration, the ZCU-12L supports connection to ABB's ACS-AP-I and ACS-AP-W control panels, providing local parameter access, fault history review, and drive commissioning without requiring a laptop or external programming tool. In distributed architectures where drives are installed in remote motor control centers (MCCs), this local interface capability significantly reduces commissioning time and simplifies ongoing maintenance routines.

The protection layer within the ACS880 architecture benefits directly from the ZCU-12L's onboard diagnostic capabilities. The control unit continuously monitors motor thermal models, output current waveforms, DC bus voltage levels, and IGBT junction temperatures. Fault events are logged with timestamps and fault codes, enabling maintenance engineers to perform root-cause analysis without specialized test equipment. This diagnostic transparency reduces unplanned downtime and supports predictive maintenance strategies in facilities operating under continuous production schedules.

In terms of modular deployment, the ZCU-12L is designed for straightforward replacement in the field. Its connector layout and firmware architecture allow a replacement unit to be configured via parameter backup restoration from the ACS880's memory unit (MFDT-01 flash memory module), minimizing reconfiguration time during emergency maintenance. This is a critical advantage in industries such as oil and gas, mining, and chemical processing, where drive downtime directly impacts production output and safety compliance.

NANKMOS maintains verified stock of the ABB ZCU-12L with pre-shipment functional testing performed on every unit prior to dispatch. Each unit is supplied with a 12-Month Warranty covering manufacturing defects and component failures under normal operating conditions. Our inventory supports rapid fulfillment for MRO (Maintenance, Repair, and Operations) procurement teams, system integrators, and OEM manufacturers requiring reliable access to critical drive control components.

The ZCU-12L operates most effectively when deployed as part of a fully coordinated ACS880 automation platform. In a typical system architecture, the control hierarchy begins with a PLC or DCS — such as an ABB AC500-eCo PM554 or AC500 PM591 CPU — issuing speed and torque references via PROFINET or EtherNet/IP to the ACS880 drive. The ZCU-12L receives these commands through the FENA-21 fieldbus adapter and executes them through the drive's power stage, with real-time feedback returned to the controller for closed-loop regulation.

At the I/O layer, RDIO-01 digital I/O extension modules and RAIO-01 analog I/O modules expand the drive's signal handling capacity, allowing integration of external sensors, limit switches, and process transmitters without additional PLC I/O cards. For applications requiring signal isolation — particularly in environments with high electromagnetic interference such as steel mills or chemical plants — dedicated signal isolators are recommended between field devices and the drive's analog input terminals.

In multi-drive installations using the ACS880-104 common DC bus configuration, the ZCU-12L coordinates with companion inverter units sharing the same DC bus, enabling regenerative energy exchange between motoring and braking drives. This architecture is common in winder/unwinder systems, crane hoists, and test bench applications where energy recovery directly reduces operating costs.

For cabinet-level power distribution, ABB SACE Tmax XT series circuit breakers or ABB OT series disconnect switches are typically installed upstream of each ACS880 drive, providing overcurrent protection and safe isolation for maintenance. The ZCU-12L's fault output relay can be wired to the cabinet's master control relay, enabling automatic drive isolation upon critical fault detection.

Industrial Ethernet switches — such as those from the Hirschmann RS20 series or ABB's own industrial networking portfolio — are commonly used to segment drive communication networks from the plant backbone, ensuring deterministic communication latency for time-sensitive drive control applications.

Manufacturing & Packaging Lines: In automated packaging and assembly lines, the ZCU-12L enables precise conveyor speed synchronization and tension control across multiple drive axes. Its DDCS fiber-optic backbone supports master-follower configurations where a single speed reference is distributed to multiple ACS880 drives simultaneously, ensuring product handling consistency at high throughput rates.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the ZCU-12L provides the control intelligence for variable-speed operation, reducing energy consumption during partial-load conditions. Its diagnostic capabilities support condition monitoring programs aligned with IEC 61511 functional safety requirements.

Oil, Gas & Petrochemical: In hazardous area installations, the ACS880 drive with ZCU-12L control is deployed in Ex-rated enclosures for compressor and pump control. The control unit's fieldbus integration allows remote monitoring from the DCS, reducing the need for personnel entry into hazardous zones during routine parameter checks.

Water & Wastewater Treatment: Municipal water treatment facilities use ACS880 drives with ZCU-12L control for variable-speed pump control, optimizing flow rates in response to demand signals from SCADA systems. The drive's energy optimization algorithms, managed by the ZCU-12L, contribute to significant reductions in pump station energy consumption.

Mining & Minerals Processing: In conveyor drive systems for underground and surface mining operations, the ZCU-12L's robust diagnostic and protection features ensure reliable operation in high-dust, high-vibration environments. Its compatibility with the ACS880-104 common DC bus system supports regenerative braking on downhill conveyors, recovering energy that would otherwise be dissipated as heat.

Q1: Is the ZCU-12L compatible with all ACS880 drive variants, and can it be used as a direct replacement in existing installations?The ZCU-12L is designed specifically for the ACS880 platform and is compatible with the ACS880-01, ACS880-04, ACS880-07, and ACS880-104 drive variants where the ZCU-12L control unit is specified. Before replacement, verify the existing drive's hardware revision and firmware version to ensure compatibility. Parameter backup via the MFDT-01 flash memory module is strongly recommended prior to any control unit replacement to enable rapid restoration of drive configuration after installation.

Q2: What fieldbus options are available for integrating the ZCU-12L-equipped ACS880 drive into an existing PROFIBUS or EtherNet/IP plant network?The ZCU-12L supports a full range of fieldbus adapter modules installed in the drive's option slot. For PROFIBUS DP networks, the FPBA-01 adapter provides standard DP-V1 communication. For EtherNet/IP and PROFINET networks, the FENA-21 dual-port adapter supports both protocols simultaneously, simplifying integration into mixed-protocol environments. DeviceNet connectivity is available via the FDNA-01 adapter. All adapters are configured through the drive's parameter set managed by the ZCU-12L, with no additional external gateway hardware required in standard installations.

Q3: What warranty and supply assurance does NANKMOS provide for the ZCU-12L, and how quickly can replacement units be dispatched for emergency MRO requirements?NANKMOS supplies the ABB ZCU-12L with a 12-Month Warranty covering manufacturing defects and component failures under normal operating conditions. All units undergo pre-shipment functional testing before dispatch. For emergency MRO requirements, NANKMOS maintains verified in-stock inventory with priority dispatch capability. Contact our technical sales team at [email protected] or +86 18359268345 to confirm current stock availability and lead times for your specific procurement requirement.
