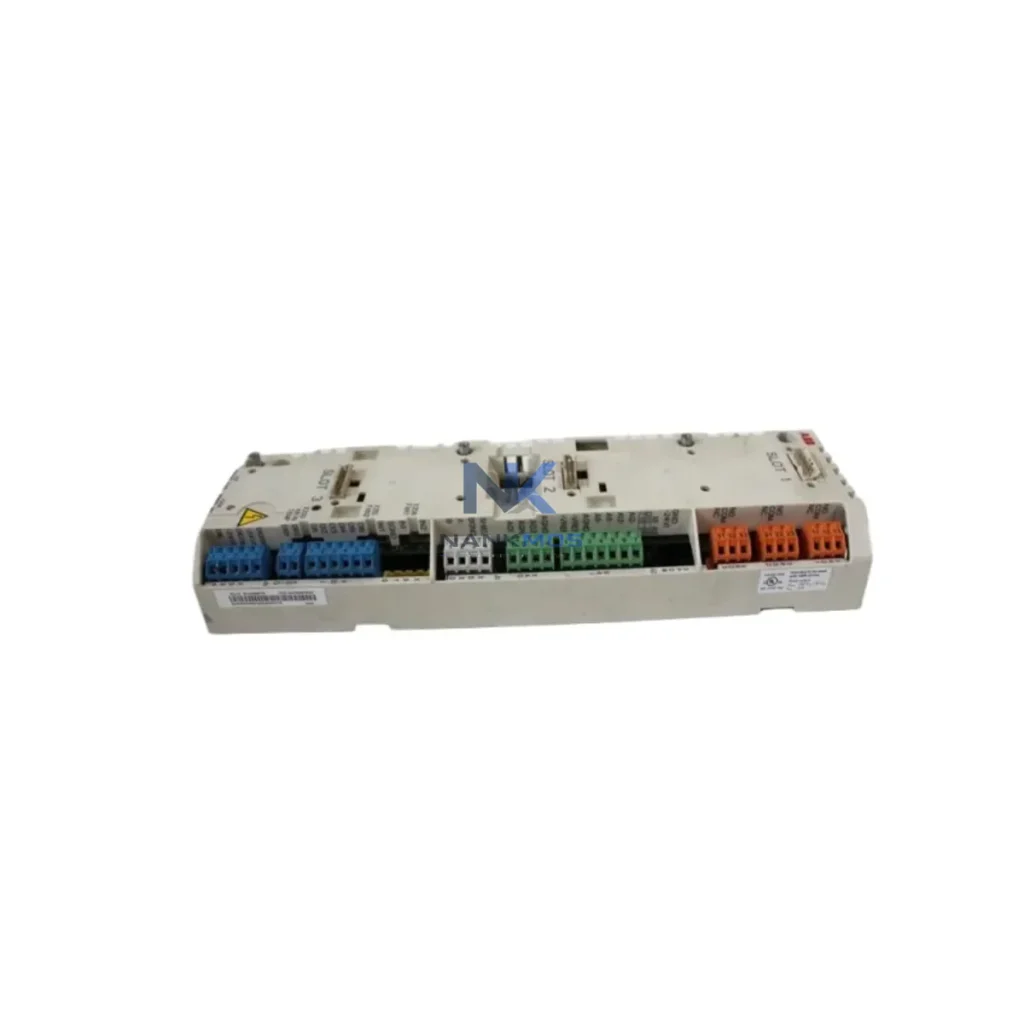

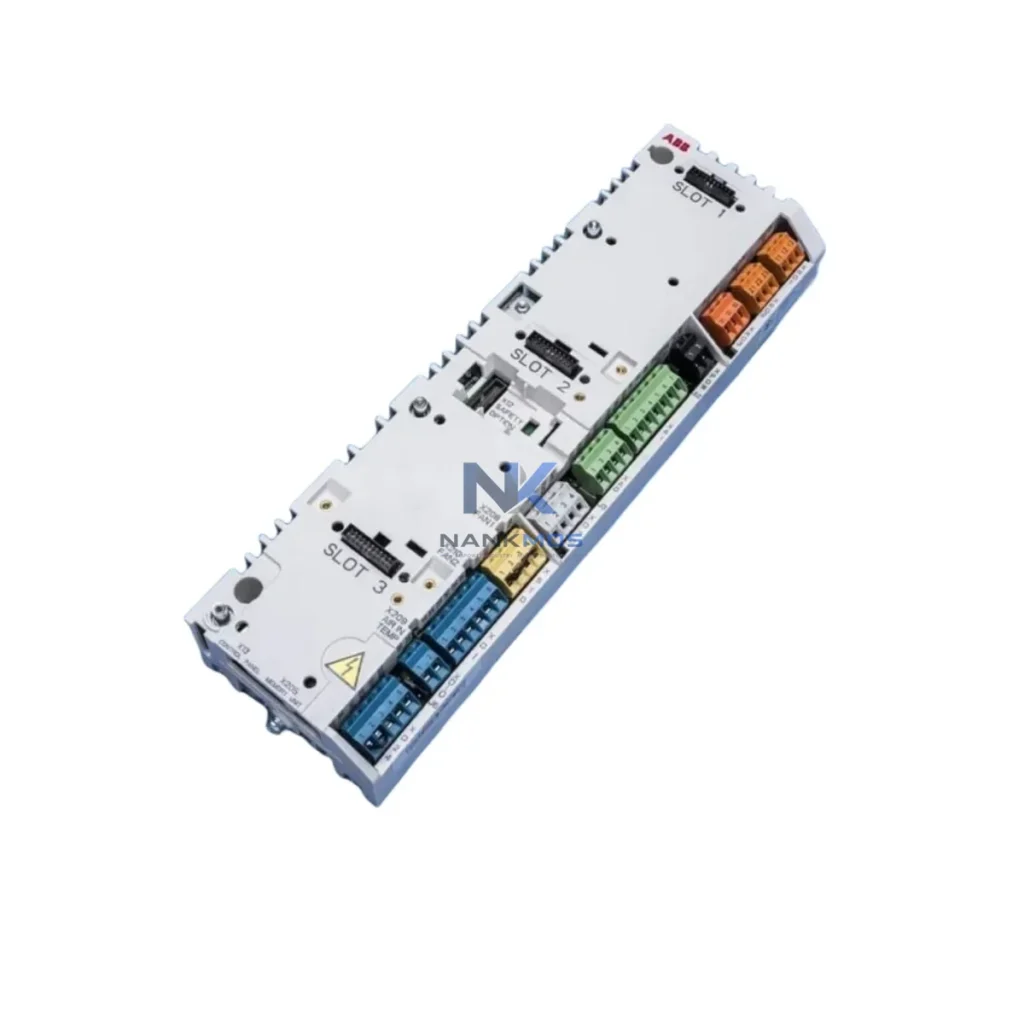

ABB ZCU-14 3AXD50000182992 Drive Control Unit

Product Details

ZCU-14 3AXD50000182992 Product Description

The ABB ZCU-14 (Part No. 3AXD50000182992) is a high-performance drive control unit engineered for the ACS800 series of industrial AC drives. Designed to serve as the central intelligence layer between field-level power electronics and upper-level automation systems, the ZCU-14 enables seamless data exchange across the full smart factory data chain — from motor-level signal acquisition through protocol conversion, real-time network transmission, SCADA integration, and remote diagnostics. In modern industrial environments where production transparency and uptime are non-negotiable, the ZCU-14 delivers the connectivity backbone that keeps automation assets visible, controllable, and responsive.

In a fully connected smart factory, the ABB ZCU-14 operates at the intersection of drive-level control and plant-wide data infrastructure. The data flow begins at the motor and drive layer: the ACS800 drive, governed by the ZCU-14 control board, continuously monitors motor speed, torque, current, voltage, and thermal status. These real-time process values are captured at the drive level and made available to the automation network through the ZCU-14's DDCS optical communication link — a high-speed, noise-immune fiber-optic channel purpose-built for demanding industrial environments.

From the drive layer, data travels upward through the network hierarchy. When paired with an RDCO-02 or RDCO-04 optical communication module, the ZCU-14 enables the ACS800 to participate in ABB's master-follower drive topology, allowing multiple drives to synchronize speed and torque references across a coordinated production line — a critical requirement in paper mills, metal processing, and material handling systems. For sites running mixed-protocol architectures, the ZCU-14's fieldbus adapter slot accepts optional modules such as the FPBA-01 PROFIBUS adapter or FMBA-01 Modbus adapter, bridging the ACS800 into existing PROFIBUS-DP or Modbus TCP/IP networks without additional gateways.

At the PLC and controller layer, Siemens S7-300/S7-400 PLCs or Allen-Bradley ControlLogix systems receive cyclic process data from the ZCU-14-equipped ACS800 drives via the fieldbus network. This data — including actual speed, output frequency, DC bus voltage, and fault codes — feeds directly into PLC logic for closed-loop control, interlock management, and production sequencing. Simultaneously, the same data stream is forwarded to HMI panels such as ABB CP600 or Siemens SIMATIC TP series displays, where operators monitor drive status, adjust setpoints, and acknowledge alarms in real time.

Moving further up the data chain, SCADA platforms such as ABB System 800xA, Wonderware InTouch, or Ignition by Inductive Automation aggregate drive data from multiple ZCU-14-equipped ACS800 units across the plant floor. Trend logging, KPI dashboards, and alarm management screens give production engineers full visibility into drive performance, energy consumption, and fault history — enabling data-driven decisions on maintenance scheduling and process optimization. For facilities implementing IIoT strategies, edge gateways such as the ABB Edge Controller or third-party Moxa MGate series can extract ZCU-14 drive data via Modbus TCP and publish it to cloud platforms using MQTT or OPC-UA, completing the data path from motor shaft to enterprise analytics.

Remote I/O modules and distributed sensor networks also benefit from the ZCU-14's connectivity architecture. Proximity sensors, encoders, and temperature transmitters connected to remote I/O racks — such as ABB S800 I/O or Beckhoff EtherCAT terminals — feed process feedback into the PLC, which in turn sends speed and torque references to the ACS800 via the ZCU-14's fieldbus interface. This closed-loop data path ensures that the drive responds dynamically to real-world process conditions, maintaining product quality and energy efficiency simultaneously.

For remote diagnostics and predictive maintenance, the ZCU-14 supports parameter backup and fault log retrieval via the DDCS link or fieldbus connection. Maintenance engineers can use ABB DriveWindow or DriveStudio software to remotely read drive parameters, review event logs, and upload firmware updates — eliminating the need for on-site intervention during routine checks. When integrated with a CMMS or MES platform, fault event timestamps from the ZCU-14 can trigger automated work orders, ensuring that maintenance response is both fast and fully documented.

Many industrial sites operating legacy ACS800 drive fleets face a common set of connectivity challenges: drives that cannot communicate with modern SCADA systems, protocol mismatches between drive fieldbus interfaces and PLC networks, and a lack of real-time visibility into drive health and energy consumption. The ABB ZCU-14 directly addresses these gaps.

Protocol fragmentation is one of the most persistent barriers to plant-wide data integration. Sites running a mix of PROFIBUS, Modbus, and DeviceNet networks often find that older drive control boards cannot support multiple protocols simultaneously. The ZCU-14's modular fieldbus adapter architecture allows the ACS800 to be configured for the site's existing network standard, eliminating the need for external protocol converters and reducing network latency. This is particularly valuable in retrofit projects where the goal is to bring legacy drives into a unified SCADA or DCS environment without replacing the entire drive system.

Data silos — where drive performance data exists only at the local HMI and is never aggregated at the plant level — are another common problem. By enabling the ACS800 to participate in a plant-wide fieldbus network, the ZCU-14 ensures that drive data flows continuously to SCADA historians and MES databases. Production managers gain access to trend data that reveals patterns in drive loading, identifies energy waste, and flags early signs of mechanical wear — transforming reactive maintenance into a proactive, data-driven discipline.

Remote monitoring capability is increasingly essential for multi-site operations and facilities with limited on-site engineering resources. The ZCU-14's support for remote parameter access and fault log retrieval via DDCS and fieldbus connections means that a single engineer can monitor and diagnose dozens of ACS800 drives from a central control room or remote workstation — dramatically reducing travel time and unplanned downtime. Alarm tracking is similarly enhanced: fault events captured by the ZCU-14 are timestamped and logged, providing a complete audit trail for root cause analysis and regulatory compliance reporting.

System scalability is a final consideration for growing facilities. As production lines expand and new drives are added, the ZCU-14's master-follower DDCS architecture allows additional ACS800 units to be integrated into the existing drive network with minimal reconfiguration. This modular expansion capability protects the initial investment in drive infrastructure while supporting the facility's long-term automation roadmap.

Q1: What communication protocols does the ABB ZCU-14 support, and is it compatible with my existing PLC network?The ZCU-14 natively supports ABB's DDCS optical fiber protocol for drive-to-drive and drive-to-controller communication. For integration with third-party PLC networks, optional fieldbus adapter modules enable PROFIBUS-DP, Modbus RTU/TCP, DeviceNet, and CANopen connectivity. This makes the ZCU-14 compatible with Siemens, Allen-Bradley, Schneider Electric, and other major PLC platforms without requiring additional protocol gateways.

Q2: How does the ZCU-14 support remote diagnostics and what tools are required?The ZCU-14 supports remote parameter read/write and fault log retrieval via the DDCS link or fieldbus connection. ABB DriveWindow and DriveStudio software provide a PC-based interface for remote drive monitoring, parameter backup, and firmware management. No additional hardware is required beyond the existing network connection, making remote diagnostics accessible to maintenance teams without on-site drive access.

Q3: What is the network transmission latency of the ZCU-14's DDCS optical link, and is it suitable for real-time control applications?The DDCS optical fiber link used by the ZCU-14 is designed for deterministic, low-latency communication in real-time drive control applications. Cycle times are typically in the range of 2–10 ms depending on network configuration and the number of connected nodes, making it suitable for coordinated multi-drive applications such as master-follower speed synchronization and torque sharing in demanding process industries.

Q4: Does the ZCU-14 come with a warranty, and has it been tested before shipment?Yes. Every ABB ZCU-14 (3AXD50000182992) supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication integrity, I/O performance, and firmware operation. Stock is maintained in verified inventory to support rapid fulfillment for both planned projects and urgent replacement requirements. For procurement inquiries, contact [email protected] or call +86 18359268345.
