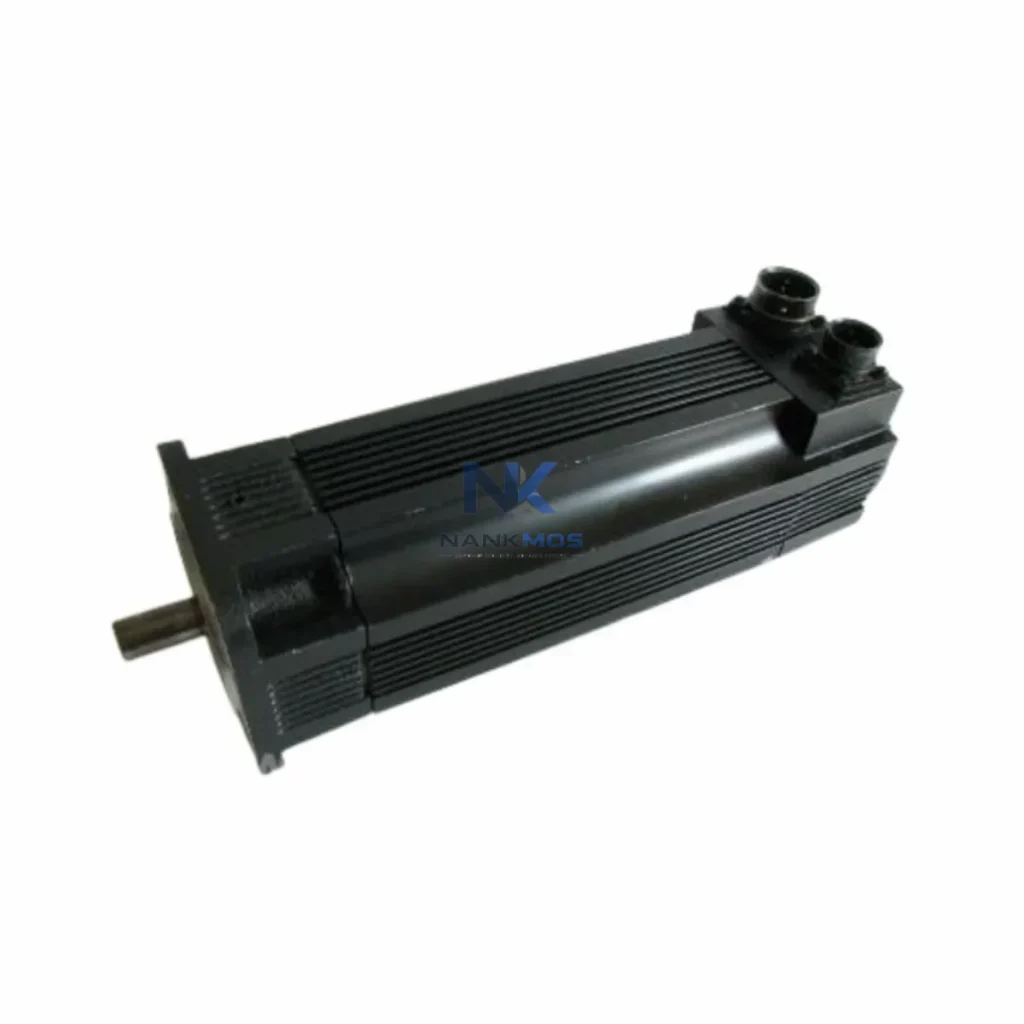

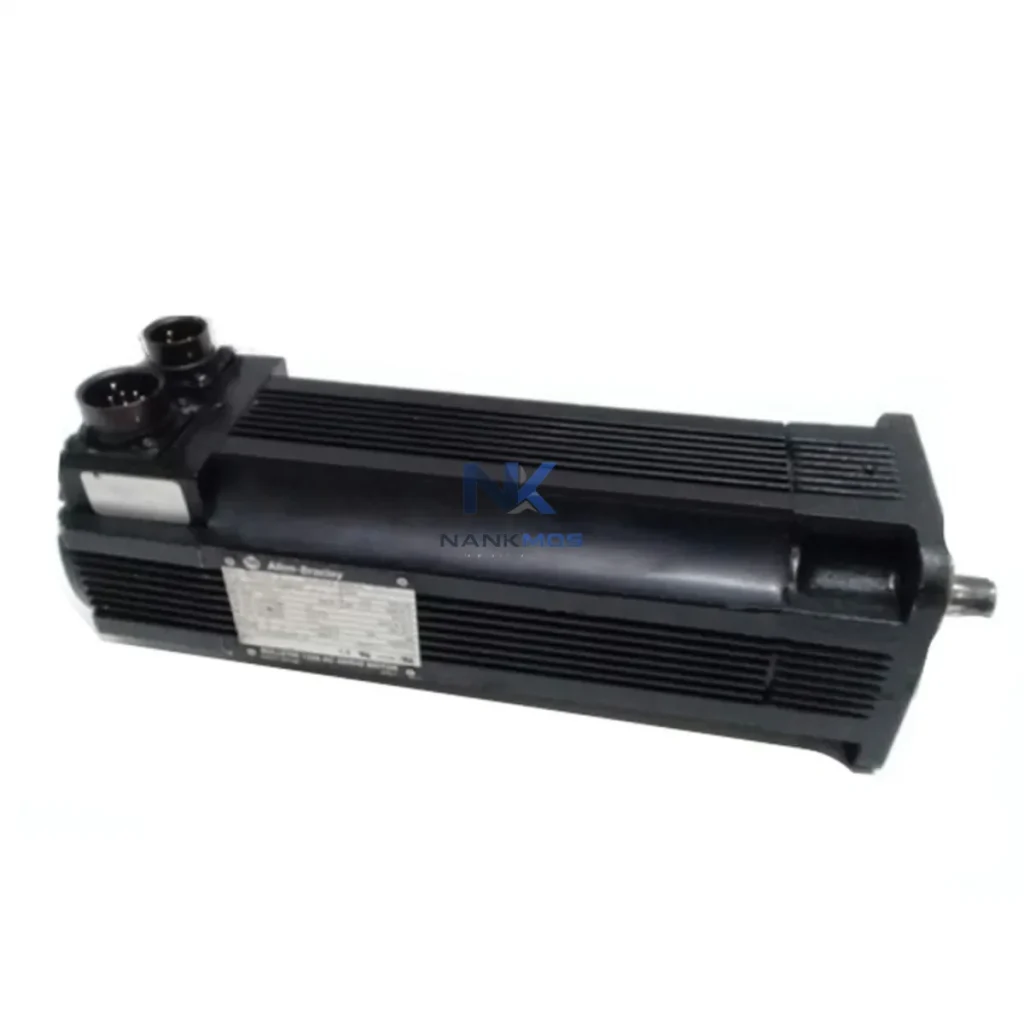

Allen-Bradley 1326AB-B430E-21 AC Servo Motor

Product Details

1326AB-B430E-21 Product Description

The Allen-Bradley 1326AB-B430E-21 is a system-matched AC servo motor engineered for seamless integration within the Rockwell Automation 1326AB servo drive architecture. Designed to operate as a precision motion axis within multi-axis control platforms, this motor delivers consistent torque output, high-resolution feedback, and deterministic response characteristics that are essential for coordinated motion sequences in industrial automation systems. Its mechanical and electrical parameters are factory-matched to the 1326AB servo drive family, eliminating compatibility guesswork during commissioning and reducing engineering overhead across the full project lifecycle.

In modern control architectures, the servo motor is not an isolated component — it is a functional node within a layered system that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. The 1326AB-B430E-21 is optimized to perform within this hierarchy, contributing to system consistency, signal stability, redundancy capability, diagnostic efficiency, modular deployment, and long-term maintenance efficiency. Whether deployed in a single-axis positioning application or as part of a synchronized multi-axis gantry, this motor supports the architectural integrity of the broader automation platform.

Backed by a 12-Month Warranty and supported by NANKMOS inventory and pre-shipment testing protocols, the 1326AB-B430E-21 is available for immediate quotation and rapid dispatch to global industrial sites.

The 1326AB-B430E-21 achieves its full performance potential when deployed within a coherent Rockwell Automation control platform. At the control layer, a ControlLogix L7x or CompactLogix L3x controller executes the motion program and issues position, velocity, and torque commands via the motion axis object. The controller communicates with the 1326AB servo drive — or its modern equivalent, the Kinetix 6000 or Kinetix 5700 servo drive — over a SERCOS ring or EtherNet/IP motion network, providing deterministic command delivery and closed-loop feedback synchronization.

At the power layer, a 1326AB-MOD power module or a Kinetix 6000 IAM (Integrated Axis Module) conditions the DC bus and distributes regulated power to the drive axis. Shared DC bus architectures allow energy regenerated during deceleration to be reused by adjacent axes, improving overall system energy efficiency. A 1606-XLP or 1606-XLS power supply supports the 24VDC control circuit for I/O, safety relays, and communication modules.

At the I/O layer, 1756-IB16 digital input modules and 1756-OB16 digital output modules within the ControlLogix chassis handle discrete signals from limit switches, home sensors, and safety interlocks associated with the servo axis. For analog feedback from load cells or pressure transducers integrated into the motion system, 1756-IF8 analog input modules provide 16-bit resolution signal acquisition.

At the communication layer, a 1756-EN2T EtherNet/IP communication module bridges the ControlLogix backplane to the plant network, enabling SCADA integration, remote diagnostics, and OPC-UA data exchange. For legacy installations, a 1756-DNB DeviceNet bridge module maintains compatibility with existing field device networks.

At the HMI layer, a PanelView Plus 7 or PanelView 5500 operator terminal provides real-time axis status visualization, fault acknowledgment, and manual jog control. The HMI communicates with the ControlLogix controller over EtherNet/IP, displaying encoder position, drive fault codes, and motion program status without requiring additional hardware.

At the protection layer, a 1489-M series motor circuit protector and a 140M motor protection circuit breaker safeguard the servo motor against overcurrent and short-circuit conditions. Safety function integration is achieved through a 1791DS-IB12 GuardLogix safety I/O module, enabling STO (Safe Torque Off) and SS1 (Safe Stop 1) functions compliant with IEC 62061 and ISO 13849.

At the maintenance layer, Rockwell's Studio 5000 Logix Designer and FactoryTalk Diagnostics provide online drive tuning, axis trend logging, and predictive fault analysis. The 1326AB-B430E-21's encoder feedback data is continuously logged, enabling condition-based maintenance scheduling and reducing unplanned downtime across the production line.

The 1326AB-B430E-21 is deployed across a broad range of industrial sectors where precision motion control and system-level integration are non-negotiable requirements.

In automotive manufacturing, this servo motor drives welding positioners, transfer lines, and assembly robots where sub-millimeter repeatability and high cycle rates are required. Its system-matched design with the 1326AB drive family ensures that multi-axis synchronization across a production cell is maintained without axis-to-axis timing drift.

In packaging and converting, the 1326AB-B430E-21 controls registration, cut-to-length, and web tension axes on high-speed packaging lines. The motor's low cogging torque and high bandwidth feedback loop support smooth velocity profiles at speeds exceeding 3,000 RPM, critical for maintaining product quality on continuous-motion machinery.

In power generation and energy, servo-driven valve actuators and turbine blade positioning systems rely on the deterministic torque response of the 1326AB series to maintain process stability under variable load conditions. The motor's robust construction and IP-rated enclosure support operation in environments with elevated humidity, vibration, and thermal cycling.

In petrochemical and process industries, the 1326AB-B430E-21 is integrated into reactor agitator drives, extruder feed systems, and precision dosing pumps where torque linearity and speed regulation directly affect product quality and process yield. The motor's compatibility with ControlLogix safety controllers enables integration into SIL 2-rated safety instrumented systems.

In water and wastewater treatment, servo-driven actuators control valve positioning and pump speed modulation in filtration and dosing systems. The motor's ability to hold position under static load without hunting makes it suitable for proportional valve control in closed-loop flow regulation loops.

In metal forming and press applications, the 1326AB-B430E-21 drives servo press axes, roll feed systems, and coil straighteners where force control and position accuracy must be maintained across thousands of production cycles per shift. The motor's thermal management characteristics support continuous duty operation in high-ambient-temperature press shop environments.

Q1: Is the 1326AB-B430E-21 compatible with modern Kinetix servo drives, or is it limited to legacy 1326AB drives? The 1326AB-B430E-21 is natively matched to the 1326AB servo drive family. However, with appropriate feedback adapter cables and motor parameter configuration in Studio 5000, it can be integrated with Kinetix 6000 and Kinetix 5700 drives in mixed-architecture upgrade projects. NANKMOS recommends verifying the drive's motor catalog support list and feedback interface compatibility before commissioning. Our technical team can assist with parameter file preparation and pre-shipment configuration validation as part of the 12-Month Warranty support scope.

Q2: What commissioning steps are required when installing the 1326AB-B430E-21 into an existing ControlLogix motion system? Commissioning requires creating a motion axis object in Studio 5000 Logix Designer, selecting the 1326AB-B430E-21 motor catalog entry, and running the Hookup Diagnostic test to verify encoder phasing and motor wiring polarity. Following hookup verification, an Autotune procedure establishes the velocity and position loop gains appropriate for the connected mechanical load. All commissioning data — including inertia ratio, bandwidth settings, and fault thresholds — should be archived in the controller project file for future maintenance reference. NANKMOS provides pre-shipment encoder verification and wiring continuity testing on all units shipped under the 12-Month Warranty program.

Q3: What is the lead time and warranty coverage for the 1326AB-B430E-21, and how does NANKMOS support long-term inventory availability? NANKMOS maintains dedicated inventory of the 1326AB-B430E-21 to support both planned procurement and emergency replacement requirements. Standard lead time for in-stock units is 3–7 business days to major global destinations, with expedited dispatch available for critical production situations. Every unit is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For long-term maintenance contracts and multi-unit procurement, NANKMOS offers scheduled inventory reservation and priority dispatch agreements. Contact [email protected] or +86 18359268345 for a formal quotation and availability confirmation.
