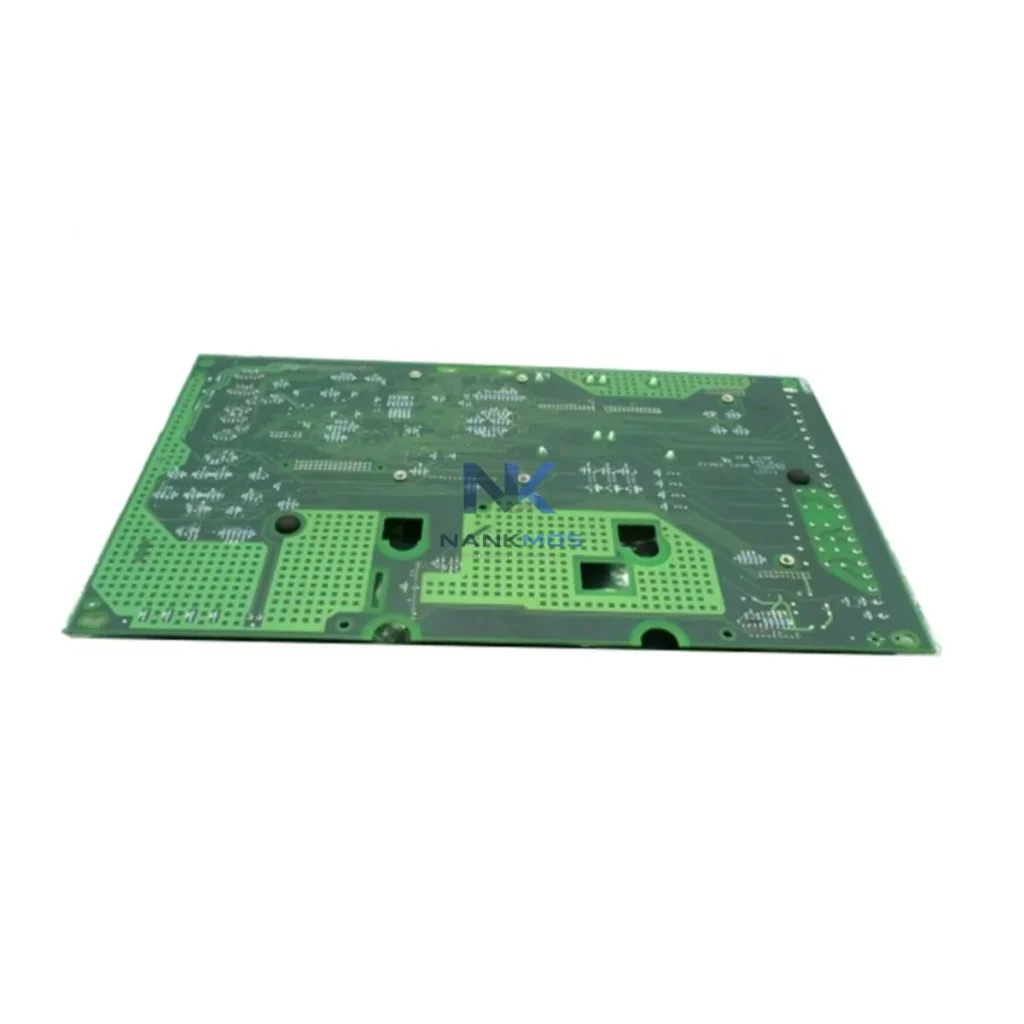

Allen-Bradley 1336F-MCB-SP1F AC Drive Control Board

Product Details

1336F-MCB-SP1F Product Description

The Allen-Bradley 1336F-MCB-SP1F is a factory-matched main control board engineered specifically for the 1336 PLUS II series of AC variable frequency drives. As a core execution-layer component within Rockwell Automation's drive architecture, this control board governs the fundamental signal processing, gate-firing logic, and closed-loop regulation that define drive performance across demanding industrial environments. Whether deployed in a standalone drive cabinet or integrated into a coordinated multi-drive system managed by a ControlLogix or CompactLogix PLC platform, the 1336F-MCB-SP1F delivers the signal fidelity, firmware compatibility, and hardware reliability required for continuous-duty production lines.

In modern industrial control architecture, the drive control board occupies a critical position at the intersection of the control layer and the execution layer. It receives velocity and torque references from the supervisory PLC, processes encoder or resolver feedback from the motor, and generates the precise PWM switching commands that regulate motor output. Any degradation in control board performance — whether from component aging, thermal stress, or firmware mismatch — propagates directly into motor instability, process deviation, and unplanned downtime. The 1336F-MCB-SP1F is designed to eliminate this risk through exact OEM specification compliance, ensuring that replacement or spare-board deployment restores full drive functionality without recalibration or parameter re-entry.

The 1336F-MCB-SP1F does not operate in isolation — its value is fully realized when considered within the broader Rockwell Automation control architecture. At the control layer, a ControlLogix 1756-L7x or CompactLogix 1769-L3x CPU issues motion and speed references via the backplane or network, coordinating multiple drives across a synchronized production sequence. The 1756-EN2T EtherNet/IP communication module or 1756-DNB DeviceNet Scanner bridges the PLC backplane to the drive network, enabling real-time parameter monitoring, fault diagnostics, and remote speed reference updates without interrupting production.

At the I/O layer, 1756-IB16 digital input modules and 1756-OF8 analog output modules provide the process signal infrastructure that feeds setpoints and interlocks into the drive control loop. For applications requiring precise torque control or multi-axis coordination, the 1336-GM-E1 EtherNet/IP communication adapter mounted on the 1336 PLUS II drive chassis enables the 1336F-MCB-SP1F to participate directly in a Logix-coordinated motion network, receiving explicit messaging commands and returning drive status data to the supervisory controller.

Power layer integrity is maintained through Allen-Bradley 1336-PB-SP2 power board assemblies and coordinated with 1321-3R line reactors that reduce harmonic distortion and protect the drive input stage. At the HMI layer, a PanelView Plus 7 (2711P series) terminal provides operator visibility into drive speed, current, fault history, and process variables, with Logix tag integration ensuring that the data displayed reflects the actual control board state in real time.

For applications requiring motor protection and safe-state management, the 1336-MOD-F3 dynamic braking module and SMC-50 soft starter complement the 1336 PLUS II drive in multi-motor panels, while 1492-J terminal blocks and 1492-CABLE wiring systems ensure clean, maintainable signal routing within the control cabinet. In redundant or high-availability architectures, a spare 1336F-MCB-SP1F held in local inventory reduces mean-time-to-repair (MTTR) to under 30 minutes, preserving production continuity without waiting for extended lead times.

Manufacturing & Assembly Lines: In automotive body-in-white and general assembly applications, the 1336 PLUS II drive controlled by the 1336F-MCB-SP1F manages conveyor speed, lift table positioning, and rotary indexer velocity with the closed-loop precision required for synchronized multi-station production. The control board's vector regulation capability ensures consistent torque delivery even under variable load conditions typical of mixed-model assembly.

Power Generation & Utilities: In power plant auxiliary systems — including induced draft fans, forced draft fans, boiler feed pump drives, and cooling tower fan arrays — the 1336F-MCB-SP1F provides the stable, continuous-duty control board performance required for 24/7 operation. Its compatibility with the 1336 PLUS II's built-in PID loop enables direct process variable control without an external controller, simplifying the control architecture for utility-scale fan and pump applications.

Oil, Gas & Petrochemical: Pipeline compressor drives, wellhead pump controllers, and refinery process pump systems rely on the 1336 PLUS II platform for its robust motor control and network integration. The 1336F-MCB-SP1F ensures that the drive's control intelligence remains fully operational in environments subject to vibration, temperature cycling, and extended run hours between maintenance windows.

Water & Wastewater Treatment: Municipal water treatment facilities deploy 1336 PLUS II drives on raw water intake pumps, aeration blowers, and sludge transfer pumps. The 1336F-MCB-SP1F's sensorless vector capability allows precise flow control without encoder installation on submersible or wet-well pump motors, reducing installation complexity while maintaining process accuracy.

Mining & Metals: In ore processing, conveyor haulage, and mill drive applications, the 1336F-MCB-SP1F supports the high-inertia load management and regenerative braking coordination required for safe, energy-efficient operation of heavy rotating equipment. Its integration with ControlLogix-based safety systems enables coordinated e-stop and safe-torque-off sequences across multi-drive conveyor trains.

Packaging & Material Handling: High-speed packaging lines, palletizers, and sortation systems require drive control boards that respond to speed reference changes within milliseconds. The 1336F-MCB-SP1F's fast PWM regulation loop and direct Logix integration via DeviceNet or EtherNet/IP adapters ensure that the drive tracks PLC-commanded velocity profiles with the accuracy needed for label registration, fill-level control, and case-packing synchronization.

Q1: Is the 1336F-MCB-SP1F a direct drop-in replacement for the original control board in all 1336 PLUS II drive variants? The 1336F-MCB-SP1F is designed as the main control board for the 1336 PLUS II (1336F) drive series. Before installation, verify the drive's catalog number suffix and firmware revision to confirm board compatibility with your specific drive frame size and option configuration. In most standard 1336 PLUS II applications, the board installs directly without parameter re-entry, as drive parameters are stored in the drive's EEPROM rather than on the control board itself. Consult the 1336 PLUS II User Manual (publication 1336F-UM001) for board-level installation and compatibility guidance.

Q2: Can the 1336F-MCB-SP1F support EtherNet/IP integration with a ControlLogix system? The 1336F-MCB-SP1F itself provides the core drive control intelligence; network connectivity is provided by a separately mounted communication adapter module installed in the drive's communication adapter slot. The 1336-GM-E1 EtherNet/IP adapter or 1336-GM-D1 DeviceNet adapter enables the 1336 PLUS II drive to communicate with a ControlLogix or CompactLogix PLC over the respective network. Once the adapter is installed and configured, the PLC can read drive speed, current, fault codes, and write speed references and control commands via explicit or implicit messaging, fully integrating the drive into the Logix control architecture.

Q3: What does the 12-Month Warranty cover, and how is long-term spare board availability managed? Every 1336F-MCB-SP1F supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each board undergoes a pre-shipment functional inspection to verify signal integrity, component condition, and board-level operability. For facilities managing aging 1336 PLUS II drive fleets, we recommend maintaining at least one spare 1336F-MCB-SP1F per drive group to support rapid board swap during unplanned downtime events. Our global inventory network supports fast express shipping to minimize lead time for critical spare requirements. Contact [email protected] or +86 18359268345 for stock confirmation and volume pricing.
