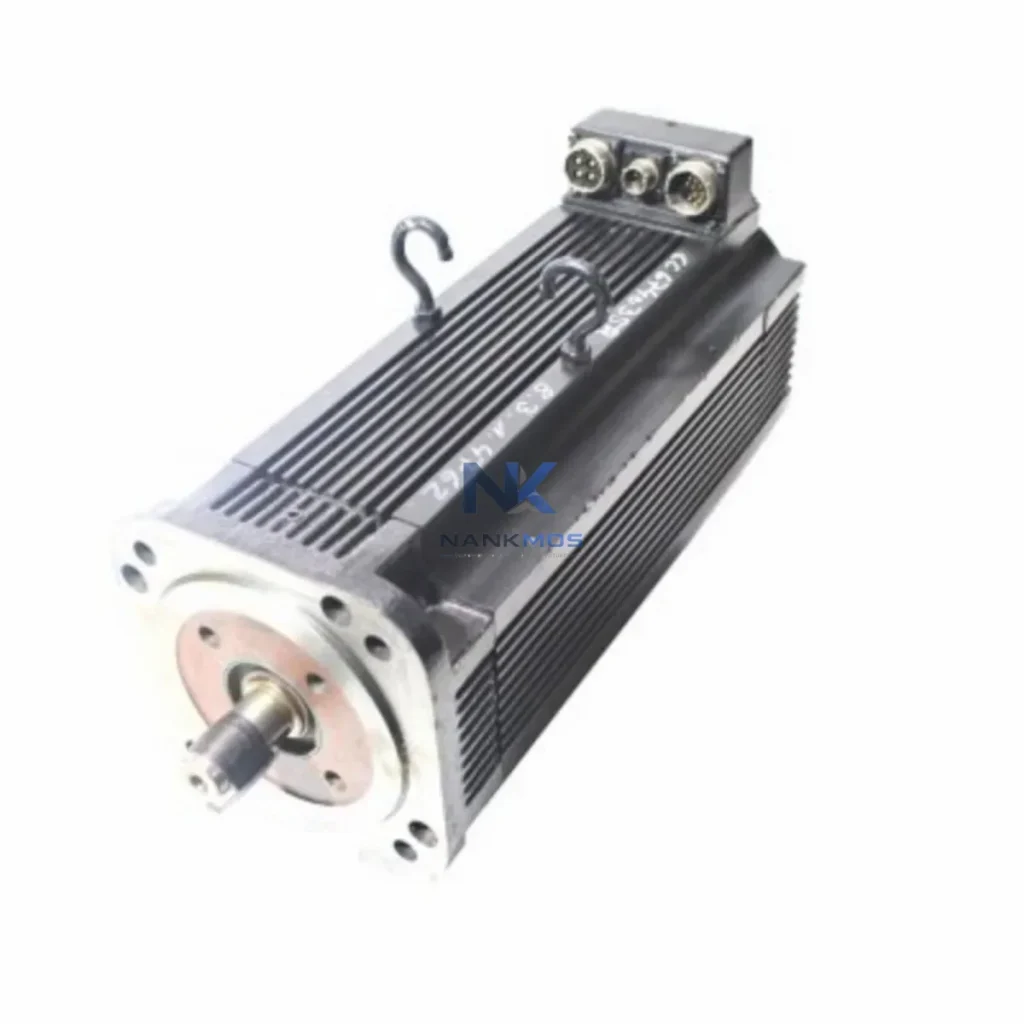

Allen-Bradley 1326AB-B515E-21 Servo Motor

Product Details

1326AB-B515E-21 Product Description

The Allen-Bradley 1326AB-B515E-21 is a precision-engineered servo motor from Rockwell Automation's 1326AB series, purpose-built for energy-conscious industrial environments where load management, drive efficiency, and production line throughput must be optimized simultaneously. Designed to integrate seamlessly with Kinetix servo drive platforms and ControlLogix/CompactLogix PLC architectures, this motor delivers consistent torque output with minimized reactive power losses — making it a core component in any smart production line energy strategy.

At NANKMOS, every 1326AB-B515E-21 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. In-stock inventory ensures rapid deployment to support project timelines without procurement delays.

The 1326AB-B515E-21 is engineered to operate within a tightly integrated power-aware automation architecture. In a typical smart production cell, this servo motor is paired with a Kinetix 6000 multi-axis servo drive or Kinetix 5500 single-axis drive, which governs torque, velocity, and position loops while actively managing bus voltage and regenerative energy recovery. The drive's shared DC bus topology allows energy generated during deceleration phases to be redistributed across other axes — directly reducing net energy draw from the supply rail.

Motion coordination is handled by a ControlLogix L7x or CompactLogix L3x PLC running Studio 5000 Logix Designer, which executes synchronized motion profiles across multiple 1326AB-series motors. This tight PLC-to-drive integration eliminates unnecessary acceleration overshoot and reduces mechanical stress, both of which contribute to lower average power consumption per production cycle.

For energy visibility, the system is complemented by a PowerMonitor 5000 power quality and energy monitoring module, which tracks real-time kWh consumption, power factor, and harmonic distortion at the panel level. Data from the PowerMonitor feeds into a FactoryTalk View SE HMI dashboard, giving operators immediate visibility into motor load trends and energy KPIs without requiring a separate SCADA layer — though integration with FactoryTalk Historian or third-party SCADA platforms via EtherNet/IP is fully supported.

On the I/O side, a 1756-IB16 ControlLogix digital input module captures feedback from proximity sensors and encoder signals, enabling the PLC to adapt motion profiles dynamically based on actual line conditions. This closed-loop feedback reduces unnecessary motor energization during idle or low-demand intervals. A 1492-AIFM analog interface module further supports analog sensor integration for temperature and load monitoring at the motor shaft.

Communication across the production cell is managed over EtherNet/IP, with the 1326AB-B515E-21 and its associated Kinetix drive appearing as standard CIP Motion nodes on the network. This allows seamless integration with upstream MES or energy management systems without protocol conversion overhead.

In high-cycle manufacturing environments — packaging, press automation, conveyor indexing, and robotic assembly — energy waste typically originates from three sources: oversized motor selection, poor velocity profiling, and unmanaged idle-state energization. The 1326AB-B515E-21 addresses all three.

Its servo-class torque density means the motor can be correctly sized for the actual load cycle rather than over-specified for worst-case peaks. When paired with a Kinetix drive executing S-curve or trapezoidal velocity profiles programmed in Studio 5000, acceleration and deceleration energy is managed precisely — reducing peak current draw and the associated thermal load on both the motor and the drive cabinet. Lower thermal load translates directly to reduced cooling energy, longer insulation life, and fewer unplanned maintenance events.

During production pauses or changeover intervals, the PLC can command the drive to hold the motor in a low-power standby state rather than maintaining full flux, further reducing no-load losses. This capability is particularly valuable in multi-shift operations where equipment may sit idle for extended periods between production runs.

From a predictive maintenance perspective, the Kinetix drive continuously monitors motor current signature, velocity error, and thermal state. Anomalies that indicate bearing wear, winding degradation, or mechanical misalignment are flagged before they cause unplanned downtime — preserving production line throughput and avoiding the energy inefficiency associated with degraded motor operation.

NANKMOS maintains ready stock of the 1326AB-B515E-21 to support both planned maintenance replacements and emergency swap-outs. Each unit undergoes pre-shipment functional testing to verify electrical integrity and encoder feedback accuracy before dispatch. The 12-month warranty covers manufacturing defects and provides a documented quality baseline for procurement and maintenance teams.

Q1: What energy savings can I expect when deploying the 1326AB-B515E-21 in a multi-axis servo system?A: When integrated with a Kinetix 6000 shared DC bus drive system, regenerative energy from decelerating axes is redistributed to accelerating axes rather than dissipated as heat. In high-cycle applications, this can reduce net energy consumption by 15–30% compared to non-regenerative drive topologies. Actual savings depend on duty cycle, load inertia, and velocity profile design.

Q2: Is the 1326AB-B515E-21 compatible with current Kinetix drive generations?A: The 1326AB series motors are compatible with Kinetix 6000 and Kinetix 6200 drive families via the standard motor feedback connector. Compatibility with Kinetix 5500 and 5700 platforms should be verified against Rockwell Automation's motor-drive compatibility tool, as feedback interface requirements may vary. NANKMOS technical support can assist with compatibility confirmation prior to order.

Q3: What is the recommended replacement or upgrade path for aging 1326AB-series motors?A: For direct replacement, the 1326AB-B515E-21 is a like-for-like substitute for units of the same frame and feedback configuration. For system upgrades targeting higher efficiency or expanded diagnostic capability, Rockwell Automation's MPL (Kinetix VP) series offers an evolutionary path with enhanced encoder resolution and integrated thermal protection. NANKMOS can advise on cross-reference options based on your existing drive and control platform.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?A: Every 1326AB-B515E-21 unit supplied by NANKMOS is tested for winding resistance balance, insulation integrity, encoder signal quality, and mechanical rotation smoothness prior to dispatch. The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are supported with documentation and replacement coordination through NANKMOS's technical team.
