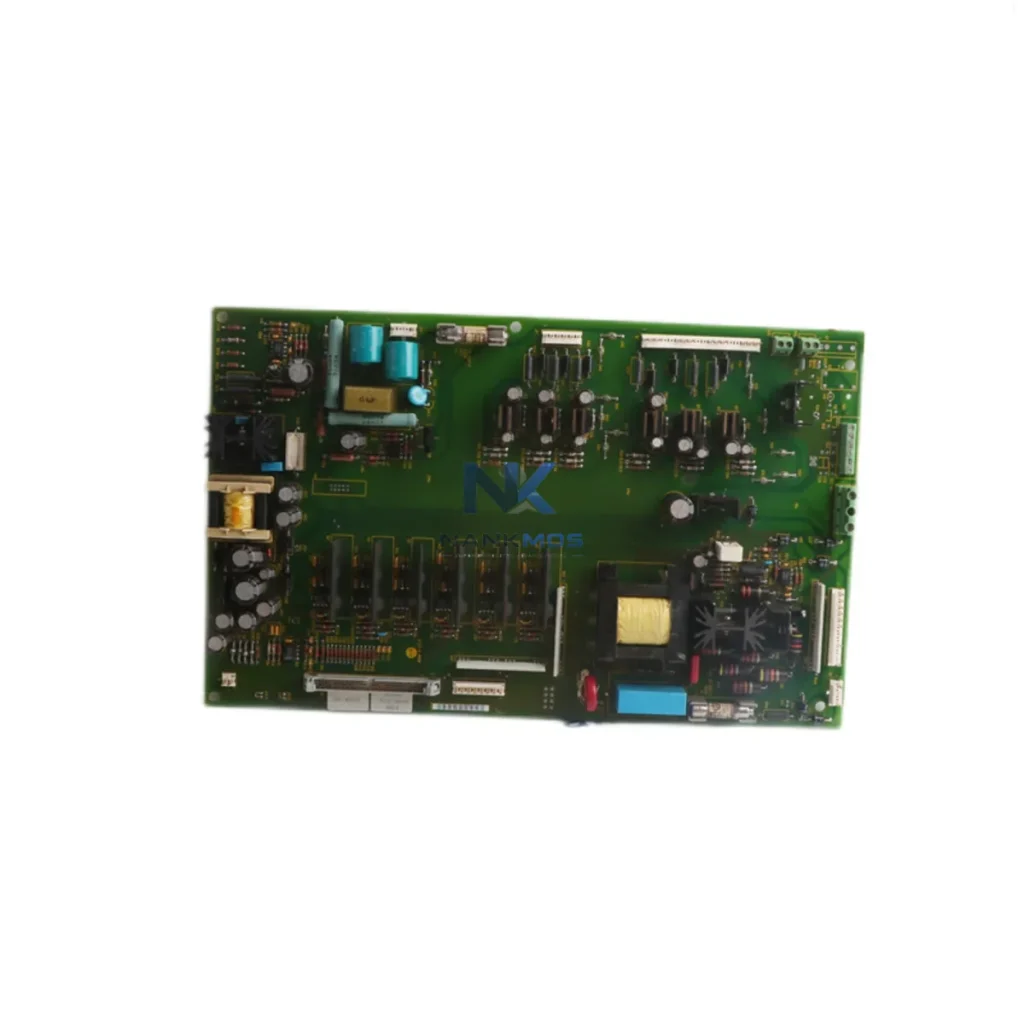

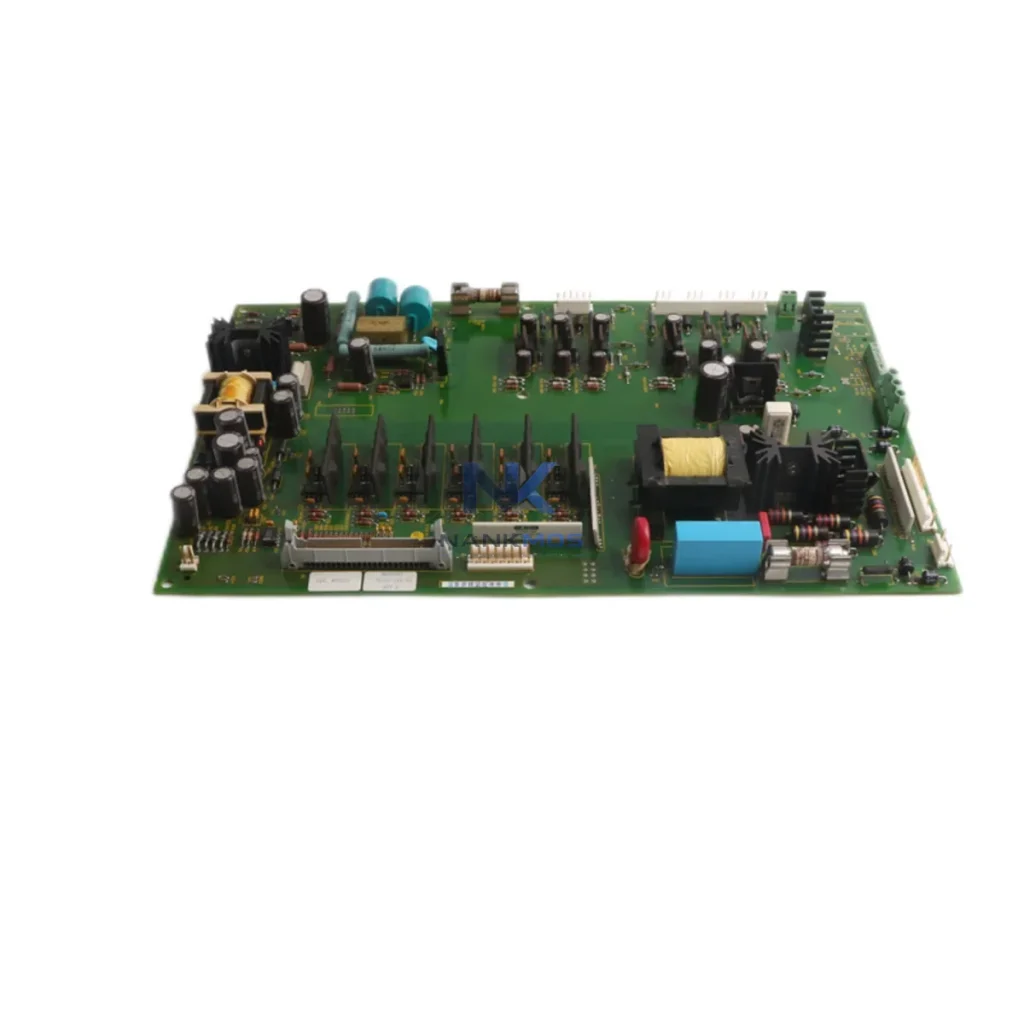

1336-BDB-SP29A 74101-169-53 Product Description

The Allen-Bradley 1336-BDB-SP29A (Part No. 74101-169-53) is a precision-engineered AC drive control board designed for the Rockwell Automation 1336 PLUS II variable frequency drive series. As a core component in energy-aware motor control architectures, this board governs PWM switching logic, gate drive signals, and feedback processing to deliver tightly regulated motor output — reducing unnecessary energy draw, minimizing thermal stress, and extending drive service life across demanding industrial environments.

Deployed in manufacturing cells, water treatment facilities, HVAC systems, and process automation lines, the 1336-BDB-SP29A enables precise speed and torque regulation that directly translates to measurable reductions in kWh consumption. By eliminating the fixed-speed inefficiencies of across-the-line motor starters, this board supports variable load matching — ensuring motors consume only the energy required for each production phase, not peak-rated power at all times.

The 1336-BDB-SP29A does not operate in isolation — it is the intelligence layer within a broader energy-aware automation ecosystem. In a typical smart production line, this board interfaces with a Rockwell Automation ControlLogix or CompactLogix PLC, which issues speed reference commands via DeviceNet or Remote I/O. The PLC continuously monitors process variables from field sensors and adjusts drive output in real time, ensuring the motor tracks actual load demand rather than running at fixed speed.

Upstream of the drive, a PowerMonitor 1000 or PowerMonitor 5000 power metering module captures real-time kW, kVAR, and power factor data, feeding energy consumption metrics back to the SCADA system — typically a Rockwell FactoryTalk View or Wonderware InTouch platform. This closed-loop visibility allows energy managers to identify inefficient operating windows and schedule load-shedding during peak tariff periods.

On the output side, the 1336-BDB-SP29A drives the IGBT switching stage that controls motor shaft speed. When paired with a properly sized 1336-MOD-series dynamic braking module, regenerative energy from deceleration cycles can be dissipated or — in more advanced configurations — fed back into the DC bus shared with adjacent drives, reducing net energy draw across a multi-axis production cell.

The board also works in concert with 1336 PLUS II I/O expansion cards and 1336-GM-series communication adapters to relay drive status, fault codes, and energy counters to the plant's MES or ERP layer. HMI panels such as the PanelView Plus 7 display real-time drive efficiency metrics, enabling operators to respond immediately to thermal warnings or efficiency degradation before they escalate into unplanned downtime.

For servo-intensive lines where the 1336 PLUS II handles auxiliary conveyor or pump drives alongside Kinetix 5700 servo drives, the 1336-BDB-SP29A ensures the AC drive segment of the system maintains its energy budget, preventing the servo bus from absorbing reactive power spikes generated by poorly regulated induction motor loads.

Industrial facilities running continuous production shifts face compounding energy costs when drive components operate outside their optimal efficiency band. A degraded or failed control board in the 1336 PLUS II drive can cause erratic PWM output, leading to motor current harmonics, elevated winding temperatures, and increased bearing wear — all of which translate to higher energy consumption and shorter motor service intervals.

Replacing a worn or faulty control board with a tested 1336-BDB-SP29A restores the drive to factory-specification switching accuracy. This directly reduces total harmonic distortion (THD) on the motor supply, lowers I²R losses in motor windings, and stabilizes the thermal profile of the drive enclosure — reducing the duty cycle of enclosure cooling fans and further trimming auxiliary energy consumption.

From a production rhythm perspective, a stable drive control board eliminates the micro-stoppages and fault-induced restarts that disrupt line throughput. Each unplanned stop on a conveyor, pump, or fan drive not only wastes the kinetic energy stored in the load but also triggers a high-inrush restart current that spikes the facility's demand charge. Consistent, fault-free operation enabled by a properly functioning 1336-BDB-SP29A keeps production cadence steady and demand charges predictable.

Predictive maintenance programs benefit directly from a reliable control board. When the drive operates within normal parameters, vibration sensors, temperature probes, and current signature analyzers connected to the 1336 PLUS II can establish accurate baseline signatures. Deviations from these baselines — indicating bearing wear, coupling misalignment, or impeller fouling — are detected earlier, allowing maintenance teams to schedule interventions during planned downtime windows rather than reacting to catastrophic failures.

In multi-drive installations where several 1336 PLUS II units share a common DC bus or operate on the same feeder circuit, a single malfunctioning control board can introduce voltage disturbances that affect neighboring drives. Proactive board replacement with a stocked 1336-BDB-SP29A eliminates this cascade risk and maintains the energy efficiency of the entire drive bank.

Q1: How does the 1336-BDB-SP29A contribute to measurable energy savings on a production line? By restoring precise PWM control to the 1336 PLUS II drive, this board ensures the motor operates at the exact speed and torque required by the load. Variable-speed operation typically reduces motor energy consumption by 20–50% compared to fixed-speed operation on variable-torque loads such as pumps, fans, and conveyors. A correctly functioning control board is the prerequisite for achieving these savings consistently.

Q2: Is the 1336-BDB-SP29A compatible with all 1336 PLUS II drive frame sizes? The 1336-BDB-SP29A (74101-169-53) is designed for specific frame configurations within the 1336 PLUS II series. Compatibility should be verified against the drive's nameplate frame designation and the Rockwell Automation 1336 PLUS II spare parts catalog before installation. Our technical team can assist with cross-referencing if the frame designation is unclear.

Q3: What testing and inspection process does this board undergo before shipment? Each 1336-BDB-SP29A unit is functionally tested under load conditions prior to dispatch. Testing covers gate drive signal integrity, PWM output waveform accuracy, and thermal performance under simulated operating conditions. A full inspection report is available upon request. All units ship with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability for the 1336-BDB-SP29A? This part is maintained in stock for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for international shipments. For urgent production line recovery situations, expedited shipping options are available. Contact our team to confirm current inventory levels and arrange priority fulfillment.
