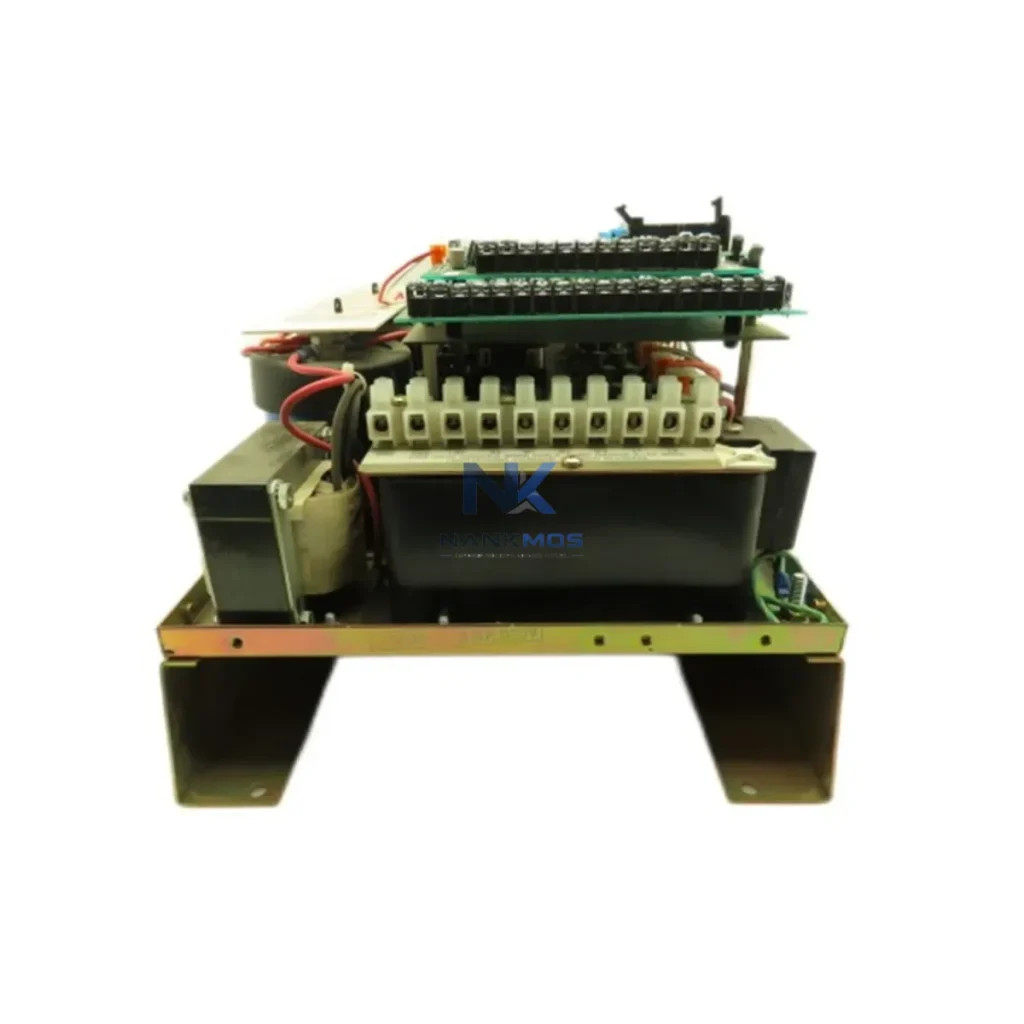

Allen-Bradley 1336-C003-EOD AC Drive

Product Details

1336-C003-EOD Product Description

The Allen-Bradley 1336-C003-EOD is a system-matched AC drive engineered for seamless integration within the 1336 PLUS drive family and the broader Rockwell Automation control architecture. Designed to deliver precise motor speed regulation, energy-efficient operation, and robust signal fidelity, this drive module occupies a critical role in the drive layer of distributed control systems deployed across manufacturing, energy, water treatment, petrochemical, and process industries. Its architecture-ready design ensures that engineers can deploy it as a drop-in component within existing 1336 PLUS drive cabinets without requiring extensive re-engineering of the control panel or communication backbone.

Within a layered industrial control architecture, the 1336-C003-EOD functions as the execution-layer interface between the programmable logic controller and the motor load. It receives velocity and torque references from upstream controllers such as the Allen-Bradley ControlLogix 1756-L71 or CompactLogix 1769-L30ER, translates those references into precise PWM output signals, and feeds back real-time drive status to the supervisory layer via the configured communication network. This bidirectional signal flow is fundamental to achieving closed-loop process control, and the 1336-C003-EOD is engineered to maintain signal integrity across the full operating range without introducing latency or harmonic distortion that could compromise upstream PID loop performance.

The drive's modular architecture aligns with the 1336 PLUS platform's philosophy of field-replaceable components, allowing maintenance teams to swap the 1336-C003-EOD without powering down adjacent drive bays or disrupting the communication network. This design philosophy directly reduces mean time to repair and supports the high-availability requirements of continuous process operations where unplanned downtime carries significant financial and safety consequences.

The 1336-C003-EOD achieves its full performance potential when deployed as part of a cohesive Rockwell Automation control architecture. At the controller layer, it interfaces with the Allen-Bradley ControlLogix 1756-L71 or CompactLogix 1769-L30ER via the configured network adapter, receiving motion and speed references through structured Add-On Instructions (AOIs) that standardize drive command formatting across the entire control program. The controller's task scheduler ensures that drive reference updates are synchronized with the PLC scan cycle, eliminating timing jitter that could cause speed oscillation in precision applications.

Power delivery to the 1336-C003-EOD is managed by the Allen-Bradley 1336-PB-SP2 power module or equivalent 1336 PLUS power structure, which conditions incoming three-phase supply voltage and provides the DC bus from which the drive's inverter section synthesizes the variable-frequency output. Upstream of the power module, a 1321-3R line reactor attenuates input harmonic currents and protects the drive from voltage transients originating on the facility power distribution network, extending drive service life in environments with poor power quality.

For communication integration, the 1336-GM-2 DeviceNet communication adapter or 1336-GM-7 Remote I/O adapter mounts directly to the 1336-C003-EOD's communication port, enabling the drive to participate in the plant-wide DeviceNet or Remote I/O network alongside other field devices. This network integration allows the ControlLogix controller to poll drive status — including output frequency, motor current, fault codes, and thermal load — at configurable scan rates, supporting predictive maintenance workflows without requiring dedicated analog feedback wiring.

At the I/O layer, the Allen-Bradley 1756-IB16 digital input module and 1756-OF8 analog output module provide the hardwired interlock and reference signals that complement the network-based drive control, ensuring that safety-critical stop commands and speed references remain available even during network communication faults. The 1756-EN2T EtherNet/IP bridge module extends supervisory visibility to the SCADA layer, allowing operators to monitor drive performance from the PanelView Plus 7 HMI without requiring dedicated serial connections to each drive.

For applications requiring drive redundancy, the 1336 PLUS architecture supports hot-standby configurations using paired drives with automatic transfer logic implemented in the ControlLogix controller. The 1336-C003-EOD can be configured as either the primary or standby drive, with the controller monitoring drive health via the DeviceNet network and executing automatic switchover within one PLC scan cycle upon detection of a drive fault condition. This redundancy architecture is particularly valuable in critical pump and fan applications where motor stoppage would trigger process safety shutdowns.

Terminal block wiring within the control cabinet is standardized using Allen-Bradley 1492-W3 terminal blocks and 1492-CABLE series pre-wired cables, which reduce wiring errors during commissioning and simplify future maintenance by providing clearly labeled, color-coded termination points for power, control, and feedback signals. Signal isolation between the drive's analog reference inputs and the controller's analog output modules is achieved using Phoenix Contact MINI MCR signal isolators, preventing ground loop interference from corrupting speed reference signals in installations where the drive and controller share a common panel but are powered from different distribution circuits.

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the 1336-C003-EOD drives conveyor motors, rotary indexing tables, and cooling fan arrays under ControlLogix supervisory control. Its sensorless vector control mode delivers the torque linearity required for smooth product transfer at variable line speeds, while the DeviceNet integration allows production supervisors to adjust line speed setpoints from the SCADA system without requiring local panel access.

Power Generation & Energy: In power plant auxiliary systems, the 1336-C003-EOD controls boiler feed pump motors, cooling water circulation pumps, and induced draft fan drives. The drive's ability to operate across a wide speed range with high efficiency at partial load directly reduces auxiliary power consumption, contributing to plant heat rate improvement. Integration with the plant DCS via Remote I/O allows the drive to participate in automatic generation control sequences.

Petrochemical & Refining: In hazardous area applications, the 1336-C003-EOD is installed in pressurized control enclosures driving process pumps and compressor auxiliaries. Its robust fault detection — including overcurrent, overvoltage, undervoltage, and thermal overload protection — ensures that drive faults are reported to the safety instrumented system before they escalate to process upsets. The drive's parameter memory retains configuration across power cycles, eliminating the need for re-commissioning after planned shutdowns.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 1336-C003-EOD on raw water intake pumps, aeration blowers, and sludge transfer pumps. Variable speed operation of these loads reduces energy consumption by 30–50% compared to fixed-speed operation with throttling valves, while the drive's sleep/wake function automatically stops the motor during low-demand periods and restarts it when process demand resumes.

Mining & Minerals Processing: In ore processing plants, the 1336-C003-EOD drives conveyor belt motors, ball mill auxiliaries, and flotation cell agitators. The drive's high starting torque capability — available in sensorless vector mode — allows it to accelerate heavily loaded conveyors without requiring oversized motor starters, reducing peak demand charges and mechanical stress on drive train components.

Q1: Is the 1336-C003-EOD compatible with existing 1336 PLUS drive cabinets and communication adapters?Yes. The 1336-C003-EOD is fully compatible with the 1336 PLUS drive family's modular architecture. It accepts all standard 1336-GM-x series communication adapter modules, including the 1336-GM-2 (DeviceNet), 1336-GM-7 (Remote I/O), and 1336-GM-5 (DH-485), allowing it to replace a failed drive module in an existing cabinet without requiring changes to the communication wiring or controller program. Parameter sets from the replaced drive can be transferred to the 1336-C003-EOD using the 1336-MOD-L2E HIM module or DriveExplorer software, minimizing recommissioning time.

Q2: What installation and commissioning steps are required to integrate the 1336-C003-EOD into a ControlLogix-based control architecture?Integration requires mounting the drive in the designated chassis bay, connecting the three-phase power input and motor output terminals per the 1336 PLUS wiring diagram, installing the appropriate communication adapter module, and configuring the drive parameters using the 1336-MOD-L2E HIM or DriveExplorer software. In the ControlLogix controller, the drive is added to the DeviceNet or Remote I/O network configuration using RSNetWorx for DeviceNet or the I/O tree in Studio 5000 Logix Designer. Drive-specific AOIs are then imported into the controller project to standardize command and status data mapping. Full commissioning typically requires 2–4 hours per drive in a new installation.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?The 12-Month Warranty covers manufacturing defects and functional failures occurring under normal operating conditions from the date of shipment. It includes replacement or repair of defective units at no charge, with pre-shipment functional testing on all replacement units to verify performance before dispatch. For long-term maintenance, we maintain in-stock inventory of the 1336-C003-EOD and related 1336 PLUS components to support planned maintenance cycles and emergency replacements. Technical support for parameter configuration, fault diagnosis, and architecture integration is available via [email protected] or +86 18359268345.
