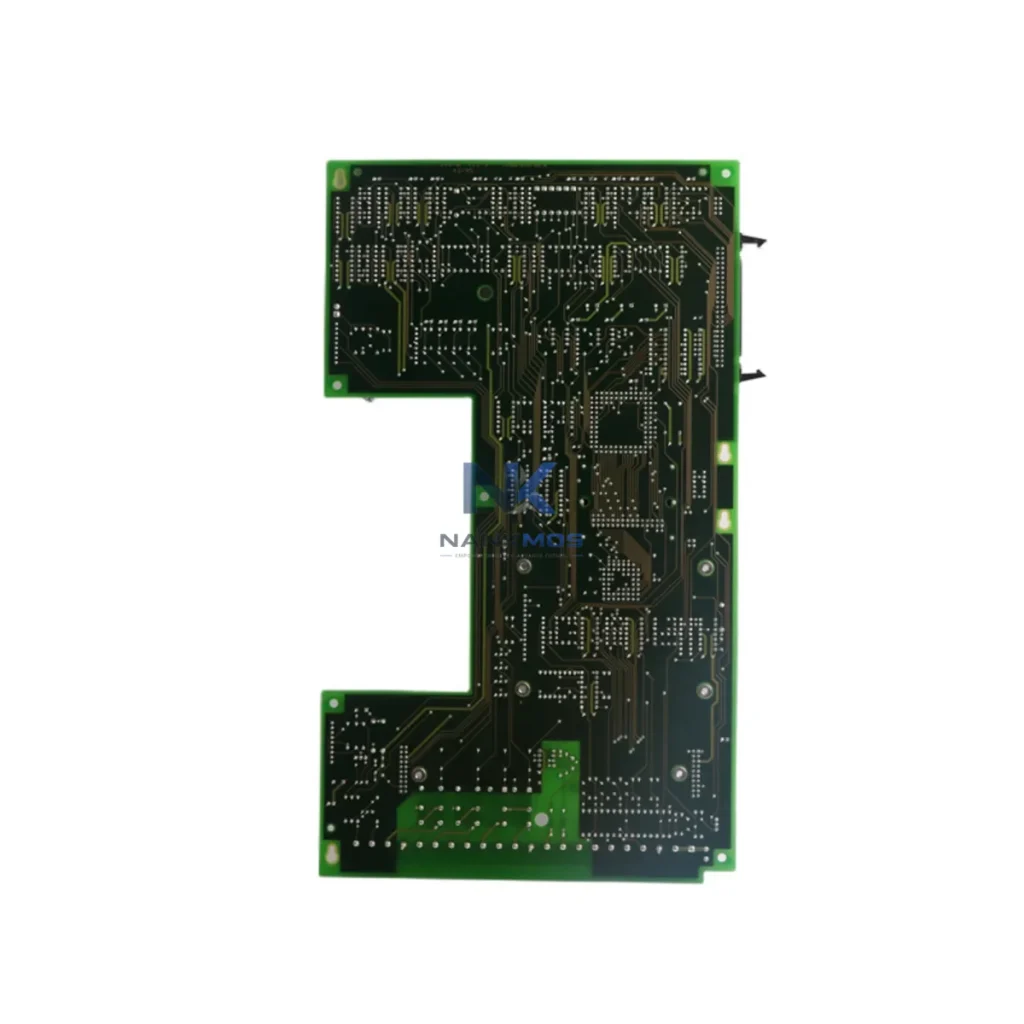

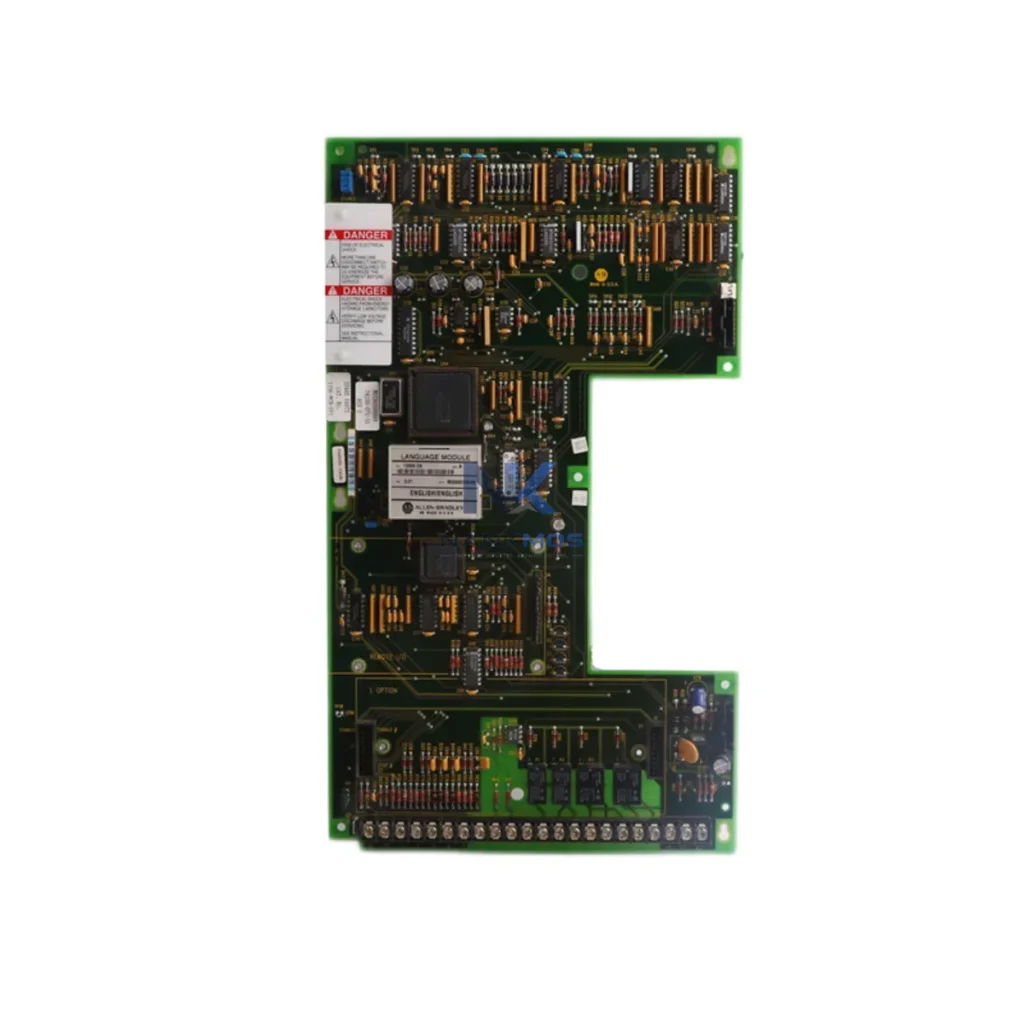

Allen-Bradley 1336-MCB-SP1 74100-071-51 VFD Control Board

Product Details

1336-MCB-SP1 74100-071-51 Product Description

The Allen-Bradley 1336-MCB-SP1 (Part No. 74100-071-51) is the main control board engineered for the 1336 Plus series of AC variable frequency drives. Designed to deliver precise motor speed regulation and energy-aware drive management, this board sits at the heart of one of Rockwell Automation's most widely deployed VFD platforms across manufacturing, water treatment, HVAC, and process industries. Whether you are maintaining an existing 1336 Plus installation or restoring a critical production asset, the 1336-MCB-SP1 provides the control intelligence needed to sustain efficient, low-waste motor operation across demanding industrial environments.

In smart production lines where energy accountability is non-negotiable, the 1336-MCB-SP1 enables the 1336 Plus drive to execute closed-loop speed and torque control with minimal switching losses. By maintaining precise output frequency and voltage to the connected AC induction motor, the board directly reduces reactive power draw, limits unnecessary motor heating, and supports stable production throughput without energy spikes. This makes it a foundational component in any energy optimization strategy targeting motor-driven loads — which typically account for 60–70% of total factory electricity consumption.

The 1336-MCB-SP1 does not operate in isolation — it functions as the command center within a broader, energy-conscious automation architecture. In a typical Rockwell-based production cell, the 1336 Plus drive controlled by this board receives speed references from an Allen-Bradley ControlLogix or CompactLogix PLC via DH+ or ControlNet communication modules such as the 1336-GM1 or 1336-BRD-SP1 gateway boards. The PLC continuously adjusts the drive's output based on real-time process feedback, ensuring the motor runs only at the speed the load demands — a core principle of variable-speed energy management.

On the operator interface side, a PanelView 550 or PanelView 900 HMI connected via DH+ provides operators with live drive status, output frequency, current draw, and fault diagnostics. This visibility allows production teams to identify inefficient operating points and intervene before energy waste compounds into measurable cost overruns. Paired with a PowerMonitor 3000 or PowerMonitor 500 power quality meter installed upstream of the drive panel, the system can log kWh consumption per production cycle, enabling granular energy benchmarking and ISO 50001 reporting.

For multi-axis or coordinated motion applications, the 1336 Plus drive — restored to full function by the 1336-MCB-SP1 — can be integrated alongside Kinetix 6000 or Ultra 3000 servo drives on a shared ControlNet backbone. While the servo drives handle precision positioning, the 1336 Plus manages bulk material movement or auxiliary conveyor loads, with the PLC orchestrating energy load sequencing to prevent simultaneous peak current draws. This load-staggering strategy, enabled by coordinated PLC programming, can reduce peak demand charges by 10–20% in facilities with time-of-use utility tariffs.

Analog and digital I/O modules — such as the 1756-IF8 analog input module or 1756-OB16 digital output module — feed process sensor data (pressure transducers, flow meters, temperature sensors) into the PLC, which then issues dynamic speed commands to the 1336 Plus. This closed-loop, sensor-driven speed control is the most effective method for eliminating throttling losses in pump and fan applications, where affinity laws dictate that a 20% speed reduction yields approximately 50% energy savings.

Replacing a failed or degraded main control board with a tested 1336-MCB-SP1 restores the 1336 Plus drive to its designed energy performance envelope. A drive operating with a faulty control board often defaults to fixed-frequency or open-loop operation, losing all variable-speed energy benefits and running the motor at full speed regardless of load — a condition that can increase energy consumption by 30–50% compared to properly regulated variable-speed operation.

Beyond energy recovery, restoring the control board eliminates the fault conditions that trigger unplanned shutdowns. Unplanned downtime in motor-driven production lines carries a dual energy penalty: the energy wasted during the fault event itself, and the energy surge required to restart cold equipment and bring production back to rated throughput. By maintaining a spare 1336-MCB-SP1 in your MRO inventory, maintenance teams can execute board-level replacements in under two hours, minimizing both downtime duration and the associated energy and productivity losses.

Predictive maintenance programs that monitor drive output current, DC bus voltage, and output frequency trends — data all managed through the 1336-MCB-SP1's control logic — can identify developing motor or mechanical faults weeks before failure. When integrated with a FactoryTalk View SE SCADA system, these drive parameters become part of a plant-wide energy and equipment health dashboard, enabling maintenance planners to schedule interventions during planned downtime windows rather than reacting to emergency failures.

For facilities running multiple 1336 Plus drives across pump stations, conveyor systems, or HVAC air handling units, standardizing on the 1336-MCB-SP1 as the replacement control board simplifies spare parts management, reduces technician training requirements, and ensures consistent drive behavior across all motor control centers. This standardization is itself an energy management strategy: consistent, well-maintained drives operate closer to their efficiency curves than aging or mismatched equipment.

Q1: How does the 1336-MCB-SP1 contribute to energy savings in pump and fan applications? The 1336-MCB-SP1 restores the 1336 Plus drive's ability to execute variable-speed control, which is the primary mechanism for energy savings in centrifugal pump and fan loads. By allowing the drive to reduce motor speed in response to reduced process demand — rather than running at full speed with a throttling valve or damper — the board enables energy reductions of 30–60% in these applications. A drive with a failed control board loses this capability entirely and reverts to inefficient fixed-speed operation.

Q2: Is the 1336-MCB-SP1 compatible with all 1336 Plus drive frame sizes and voltage ratings? The 1336-MCB-SP1 (74100-071-51) is designed for specific frame configurations within the 1336 Plus series. Before installation, verify compatibility against your drive's nameplate data and the 1336 Plus User Manual (Publication 1336 PLUS-5.0). If you are unsure of compatibility, contact us with your drive's full catalog number and we will confirm fitment prior to shipment.

Q3: What testing is performed on the 1336-MCB-SP1 before shipment? Every 1336-MCB-SP1 unit undergoes full functional testing prior to shipment, including power-up verification, communication interface checks, and output signal validation. Units that do not pass our test protocol are not shipped. All tested units are covered by a 12-Month Warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q4: What is the recommended replacement procedure and lead time? Board-level replacement of the 1336-MCB-SP1 should be performed by a qualified drive technician following Rockwell Automation's 1336 Plus service documentation. Ensure the drive is fully de-energized and DC bus voltage has discharged before handling the control board. Units in stock ship within 1–3 business days. For urgent requirements, contact us directly to confirm same-day dispatch availability.
