1336-PB-SP2B 74101-502-51 Product Description

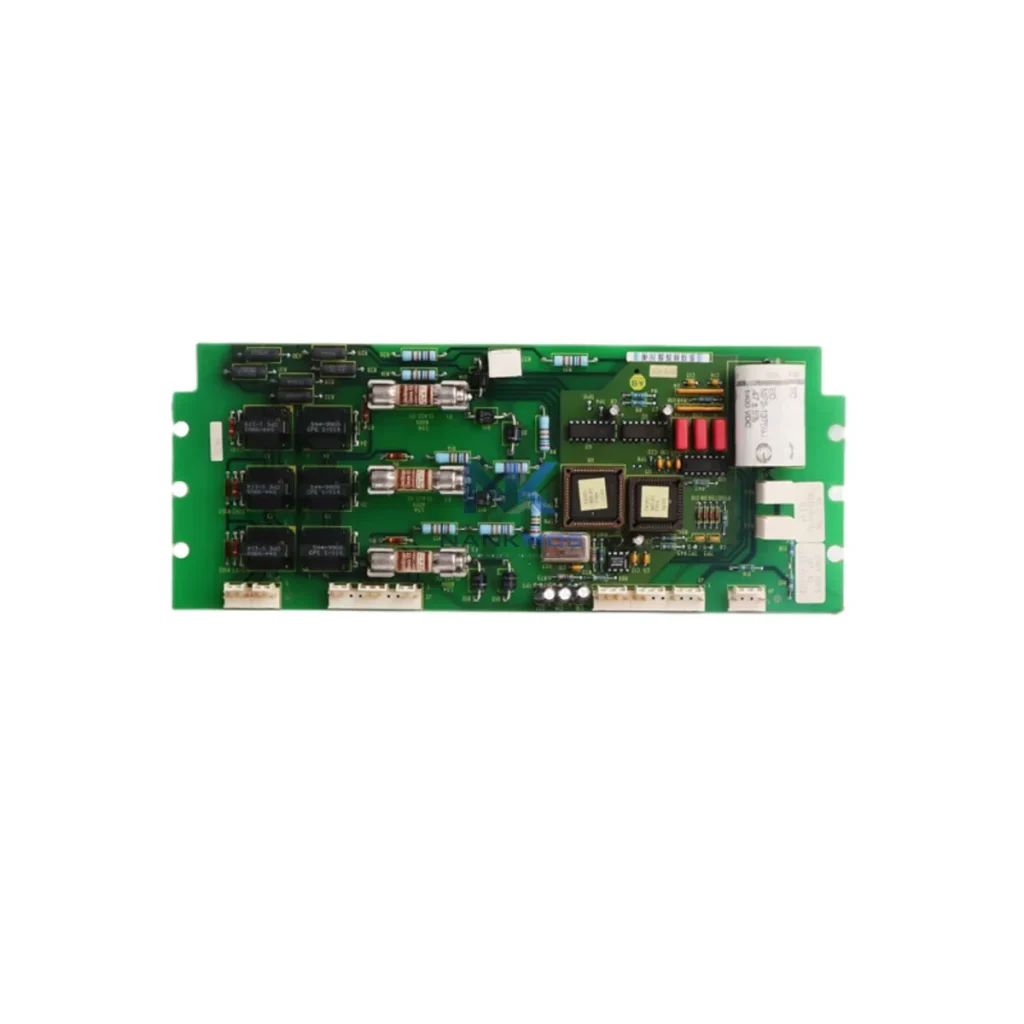

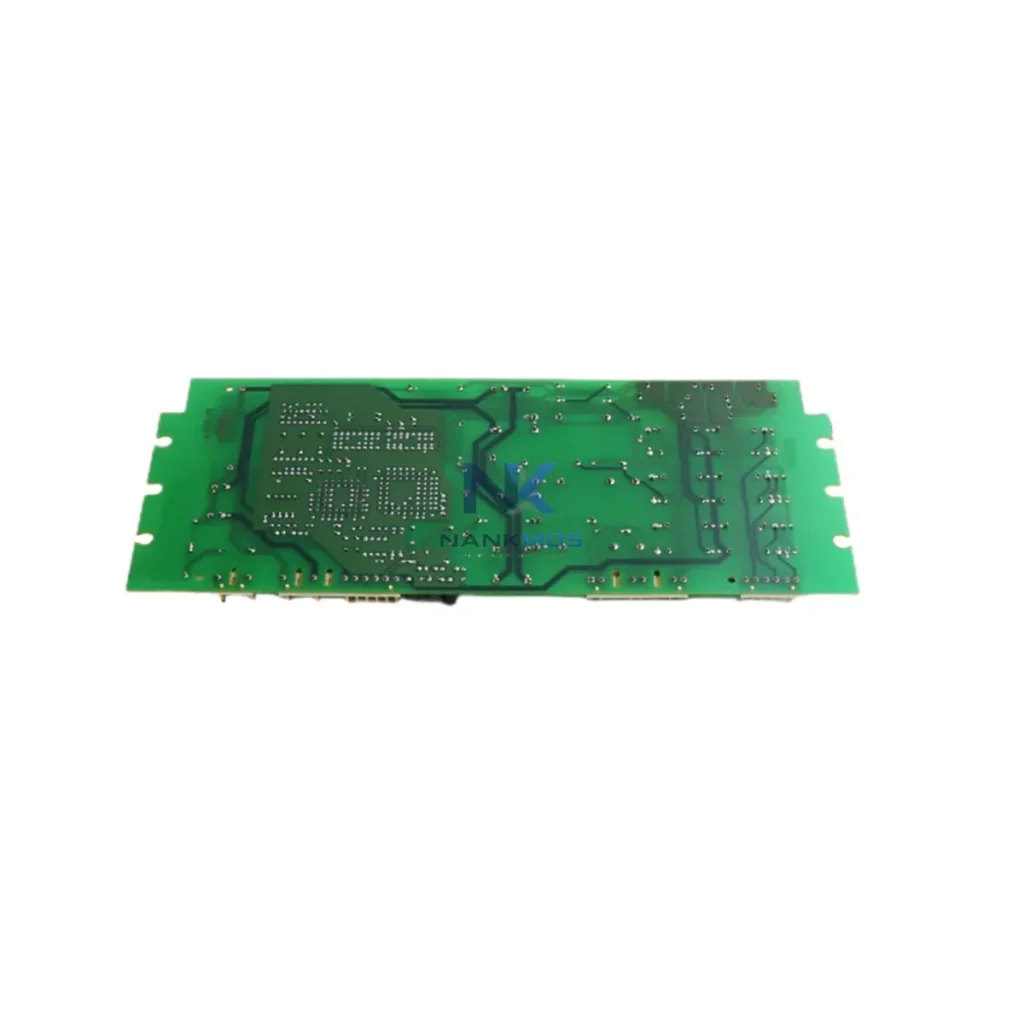

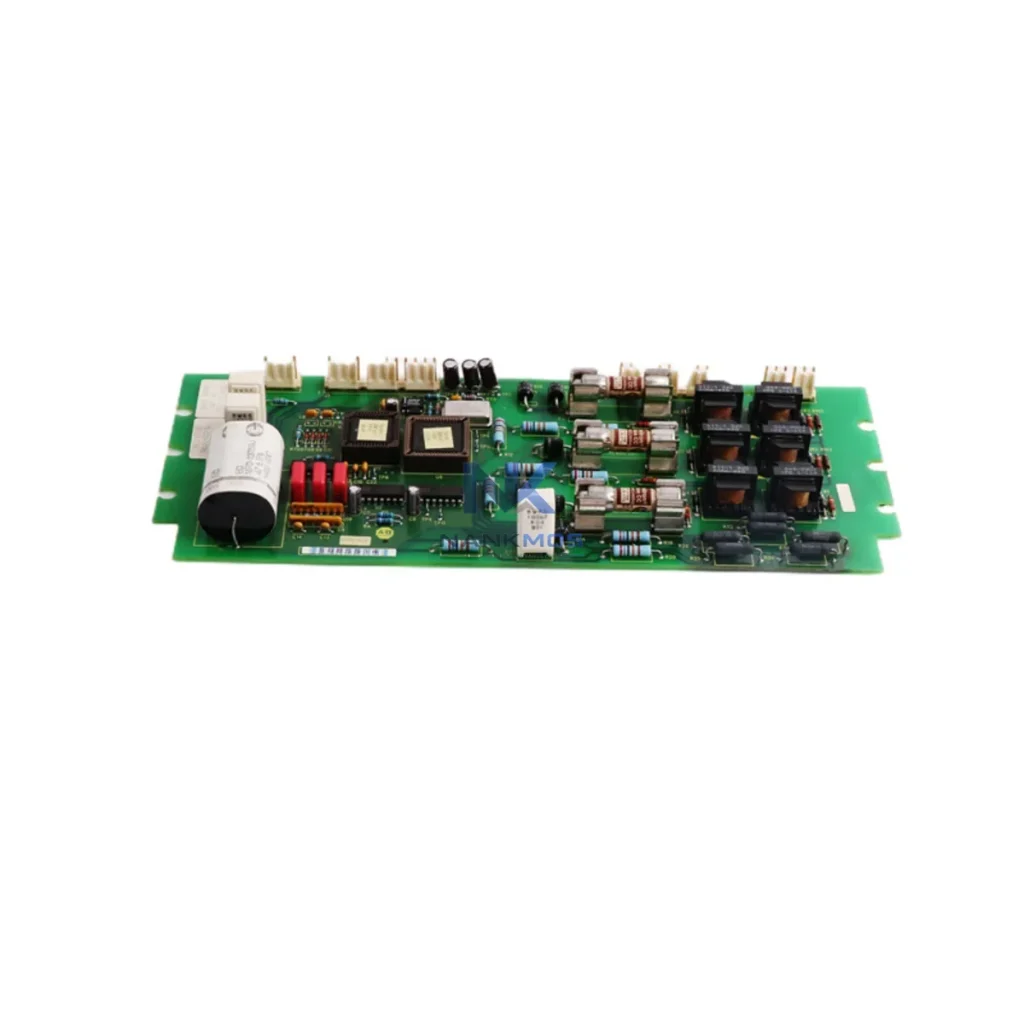

The Allen-Bradley 1336-PB-SP2B is a precision-engineered precharge PC board designed for the 1336 Plus series of AC variable frequency drives. In modern smart factory environments, the precharge circuit is a critical node in the drive's power-up sequence — protecting DC bus capacitors from inrush current while simultaneously enabling the drive to participate in the plant-wide industrial data network. The 1336-PB-SP2B integrates seamlessly into Rockwell Automation's connected drive architecture, supporting real-time status feedback, fault diagnostics, and remote monitoring across DeviceNet, Data Highway Plus (DH+), and Remote I/O communication backbones. As industrial facilities transition toward IIoT-enabled production lines, the reliability of every drive component — including the precharge board — directly impacts network uptime, data continuity, and SCADA visibility.

In a fully connected smart factory, the 1336-PB-SP2B operates as part of a layered automation architecture where every drive event — from precharge completion to fault detection — is captured and transmitted upstream through the plant network. The data flow begins at the field device level: sensors and encoders feed real-time process signals into the 1336 Plus drive, which processes speed, torque, and current data locally. The precharge board governs the safe energization of the drive's DC bus, and its status is continuously monitored by the drive's main control board, such as the Allen-Bradley 1336-BDB-SP1 or 1336-MOD-C2 communication adapter module.

Once the drive is online, the 1336 Plus communicates with an Allen-Bradley PLC-5 or ControlLogix L-series controller via DeviceNet or DH+ protocol. The PLC aggregates drive status, output frequency, fault codes, and precharge state into a structured data table that is polled by the plant SCADA system — typically a Rockwell FactoryTalk View SE or RSView32 HMI platform. Operators at the control room level can monitor drive health, acknowledge alarms, and initiate remote resets without physical access to the motor control center (MCC).

For facilities using Remote I/O (RIO) backbones, the 1336 Plus drive with a properly functioning 1336-PB-SP2B integrates into rack-based I/O systems alongside 1771-series I/O modules, enabling synchronized control of multiple drives from a single PLC rack. In distributed architectures, an Allen-Bradley 1747-SDN DeviceNet Scanner or 1756-DNB ControlLogix DeviceNet Bridge module routes drive data to the Ethernet/IP backbone, where it becomes accessible to MES platforms, OPC-UA data servers, and cloud-based analytics dashboards.

Edge gateways such as the Moxa MGate MB3170 or Prosoft Technology MVI56-DFNT further extend connectivity by bridging legacy drive protocols to modern Modbus TCP or EtherNet/IP networks, ensuring that even older 1336 Plus installations can participate in IIoT data pipelines. Variable frequency drives in adjacent process lines — including Allen-Bradley PowerFlex 40 and PowerFlex 700 series — share the same DeviceNet segment, allowing unified drive management from a single SCADA node. Industrial Ethernet switches, such as the Stratix 2000 or Stratix 5700, provide the managed switching layer that prioritizes drive control traffic and maintains deterministic communication latency across the factory floor.

Many industrial sites operating legacy 1336 Plus drive systems face a common set of challenges: protocol fragmentation, data silos between drive-level diagnostics and plant SCADA, and limited remote visibility into drive health. The 1336-PB-SP2B, as a factory-original replacement board, directly addresses these issues by restoring the drive's full communication capability and ensuring that precharge status data flows uninterrupted to the control layer.

When a precharge board fails or degrades, the drive loses its ability to safely energize the DC bus, triggering fault codes that appear in the PLC data table but cannot be remotely cleared without physical intervention — creating a data gap between the field device and the SCADA alarm management system. Replacing the 1336-PB-SP2B with a tested, warranty-backed unit restores the drive's participation in the DeviceNet or DH+ network, re-establishing the alarm feedback loop and enabling remote fault acknowledgment from the HMI.

For sites pursuing production line transparency and OEE improvement, maintaining a spare 1336-PB-SP2B in inventory eliminates unplanned downtime caused by precharge failures. Each unit shipped by NANKMOS undergoes pre-shipment functional testing to verify board integrity, connector continuity, and compatibility with the 1336 Plus drive platform. This ensures that replacement boards integrate immediately into the existing network topology without requiring reconfiguration of DeviceNet node addresses, DH+ station IDs, or SCADA tag mappings. System expansion — adding new 1336 Plus drives to an existing DeviceNet segment — is also simplified when all drives carry verified, matched precharge boards that conform to the original Rockwell Automation hardware specification.

Q1: Does the 1336-PB-SP2B support DeviceNet and DH+ communication simultaneously? The 1336-PB-SP2B is the precharge control board within the 1336 Plus drive and does not itself manage protocol selection. Protocol support (DeviceNet, DH+, or Remote I/O) is determined by the communication adapter module installed in the drive — such as the 1336-GM1 or 1336-MOD-C2. The precharge board must be functional for the drive to power up and participate in any network communication. All NANKMOS units are tested for full compatibility with the 1336 Plus communication architecture.

Q2: How does a faulty precharge board affect SCADA and HMI visibility? A failed precharge board prevents the drive from completing its power-up sequence, which causes the drive to drop off the DeviceNet or DH+ network. This results in lost drive tags in the SCADA system, unacknowledged alarms in FactoryTalk View or RSView32, and potential PLC fault conditions if the drive is part of a coordinated motion or process control loop. Restoring the precharge board immediately re-establishes network presence and data visibility.

Q3: What is the lead time and warranty coverage for the 1336-PB-SP2B? NANKMOS maintains stock of the 1336-PB-SP2B (74101-502-51) and ships within 1–3 business days of order confirmation. Every unit is covered by a 12-Month Warranty against manufacturing defects and functional failure. Pre-shipment testing is performed on each board to verify electrical integrity and connector compatibility before dispatch.

Q4: Can the 1336-PB-SP2B be used in expanded drive networks with additional 1336 Plus units? Yes. The 1336-PB-SP2B is a direct replacement board for any 1336 Plus drive requiring precharge circuit restoration. When expanding a DeviceNet or Remote I/O network with additional 1336 Plus drives, each drive must have a fully functional precharge board to complete its startup sequence and register on the network. NANKMOS can supply multiple units for system expansion projects, with consistent hardware revision and test certification across all boards.
