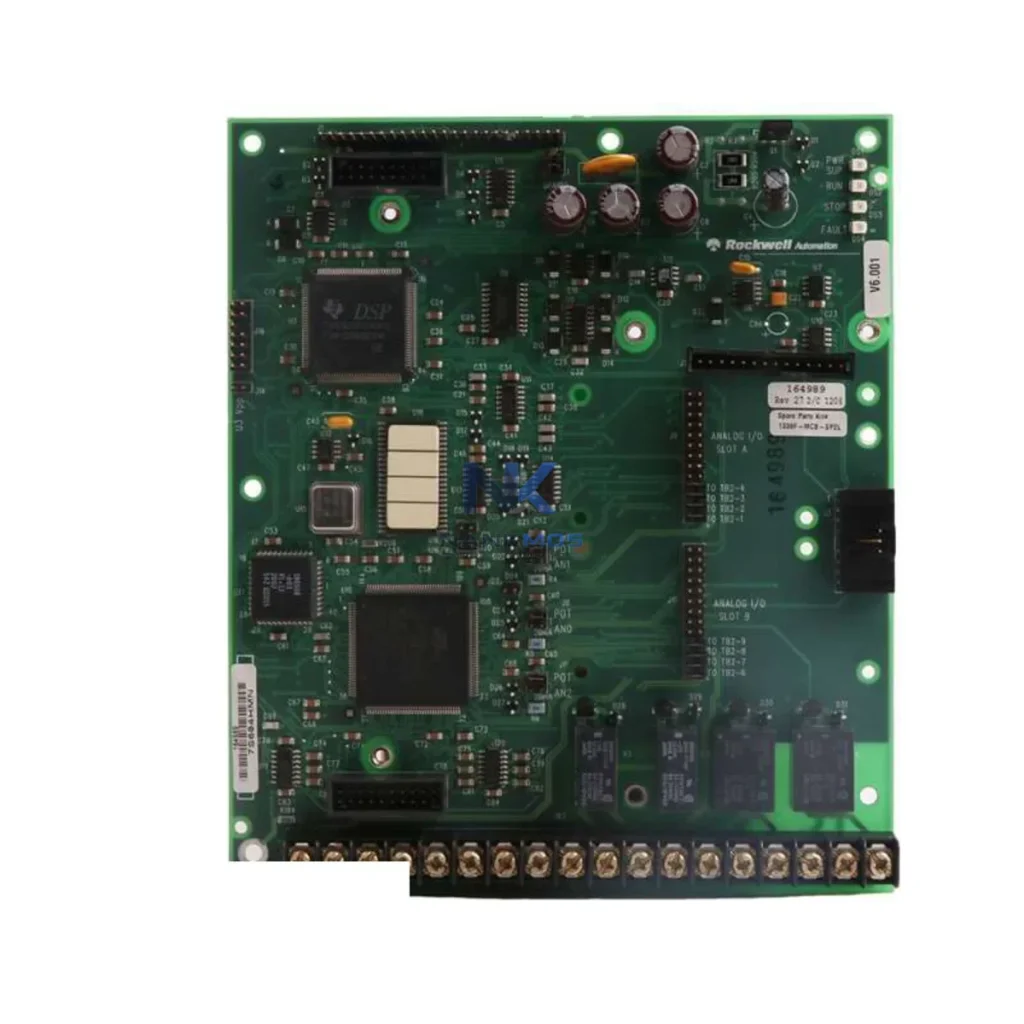

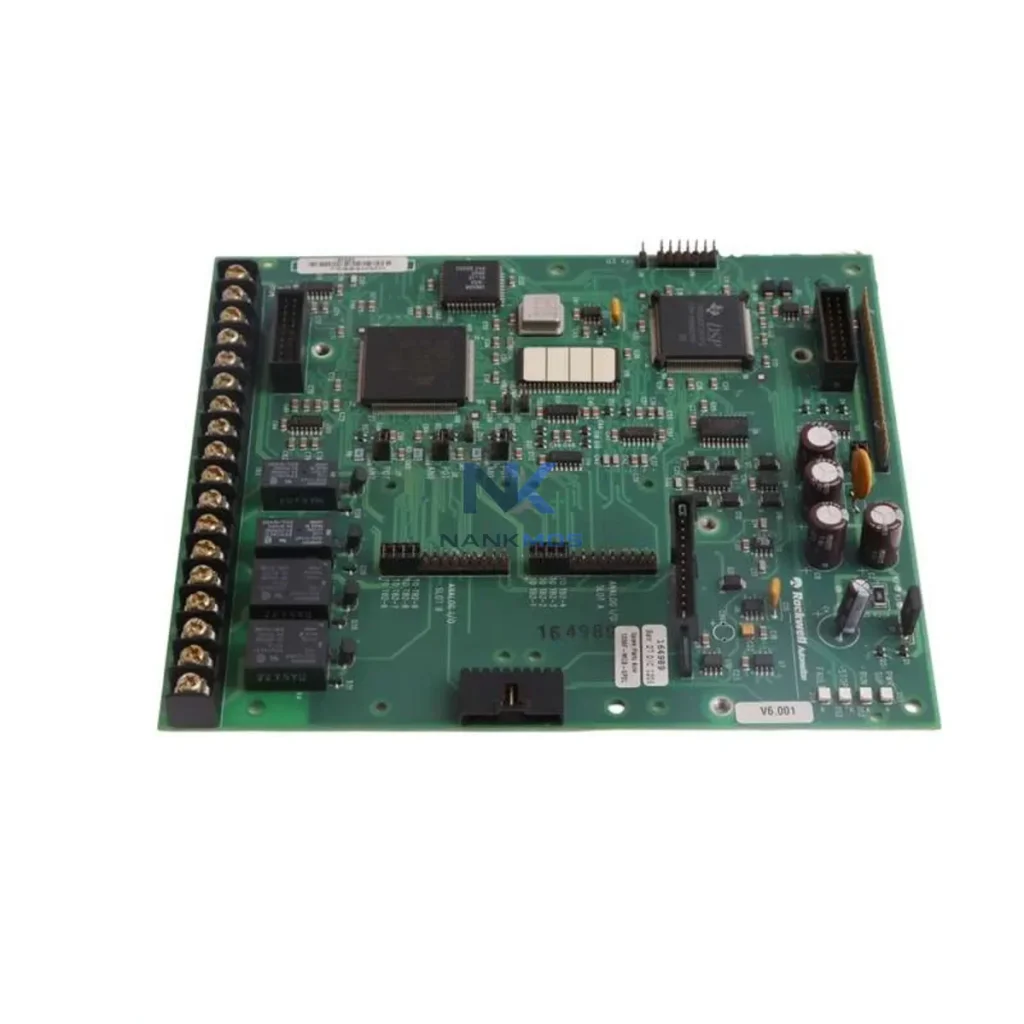

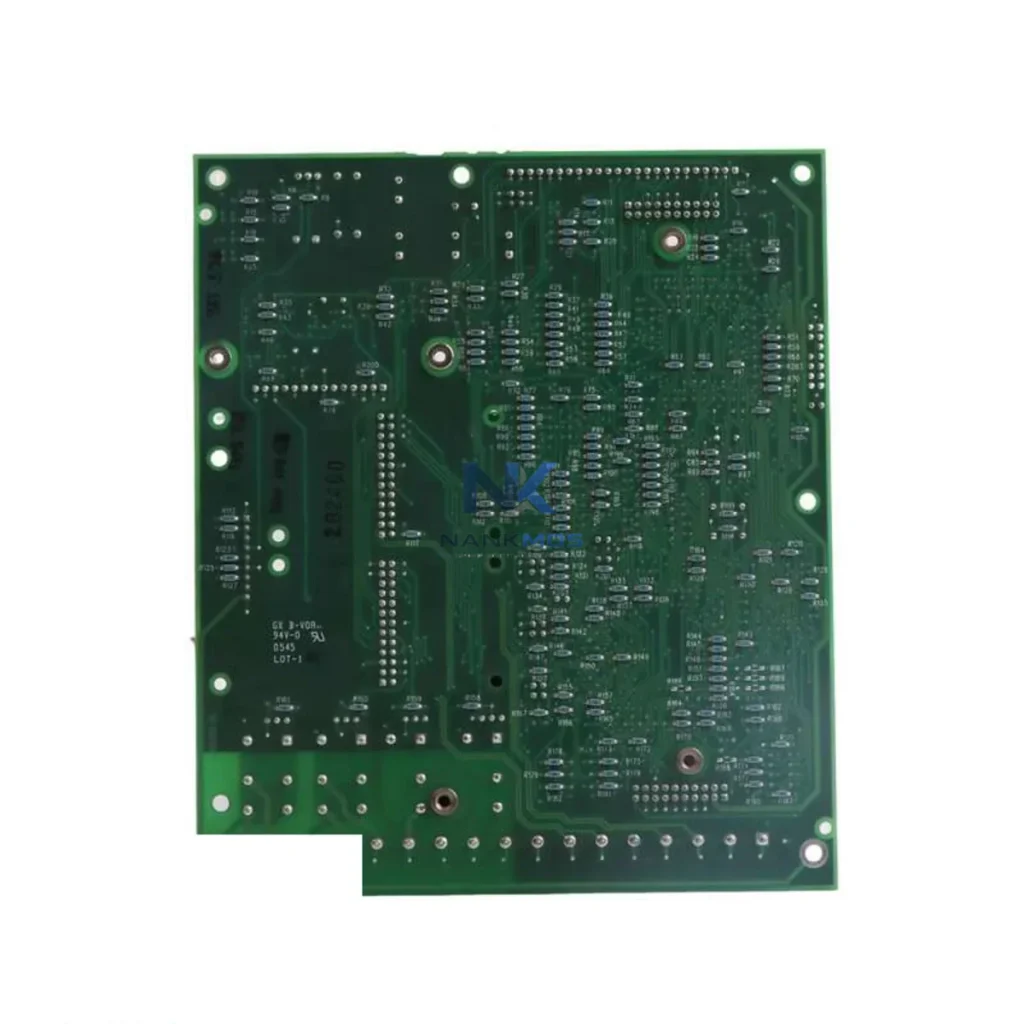

Allen-Bradley 1336F-MCB-SP2L 164989 AC Drive Control Board

Product Details

1336F-MCB-SP2L 164989 Product Description

The Allen-Bradley 1336F-MCB-SP2L 164989 is the central control intelligence of the 1336 Plus AC drive, governing PWM gate firing sequences, motor speed regulation, current loop feedback, and fault state management. In a fully integrated automation architecture, this board does not operate in isolation — it is the coordination node between the power conversion layer, the supervisory control layer, and the field device layer.

At the control layer, the 1336F-MCB-SP2L 164989 interfaces directly with Rockwell Automation ControlLogix or CompactLogix PLCs via communication adapter modules such as the 1336-GM-3 (DeviceNet) or 1336-GM-6 (ControlNet). These adapters translate drive status, speed reference, and fault codes into the PLC's I/O tree, enabling closed-loop speed control and real-time diagnostics from a centralized controller. In multi-drive systems, this architecture allows a single ControlLogix L7x processor to coordinate dozens of 1336 Plus drives across a production line, maintaining synchronization and load sharing without manual intervention.

At the I/O layer, the control board works in conjunction with 1336 Plus I/O expansion boards and analog reference cards to accept 4–20 mA or 0–10 V speed reference signals from process controllers or DCS systems. This signal path is critical in applications such as pump speed control in water treatment or fan regulation in HVAC systems, where the drive must respond to continuously varying process demands. The 1336F-MCB-SP2L 164989 ensures that these analog signals are correctly scaled, filtered, and converted into precise motor frequency commands.

At the power layer, the control board coordinates with the 1336 Plus power structure — including the rectifier bridge, DC bus capacitor bank, and IGBT inverter section — to maintain stable DC bus voltage and protect against overvoltage, undervoltage, and overcurrent faults. In systems where a 1321-3R line reactor or 1321-3RA autotransformer is installed upstream, the control board's fault detection algorithms must be calibrated to account for the impedance characteristics of these passive components, ensuring that nuisance trips are avoided while genuine fault conditions are captured accurately.

At the communication layer, the 1336F-MCB-SP2L 164989 supports integration with Rockwell's RSLogix 5000 or Studio 5000 programming environment through the drive's communication adapter. Drive parameters, fault histories, and real-time operating data can be accessed and modified remotely, reducing the need for local panel access during commissioning and maintenance. In facilities using a Plant PAx distributed control architecture, the 1336 Plus drive with this control board can be mapped as a standard device object, enabling unified alarm management and historian data collection alongside other plant assets.

At the HMI layer, operators interact with the 1336 Plus drive through a 1201-HA2 or 1201-HAS2 Human Interface Module, which connects directly to the control board's HIM port. This interface provides real-time speed, current, voltage, and fault code readout without requiring a separate programming terminal. In conjunction with a PanelView Plus 7 HMI terminal connected to the supervisory PLC, operators gain a two-tier visibility structure: local drive-level status at the panel and system-level process overview at the control room.

At the protection layer, the control board's onboard diagnostics continuously monitor motor thermal state (via PTC thermistor input), drive heatsink temperature, and output current waveform quality. These protection functions complement external devices such as the 140M Motor Protection Circuit Breaker and E300 Electronic Overload Relay, creating a layered protection architecture that isolates faults at the lowest possible level and minimizes production downtime. The 12-Month Warranty on the 1336F-MCB-SP2L 164989 reflects confidence in the board's ability to sustain these protection functions reliably over extended operational cycles.

The 1336F-MCB-SP2L 164989 control board supports a wide range of industrial sectors where the 1336 Plus drive platform has established a long operational track record.

In manufacturing and assembly environments, the board enables precise conveyor speed control, coordinated multi-axis motion on packaging lines, and tension regulation on web-handling systems. Its compatibility with DeviceNet and ControlNet communication adapters allows seamless integration into existing Rockwell Automation cell controllers without requiring drive replacement or rewiring.

In power generation and utilities, the 1336 Plus drive with this control board is deployed for boiler feed pump speed regulation, cooling tower fan control, and auxiliary motor management. The board's robust fault detection and thermal protection capabilities are essential in these applications, where unplanned drive failures can trigger plant-wide shutdowns.

In petrochemical and refining facilities, the control board supports variable-speed compressor and pump drives operating in hazardous area enclosures. Its ability to interface with DCS systems via analog I/O or fieldbus adapters allows process engineers to implement advanced flow control strategies without modifying the drive's internal hardware.

In water and wastewater treatment, the 1336F-MCB-SP2L 164989 enables energy-efficient pump speed modulation based on real-time flow and pressure feedback, reducing energy consumption and extending pump mechanical life. The drive's soft-start capability, managed by this control board, eliminates water hammer effects in large-diameter piping systems.

In mining and mineral processing, the board supports high-inertia load starting for conveyor drives, crushers, and mill motors. Its current-limiting and stall-protection algorithms are particularly valuable in these applications, where mechanical overloads are frequent and drive protection must be both fast and selective.

Q1: Is the 1336F-MCB-SP2L 164989 compatible with all 1336 Plus drive frame sizes, and does it support both DeviceNet and ControlNet communication adapters? The 1336F-MCB-SP2L 164989 is designed for specific frame sizes within the 1336 Plus series — compatibility should be verified against the drive's catalog number and firmware revision before installation. The board's HIM port and communication adapter slot support the full range of 1336-GM-x adapter modules, including 1336-GM-3 (DeviceNet) and 1336-GM-6 (ControlNet), enabling integration into both legacy and current Rockwell Automation network architectures. Contextual Integration with existing PLC programs typically requires parameter mapping via RSLogix 5000 or Studio 5000 Add-On Instructions.

Q2: What commissioning steps are required when replacing the control board in an operational 1336 Plus drive, and how are drive parameters preserved? Before replacing the 1336F-MCB-SP2L 164989, all drive parameters should be uploaded to a laptop running DriveExplorer or DriveExecutive software, or stored in the connected PLC's non-volatile memory if a communication adapter is installed. After board replacement, parameters must be downloaded back to the drive and verified against the original commissioning sheet. Key parameters including motor nameplate data, speed reference scaling, acceleration/deceleration ramps, and fault response configurations must be confirmed before returning the drive to service. The 12-Month Warranty covers the replacement board itself but does not extend to consequential damage from incorrect parameter configuration.

Q3: What is the inventory availability and lead time for the 1336F-MCB-SP2L 164989, and what long-term support options exist for 1336 Plus drives? The 1336F-MCB-SP2L 164989 is maintained in stock to support ongoing maintenance and emergency replacement requirements for installed 1336 Plus drive fleets. All units are tested prior to shipment to verify control board functionality across key operating parameters. The 12-Month Warranty provides coverage from the date of shipment, supporting long-term maintenance planning for facilities operating legacy 1336 Plus drives. For sites managing large populations of 1336 Plus drives, maintaining a spare control board inventory is recommended to minimize mean time to repair during unplanned outages.
