1336T-MCB-SP34B 74101-772-54 Product Description

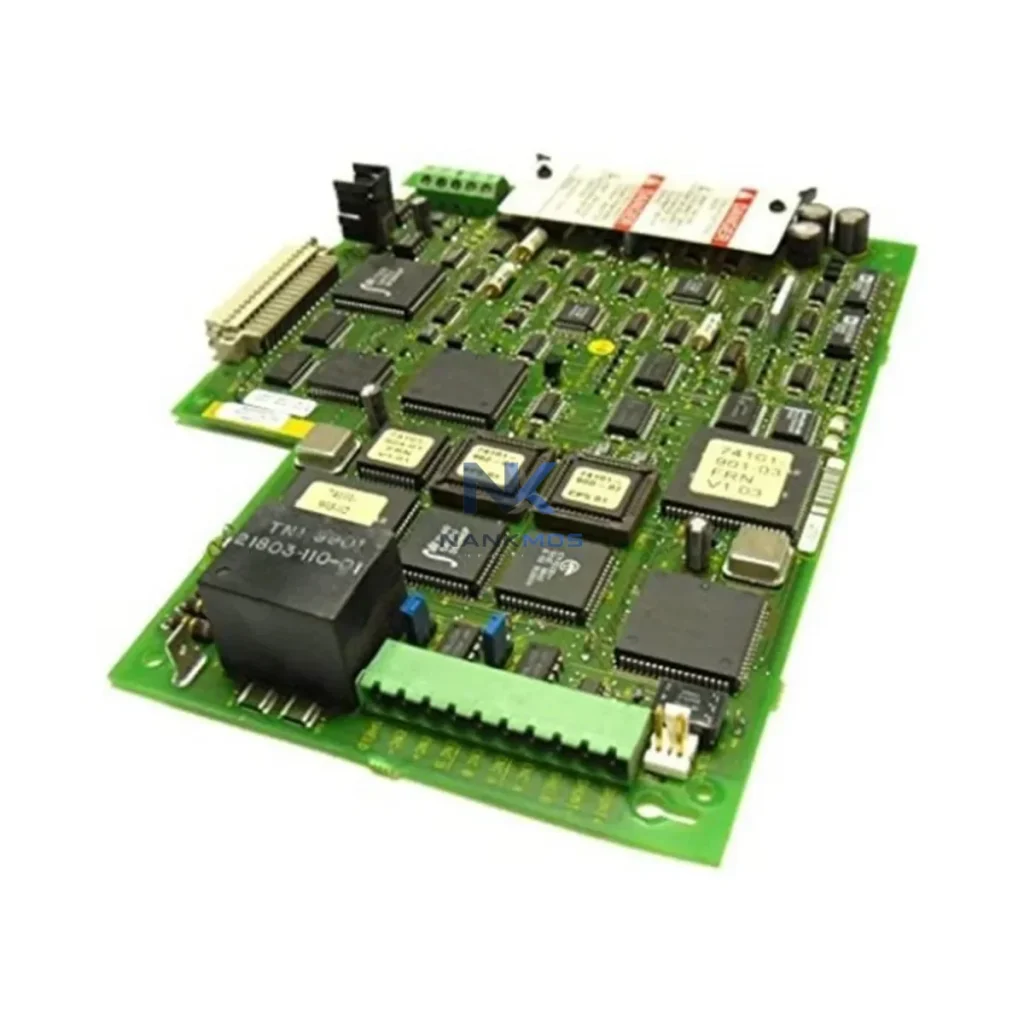

The Allen-Bradley 1336T-MCB-SP34B (Part No. 74101-772-54) is the main control board engineered for the 1336 PLUS II AC drive family, delivering a robust industrial data link between field-level drive hardware and upper-layer automation networks. Designed to support DeviceNet and Data Highway Plus (DH+) communication architectures, this control board serves as the nerve center of drive-level intelligence — enabling real-time parameter exchange, fault diagnostics, speed reference commands, and status feedback across the full automation stack. In smart factory environments where production continuity depends on seamless data flow, the 1336T-MCB-SP34B provides the connectivity backbone that keeps variable-frequency drive systems synchronized with PLC controllers, SCADA platforms, and HMI terminals.

At the field device layer, the 1336T-MCB-SP34B interfaces directly with motor feedback signals, encoder inputs, and analog I/O channels, converting raw drive telemetry into structured network data packets. These packets travel upstream through DeviceNet segments to Allen-Bradley ControlLogix or CompactLogix PLCs, where ladder logic and function block programs interpret drive status, adjust output frequency, and trigger protective shutdowns based on process conditions. The DH+ channel simultaneously supports legacy integration with PLC-5 and SLC 500 controllers, ensuring backward compatibility across mixed-generation control architectures common in brownfield manufacturing sites.

Within the network transmission layer, the 1336T-MCB-SP34B operates alongside industrial Ethernet switches and DeviceNet trunk cables to maintain deterministic communication timing. When paired with 1336-GM1 or 1336-MOD-D1 communication adapter modules, the board extends its protocol reach, allowing the PLUS II drive to participate in broader network topologies that include remote I/O racks, distributed motor control centers, and multi-drive coordination systems. The board's onboard diagnostics continuously monitor bus voltage, current draw, thermal margins, and communication health, streaming this data to RSLogix 5000 or FactoryTalk View SE for operator visualization and alarm management.

For SCADA integration, the 1336T-MCB-SP34B feeds real-time drive data — including output frequency, motor current, fault codes, and run/stop status — into FactoryTalk Historian or third-party OPC-DA/UA servers. This data stream supports production dashboards, energy consumption tracking, and predictive maintenance workflows. When an anomaly is detected, the board's fault logging capability captures timestamped event records that maintenance teams can retrieve remotely via RSLinx Classic or RSLinx Enterprise, eliminating the need for on-site inspection during initial fault triage. This remote diagnostic capability is particularly valuable in facilities where drives are installed in elevated, confined, or hazardous locations.

The 1336T-MCB-SP34B also plays a critical role in coordinating multi-drive applications. In conveyor systems, pump stations, and fan arrays where multiple 1336 PLUS II drives operate in tandem, the control board's network interface allows a single PLC to broadcast speed references and collect status from all drives simultaneously, reducing scan time and improving synchronization accuracy. When integrated with PowerFlex 700 drives or 1336 IMPACT series units in hybrid drive architectures, the board's DH+ channel provides a common communication backbone that simplifies network topology and reduces cabling overhead.

Edge computing scenarios benefit from the 1336T-MCB-SP34B's structured data output. Industrial edge gateways — such as those running Kepware KEPServerEX or Moxa MGate protocol converters — can poll the drive's DeviceNet node for live process variables and forward them to cloud-based MES or ERP platforms. This data path supports digital twin modeling, OEE calculation, and remote KPI monitoring without requiring modifications to the existing PLC program or network infrastructure. The board's stable communication stack ensures that edge polling cycles do not introduce latency spikes that could disrupt closed-loop control performance.

Every 1336T-MCB-SP34B unit supplied by NANKMOS undergoes pre-shipment functional verification, including communication node enumeration, I/O channel continuity checks, and firmware version confirmation. Units are sourced from verified industrial supply channels and stored under controlled conditions to preserve component integrity. Stock availability is maintained for rapid dispatch, supporting both planned maintenance schedules and emergency replacement scenarios. All units are covered by a 12-month warranty from the date of shipment, with technical support available for installation guidance, parameter configuration, and network commissioning.

In a fully connected smart factory deployment, the 1336T-MCB-SP34B sits at the intersection of drive-level hardware and plant-wide data infrastructure. At the field layer, motor encoders and analog sensors feed real-time speed and torque signals into the board's I/O channels. The board processes these signals and encodes them as DeviceNet explicit or I/O messages, which travel through the DeviceNet trunk cable to a 1756-DNB DeviceNet Scanner module installed in a ControlLogix chassis. The ControlLogix PLC — running RSLogix 5000 — maps these drive parameters into controller tags that are shared across the backplane with 1756-ENBT Ethernet/IP bridge modules, extending drive data visibility to the plant Ethernet network.

On the Ethernet backbone, a managed industrial switch — such as a Stratix 5700 — routes drive data packets to FactoryTalk View SE HMI servers, where operators monitor drive speed, current, and fault status on graphical process displays. Simultaneously, FactoryTalk Historian captures time-series drive data for trend analysis and energy auditing. For facilities using third-party SCADA platforms, a Kepware KEPServerEX OPC server polls the ControlLogix tags and republishes drive data to Wonderware InTouch or Ignition SCADA clients, enabling cross-platform visualization without protocol conversion overhead.

Remote I/O expansion is supported through 1771 I/O racks connected via the DH+ channel, allowing the 1336T-MCB-SP34B to participate in legacy control architectures where PLC-5 systems manage distributed motor loads across large plant floors. In these environments, the board's DH+ interface provides a reliable token-passing communication path that coexists with newer DeviceNet segments, enabling phased modernization without full system replacement. Edge gateways running Moxa MGate MB3480 or similar protocol converters can bridge DH+ data to Modbus TCP, making drive parameters accessible to cloud-based MES platforms for production scheduling and OEE reporting.

Industrial sites operating mixed-generation drive fleets frequently encounter data isolation problems where newer Ethernet-based systems cannot directly communicate with legacy DeviceNet or DH+ devices. The 1336T-MCB-SP34B addresses this by providing a dual-protocol interface that bridges the communication gap without requiring intermediate protocol converters for most Allen-Bradley control architectures. Sites that previously relied on manual parameter readout — using handheld HIM terminals or local keypad displays — can transition to network-based monitoring, eliminating data entry errors and reducing the time required for shift handover reporting.

Production line transparency is significantly improved when the 1336T-MCB-SP34B's network data is integrated into SCADA alarm management systems. Fault codes generated by the PLUS II drive — including overcurrent, undervoltage, ground fault, and communication loss events — are automatically forwarded to the SCADA alarm server, where they are timestamped, prioritized, and routed to the appropriate maintenance team via email or SMS notification. This alarm traceability reduces mean time to repair (MTTR) by ensuring that technicians arrive at the fault location with accurate diagnostic information rather than relying on operator verbal reports.

System expansion is simplified by the board's DeviceNet node addressing scheme, which allows additional drives, remote I/O modules, and smart sensors to be added to the network without reconfiguring existing nodes. When production capacity increases require additional motor drives, new 1336 PLUS II units equipped with 1336T-MCB-SP34B boards can be commissioned and added to the DeviceNet segment with minimal engineering effort, supporting scalable automation architectures that grow with production demand.

Q1: What is the maximum DeviceNet network length supported when using the 1336T-MCB-SP34B? DeviceNet trunk cable length depends on the selected baud rate: 500 m at 125 kbps, 250 m at 250 kbps, and 100 m at 500 kbps. Drop cable lengths follow standard DeviceNet specifications. The 1336T-MCB-SP34B operates within these standard network parameters, and proper termination resistors must be installed at both ends of the trunk to ensure signal integrity.

Q2: Is the 1336T-MCB-SP34B compatible with both ControlLogix and legacy PLC-5 controllers simultaneously? Yes. The board supports DeviceNet for ControlLogix and CompactLogix integration and DH+ for PLC-5 and SLC 500 systems. In mixed-controller environments, both channels can operate concurrently, allowing the drive to exchange data with multiple controller generations without requiring a protocol gateway.

Q3: How does the board support remote diagnostics and fault retrieval without on-site access? The 1336T-MCB-SP34B logs fault events with parameter snapshots that are accessible via RSLinx Classic or RSLinx Enterprise over the DH+ or DeviceNet network. Maintenance personnel can retrieve fault history, review drive parameters, and initiate reset commands remotely from an engineering workstation connected to the plant network, reducing unplanned downtime and travel costs.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 1336T-MCB-SP34B? All units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional verification including communication node enumeration, I/O channel continuity testing, and firmware version confirmation. Units are sourced from verified industrial supply channels and stored under controlled environmental conditions to maintain component integrity and long-term reliability.
