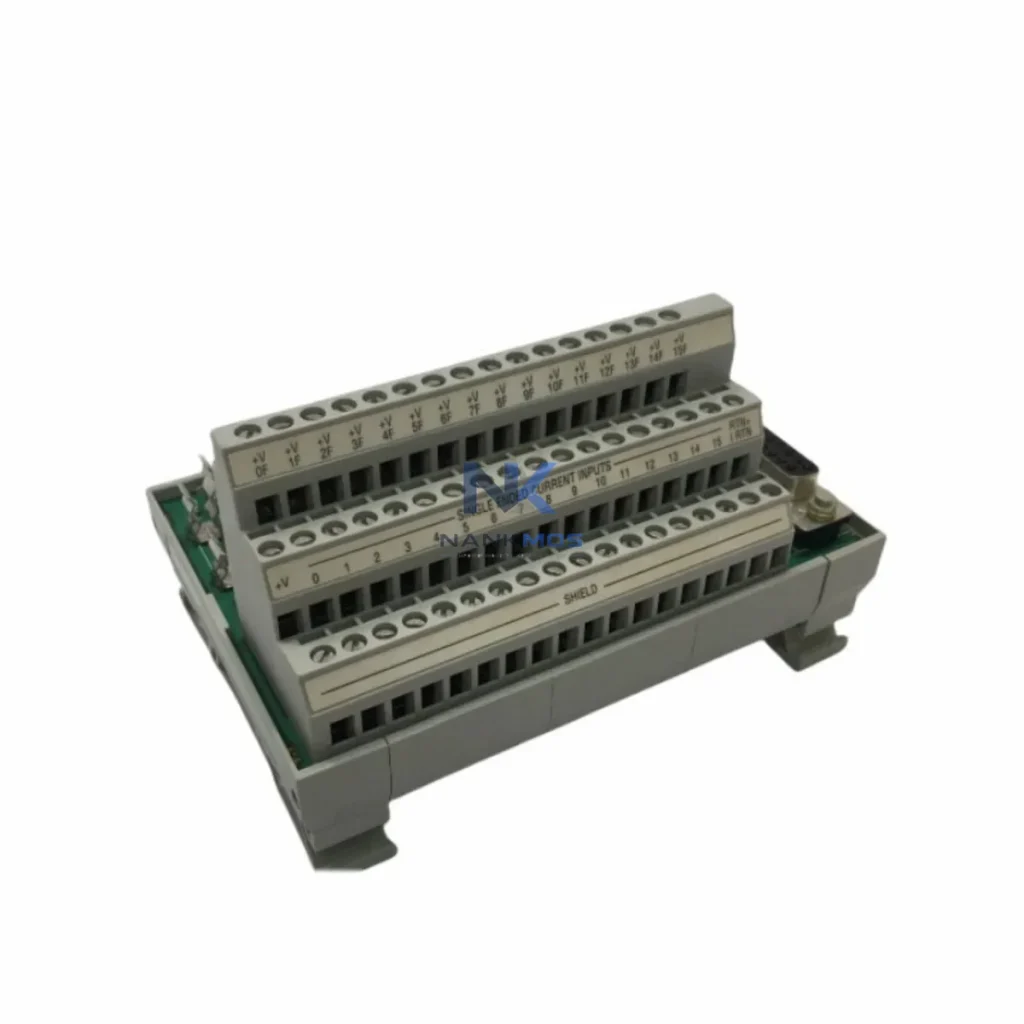

Allen-Bradley 1492-AIFM16-F-3 Analog Interface Module

Product Details

1492-AIFM16-F-3 Product Description

The Allen-Bradley 1492-AIFM16-F-3 is a 16-point analog interface module (IFM) engineered for seamless integration within Rockwell Automation's industrial data architecture. Designed to bridge field-level analog signals with upper-layer control and monitoring systems, this module serves as a critical node in the smart factory data chain — connecting sensors, transmitters, and field instruments directly into ControlLogix and CompactLogix PLC platforms via structured wiring and standardized terminal interfaces. With its robust analog signal conditioning capability, the 1492-AIFM16-F-3 eliminates loose field wiring complexity, reduces installation errors, and accelerates commissioning time across process automation, discrete manufacturing, and hybrid production environments.

In modern industrial connectivity architectures, the 1492-AIFM16-F-3 operates as the front-end signal aggregation point. Analog process values — including 4–20 mA current loops from pressure transmitters, temperature sensors, flow meters, and level detectors — are cleanly terminated at the IFM module and routed through pre-wired cables directly into 1756 ControlLogix I/O modules or 1769 CompactLogix analog input cards. This structured approach ensures signal integrity across long cable runs, supports high-density channel configurations, and maintains consistent grounding and shielding practices that are essential for noise-sensitive industrial environments.

The 1492-AIFM16-F-3 sits at the intersection of physical field instrumentation and digital control infrastructure. In a typical smart factory deployment, analog signals from field devices — such as Endress+Hauser Promag flow transmitters, Rosemount 3051 pressure transmitters, or PT100 temperature sensors — are wired directly to the IFM module's terminal blocks. The module then routes these signals through a pre-wired cable assembly into a 1756-IF16 ControlLogix 16-channel analog input module housed in a 1756 chassis. This eliminates the need for individual point-to-point field wiring at the I/O card, dramatically reducing marshalling cabinet complexity.

Within the ControlLogix platform, the analog data is processed by a 1756-L85E controller running Studio 5000 Logix Designer ladder logic or function block programs. Scaled engineering values — flow rates, pressures, temperatures — are then published over EtherNet/IP to the plant network via a 1756-EN2T EtherNet/IP communication module. Upstream, a FactoryTalk Historian server or an Ignition SCADA gateway subscribes to these tag values in real time, enabling live process dashboards, trend logging, and alarm management across the facility.

For remote I/O architectures, the 1492-AIFM16-F-3 can also support distributed panel designs where a 1734 POINT I/O adapter or a 1738 ArmorPOINT I/O node aggregates analog signals at the machine level before transmitting structured data packets over EtherNet/IP to the central ControlLogix rack. This topology is particularly effective in large-scale process plants where field panels are distributed across multiple production zones, each requiring local analog signal conditioning before network transmission.

At the HMI layer, operators interact with the aggregated analog data through PanelView Plus 7 terminals or web-based FactoryTalk View SE clients. Alarm thresholds configured in the ControlLogix controller trigger real-time notifications on the HMI and push alert records to the SCADA historian. For facilities leveraging edge computing, a Stratix 5400 industrial managed switch or an Allen-Bradley Armor PowerFlex edge gateway can further segment the EtherNet/IP network into VLAN zones, ensuring that analog process data from the 1492-AIFM16-F-3 reaches the correct SCADA subscriber without network congestion or latency spikes.

In multi-drive environments, analog setpoint signals from the ControlLogix controller — derived from the IFM-aggregated process values — are transmitted to PowerFlex 755 variable frequency drives via EtherNet/IP or hardwired analog outputs, enabling closed-loop speed and torque control based on real-time sensor feedback. This complete data chain — from the 1492-AIFM16-F-3 terminal block through the ControlLogix backplane, across the EtherNet/IP network, into SCADA, and back to the drive — represents the full smart factory connectivity loop that modern industrial automation demands.

Many industrial facilities face persistent data gaps caused by inconsistent wiring practices, protocol fragmentation, and legacy analog infrastructure that was never designed for networked visibility. The 1492-AIFM16-F-3 directly addresses these challenges by providing a standardized, pre-engineered analog termination solution that integrates cleanly with Rockwell Automation's EtherNet/IP ecosystem.

Protocol Fragmentation: Sites running mixed analog and digital field devices often struggle to unify signal data into a single control platform. The 1492-AIFM16-F-3 resolves this by providing a consistent analog front-end that feeds directly into ControlLogix analog I/O modules, which then publish all channel data over EtherNet/IP — a single, unified protocol understood by SCADA systems, MES platforms, and cloud analytics engines alike.

Data Silos and Production Transparency: Without structured analog marshalling, field signal data often remains trapped in local panels with no visibility at the supervisory level. By connecting the 1492-AIFM16-F-3 into the ControlLogix backplane and onward to FactoryTalk Historian or Ignition SCADA, every analog channel becomes a live, queryable data point accessible from any authorized workstation or mobile HMI on the plant network.

Remote Monitoring and Alarm Tracking: The module's integration with ControlLogix enables remote diagnostic access via FactoryTalk Remote Access or Rockwell's ThinManager thin-client platform. Maintenance engineers can monitor analog channel health, review historical trend data, and acknowledge alarms from off-site locations — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

System Expansion: As production capacity grows, additional 1492-AIFM16-F-3 modules can be added to existing marshalling cabinets without rewiring field instruments. The modular IFM architecture supports incremental I/O expansion alongside the ControlLogix chassis, making it straightforward to scale analog input capacity in line with new equipment installations or process line extensions.

Q1: What communication protocols does the 1492-AIFM16-F-3 support for SCADA integration?The 1492-AIFM16-F-3 itself is a passive analog interface module — it does not contain active communication logic. Protocol communication is handled by the connected ControlLogix or CompactLogix analog I/O module and its associated EtherNet/IP, ControlNet, or DeviceNet communication adapter. Once integrated into the ControlLogix platform, all 16 analog channels are accessible via EtherNet/IP tags, making them natively compatible with FactoryTalk View, Ignition SCADA, Wonderware InTouch, and Siemens WinCC OA through OPC-UA or OPC-DA gateways.

Q2: How does the module ensure network stability and signal integrity in noisy industrial environments?The 1492-AIFM16-F-3 uses a structured pre-wired cable system that maintains consistent shielding and grounding across all 16 analog channels. This eliminates the common sources of signal noise introduced by individual point-to-point field wiring. Combined with the ControlLogix platform's built-in analog filter settings and the Stratix industrial switch network's VLAN segmentation, the system delivers stable, low-noise analog data transmission even in high-EMI environments typical of motor control centers and variable frequency drive installations.

Q3: Can the 1492-AIFM16-F-3 support remote diagnostics and predictive maintenance workflows?Yes. When integrated with a ControlLogix controller and connected to FactoryTalk Historian or a third-party SCADA platform via EtherNet/IP, all 16 analog channels can be continuously logged and trended. Maintenance teams can configure alarm thresholds in Studio 5000, monitor channel drift over time, and use FactoryTalk Remote Access or ThinManager to perform remote diagnostics without physical access to the panel. This supports predictive maintenance strategies by enabling early detection of sensor degradation or wiring faults before they cause process upsets.

Q4: What is the warranty coverage and pre-shipment testing process for the 1492-AIFM16-F-3?Every 1492-AIFM16-F-3 unit supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm terminal integrity, channel continuity, and compatibility with standard ControlLogix analog I/O wiring configurations. Units are shipped in original or equivalent protective packaging with full traceability documentation. In-stock units are available for same-week dispatch, supporting urgent MRO requirements and unplanned maintenance scenarios.
