Allen-Bradley 150-C25NBR SMC-3 25A Smart Motor Controller

Product Details

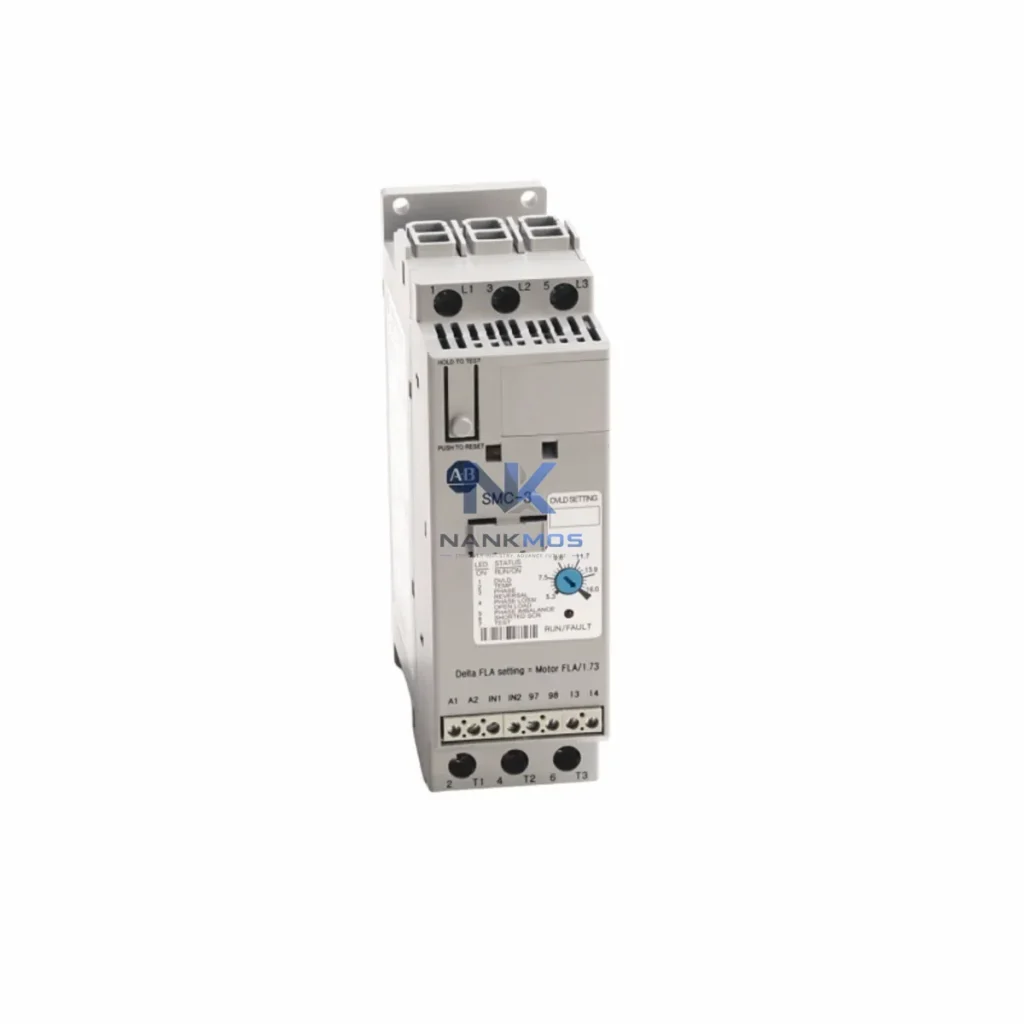

150-C25NBR SMC-3 25A Product Description

The Allen-Bradley 150-C25NBR is a 25A solid-state smart motor controller from Rockwell Automation's SMC-3 series, engineered for seamless integration within layered industrial control architectures. Designed to deliver precise motor starting and stopping performance, this unit eliminates mechanical wear associated with traditional across-the-line starters while providing the diagnostic transparency demanded by modern automation platforms. Whether deployed in a standalone panel or embedded within a multi-axis Logix-based control system, the 150-C25NBR delivers consistent, repeatable performance across demanding industrial environments including manufacturing, petrochemical processing, water treatment, and power distribution.

Within a complete automation architecture, the 150-C25NBR occupies the execution layer — directly interfacing with induction motors while receiving command signals from the control layer above. Its integration with Allen-Bradley MicroLogix 1100 or CompactLogix L3x controllers via hardwired I/O or DeviceNet communication enables centralized supervisory control without sacrificing local protection capability. The unit's built-in current monitoring and fault diagnostics feed directly into the controller's diagnostic buffer, reducing mean time to repair and supporting predictive maintenance strategies across the plant floor.

The 150-C25NBR achieves its full potential when deployed as part of a coordinated Rockwell Automation control platform. At the control layer, an Allen-Bradley CompactLogix L30ER or MicroLogix 1400 PLC provides the supervisory logic, issuing start/stop commands and monitoring fault status via discrete I/O wiring to the SMC-3's control terminals. For applications requiring network-level diagnostics, the optional 150-SM2 DeviceNet communication module extends the controller's visibility into the RSLogix 5000 or Studio 5000 environment, enabling parameter monitoring and fault logging without additional field wiring.

At the I/O layer, 1769-IQ16 CompactLogix digital input modules capture motor run feedback and fault relay outputs, while 1769-OW8 relay output modules provide hardwired interlock signals to upstream protection devices. Power distribution to the SMC-3 panel is typically managed through Allen-Bradley 1606-XLP power supplies, ensuring stable 24V DC control voltage across the cabinet. For larger motor control centers, the 150-C25NBR can be mounted alongside Allen-Bradley 100-C contactors and 193-EC3 electronic overload relays to form a complete motor protection and control assembly.

In networked architectures, an Allen-Bradley 1788-EN2DN EtherNet/IP-to-DeviceNet linking device bridges the SMC-3 network segment to the plant-wide EtherNet/IP backbone, enabling integration with FactoryTalk View SE SCADA systems for centralized motor status visualization. For cabinet-level HMI access, a PanelView Plus 7 terminal mounted on the control panel door provides operators with real-time motor current, fault history, and parameter adjustment capability without requiring laptop access to the field device.

Signal integrity across the control cabinet is maintained through Phoenix Contact or Weidmuller terminal blocks, with dedicated shielded cable runs separating power and control wiring to minimize electromagnetic interference on the SMC-3's analog ramp reference inputs. Where redundancy is required in critical pump or fan applications, a bypass contactor assembly using Allen-Bradley 100-C30 contactors provides full-voltage fallback operation, ensuring process continuity during SMC-3 maintenance windows.

Manufacturing & Assembly Lines: The 150-C25NBR is widely deployed on conveyor drive systems, cooling tower fans, and hydraulic pump stations within automotive and discrete manufacturing facilities. Its soft-start capability eliminates belt-slip and mechanical shock on startup, extending drive train service life and reducing unplanned downtime on high-cycle applications.

Petrochemical & Refinery Processing: In hazardous area motor control centers, the SMC-3 provides current-limit starting for centrifugal pumps and compressor auxiliaries where inrush current must be controlled to protect upstream transformer capacity. The unit's phase-loss protection is particularly valued in remote pump stations where manual inspection is infrequent.

Water & Wastewater Treatment: Municipal water treatment facilities use the 150-C25NBR on raw water intake pumps, aeration blowers, and sludge transfer pumps. The soft-stop function prevents water hammer in long pipeline systems, protecting pipe joints and valve seats from pressure surge damage.

Power Generation & Utilities: Auxiliary motor loads in power plants — including cooling water pumps, fuel oil transfer pumps, and forced draft fan drives — benefit from the SMC-3's controlled acceleration profiles, which reduce mechanical stress on couplings and reduce voltage dip impact on sensitive instrumentation buses.

Mining & Mineral Processing: Conveyor belt drives, crusher auxiliaries, and slurry pump stations in mining operations require robust motor starting solutions capable of handling high-inertia loads. The 150-C25NBR's kickstart function provides an initial torque boost before transitioning to soft-start ramp, ensuring reliable starting of heavily loaded conveyors without oversizing the motor.

Q1: Is the 150-C25NBR compatible with CompactLogix and MicroLogix control platforms for integrated diagnostics? Yes. The 150-C25NBR supports hardwired discrete I/O integration with any Allen-Bradley PLC platform, including CompactLogix L-series and MicroLogix 1100/1400 controllers. For network-level parameter access and fault diagnostics within Studio 5000 or RSLogix 500, the optional 150-SM2 DeviceNet communication module enables full device-level integration. This contextual integration approach allows the SMC-3 to participate in the plant-wide diagnostic architecture without requiring dedicated fieldbus infrastructure beyond the existing DeviceNet segment.

Q2: What installation and commissioning considerations apply when mounting the 150-C25NBR in an existing motor control center? The 150-C25NBR is designed for panel or MCC bucket mounting with standard DIN rail or direct screw mounting options. Commissioning requires setting the full-load current dial to match the motor nameplate FLA, selecting the desired start/stop mode via DIP switches, and verifying control voltage wiring polarity. Rockwell Automation recommends a minimum 50mm clearance above and below the unit for thermal derating compliance. For high-ambient environments above 40°C, current derating per the published derating curves must be applied. NANKMOS provides pre-shipment functional testing on all 150-C25NBR units to verify parameter settings and relay operation prior to dispatch.

Q3: What does the 12-Month Warranty from NANKMOS cover, and what is the inventory availability? All 150-C25NBR units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. The warranty covers repair or replacement at NANKMOS's discretion and includes technical support for installation and commissioning queries. NANKMOS maintains dedicated stock of SMC-3 series controllers to support urgent project timelines, with standard lead times of 3–7 business days for in-stock units. For volume project requirements or scheduled maintenance replenishment, contact NANKMOS at [email protected] or +86 18359268345 to confirm availability and arrange priority allocation.
