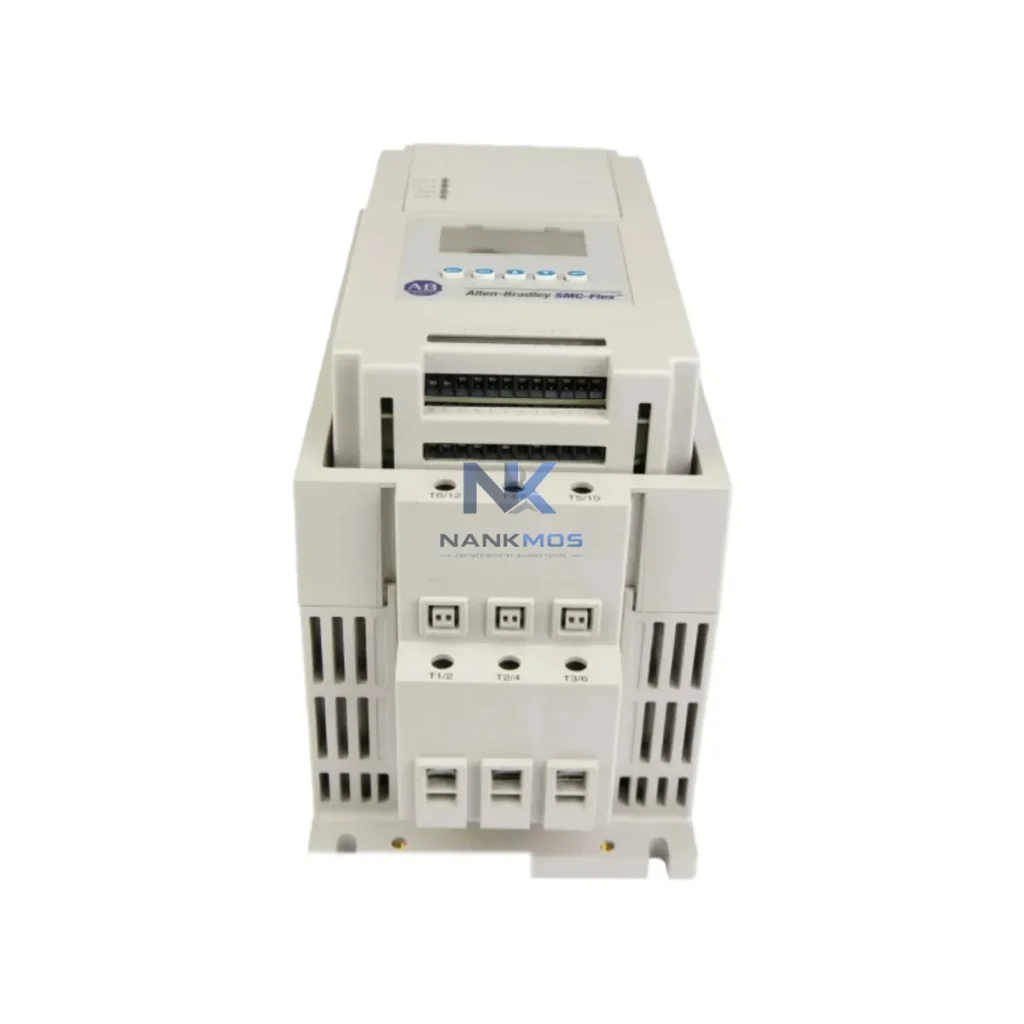

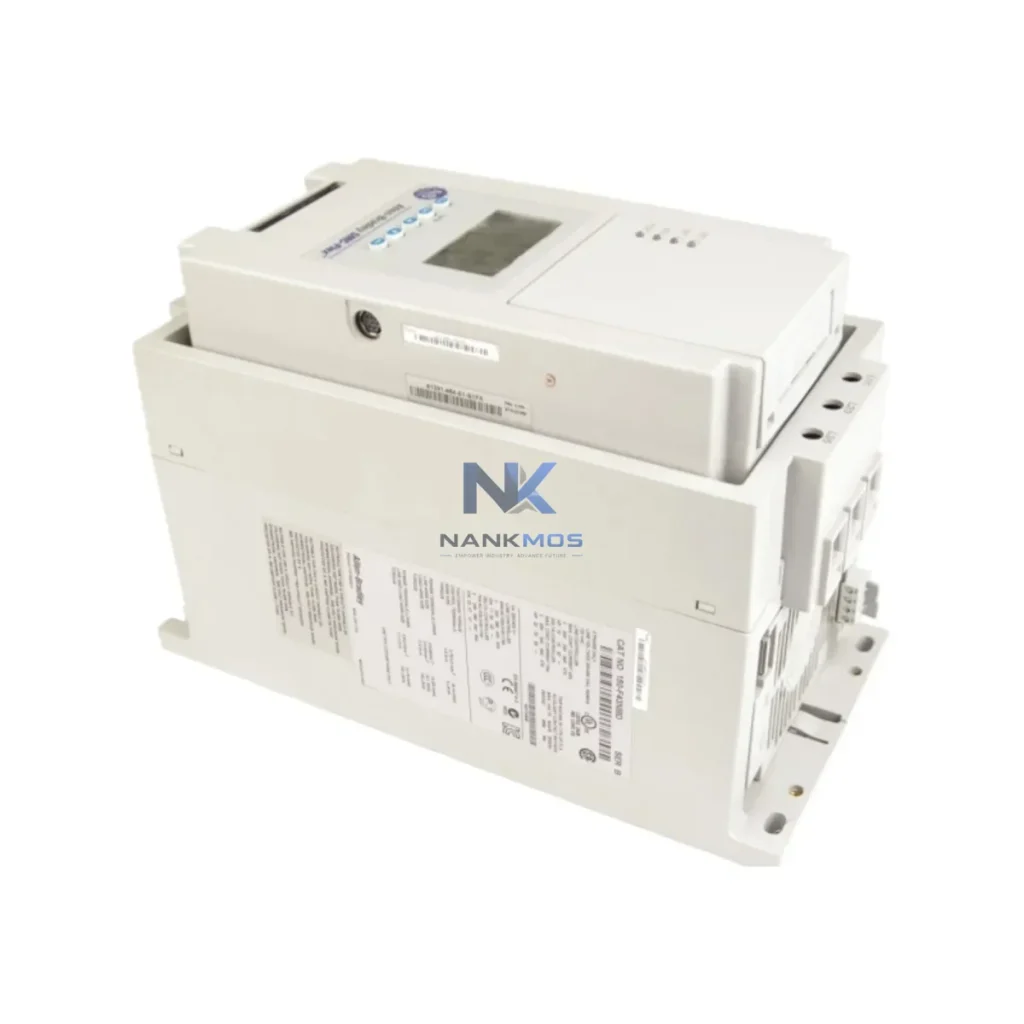

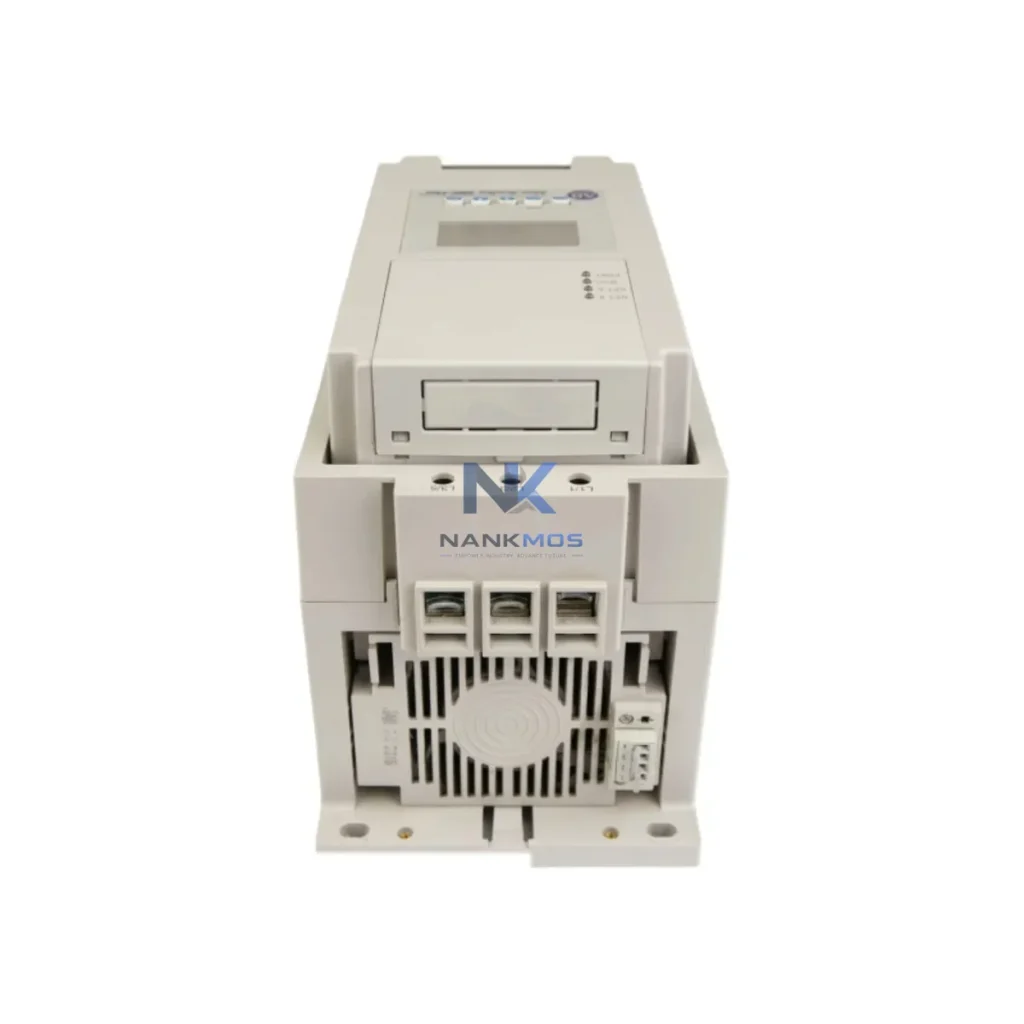

Allen-Bradley 150-F43NBD Smart Motor Controller

Product Details

150-F43NBD Product Description

The Allen-Bradley 150-F43NBD is a high-performance Smart Motor Controller (SMC) designed for seamless integration within the Rockwell Automation SMC-Flex 150 control architecture. Engineered to deliver precise soft-start and soft-stop motor management, this unit plays a critical role in multi-layer industrial automation systems where signal stability, modular scalability, and long-term operational reliability are non-negotiable requirements. Whether deployed in a standalone motor protection circuit or embedded within a fully redundant distributed control system, the 150-F43NBD provides the electrical and communicative backbone necessary for consistent, architecture-wide performance.

In a complete Rockwell Automation control architecture, the 150-F43NBD does not operate in isolation — it functions as a coordinated node within a layered system where every component contributes to overall platform coherence. At the control layer, a Allen-Bradley ControlLogix 1756-L73 or CompactLogix 1769-L33ER CPU issues motion and sequencing commands that flow through the backplane to I/O modules such as the 1756-IB16 digital input card and 1756-OB16E digital output card, which in turn relay discrete signals to the 150-F43NBD's control terminals.

At the communication layer, a 1756-DNB DeviceNet Bridge module enables the SMC-Flex 150 to participate in real-time network diagnostics, allowing the controller to report motor current, fault codes, and operational status directly to the supervisory SCADA or DCS platform. This eliminates the need for separate analog signal conditioning and reduces wiring complexity across the motor control center (MCC). When paired with a 150-SM2 DeviceNet Communication Module, the 150-F43NBD achieves full bidirectional data exchange within the DeviceNet segment.

At the power layer, a 1606-XLP72E or 1606-XLS240E power supply ensures stable 24 VDC auxiliary power to the control circuit, while upstream protection is provided by a 140M Motor Protection Circuit Breaker coordinated with the SMC's internal overload relay. For applications requiring redundant power distribution, the 150-F43NBD integrates cleanly with 1492-SP Series supplementary protectors and terminal block assemblies from the 1492-W Series, maintaining consistent bus voltage across the control cabinet.

At the HMI layer, a PanelView Plus 7 (2711P-T10C21D8S) operator terminal provides real-time motor status visualization, fault acknowledgment, and parameter adjustment without requiring direct access to the SMC unit. This is particularly valuable in hazardous or restricted-access environments such as offshore platforms, chemical processing facilities, or underground mining operations. The HMI communicates with the ControlLogix CPU via EtherNet/IP, and the CPU propagates motor state data from the 150-F43NBD through the DeviceNet bridge in near real-time.

For maintenance and diagnostic efficiency, the 150-F43NBD supports parameter configuration via the DriveExecutive Lite or Connected Components Workbench (CCW) software environments, enabling engineers to pre-configure soft-start ramp times, current limits, and protection thresholds before commissioning. This reduces on-site setup time and supports standardized configuration templates across multi-motor installations.

The 150-F43NBD is deployed across a broad spectrum of industrial sectors where motor starting performance directly impacts process continuity and equipment longevity:

Manufacturing & Assembly Lines: In automotive body-in-white welding lines and conveyor systems, the 150-F43NBD's controlled acceleration profile eliminates mechanical shock at startup, extending gearbox and coupling service life. Its jam detection function automatically trips the motor circuit when abnormal torque is detected, preventing costly production stoppages.

Water & Wastewater Treatment: Pump stations and aeration blower systems benefit from the SMC-Flex 150's soft-start capability, which reduces water hammer effects in pipeline networks and minimizes inrush current demands on utility transformers. The 150-F43NBD's underload detection function also provides early warning of pump cavitation or dry-run conditions.

Oil, Gas & Petrochemical: In compressor stations and wellhead control panels, the 150-F43NBD provides reliable motor protection in environments subject to voltage fluctuations and harmonic distortion. Its phase-loss protection and ground fault detection functions are essential for maintaining operational safety in classified hazardous areas when installed within appropriate enclosures.

Mining & Metallurgy: Conveyor drives, crusher motors, and ventilation fan systems in underground and open-pit mining operations rely on the SMC-Flex 150 series for its robust overload protection and ability to handle high-inertia loads. The 150-F43NBD's adjustable current limit function allows engineers to tailor starting torque to the specific load profile of each motor circuit.

Power Generation & Utilities: Auxiliary motor systems in thermal power plants — including cooling water pumps, fuel oil transfer pumps, and forced-draft fans — are ideal candidates for the 150-F43NBD. Its compatibility with the Rockwell Automation ControlLogix platform enables integration into plant-wide DCS architectures with minimal engineering overhead.

Marine & Shipboard Systems: The 150-F43NBD's compact form factor and wide operating temperature range make it suitable for shipboard motor control centers, where space constraints and environmental conditions demand reliable, low-maintenance solutions. Its DeviceNet communication capability supports integration into vessel automation networks.

Q1: Is the Allen-Bradley 150-F43NBD compatible with existing ControlLogix and CompactLogix control platforms without additional hardware? The 150-F43NBD is natively compatible with Allen-Bradley ControlLogix and CompactLogix platforms when used with a DeviceNet communication module such as the 150-SM2. For hardwired discrete control (without network communication), the unit connects directly to any digital output module — including the 1756-OB16E or 1769-OB16 — using standard 24 VDC or 120 VAC control signals. No additional interface hardware is required for basic start/stop and fault reset functions.

Q2: What commissioning steps are required when integrating the 150-F43NBD into a multi-motor MCC architecture? Commissioning the 150-F43NBD in a multi-motor environment involves three primary steps: (1) parameter configuration using Connected Components Workbench or the integral keypad to set ramp times, current limits, and protection thresholds; (2) DeviceNet node address assignment and network scan via RSNetWorx for DeviceNet if network communication is used; and (3) functional verification of all protection functions — overload, phase loss, jam, and ground fault — under controlled load conditions before full production startup. NANKMOS provides pre-shipment functional testing on all 150-F43NBD units to reduce on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the 150-F43NBD? The 12-Month Warranty covers all manufacturing defects, component failures, and performance deviations from published specifications under normal operating conditions, commencing from the date of shipment. NANKMOS maintains dedicated inventory of the 150-F43NBD and related SMC-Flex 150 series components to support long-term project requirements, MRO procurement, and emergency replacement scenarios. For extended supply agreements or multi-unit project sourcing, contact our engineering team at [email protected] or +86 18359268345 to discuss availability, lead times, and volume pricing.
