Allen-Bradley 150-F60NBRD Smart Motor Controller

Product Details

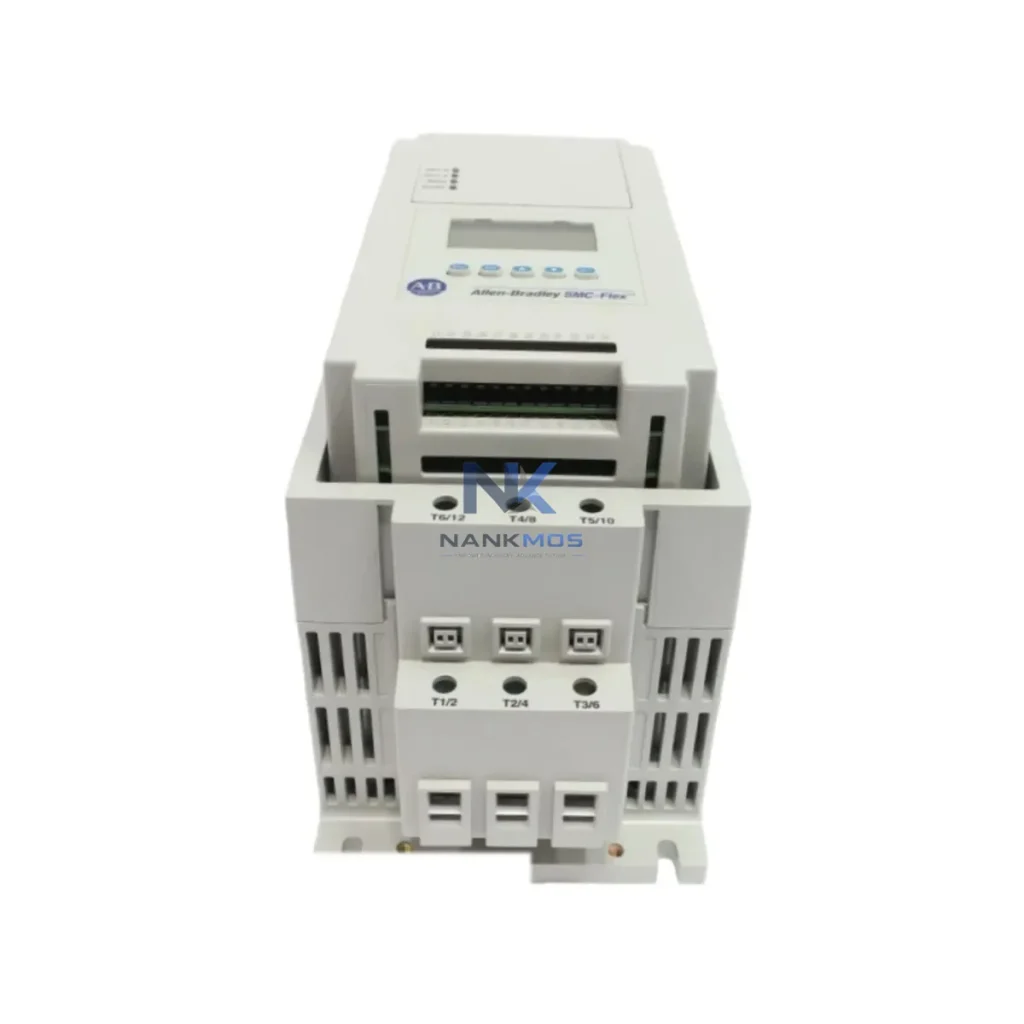

150-F60NBRD Product Description

The Allen-Bradley 150-F60NBRD is a high-performance SMC-Flex Smart Motor Controller engineered for seamless integration into modern smart factory environments. Rated at 60A with a built-in DeviceNet communication interface, this unit bridges the gap between field-level motor assets and upper-layer control systems — enabling real-time data exchange, remote diagnostics, and full SCADA/HMI visibility across your automation network.

In today's connected factory, motor control is no longer an isolated function. The 150-F60NBRD is designed to participate actively in the plant-wide data flow — from signal acquisition at the motor terminals, through protocol-level communication on the DeviceNet bus, all the way to visualization dashboards in FactoryTalk View or third-party SCADA platforms. Whether you are managing a single production line or orchestrating a multi-zone facility, this controller delivers the connectivity, protection, and diagnostic depth that modern industrial operations demand.

The 150-F60NBRD sits at the intersection of field-level motor control and plant-wide network intelligence. In a typical smart factory deployment, the data flow begins at the motor terminals — where the SMC-Flex captures real-time current draw, thermal status, and fault conditions. This data is transmitted upstream via the DeviceNet network to a 1756-DNB DeviceNet Scanner module installed in a ControlLogix chassis, where the PLC processes motor state information alongside inputs from remote I/O nodes such as the 1734 POINT I/O series.

From the ControlLogix controller, aggregated process data travels over EtherNet/IP to the plant network backbone — typically routed through an Allen-Bradley Stratix 5700 managed industrial Ethernet switch — ensuring deterministic, low-latency communication between the motor control layer and the supervisory layer. At the SCADA level, FactoryTalk View SE or compatible HMI platforms receive live motor parameters, enabling operators to monitor soft-start ramp profiles, current trends, and fault histories without leaving the control room.

For facilities integrating legacy equipment or multi-vendor systems, an EtherNet/IP-to-DeviceNet gateway such as the Anybus X-gateway or ProSoft Technology MVI56-DFNT module can bridge protocol boundaries — allowing the 150-F60NBRD to participate in broader OPC-UA or MQTT-based IIoT architectures. Edge computing nodes, such as the Allen-Bradley Logix 5000 Edge Controller or third-party edge gateways, can subscribe to motor data streams for local analytics, predictive maintenance algorithms, and anomaly detection before forwarding summarized insights to cloud dashboards.

Variable frequency drives such as the PowerFlex 525 or PowerFlex 755 operating on the same DeviceNet or EtherNet/IP segment can share network resources with the 150-F60NBRD, enabling coordinated motor management across conveyor systems, pump stations, and compressor banks. Sensor data from Allen-Bradley 871 series proximity sensors or Rockwell Automation vibration monitoring modules feeds into the same PLC scan cycle, creating a unified data picture that supports both real-time control and long-term asset health tracking.

The result is a complete, traceable data chain — from motor shaft to management dashboard — with the 150-F60NBRD serving as the intelligent, network-aware node that makes motor assets visible, controllable, and diagnosable from anywhere on the plant network.

Protocol Fragmentation: Many industrial sites run a mix of DeviceNet, Modbus RTU, PROFIBUS, and EtherNet/IP devices. The 150-F60NBRD's native DeviceNet interface eliminates the need for external protocol converters when integrating with Allen-Bradley PLC platforms, reducing wiring complexity and potential communication failure points.

Data Silos and Motor Blindness: Without network-connected motor controllers, motor faults are often discovered only after a production stoppage. The 150-F60NBRD continuously broadcasts motor current, thermal status, and fault codes to the PLC and SCADA system, transforming reactive maintenance into proactive monitoring.

Remote Monitoring Limitations: In multi-building or geographically distributed facilities, physical access to motor control panels is impractical. The DeviceNet connectivity of the 150-F60NBRD allows remote parameter adjustment, fault reset, and status polling from the SCADA workstation or remote HMI terminal — reducing site visit frequency and mean time to repair.

Production Line Transparency: By integrating motor run-time data into FactoryTalk Historian or equivalent data historians, plant managers gain visibility into motor utilization rates, energy consumption trends, and maintenance intervals — supporting OEE improvement initiatives and ISO 50001 energy management compliance.

Alarm Tracking and Escalation: The 150-F60NBRD supports configurable fault outputs that can trigger alarm notifications in SCADA systems, enabling tiered alarm management — from local panel indicators to email/SMS escalation through the plant's alarm management middleware.

System Scalability: As production capacity grows, additional 150-F60NBRD units can be added to the DeviceNet segment (up to 64 nodes per network) without architectural redesign, supporting phased factory expansion with minimal engineering overhead.

Q1: What is the maximum DeviceNet network length supported when using the 150-F60NBRD?DeviceNet supports a maximum trunk length of 500 meters at 125 kbps, 250 meters at 250 kbps, and 100 meters at 500 kbps. The 150-F60NBRD operates within these standard DeviceNet physical layer specifications. For longer distances, repeaters or media converters can extend the network reach without compromising data integrity.

Q2: Is the 150-F60NBRD compatible with ControlLogix and CompactLogix PLC platforms?Yes. The 150-F60NBRD communicates natively with Allen-Bradley ControlLogix (via 1756-DNB scanner) and CompactLogix (via 1769-SDN scanner) platforms. Add-On Instructions (AOIs) and pre-built EDS files are available to simplify PLC programming and reduce commissioning time.

Q3: Can the 150-F60NBRD be monitored and diagnosed remotely through a SCADA system?Yes. Once mapped through the DeviceNet scanner to the PLC data table, all motor parameters — including current, fault codes, thermal capacity used, and run status — are accessible to any SCADA or HMI platform connected to the PLC network, including FactoryTalk View SE, Wonderware, and Ignition SCADA.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 150-F60NBRD?Every 150-F60NBRD unit supplied by NANKMOS carries a 12-month warranty and undergoes functional testing prior to shipment, including communication interface verification and protection function checks. In-stock units are available for same-week dispatch to minimize production downtime.
