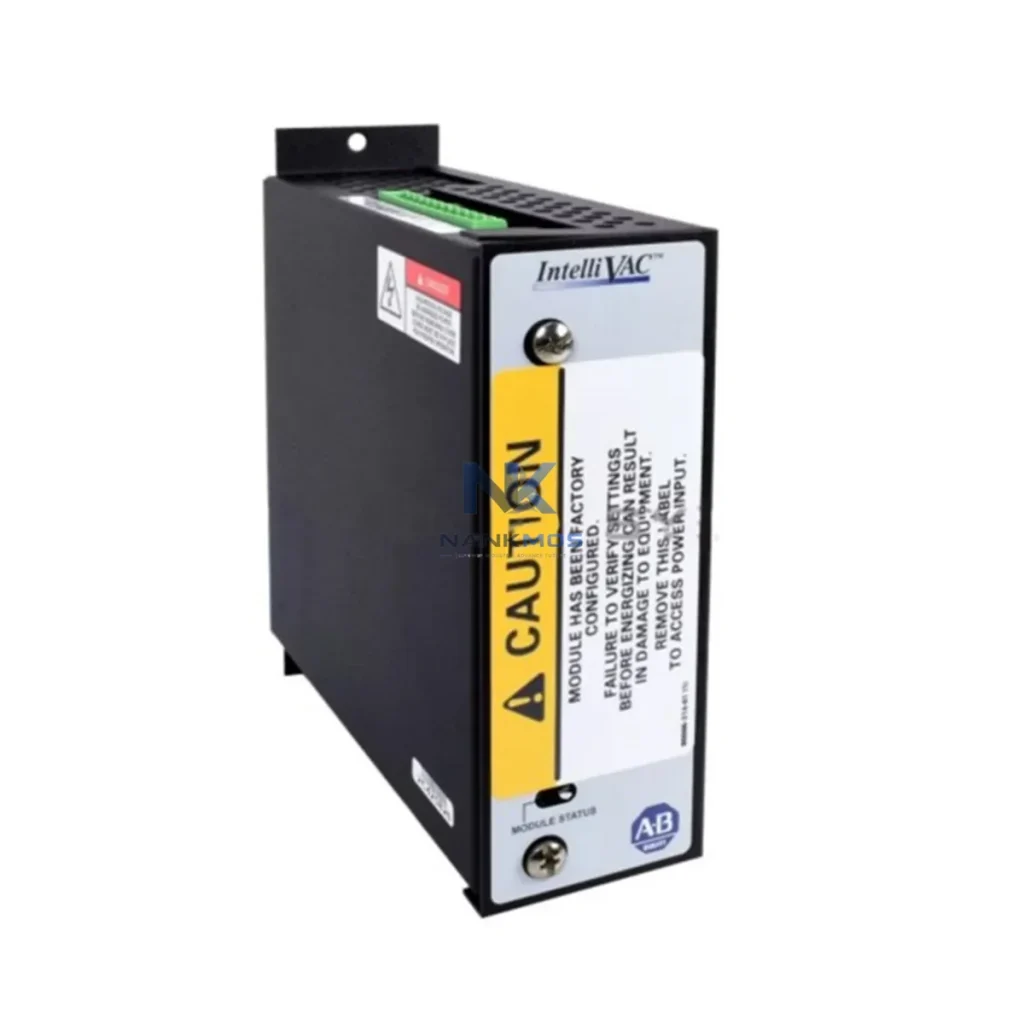

Allen-Bradley 1503VC-BMC5 IntelliVAC Control Module

Product Details

1503VC-BMC5 Product Description

The Allen-Bradley 1503VC-BMC5 is a factory-tested IntelliVAC Control Module engineered for medium-voltage (MV) drive architectures within Rockwell Automation's integrated control ecosystem. Designed to operate as a precision coordination layer between the PowerFlex MV drive platform and the broader plant automation infrastructure, the 1503VC-BMC5 delivers deterministic vacuum contactor control, real-time status feedback, and seamless integration with ControlLogix and CompactLogix controller families. Its modular architecture supports scalable deployment across multi-drive lineups, enabling consistent control behavior from single-motor starters to complex multi-motor process lines in demanding industrial environments.

As a dedicated base module controller within the 1503 MV controller family, the 1503VC-BMC5 manages the sequencing, protection, and diagnostic functions of vacuum contactors in medium-voltage motor control centers (MVCCs). It interfaces directly with the drive's I/O backplane, communicating contactor status, fault conditions, and operational readiness to the supervisory control layer via DeviceNet or ControlNet communication networks. This architecture ensures that every contactor operation is logged, verified, and synchronized with the plant-wide control strategy, reducing unplanned downtime and simplifying root-cause fault analysis.

The 1503VC-BMC5 is not a standalone component — it is a functional node within a layered automation architecture. In a typical PowerFlex MV drive lineup, the module operates alongside the 1503-LBD Isolation Module and 1503-SBD Bypass Module to form a complete medium-voltage motor control assembly. The supervisory control layer is typically handled by a ControlLogix L7x or L8x CPU communicating over a 1756-CN2 ControlNet Bridge Module or a 1756-DNB DeviceNet Scanner, both of which provide deterministic scan-cycle communication to the 1503VC-BMC5 for contactor command and status exchange.

Power distribution to the MV controller lineup is managed through 1606-XLP power supplies at the 24 VDC control level, ensuring stable auxiliary power for the base module controller and associated I/O. For analog signal conditioning and process variable feedback from motor-side sensors, 1756-IF16 analog input modules or 1756-IF8 modules are commonly deployed in the same ControlLogix chassis, feeding real-time current, temperature, and vibration data to the controller for predictive maintenance routines.

In multi-drive lineups, the 1503VC-BMC5 coordinates with PowerFlex 7000 drive control boards and 1503-MM Metering Modules to provide energy metering, power factor monitoring, and harmonic analysis at the motor bus level. For HMI integration, PanelView Plus 7 terminals connected via EtherNet/IP to the ControlLogix backplane provide operators with real-time contactor status, fault history, and drive operating parameters. Where redundancy is required in critical process applications, a 1756-RM2 ControlLogix Redundancy Module paired with a secondary chassis ensures seamless controller failover without interrupting vacuum contactor sequencing or drive operation.

Signal isolation between the MV control circuit and the low-voltage PLC I/O layer is achieved through Phoenix Contact MACX MCR signal isolators or equivalent DIN-rail mounted isolation barriers, protecting the ControlLogix I/O modules from transient voltages generated during contactor switching events. This layered signal architecture — from the vacuum contactor through the 1503VC-BMC5, across the DeviceNet/ControlNet network, into the ControlLogix CPU, and up to the SCADA or DCS supervisory layer — ensures complete system observability and deterministic control response across the full automation hierarchy.

Power Generation & Utilities: In thermal and hydroelectric power plants, the 1503VC-BMC5 controls medium-voltage vacuum contactors for boiler feed pump motors, cooling water pump drives, and induced draft fan starters. Its real-time fault logging and contactor wear monitoring capabilities reduce unplanned outages in critical auxiliary systems where motor availability directly impacts generation capacity.

Oil, Gas & Petrochemical: Refinery and pipeline compression stations deploy the 1503VC-BMC5 within PowerFlex MV lineups to manage compressor motor starts, pipeline pump sequencing, and gas injection drive control. The module's DeviceNet integration with ControlLogix controllers enables coordinated start-stop sequencing across multiple MV drives in accordance with process safety interlock requirements.

Mining & Mineral Processing: Conveyor drive systems, ball mill motors, and SAG mill starters in open-pit and underground mining operations rely on the 1503VC-BMC5 for reliable vacuum contactor control under high-cycle-rate conditions. The module's contactor wear monitoring function is particularly valuable in these applications, where contactor replacement scheduling can be integrated into the plant's predictive maintenance program.

Water & Wastewater Treatment: Municipal water treatment facilities use the 1503VC-BMC5 to control MV pump motors in raw water intake, high-service pumping, and effluent discharge systems. Integration with ControlLogix and SCADA platforms enables remote monitoring of contactor status and motor operating conditions, supporting unmanned or minimally staffed facility operation.

Metals & Steel Manufacturing: Rolling mill drives, ladle furnace electrode regulators, and continuous caster withdrawal drives in steel plants operate under demanding electrical conditions that require the precise contactor sequencing and protection coordination provided by the 1503VC-BMC5. Its compatibility with ControlNet-based ControlLogix architectures supports the high-speed, deterministic control required in these applications.

Q1: Is the 1503VC-BMC5 compatible with both DeviceNet and ControlNet communication architectures, and can it be integrated into an existing ControlLogix system without hardware modifications? A: Yes. The 1503VC-BMC5 supports both DeviceNet and ControlNet communication protocols, allowing it to be integrated into existing Rockwell Automation control architectures using standard 1756-DNB DeviceNet Scanner or 1756-CN2 ControlNet Bridge modules already installed in the ControlLogix chassis. No additional hardware modifications to the PLC backplane are required. The module is configured via RSLogix 5000 / Studio 5000 using standard Add-On Instructions (AOIs) provided by Rockwell Automation for the 1503 IntelliVAC family, ensuring consistent integration behavior across new and retrofit installations.

Q2: What diagnostic and predictive maintenance capabilities does the 1503VC-BMC5 provide, and how are fault records accessed for long-term maintenance planning? A: The 1503VC-BMC5 provides real-time contactor wear monitoring based on accumulated switching operations, contact erosion estimation, and trip history logging. Fault records — including overcurrent trips, contactor failure-to-close events, and communication faults — are stored in the module's non-volatile memory and accessible via the DeviceNet or ControlNet network using RSLogix 5000 diagnostic tools or through the plant SCADA system. This data supports condition-based maintenance scheduling, allowing maintenance teams to plan contactor replacements during scheduled outages rather than responding to unplanned failures.

Q3: What warranty and supply chain support is available for the 1503VC-BMC5, and what pre-shipment testing is performed? A: Every 1503VC-BMC5 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes functional verification testing prior to shipment, including communication interface checks, I/O signal verification, and firmware version confirmation. Units are sourced from verified supply channels and are inspected for physical condition, label integrity, and firmware compatibility before dispatch. Expedited shipping options are available for urgent maintenance requirements, and our technical team provides pre-sales application support to confirm compatibility with your specific PowerFlex MV lineup configuration and ControlLogix architecture version.
